ULTTY SKJ-CR021U - Bladeless Tower Fan and Air Purifier in one Manual

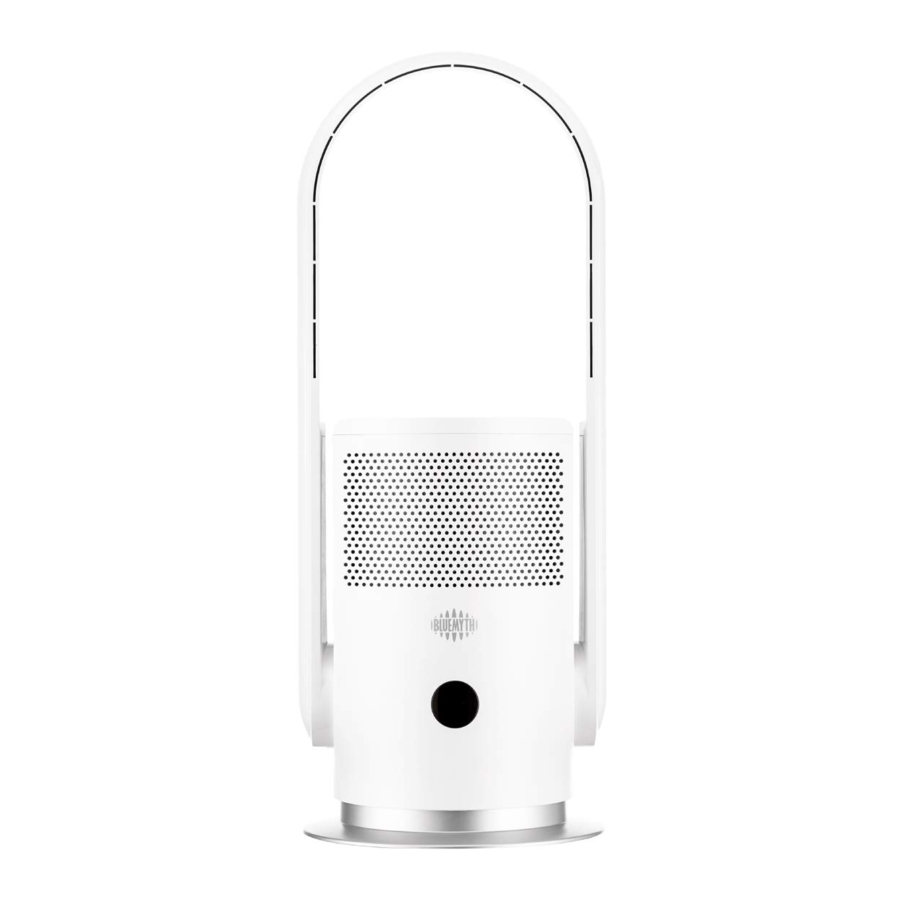

Product introduction

Product Specifications

Remote Control

Power button:
Turn the fan on and off

Max mode:
Maximum power Strong airflow

UV sterilization
Sterilization function

Swing:
Start and stop swing

Increase Airflow
Decrease Airflow
9speed levels to choose from

Sleep Timer
1to8 hours of timed shutdown

	The device can be switched on and off by pressing the "ON & OFF" button.
	Press the "strong wind mode" button on the remote control. The display will show H and the wind strength will increase. Press again to exit strong wind mode. (You can also exit the current mode by pressing the " + - "Exit button.)
	Press once to turn on UV sterilization, press again to turn off UV sterilization. UV sterilization will automatically shut down after 1 hour.
	Press the "Oscillation" button on the remote control to switch on the oscillating function. This fan can swing 80 ° left and right. Press this button again to end the shaking process.
	Press the "+" button on the remote control to increase the air volume. Press the "-" button to decrease the air volume There are 9-speed settings.
	Press the timer button on the remote control to set 1 to 8 hours. After the timer function is set, other functions can be used normally. When the device is turned off, the timing setting is also canceled

Remote Control

1. Battery replacement method: as shown in the picture.
   Please note the battery direction.

2. Battery:
   • Do not charge the battery
   • NOT a toy, out of reach of kids
   • If you are swallowed, see a doctor


The remote control should be pointed at the remote control signal receiver on the display to maximize the remote control signal.

Possible phenomenon

1. This fan may respond to the remote control of other devices.
2. If you use the remote control of this fan, other devices may respond.

This is due to the overlapping frequencies of the remote control. There is no quality problem in the product itself. To avoid misuse, keep the remote control away from other electrical devices during operation.

Host operation

• Air outlet setting
  Set the wind outlet after fan has stopped.
  Hold fan body with one hand and set the wind outlet 15 ° before and after.
• Switch on and off
  Connect the power supply, the LED display lights up and the machine goes into standby mode.
  Click the host's power button, the buzzer will beep once and the fan will start.
  Press and hold the power button for 2 seconds, the buzzer will beep twice and the fan will stop running after you release your hand.
• Set the air volume
  When the host is operating: Click the button to adjust the air volume from 1 to 9.
• Oscillation
  When the host is operating, press and hold the screentouch button for 1 second. The buzzer beep once and the fan starts to oscillating. Press and hold the screentouch button again for 1 second. The buzzer beep once and the fan stops oscillating.

Installation

• Please use the fan on a flat platform. Do not place the fan in an unstable place, such as an inclined or soft surface, to avoid damage or malfunctions caused by the fan tipping over.
• Avoid blocking the air inlet when using. Stay away from the curtains to avoid objects blocking the air inlet and the fan not working.
• Do not place any objects within 30 cm of the air outlet, otherwise the blower effect will be impaired.

Filter replacement

This machine is equipped with an air cleaning filter.
Before using the fan, the filter should be installed in the fan so that the air can be cleaned.

Installation and replacement method of air cleaning filter:

1. Turn the filter system top cover counterclockwise to unlock and remove the filter.

2. Disconnect the old filter from the top cover.

3. The new filter and top cover are attached and assembled with a buckle.

4. After assembling, put it back in the main unit and turn it clockwise to secure it.


Auto reminder of Filter Replacing

• UV sterilization function
  When the fan turns on the UV sterilization function,
  The UV lamp inside the fan can effectively kill white staphylococcus in the air.|


The fan has a memory function. After a total of 720 hours of operation, the display (as shown in the figure) lights up cycle indicator light when turned on, the buzzer sounds 5 times and the gear is displayed after 5 seconds.

After replacing the filter screen, the power button on the remote control device can clear the alarm for 5 seconds and the operating time is converted again.

Maintenance

• Before maintenance work, pull the mains plug out of the socket.

• Surface
  Gently wipe the fan surface with a soft, dry cloth If the surface of the fan is dirty, dilute it with a mild detergent and wipe the surface of the fan with a soft cloth. Then wipe them off with a dry, soft cloth.
• Air inlet & air outlet
  Use a soft brush or vacuum cleaner to clean the dust at the air inlet and outlet. If there is too much dust, this can affect the fan.
• Remote control
  Gently wipe the surface of the remote control with a soft, dry cloth. If it will not be used for a long time, please remove the button battery in the remote control.
• Power plug
  Please clean the power plug with a soft, dry cloth.
• Safekeeping
  1. After the fan has been cleaned, it can be stored in a plastic bag.
  2. Keep away from vibrations and electrical devices with cooling / heating function.
  3. Do not expose it to direct sunlight, hot and humid places.
  4. Keep out of the reach of kids.


Safety Warning

To avoid fire, electric shock, and injury, you must meet the following requirements. Otherwise, please follow the respective national and local electricity regulations.

1. Children, the elderly and people with disabilities or without experience should be looked after by a responsible person when using this product.
2. Please use a separate outlet according to the current/voltage of the fan. Do not use a multipurpose socket for simultaneous use with other electrical devices.
3. If the fan does not work due to a damaged power cord, turn off the power and ask a qualified person for repair.
4. Do not move the fan when you pull the plug out of the socket.
5. Do not pull out the plug by the cable. Pull out the plug and do not grip the cable.
6. Do not operate the fan with a damaged cable or connector. Please contact customer service to replace or repair the cable if the cable is damaged.
7. Do not stretch or energize the cable. Keep the cable away from the heat source.
8. Do not run the cable under carpets, do not cover it with cables or similar covers. Route the cable outside the traffic area to avoid tripping the cable.
9. Turn off all controls before pulling the plug and pull the plug out of the socket if you are not going to use the device for a long time.
10. Do not place any objects on the air inlet and outlet. Make sure that the ventilation openings are free of dust, lint, hair and other obstacles that could impair the air flow.
11. The fan should be set up dry on a horizontal platform and should not be near heat sources, corrosive air and moisture. The fan should be kept a distance of 150 mm around to ensure good air circulation.
12. Do not use the fan outdoors or on wet surface.
13. Do not immerse the fan, power cord, or plug in water or other liquids to avoid danger. The use of an extension cord is not recommended unless it has been tested by a qualified person.
14. Please do not use an air cleaner or similar product right next to a fan.
15. Do not use any cleaning agents or lubricants for this fan and pull out the power plug before cleaning, transporting and servicing the device.
