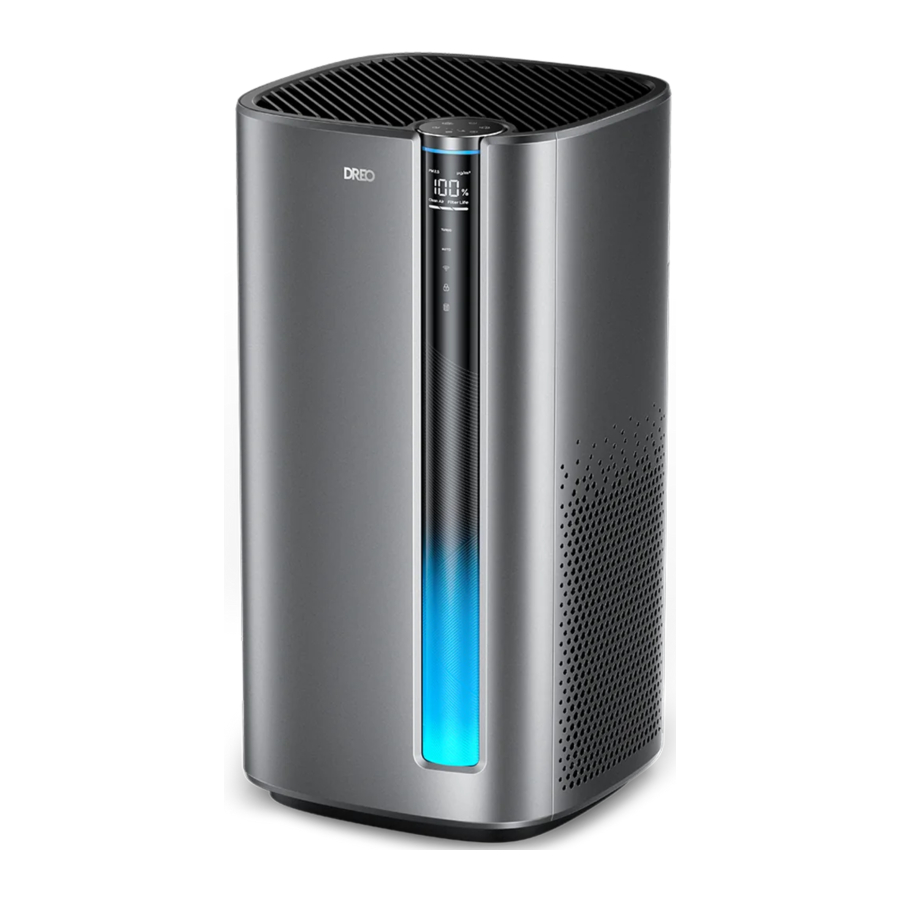

Dreo Macro Max S - Air Purifier Manual

Specifications

KNOWING YOUR AIR PURIFIER

Package Contents

About the Filter

The filter uses 3-stege filtration system which Is composed ot a pre-filter. a H13 HEPA filter, and a high-efficiency activated carbon filter.

1. Pre-Filter
2. H13 HEPA Filter
3. High Efficiency Activated Carbon Filter

1.
   To maintain the optimal performance, please replace the filter every 6-8 months.
2. Keep away from water and humid areas. Moisture will allow mold to grow.

Getting the Most Out of Your Air Purifier

1. Keep the doors and windows closed when the air purifier is on.
2. Do not block the air openings and keep away from curtains or walls.
3. Maintain and replace the filters on a regular basis for maximum efficiency.
4. If the indoor air quality is bad or you would like to speed up the purification process, it's recommended to activate Turbo Mode, then switch to Auto or other modes after the air quality improves.

CONNECTING TO YOUR AIR PURIFIER

Before connecting the appliance to your mobile device, please scan the QR code on the left or go to the app store and search "Dreo" then select and download the app.

You can use the Dreo app to connect your smart air purifier to Amazon Alexa or Google Assistant. Please follow the in-app instructions to set up your voice assistant.
NOTE: You must create o Dreo account to access voice assistants.

1. Launch Dreo and sign in or create account by fallowing in-app instructions.
2. Enable Bluetooth an your mobile device and plug In your air purifier
3. Tap Add Device and select the air purifier you want to link.
4. Hold the for 5 seconds ta start WiFi connection settings.
   (TIP: The WiFi indicator will keep flashing when pairing.)
5. You're now ready to control the appliance on your app.
   (TIP: To restart connection settings, hold the WiFi button again far 5 seconds.)

USING YOUR AIR PURIFIER

Getting Started

Locate the back handle and softly pull to remove the back cover of your air purifier.

Remove the filter from its plastic packaging.

Put the filter back in position by making sure both straps are pointing outwards.

Make sure the base of the filter withing the marked guidelines, then close the air purifier back lid.

Place the air purifier on a flat, stable and clear surface, plug the air purifier into the power outlet.

After plugging your purifier, the air quality sensor will warm-up for 10 seconds, if turned on during this phase, lights will cycle and the screen will show a warm-up countdown. You can will operate the purifier during this phase.

Control Panel

Power Button
Press to turn the power on or off. Long press 10 seconds to reset factory setting.

Sleep Mode Button|
Press to active the Sleep Mode. Pressing Auto Mode or Fan Speed Mode buttons will deactivate Sleep Mode.

Time Button/WiFi Connection Button (5s)
Set a time the air purifier to turn on/off from 1H to 12H. The time is shown on the Led Display. Long press 5 seconds to start WiFi connection setting.

Display Info/Filter Reset (5s)
Press to change the information shown on the led display between clean air, PM 2.5 concentration, ot filter life. Long press 5 seconds to reset the filter change reminder.

Auto Mode
Select to purify and adjust fan speed automatically based on air quality conditions.

Fan Speed/Turbo Mode
Each press will change the speed from level 1 to 3, the activate Turbo Mode, when Turbo Mode is on, the next press will cycle back to level 1

Note: Turbo mode may be louder then other lower fan speed settings. We recommend its use only when the air quality is extremely poor.

LED Display

Constantly monitor the air quality in your room with the comprehensive and intuitive monitor display.

Note: You can turn off the LED display and lights in the Dreo App.

Air Quality Indicator Light

Note: The Air Quality Sensor detects PM 2.5 particles but cannot detect odors. If you feel that the indoor air odor is relatively strong, it is recommended to manually open the highest fan speed.

General Operations

1. Plug the air purifier into an electrical outlet.

2. Touch the power button to tum on the air purifier.

3. Choose your desired working mode.

   Fan Speed / Turbo Mode
   Touch repeatedly to select between tan speed levels 1 to 3. or Turbo Mode. The display will indicate the fan speed as below:

   Note: Turbo indicator light remain on while turbo mode is activated.

   Sleep Mode
   In Sleep Mode fan speed will be set to the lowest rate.
   All light indicators will turn off after 5 seconds.

   Auto Mode
   Fan speed will adjust automatically based on the air quality level.
4. Touch the power button to turn off the air purifier.


Additional Features

• When child lock is turned on, all the buttons on the air purifier will be lacked.
• This feature is only available in the Dreo App.

• When the air purifier is ON/OFF, touch the timer button repeatedly to set a time (from 1H up to 121-0 for the air purifier to turn OFF/ON.

If the air purifier is turned OFF or disconnected from power, it will operate under the previous settings (except the timer setting) when it is turned ON again.

• In low light conditions, the LED lights will turn off.
• You can press any button to wake up the air purifier.

Note: To deactivate Light detection go to your settings in the Oreo App.

To Protect your safety, whenever the back cover gets opened or isn't properly closed the purifier will automatically shut-off.

CLEANING AND MAINTENANCE

Replacing the Filter

The filter life is measured by the air purifier's algorithm based on the operating mode, fan speed, run time, and indoor air quality. It is recommended to replace the filter every 6-8 months or when the filter change reminder alerts.

1. The Filter Change Reminder will flash when the filter needs to be replaced. Turn off and unplug the purifier.

2. Locate the back handle and softly pull it to remove the back cover of your air purifier.

3. Pull the old filter out from the straps. Properly dispose the old filter after removing it from the purifier.

4. Remove the plastic wrap of your new filter then carefully place it within the purifier. Make sure both straps are pointing outwards and the filter is within the marked guidelines before closing the back cover.

5. Plug in the air purifier. Long press the button for a 5 seconds (until hearing the beep) to reset the filter change reminder.


Note: you can also reset the filter change reminder directly from the Oreo App.

Cleaning the Inside & Outside

1. Unplug the air purifier before any cleaning end maintenance.

2. Remove the filter and clean the inside with a dust vacuum.

3. Wipe clean the housing with a dry, soft, non-abrasive cloth.

4. For optimal use, the outer ore-filter can be cleaned with a soft, dry brush once every 2-4 weeks.

5. It is recommended to clean the AQ sensor on the back with a dust vacuum at least every three months.


TROUBLESHOOTING

Related to the Filter

Where can I buy a new filter?	Please purchase from Dreo official website: www.dreo.com.
I changed the filter, but the Filter Change Reminder is still on.	The Filter Change Reminder will not automatically reset. Please press and hold the Filter Reset button to reset the reminder, the indicator will turn off after reset.
The Filter Change Reminder has not turned on for a long period of time.	There are several factors that can impact the filter life, including the indoor air quality level, length of operation and particle density in the air. If your room has a better air quality level and / or you don't use your air purifier often, the reminder will take longer to light up.
