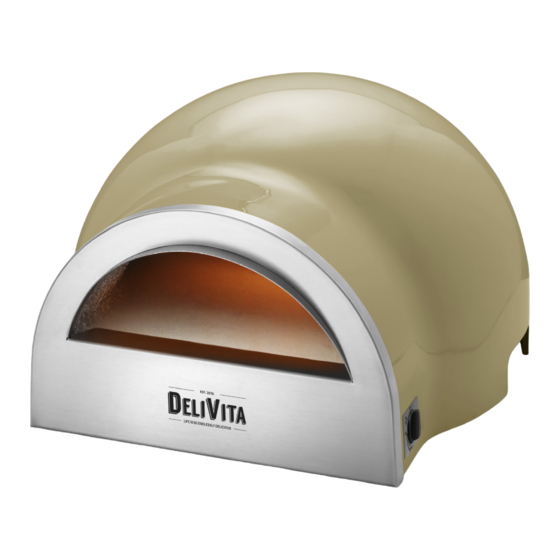

- Page 1 Create Your Finest Moments With Delivita DELIVITA ECO GAS INSTALLATION AND INSTRUCTIONS...
-
Page 3: Table Of Contents
WELCOME TO THE WORLD OF DELIVITA INSPIRED BY ITALY AND HANDCRAFTED IN YORKSHIRE Thank you for choosing our DeliVita Eco Gas Oven, we hope it brings you years of fun-filled delicious meals that can be enjoyed by you, your family and friends. Please read our guidelines before using your DeliVita. -
Page 4: What's In The Box
1. WHAT’S IN THE BOX? Please check all the items in the box against this list: • Your DeliVita Oven • How to Guide • Recipe Book • Any accessories you have purchased • Gas Burner Cover Please note: if you have ordered the Fold Away Oven Stand, Dough To Go or other accessories, these may be dispatched separately. - Page 5 550°C. • ENSURE all accessories, tools and materials used in the oven are appropriate for high temperatures. All DeliVita accessories have been designed to work with the oven and can be purchased on our website.
- Page 6 FIRE Fire is generally caused by a few issues and can be easily prevented. Build-up of grease and fat, improper gas connection, high winds. Along with cleaning, maintenance of the appliance should aways be a consideration for regular attention. If a fire does occur, turn off the gas at the bottle and or the on / off valve as required. Use a fire extinguisher on any flame or heat source that continues to burn, the extinguisher you select should depend on you application and situation.
- Page 7 EXCLUSION OF LIABILITY Correct and safe use of the DeliVita oven is the responsibility of the owner/user. Neither the manufacturer, DeliVita Ltd, nor its distributors can be held liable for any personal injury, damage, or loss incurred caused by the operation of the DeliVita oven and other DeliVita products.
- Page 8 TECHNICAL DETAILS Country of use: Country Natural Austria I2H, G20 at 20 mbar Belgium I2E+, G20/G25 at 20/25 mbar Bulgaria I2H, G20 at 20 mbar Switzerland I2H, G20 at 20 mbar Cyprus I2H, G20 at 20 mbar Czech Republic I2H, G20 at 20 mbar Germany I2ELL, G25 at 20 mbar I2E, G20 at 20 mbar...
- Page 9 Country Austria I3P(50),G31 at 50 mbar; I3B/P(50),G30/G31 at 50 mbar Belgium I3+,G31/G31 at 28/37 mbar; I3P(37),G31 at 37 mbar; I3B/P(30),G30/G31 at 30 mbar Bulgaria I3B/P(30),G30/G31 at 30 mbar Switzerland I3P(50),G31 at 50 mbar; I3+,G31/G31 at 28/37 mbar; I3P(37),G31 at 37 mbar; I3B/P(50),G30/G31 at 50 mbar Cyprus I3+,G31/G31 at 28/37 mbar;...
- Page 10 Norway I3B/P(30), G30/G31 at 30 mbar Poland I3P(37),G31 at 37 mbar Portugal I3+,G31/G31 at 28/37 mbar; I3P(37),G31 at 37 mbar Romania I3P(30),G31 at 30 mbar; I3B/P(30),G30/G31 at 30 mbar Sweden I3B/P(30), G30/G31 at 30 mbar Slovenia I3+,G31/G31 at 28/37 mbar; I3P(37),G31 at 37 mbar; I3B/P(30), G30/G31 at 30 mbar Slovakia I3P(50),G31 at 50 mbar;...
- Page 11 G25/G25.3 G20/G25 I2L/ I2EK G20/G25 GAS TYPE I2H,I2E I2E+ I2(43.46 -45.3 I2ELL MJ/M3 (0°C)) Supply 20 / 25 mbar Pressure Nominal Heat 4.7 / 4.2 Input Gross (Hs) Nominal Heat Input 4.2 / 3.8 Nett (Hi) 0.44 0.44 / 0.48 0.48 0.44 Consumption...
-
Page 12: Installation
3. INSTALLATION Remove the packaging and use the side handles to lift the oven out of the box. Place your oven onto a stable surface; it can be positioned on the Fold Away Oven Stand or a solid hard level surface (such as a wooden table). The Fold Away Oven Stand or table must be situated on a solid and even surface and must be able to hold the oven weight of around 30kg. - Page 13 CONNECTION FOR LPG Parts required (not included): • Gas Bottle 13 – 47 kg recommended • Pressure regulator - Gas G 30 28-30 mbar • Gas G 31 30 – 37 mbar • Flexible Hose ؽ”, 1.5m (maximum). Use only hoses that are certified to BS:3212, BS:EN:1763-1 or BS:EN:16436-1 or stainless steel convoluted hoses certified to EN:10380 as LPG attacks and erodes...
- Page 14 The natural gas supply must be made with Ø1/2” (minimum) galvanized pipe, copper pipe or MDPE pipe. It is recommended that a Leisure Point is installed close to the site of the DeliVita, this Leisure Point should ideally have a quick release bayonet fitting.
-
Page 15: User Instructions
4. USER INSTRUCTIONS - GAS OPERATION Before use, ensure that the oven and burner are free from blockages (e.g. food residue and insect nests – Ants, Bees, Wasps etc.). If an insect is found, they can be dangerous and must be cleaned out thoroughly. Please refer to Care of the oven for guidance. Should the appliance go out for any reason, no re-ignition should be attempted within 5 minutes. - Page 16 Isolation Valve off for natural gas. CURING THE OVEN Your DeliVita oven is made from heat-resistant clay, the water used to form the clay must be slowly dried out before your oven can be used. This process is called curing.
- Page 17 Please note: During the first curing session, you may notice white smoke or a burning smell coming from the burner unit. This is due to excess heat in the burner unit while curing. Please note that this is a normal process. To view ‘How to Cure you Eco Gas oven’...
- Page 18 To cook in your DeliVita Eco Gas simply bring the oven to around its maximum temperature (500ºc). The ideal cooking temperature will depend on what you are wanting to cook. For tips see our website or YouTube videos. You can use your DeliVita to bake, roast, smoke, slow cook, and grill. Pizza Maintain a stable cooking temperature.
-
Page 19: Delivita Equipment And Accessories
Eco Door - helps get the oven to temperature quicker and is ideal for slow cooking. Temperature Gun - The digital infrared thermometer -50°C~420°C / -58°F~788°F.. Non-contact laser temperature gun DeliVita sell a range of accessories specifically designed for our eco oven, these include: • Professional Pizza Peel •... - Page 20 For deeper scratches, we recommend using T-Cut from your local car accessory store, then give it a quick polish. Once cooled down, for a perfect finish, cover your DeliVita with a DeliVita Oven Cover. WARNING: Do not use water inside the oven as this could permanently damage the interior components.
- Page 21 Q7. IS THE OVEN WEATHERPROOF? The oven is shower-proof; however, persistent wetting will affect the oven and moisture will be absorbed. When not in use, protect the oven with the DeliVita Oven Cover. Q8. IF I HAVEN’T USED MY OVEN FOR A WHILE OR IT’S WET,...
- Page 22 Q12. CAN I USE THE OVEN ALL YEAR ROUND? Absolutely. They are perfect for all seasons, warm and snug in the cooler months, and great for all those summer parties. For our full FAQs visit www.delivita.com Q13 WHAT HAPPENS IF THE OVEN KEEPS GOING OUT? The majority of reasons for it going out is wind;...
- Page 23 We hope you enjoy your starter recipe book that we have left for you in your welcome pack. If you would like to experience even more wonderful dishes, please use the link below to join our DeliVita family Facebook page, where like- minded foodies get together to share their topics and all things DeliVita.
- Page 24 Keep updated and share your DeliVita journey @HelloDelivita @DeliVitaLife @HelloDeliVita DeliVita www.delivita.com +44 (0)1484 608989 hello@delivita.com Copyright DeliVita Ltd. All rights reserved. We’d like to thank everyone who contributed to this book.
