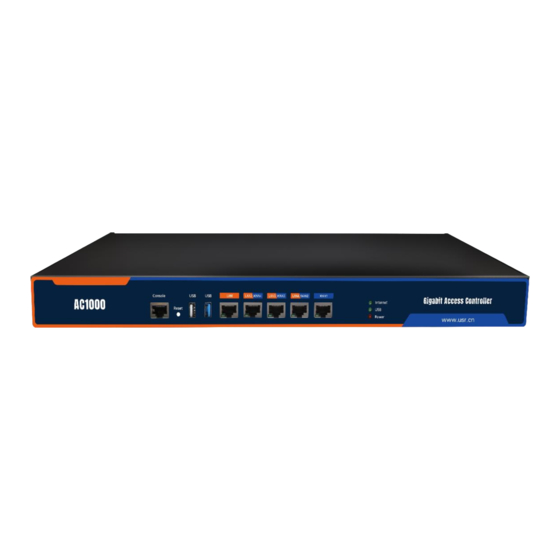

- Page 1 AC1000 User Manual AP Controller User Manual AC1000 V2.0 Be Honest & Do Best Your Trustworthy Smart Industrial IoT Partner pusr.com...
-
Page 2: Table Of Contents
3.2.1. AP list ............................ - 10 - 3.2.2. AP settings ..........................- 11 - 3.2.3. AP information ........................- 12 - 3.3. AC management via PUSR cloud ...................... - 13 - 3.3.1. AP import ..........................- 13 - 3.3.2. AP list ............................ - 14 - 3.3.3. - Page 3 AC1000 User Manual 3.8.2. Backup ..........................- 25 - 3.8.3. Time & Date ........................... - 25 - 3.8.4. Reboot ........................... - 26 - 3.8.5. Reset to factory setting ......................- 26 - 3.9. System log ............................- 26 - 4. Warranty ..............................- 27 - 5.
-
Page 4: Introduction
1. Introduction 1.1. Overview The AC1000 series features a controller with localized small to medium-sized LAN centralized configuration, management, and status monitoring capabilities, along with integrated unified management functionality for wired devices. It supports both AC functions, such as wireless AP management, wireless internet control, wireless... -
Page 5: Specification
HTTP Web based GUI Local or online Firmware upgrade Management Configuration Backup / Restore Centrally managed through the PUSR cloud Manage up to 200 access points Manage up to100 end users AP Management Centrally and remotely to manage/configure wireless AP View user’s status... -
Page 6: Button & Indicator
AC1000 User Manual IP binding Port mapping Others WAN/LAN switching, and multi-WAN settings Multiple services: HTTP, NAT, QOS, etc OpenWrt system customization Physical Parameters Dimension 110*95*25mm 440*250*44.5mm Desktop, wall mounting, DIN rail Desktop/1U Rack Mount Installation mounting Operating 0℃ ~ 45℃... -
Page 7: Get Started
AC1000 User Manual Figure 1. Dimension of AC1000 2. Get Started 2.1. Login setting webpage Connect PC to the LAN port of the AP controller, and set the IP to static IP, such as 192.168.1.101. The IP should be on the same network segment as the AP device. -
Page 8: Briefs Introduce Of The Webpage
The left column is divided into 9 menu pages: System status, mobile network, Internet accessing settings, WLAN settings, LAN settings, Login settings, client list, upgrade and system log. There are three auxiliary options in the upper right corner: PUSR cloud, Luci, language, as shown in the following figure. -
Page 9: Configuration And Parameter Details
AC1000 User Manual Figure 4. Function page 3. Configuration and parameter details 3.1. System status This interface displays the basic information of the router, including 5 major blocks: system information, WAN port information, LAN port information, AP information and cloud AP information (Details will be introduced later). -
Page 10: Ac Management
AC1000 User Manual Figure 5. System information（AP） 3.2. AC management This function is used to manage AP devices connected to the same LAN. The interface contains three sub- menu bars: AP List, AP Settings, and AP Details. 3.2.1. AP list This interface is used to display the information of AP devices that connected within the LAN. -
Page 11: Ap Settings
AC1000 User Manual Figure 6. AP list On this page, users can click on the IP of the connected AP device in the AP list to jump to the setting page, as shown in the figure. Figure 7. AP list 3.2.2. -
Page 12: Ap Information
AC1000 User Manual Table 3. Items Description How to operate Settings Set the SSID and password of the Check target device—>Enter SSID & WiFi. password→Confirm Reboot Reboot the AP device Check the target device→ Confirm Reset to factory Reset the AP to factory defaults Check the target device→... -
Page 13: Ac Management Via Pusr Cloud
Import the SN code and cloud password of the AP device on this page to enable the AC to remotely manage the AP through the PUSR cloud. There are two ways to import: manual adding and file import, as shown in the figure below. -
Page 14: Ap List
AC1000 User Manual Figure 11. AP import Figure 12. Context of imported file 3.3.2. AP list This page displays the AP devices added on the cloud platform. The detailed information is as shown in the following figure. Figure 13. AP list pusr.com... -
Page 15: Ap Settings
AC1000 User Manual 3.3.3. AP settings The settings for AP mainly include 7 actions: settings, restart, restore factory settings, upgrade, delete (offline AP), flash LED, export SN and cloud password, as shown in the figure. Figure 14. AP settings The detailed information of actions is listed in the following table. -
Page 16: Internet Accessing Settings
AC1000 User Manual following figure. Figure 15. AP detail 3.4. Internet accessing settings There are 4 parts included in this function block: Mode Selecting, Network Port Settings, WAN Settings, IP Mapping. 3.4.1. Mode selecting There are 2 modes that can be selected: Router mode and AP mode. -
Page 17: Ethernet Port Setting
AC1000 User Manual Figure 16. Mode selecting 3.4.2. Ethernet port setting In this function block, users can implement WAN/LAN switching, and can monitor whether the Ethernet port is connected to a device. Figure 17. Ethernet port setting 3.4.3. WAN settings On this page, users can set parameters of WAN port to get access to Internet, including DHCP client, static IP, and PPPoE. - Page 18 AC1000 User Manual can connect to the WAN host through the internal IP. Figure 19. IP mapping Specific steps: 1> Connect the device to the LAN port of AC200/1000, 2> Parameters of the IP mapping is listed in the following table, Table 5.
-
Page 19: Port Mapping
AC1000 User Manual Figure 20. Topology 4> To check whether the mapped IP can be pinged (if the access device is a router, you can try to use the WAN port mapped IP to access the WEB server). Figure 21. Accessing webpage via mapped IP 3.4.5. - Page 20 AC1000 User Manual Figure 22. WAN settings Figure 23. IP/Port mapping Specific steps： 1> Connect the device to the LAN port of AC200/1000, pusr.com - 20 -...
-
Page 21: Lan Network Settings
AC1000 User Manual 2> Parameters of the port mapping is listed in the following table, Table 6. Items Description Device IP The IP of the device connected to the LAN port. PC IP The IP of PC connected to the WAN port of AC200/1000. -
Page 22: Login Settings
AC1000 User Manual After enabling DHCP, the AC200/1000 can assign IP addresses to terminal DHCP service devices. The IP addresses start from the “initial value” and can be allocated up to the “maximum number“set. 3.6. Login settings This function is used to change the login password of a webpage. -
Page 23: Software Upgrading
AC1000 User Manual IP Binding: Enter the IP address and MAC address of the device that needs to be bound, then click on <Add>. Click on <Refresh> to view the devices that have already been bound. Figure 28. IP binding 3.8. - Page 24 AC1000 User Manual Figure 30. Firmware upgrading online Figure 31. Firmware upgrading online pusr.com - 24 -...
-
Page 25: Backup
AC1000 User Manual 3.8.2. Backup This function is used to back up the current parameters of AP device, and it also allows the import of previously saved parameters, making it convenient for users to configure settings. Figure 32. Configuration backup Table 8. -
Page 26: Reboot
AC1000 User Manual 3.8.4. Reboot Reboot the AP device. Figure 34. Reboot 3.8.5. Reset to factory setting Reset to factory settings. Figure 35. Reset to factory settings 3.9. System log To check the system log. pusr.com - 26 -... -
Page 27: Warranty
AC1000 User Manual Figure 36. System log 4. Warranty 5. Contact Us Jinan USR IOT Technology Limited Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, Shandong, China Official website:https://www.pusr.com Official shop:https://shop.usriot.com Technical support: http://h.usriot.com/... -
Page 28: Revision History
AC1000 User Manual CONDITIONS AS SPECIFIED IN THE LICENSE AGREEMENT FOR THIS PRODUCT, USR IoT AND/OR ITS AFFILIATES ASSUME NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON‐INFRINGEMENT. - Page 29 AC1000 User Manual Official Website: www.pusr.com Official Shop: shop.usriot.com Technical Support: h.usriot.com Inquiry Email: inquiry@usriot.com Skype & WhatsApp: +86 13405313834 关注有人微信公众号 登录商城快速下单 Click to view more: Product Catalog & Facebook & Youtube pusr.com...
