- Page 1 AC200 User Manual AP Controller User Manual (Cost effective) AC200 V2.0 Be Honest & Do Best Your Trustworthy Smart Industrial IoT Partner pusr.com...
-
Page 2: Table Of Contents
3.2.1. AP list ............................ - 11 - 3.2.2. AP settings ..........................- 11 - 3.2.3. AP information ........................- 13 - 3.3. AC management via PUSR cloud ...................... - 13 - 3.3.1. AP import ..........................- 14 - 3.3.2. AP list ............................ - 14 - 3.3.3. - Page 3 AC200 User Manual 3.8.3. Time & Date ........................... - 27 - 3.8.4. Reboot ........................... - 27 - 3.8.5. Reset to factory setting ......................- 27 - 3.9. System log ............................- 28 - 4. Warranty ..............................- 28 - 5. Contact Us ..............................- 28 - 6.
-
Page 4: Introduction

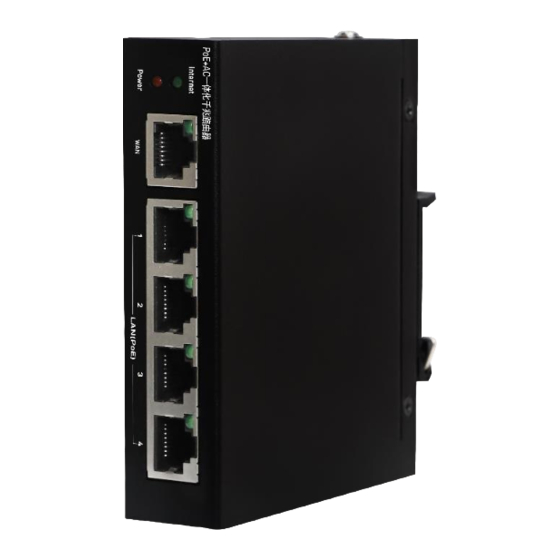

1.1. Overview AC200 is the new AP controller lunched by PUSR. It can be used to manage and control wireless access points AP and wireless users. It can realize remote centralized monitoring of the working status of APs, remote delivery of configurations or policies, remotely upgrade APs, etc., and control user access. -
Page 5: Specification
HTTP Web based GUI Local or online Firmware upgrade Management Configuration Backup / Restore Centrally managed through the PUSR cloud Manage up to 200 access points Manage up to100 end users AP Management Centrally and remotely to manage/configure wireless AP View user’s status... -
Page 6: Dimension
AC200 User Manual Physical Parameters Dimension 110*95*25mm 440*250*44.5mm Desktop, wall mounting, DIN rail Desktop/1U Rack Mount Installation mounting Operating 0℃ ~ 45℃ Temperature Storage -40℃ ~ 75℃ Temperature Operating Humidity 5 ~ 95 %(non-condensing) 1.4. Button & Indicator Table 1. Button & Indicator... -
Page 7: Get Started
AC200 User Manual Figure 1. Dimension of AC200 2. Get Started 2.1. Login setting page Connect PC to the LAN port of the AP controller, and set the IP to static IP, such as 192.168.10.101. The IP should be on the same network segment as the AP controller. -
Page 8: Briefs Introduce Of The Webpage
AC200 User Manual Figure 3. Overview of function 2.2. Briefs introduce of the webpage The left column is divided into 9 menu pages: System Status、System Status、Cloud AC、Network Settings、 Network Settings、Network Settings、Network Settings、Network Settings、System Log. There are three auxiliary options in the upper right corner: Luci、Language、Logout, as shown in the following figure. -
Page 9: Configuration And Parameter Details
AC200 User Manual Figure 4. Function menu 3. Configuration and parameter details 3.1. System status This interface displays the basic information of the router, including 5 major blocks: system information, WAN port information, LAN port information, AP information and cloud AP information (Details will be introduced later). - Page 10 AC200 User Manual Figure 5. System information（AP） Figure 6. System information（Router） pusr.com - 10 -...
-
Page 11: Ac Management
AC200 User Manual 3.2. AC management This function is used to manage AP devices connected to the same LAN. The interface contains three sub- menu bars: AP List, AP Settings, and AP Details. 3.2.1. AP list This interface is used to display the information of AP devices that connected within the LAN. The detailed information is shown in the following figure. - Page 12 AC200 User Manual Figure 9. AP settings The detailed information of actions is listed in the following table. Items Description How to operate Settings Set the SSID and password of the WiFi. Check target device—>Enter SSID & password→Confirm Reboot Reboot the AP device Check the target device→...
-
Page 13: Ap Information
3.3. AC management via PUSR cloud This function is used to manage AP devices connected to PUSR cloud(the AP devices need to be connected to the Internet). You need to import the SN code and cloud password of the corresponding device. It contains four sub-menu bars: AP list, AP settings, AP details, and AP import. -
Page 14: Ap Import
Import the SN code and cloud password of the AP device on this page to enable the AC to remotely manage the AP through the PUSR cloud. There are two ways to import: manual adding and file import, as shown in the figure below. -
Page 15: Ap Settings
AC200 User Manual Figure 14. AP list 3.3.3. AP settings The settings for AP mainly include 7 actions: settings, restart, restore factory settings, upgrade, delete (offline AP), flash LED, export SN and cloud password, as shown in the figure. Figure 15. AP settings The detailed information of actions is listed in the following table. -
Page 16: Ap Information
AC200 User Manual defaults Upgrade Upgrade the firmware of AP Check target device→ select firmware→Confirm Delete(Offline Delete offline AP device Check the target device→ Confirm Changing Change device LED light status Check target device→click “Switch”→ status Confirm 3.3.4. AP information On this page, users can view the detailed information of the AP device such as model, MAC, version, etc. -
Page 17: Mode Selecting
AC200 User Manual 3.4.1. Mode selecting There are 2 modes that can be selected: Router mode and AP mode. Router mode: In this mode, the WAN port supports DHCP client, static IP, PPPoE. For LAN port, it support DHCP service to assign IP addresses to terminal network devices. -
Page 18: Ip Mapping
WAN host through the internal IP. Figure 20. IP mapping Specific steps: 1> Connect the device to the LAN port of AC200, 2> Parameters of the IP mapping is listed in the following table, Table 3. -
Page 19: Port Mapping
Should be in the same segment of the device IP. 3> Set the IP of PC to the same network segment as the mapped WAN port IP and connect to the WAN port of AC200. Hardware connection is like the following: Figure 21. Topology 4>... - Page 20 AC200 User Manual disable IP mapping. The port can be a number or a range, such as 23, 1-80, etc. Adding or deleting takes effect immediately. It is possible to access the corresponding LAN devices through the WAN IP and port. The WAN IP, which is also the access IP, can be set as a static IP or automatically obtained from the upper-layer router.
- Page 21 Port A single port or a range of ports. 3> Set the PC's IP to 192.168.30.10, which is in the same subnet as the AC200 WAN port, and connect the PC to the AC200's WAN port. 4> Map port 22 or 23 to check if it's possible to use SSH or telnet to log into the device by accessing the IP.
-
Page 22: Lan Network Settings
AC200 User Manual 3.5. LAN network settings This function block is used to set the LAN IP address of the AC200, with the setting options as shown in the following diagram, and the configuration instructions as in Table 3. Figure 26. LAN settings Table 5. -
Page 23: Client List
AC200 User Manual Figure 27. Login settings 3.7. Client list Client list has two submenus: DHCP List and IP Binding. DHCP List: Clicking on “refresh” button will display the information of computers that have obtained IP addresses through the router's DHCP service, as shown in the following figure. -
Page 24: Software Upgrading
AC200 User Manual Figure 29. IP binding 3.8. Software upgrading This functional block includes five submenus: [Firmware Upgrade], [Backup/Restore Configuration], [Date/Time], [Restart], and [Restore Factory Settings]. 3.8.1. Firmware upgrading Select firmware file-> Click upgrade Figure 30. Upgrade firmware pusr.com - 24 -... - Page 25 AC200 User Manual Figure 31. Downloading firmware pusr.com - 25 -...
-
Page 26: Backup
AC200 User Manual Figure 32. Online upgrading 3.8.2. Backup This function is used to back up the current parameters of AC200, and it also allows the import of previously saved parameters, making it convenient for users to configure settings. Figure 33. Backup pusr.com... -
Page 27: Time & Date
Click <Browse> to select the configuration file. Click <Import Configuration>, and in the Import backup file prompt box, click <OK> to upload the settings to AC200 and restart. 3.8.3. Time & Date Set the time and date of the AC200. -
Page 28: System Log
AC200 User Manual Figure 36. Reset to factory settings 3.9. System log To check the system log. Figure 37. System log 4. Warranty 5. Contact Us Jinan USR IOT Technology Limited Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, pusr.com... -
Page 29: Disclaimer
AC200 User Manual Shandong, China Official website:https://www.pusr.com Official shop:https://shop.usriot.com Technical support: http://h.usriot.com/ Email : sales@usriot.com Tel : +86-531-88826739 Fax : +86-531-88826739-808 6. Disclaimer The information in this document provided in connection with Jinan USR IoT technology ltd. and/or its affiliates’... - Page 30 AC200 User Manual Official Website: www.pusr.com Official Shop: shop.usriot.com Technical Support: h.usriot.com Inquiry Email: inquiry@usriot.com Skype & WhatsApp: +86 13405313834 关注有人微信公众号 登录商城快速下单 Click to view more: Product Catalog & Facebook & Youtube pusr.com...
