SF53
CNC PLASMA Torch Height Controller
Safety P-recautions
Enviroment cannot contain any explosive gas.
It must be wired by professional wiring staff. Otherwise, it may cause electronic
shock.
Cut off the power supply before wiring. Otherwise, it may cause electronic shock.
Do not touch any control port, internal boards and their electronic componets
while the electricity is turned on. Otherwise, it may cause electronic shock.
Device information
The unit is a modern analogue - microprocessor plasma torch height
controller that operates by analyzing voltage changes in the plasma source due
to variations in height between the torch tip and the material being cut. The mi-
croprocessor makes determinations to raise or lower the torch based off of the
strength of the voltage signal being read. It is equipped with an easy to read LED
display and two user friendly keys making operation simple and does not require
any additional measuring instruments. The device has patented solutions made
with the highest quality components to ensure a safe, durable, and reliable long-
term operation.

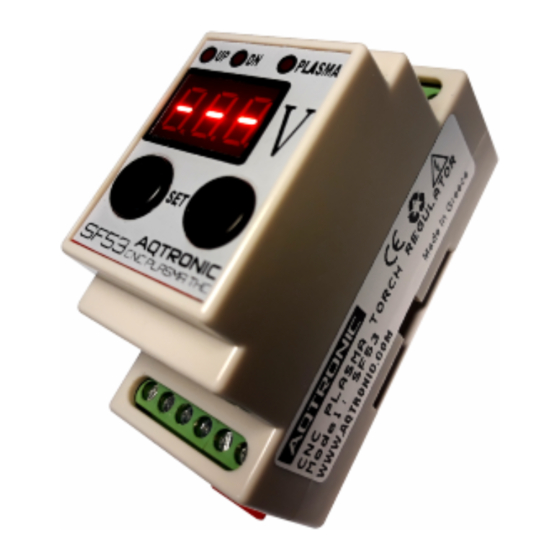

External view:
Characteristics:
Supply voltage (V)
Plasma volatge input
Plasma voltage threshold
Plasma interface
I/O interface
Supported plasma ratio
Display
Weight
Dimensions L*W*H (mm)
AQTRONIC
SF53 Operation manual

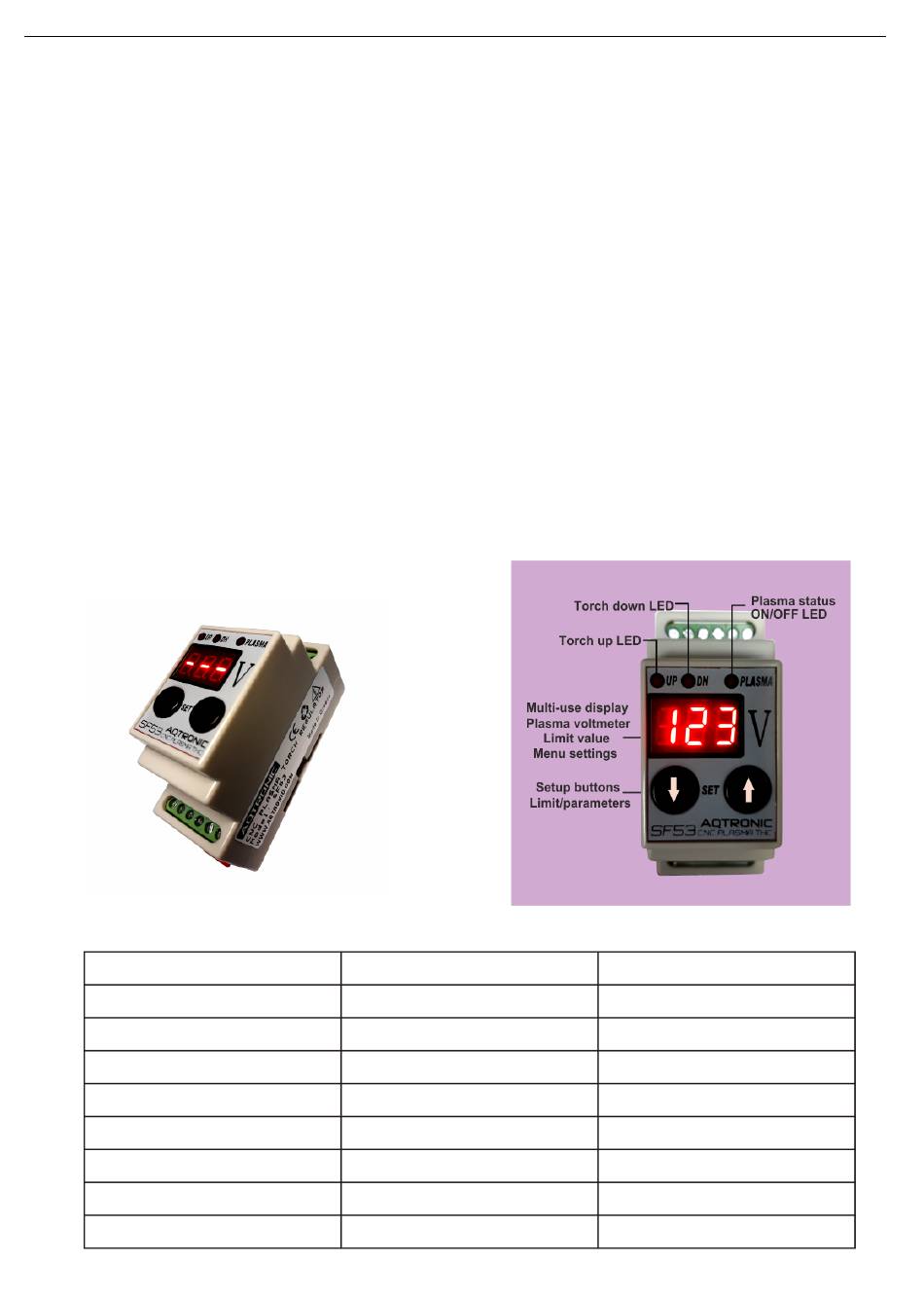

Control panel:
Typical
9-36VDC
0-350V
40V
Optical Isolated
Active Low Optical Isolated
1:1 / 1:50 / 1:100
3 bit 7 Segments
10 0g
87 * 36 *5 9
1
http://www.aqtronic.com
Max
48VDC
450V
2 50V
-
-
-
-
-
-
Advertisement
Table of Contents
Related Manuals for AQTRONIC SF53
Summary of Contents for AQTRONIC SF53
- Page 1 SF53 http://www.aqtronic.com CNC PLASMA Torch Height Controller AQTRONIC SF53 Operation manual Safety P-recautions Enviroment cannot contain any explosive gas. It must be wired by professional wiring staff. Otherwise, it may cause electronic shock. Cut off the power supply before wiring. Otherwise, it may cause electronic shock.
- Page 2 SF53 http://www.aqtronic.com CNC PLASMA Torch Height Controller Terminal details: ATTENTION:When connecting directly, use the shortest possible cables for connecting the plasma source with THC controller - it is recommended the THC controller to be located directly at the plasma source.
- Page 3 After switching power on, the THC controller’s display shows an “animated” “Aqtronic”message, and then show Limit value is presented for 1 second. When the device is ready for operation it displays “- - - “ which means it is presentthere is no input voltage.
- Page 4 SF53 http://www.aqtronic.com CNC PLASMA Torch Height Controller “HYS” (Hysteresis see image 15 page 5) - The hystere- sis voltage - a range in which the voltage is measured, in which there are signals controlling UP/DOWN is deactive.1-15V.Factory setting “1” “dLy” (delay) - delay time of output OK when the sys- tem detects the main (cutting) arc 1 - 15 seconds.
- Page 5 SF53 http://www.aqtronic.com CNC PLASMA Torch Height Controller Image15 Image16...
