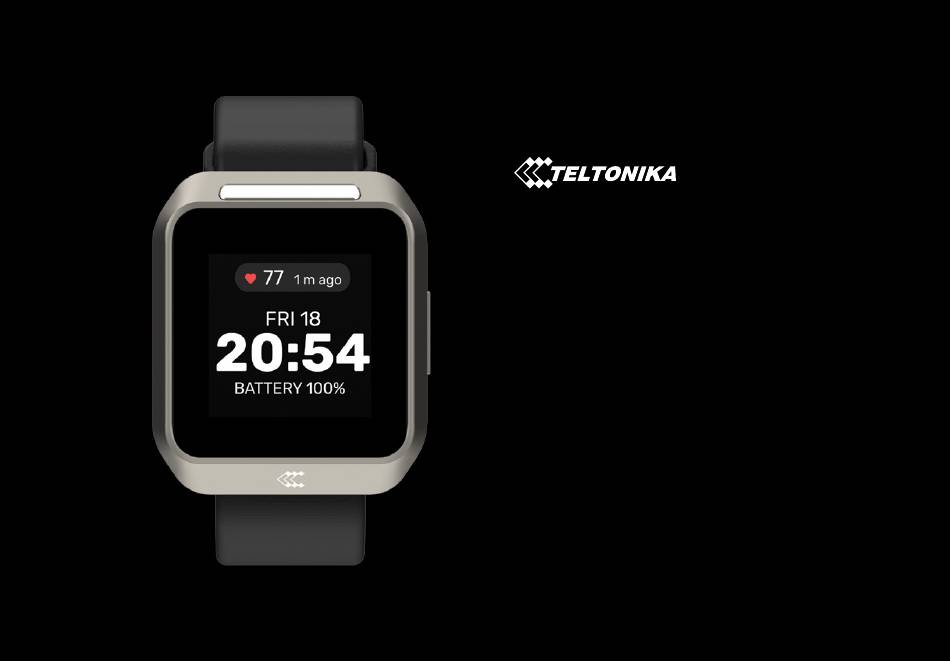

TELTOHEART
QUICK START
GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the TELTOHEART and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika TELTOHEART

Summary of Contents for Teltonika TELTOHEART

  • Page 1 TELTOHEART QUICK START GUIDE...
  • Page 3 THANK YOU FOR CHOOSING TELTOHEART SMART WEARABLE...

  • Page 4: Contents Of The Box

    1x Quick start guide Charging dock used to TeltoHeart with strap Instructions with easy-to- charge TeltoHeart attached understand illustrations. TELTOHEART QUICK START GUIDE Version: v2.0 TeltoHeart is supplied with charging dock which is powered via USB connector with 5 Vdc, USB Type-C.
  • Page 5 HOW TO WEAR TELTOHEART Secure TeltoHeart around your left hand lower arm, 1 cm above your wrist bone, as illustrated. Avoid fastening it too tightly or too loosely.
  • Page 6 HOW TO CHARGE TELTOHEART Insert a USB Type-C cable into the charging dock. To recharge, place TeltoHeart on the charging dock, which is included in the packaging. The battery life can last for at least 24 hours.

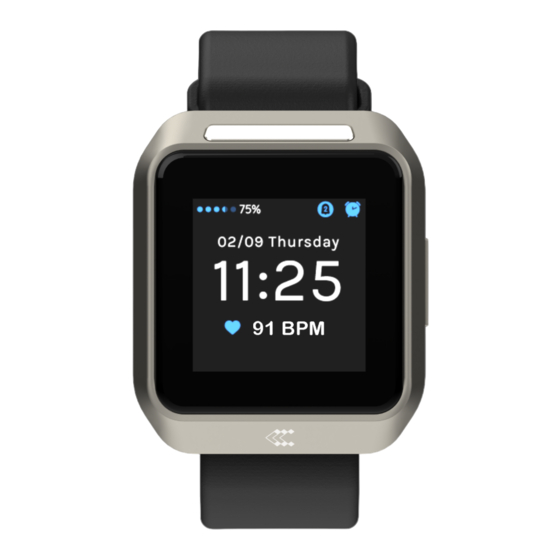

  • Page 7 OVERVIEW Band Finger Charging electrode contacts Wrist Screen Button electrodes sensor Abdomen electrode...
  • Page 8 To activate TeltoHeart, press and hold the button for not less than 10 seconds and then release it. When TeltoHeart is turned on for the first time, it will prompt to download TeltoHeart mobile application. You will be able to locate TeltoHeart...
  • Page 9 Alternatively, you can app may not be visible. explore the iOS app store or Google play store and search for TeltoHeart application by Teltonika Telemedic. Download from Download from Apple Store Google Play store...
  • Page 10 START USING TELTOHEART After installing the app, tap icon to open the app. If it is your first time using the app, sign-in by entering e-mail address and the password, which has been sent to your e-mail. Tap Log in to...
  • Page 11 START USING TELTOHEART TeltoHeart mobile application will prompt you to change the default password to a personal preferred password of your choice. Once you have successfully changed your password, the next step is to review and accept the Terms and Conditions.
  • Page 12 HOW TO PAIR TELTOHEART WITH TELTOHEART MOBILE APPLICATION Tap Pair device to proceed with TeltoHeart mobile application will the pairing process. initiate a search of nearby devices.
  • Page 13 Select your smart wearable by TeltoHeart will notify you of an tapping on it. incoming pair request.
  • Page 14 START USING TELTOHEART When prompted to do so, enter the pass key shown on your TeltoHeart into the Bluetooth pairing request window in the TeltoHeart mobile application. TeltoHeart will notify you about a successful pair with TeltoHeart mobile application. Note: To ensure uninterrupted data...

  • Page 15: Recording An Ecg

    TeltoHeart utilizes • Tap the ECG function icon photoplethysmography (PPG) and on your TeltoHeart. electrocardiogram (ECG). • Follow instructions on screen. • To transmit ECG data, ensure that TeltoHeart and TeltoHeart mobile • OR swipe up application are pairing with iOS 14 on the main or later / Android 10 or later. screen and tap START ECG.
  • Page 16 RECORDING AN ECG How to take ECG recording Follow the instructions on screen and tap NEXT. Please sit down and make sure TeltoHeart is on your left wrist and strapped tightly but comfortably.
  • Page 17 RECORDING AN ECG How to take ECG recording Place and hold the abdomen electrode on the left abdomen side in the level of the belly button.
  • Page 18 RECORDING AN ECG How to take ECG recording While holding the abdomen electrode on the left abdomen side in the level of the belly button, put your right hand finger on the finger electrode above the screen.
  • Page 19 The recording lasts for 60 seconds. Once the recording is finished, you Note: ECG recordings cannot be will see the message Recording performed if battery charge is completed displayed on the less than 10%. TeltoHeart screen. Note: TeltoHeart can hold a maximum of 10 ECG records.
  • Page 20 How to view ECG data in TeltoCare Open a web browser and go to the teltocare.com Enter your login details in the login field. Note: TeltoHeart mobile application and TeltoCare share the same login details. Click the Log in button to access your TeltoCare account. Once logged in, you will be directed to the Patient Dashboard, where you can view various patient-related information.
  • Page 21 RECORDING AN ECG How to view ECG data in TeltoCare Look for the Electrocardiogram section. Review the ECG recordings displayed in the Patient Dashboard to access the relevant data related to the patient’s electrocardiogram.
  • Page 22 ECG data is sent to the TeltoCare platform. Although data is sent periodically, if there are any delays or missing data, utilizing the Force sync option in the TeltoHeart mobile application enables you to trigger the data transfer process and ensure the...
  • Page 23 HOW TO POWER OFF TELTOHEART In the main screen, swipe up, locate and tap power icon. Press and hold Power Off button to turn off the device.

  • Page 24: Technical Specifications

    TECHNICAL SPECIFICATIONS Body Teltoheart memory  128 Mb Dimensions (Width 40.5 (1.6") x 47 (1.9") x Capacity: x Length x Height): 14.7 (0.6") mm Connectivity Weight: 52 g Bluetooth version: Main CPU: nRF5340 Remote access: Cloud 2x ARM Cortex M33 Bluetooth radio performance cores for application Operating and network 2402 MHz – 2480 MHz frequency:...
  • Page 25 Strap material: Silicone user): Available strap sizes  Charging voltage: 5 V⎓ Operating voltage: • Internal Battery 3.8 V⎓ • External power Supported peripherals supply 5 V⎓ TeltoHeart charging Accessories: Max. Input dock 0.5 A current (A): Sensors and components  •Accelerometer •Gyroscope Buttons  Side button (Turn on, Restart, Back)
  • Page 26 TECHNICAL SPECIFICATIONS • Any CE marked wall Devices that use charger with 5 V⎓/1A Bluetooth v5.0 or later output and USB in 2.4 GHz (2.402 Bluetooth type-A connector – 2.480 GHz) band compatibility: and SMP protocol are • Any CE certified compatible with the USB-A to USB-C device cable Compatibility with Conditions for use • Any smartphone other manufacturer Operation...
  • Page 27 CONTRAINDICATIONS CAUTIONS Handling and Care: Do NOT use the device on wounds Do not disassemble the device. as this may cause infection and Follow all instructions in this pain. Threat the wounds first”. manual to ensure the longest Precaution “Wound on the site of lifespan of your device and battery.
  • Page 28 Please store the docking station in appropriate environment to avoid Environmental and Safety magnet degaussing. Precautions: Avoid using TeltoHeart in sandy Electromagnetic Fields and environments. Ultrasound: Do not submerge the device in Do not use the device in presence salty water or any other electrically of strong electromagnetic fields.
  • Page 29 CAUTIONS Cleaning and Maintenance: Ensure that the magnetic can collectively influence the connection of the docking station device’ s ability to capture high- is clean of metallic bodies. quality recordings, potentially diminishing the effectiveness of the Device Usage and Limitations: AFib detection algorithm. The smart wearable is not supposed Do not paint or put stickers on your to be worn in situations where the...
  • Page 30 WARNINGS User Safety: Do not use excessive force while using device. Excessive force may Comply with all safety warnings and break or damage accessories. regulations regarding mobile device Do not use the device in usage while operating the vehicle. environment where temperature exceeds over 45°C. While driving, safely operating the vehicle is your first responsibility.
  • Page 31 NOTES Operating Temperature: Account and Data Notice: Device operating temperature Notice: TeltoHeart mobile application is -10 to +45 degrees Celsius. and TeltoCare share the same login details. Cleaning Instructions: Notice: Please keep the device electrodes clean for best performance. Environmental: Notice: ECG usage in rain or in very humid environment is not...

  • Page 32: Warranty

    WARRANTY The warranty conditions and term of responsibility of the user to ensure warranty shall apply in accordance that they fully understand and comply with agreed conditions between you with the information provided by and your supplier. the manufacturer and terms and conditions before using the product.

  • Page 33: Equipment Symbols

    EQUIPMENT SYMBOLS Manufacturer TELTONIKA TELEMEDIC UAB hereby declares TELTONIKA TELEMEDIC UAB that the device TeltoHeart is in conformity with Ukmergės g. 120-1, 08105 Vilnius the essential requirements and other relevant Info@teltonika.lt requirements of Directive 2014/53/EU www.teltonika-telemedic.com Consult instructions Temperature Protection against FCC ID: limit ingress of water or for use 2BAIF-ECG200 particulate matter.
  • Page 34 Quickly access the full manual Scan QR code to download TeltoHeart mobile by scanning the QR code. application. Download from Download from Apple Store Google Play store All newest certificates may be found in our Wiki: https://wiki.teltonika-telemedic.com/view/TeltoHeart_Certification_%26_Approvals...
  • Page 36 Version: v2.0...
