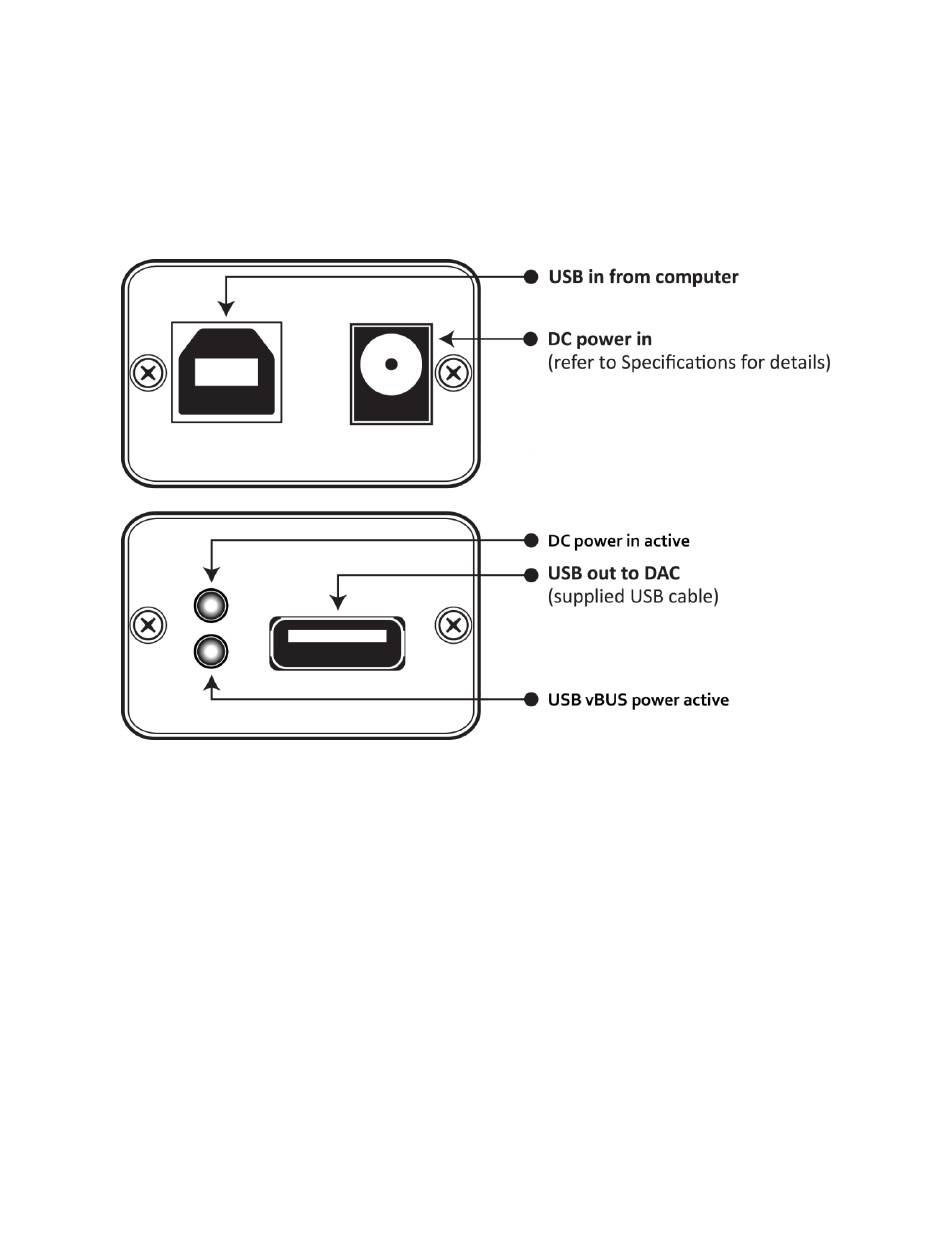

Connectivity
The ISO Recovery is very straightforward to use.
1. Place in close proximity to your DAC (so that the included USB cable reaches)
2. Connect the included external power supply; plug the AC plug into the wall
3. Connect the included USB cable from the ISO Recovery USB output to your DAC input
4. Connect your existing USB cable from your computer/USB device output to the ISO Recovery USB input
Usage
Once connected as above, simply play music via USB as you normally would. No driver is necessary.
There are two status lights on the side. From top to bottom:
1. DC power in active: When lit, indicates DC power is applied to the unit. A 5v source is needed and
higher voltages will be unusable.
2. USB vBUS power active: If lit, the ISO Recovery is receiving a power from the USB source to power the
front end of the circuit. If your USB cable has the vBUS connection removed, it will not work.
Burn in time is suggested at ~50 hours. Enjoy your ISO Recovery and the benefits of a clean USB signal and
much lower noise floor for your noticeably improved sonic quality!
