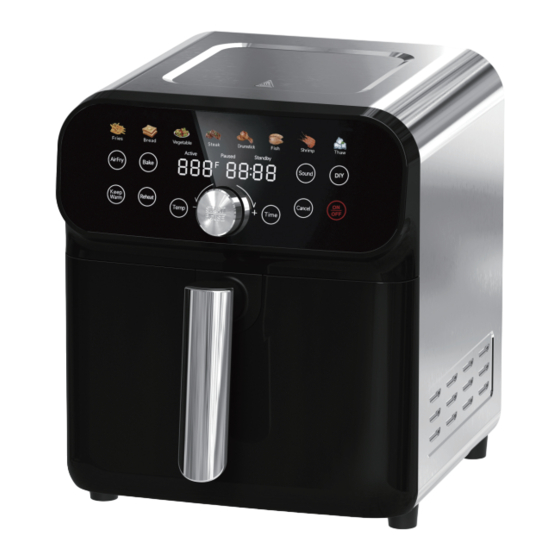

- Page 1 DIGITAL AIR FRYER OPERATION INSTRUCTIONS Save these instructions For household use only Model: AF06D02-M Power: 120V~ 60Hz ETL Listed...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS BASIC SPECIFICATIONS ············ 02 IMPORTANT SAFEGUARDS ········ 03 PARTS & ACCESSORIES ············ 06 INSTRUCTIONS ························· 07 12 PRESETS ······························ 11 CLEANING & MAINTENANCE····· 12 TROUBLESHOOT GUIDE ············ 13 TO OBTAIN SERVICE ·················· 14... -
Page 3: Basic Specifications
BASIC SPECIFICATION BASIC SPECIFICATIONS PRODUCT SIZE N.W. 270*350*323mm 4.45KG PACKAGE SIZE G.W. 390*315*366mm 5.5KG Electrical and environmental parameters ITEM SPECIFICATION Working Voltage AC100V-120V~60Hz and Frequency Standby power <1W Rated Voltage 120V/1600W and power Motor 120V/60Hz Max working RH95% humidity Working ambient -4℉～185℉... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS IMPORTANT SAFEGUARDS HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE When using electrical appliances, basic safety precautions should always be followed including the following: 1. A short power-supply cord is provided to reduce risk. 2. DO NOT touch hot surfaces. Use handles or knobs. 3. - Page 5 IMPORTANT SAFEGUARDS BEFORE FIRST USE 1. Remove all packaging stickers and labels from the air fryer, including the tape securing the basket to the unit. 2. To pull out the basket for cleaning, remove the tape securing it into place. Secure the unit with one hand and pull the handle straight back with the other hand.
- Page 6 IMPORTANT SAFEGUARDS 10. DO NOT place plastic or rubber containers in the unit. Avoid using containers made of any other material other than ceramic, glass, or metal in the unit. 11. Always put the ingredients to be cooked on the appropriate baking sheet (DO NOT overfill) and DO NOT allow food to come into direct contact with the heating components.
-
Page 7: Parts & Accessories
PARTS & ACCESSORLES Never use the Air Fryer with loose, damaged, or missing parts. WARNING PARTS & ACCESSORLES Control panel Main body Air inlet Non-stick coating frying rack Basket cover Handle cover Non-stick Coating frying tray... -
Page 8: Instructions
INSTRUCTIONS INSTRUCTIONS Active Paused Standby 888 88:88 Air Fry Sound Bake Keep Cancel Reheat Warm Temp Time FOOD TIPS 1. To cook evenly, do not overfill the basket. Suggest that you can shake once or more halfway through cooking. 2. To make cakes, pies, or any food with filling or batter, place food in a heat-safe container before placing in the baskets. - Page 9 INSTRUCTIONS ITEM ICON OPERATION INSTRUCTION Plug in. Press . The air fryer will clear Cancel all settings and go into standby. Display all Cancel bright (Except for Active, Paused) ■Rotate the knob to switch eight menus. Press it to start to Active / Paused state. ■Rotate the knob to adjust time &...
- Page 10 INSTRUCTIONS ITEM ICON OPERATION INSTRUCTION Air Fry Plug in. Press .The menu Icon flashing Air Fry Bake display. Directly press the to enter the Active state. mode.The other function Keep is the same procedure. Warm Reheat Plug in. Pres . The time is adjustable Time at any time.
- Page 11 INSTRUCTIONS ITEM ICON OPERATION INSTRUCTION Plug in. Press . The menu Icon flashing display. At this time, press , to Time Temp enter the time or temperature settings. Directly press the to enter the Active state. The function will remember the last DIY setting.
-
Page 12: 12 Presets
12 PRESETS 12 PRESETS PRESETS CHART: TEMPERATURE TIME ICON FUNCTION Default Range Default/℉ Range/℉ / Min / Min Fries Bread Vegetable Steak 175-400 Drumstick Fish 1~60 Shrimp Thaw 105-180 Air Fry 175-400 Air Fry Bake 175-400 Bake Reheat 175-400 Reheat Keep Warm 150-200 Keep... -
Page 13: Cleaning & Maintenance
CLEANING & MAINTENANCE CLEANING & MAINTENANCE 1. To protect against electrical shock DO NOT immerse cord. plugs, or (state specific part or parts in question) in water or other liquids. 2. Unplug from outlet when NOT in use and before cleaning. 3. -
Page 14: Troubleshoot Guide
CLEANING & MAINTENANCE TROUBLESHOOT GUIDE The air fryer was engineered with an automatic shut-off feature to prevent overheating during use. If the air fryer shuts off to cool itself down, an odor may be detected. Unplug the unit and wait for it to completely cool down. To prevent the air fryer from overheating, do not cook foods at higher temperatures or longer times than. -
Page 15: To Obtain Service
TROUBLESHOOT GUIDE The Air Fryer is not heating. 1. Unit is unplugged. The Air Fryer has overheated. Heating elements are not working. 2. Make sure the Air Fryer is plugged in. Make sure the unit is has completely cooled. Plug in and see if unit comes up to correct temperature.
