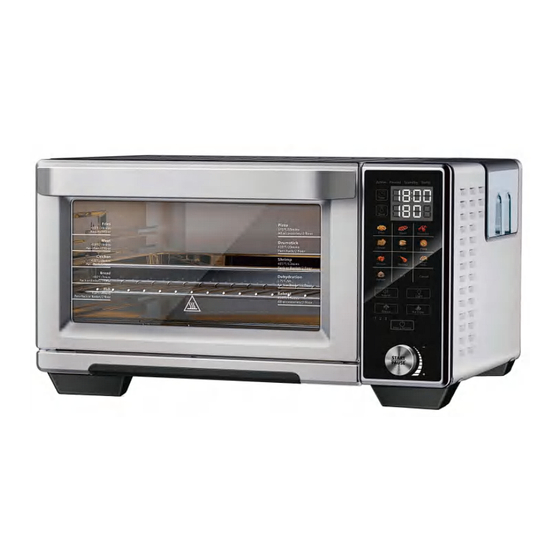

- Page 1 Air Fryer Oven Owner’s Manual Save these instructions-For household use only When using electrical appliances,basic safety precautions should always be followed. Do not use Air Fryer Oven until you have read this manual thoroughly. Model : AO28S01...
-
Page 2: Table Of Contents
TABLE OF CONTENTS OWNER’S MANUAL BASIC SPECIFICATION ································ 02 IMPORTANT SAFEGUARDS ························· 03 11 PRESETS ················································ 06 PARTS & ACCESSORIES ····························· 07 INSTRUCTIONS ··········································· 08 CLEANING & MAINTENANCE ····················· 14 TROUBLESHOOT GUIDE ····························· 15 LIMITED WARRANTY ·································· 17 01/18... -
Page 3: Basic Specification
BASIC SPECIFICATION Product size：510*283*408mm N.W.：8.58KG Package size：577*460*364mm G.W.：10.9KG Electrical and environmental parameters Item Specification Working Voltage and Frequency AC110V~120V、60Hz Standby power <1W Rated Voltage and power 120V/1700W Motor 120V/60Hz 12W Lamp 120V/15W DC12V/1.92W Pump DC12V/0.5A Max working humidity RH95% Working ambient temperature -4 ～... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE Operate only in accordance with intended use as described in this manual. When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. 2. - Page 5 IMPORTANT SAFEGUARDS 31. Use extreme caution when operating the Oven or any other appliance. 32. Never leave the Oven unattended during use. 33. Do not disassemble the Oven. 34. Unplug the Oven from the outlet when not in use orbefore cleaning. 35.
- Page 6 IMPORTANT SAFEGUARDS DO NOT USE THE OVEN FOR ANYTHING OTHER THAN ITS INTENDED USE. Note: Put the Oven on a surface that is horizontal, even, and stable. This appliance is intended for normal household use. It is not intended to be used in environments such as staff kitchens/cafeterias of shops, offices, farms, or other work environments, nor is it intended to be used by clients in hotels, motels, bed and breakfasts, and non-residential environments.
-
Page 7: 11 Presets
11 PRESETS Food Default Default Rack Presets STEAM weight Temp Time Position Fries 502g 410°F 20 min 3 Floor Meat 207g 410°F 10 min 2 Floor Chicken 2359g 430°F 38 min 3 times 1 Floor Bread 6 pcs 400°F 7 min 3 Floor Fish 511g... -
Page 8: Parts & Accessories
PARTS & ACCESSORIES 1. Base 2.Steam tank 3.Handle 4.Time LED display 5.Temperature LED display 6.Preset Menu 7.Functions: Volume & Light & Air fryer & Cancel 8.Dial 9.Pull-Out Crumb Tray 10.2Heavy-Duty Cooking Racks 11.Enamel Baking Pan 12.Air Fry Basket 07/18... -
Page 9: Instructions
INSTRUCTIONS 1. Place the Oven on a level, even, and stable heat-resistant surface. 2. Slide the Cooking Rack(s) into Position 1, 2, 3, or 4 of the Oven. 3. The baking pan, grill and frying net should be placed according to the silk screen on the glass door 4. - Page 10 INSTRUCTIONS Item Icon Operation instruction After the power is powered on, the buzzer sounds and all the ICONS light up. When the "Power button" flashes, the (standby) standby indicator lights up, all the others go off and enter the standby state. At this time, directly press the "Power"...
- Page 11 INSTRUCTIONS Operation instruction Item Icon When the power is on, press the "power button" and the machine will enter the setting state. Click this menu at this time, the menu icon flashing display. Directly press the "Start" button to enter the air blast mode.
- Page 12 INSTRUCTIONS Operation instruction Item Icon This function is enabled by default in the setting state and can be switched freely. Blinking indicates the function is enabled, while long on indicates the function is disabled. Enter the working state, do not switch freely, long on means on, off means off.
- Page 13 INSTRUCTIONS Fahrenheit and Celsius table ℉ ℃ ℉ ℃ ℉ ℃ ℉ ℃ ℃ ℉ Helpful Hints 1. Some moisture may appear on the door during certain cooking cycles. 2. When air-frying, food can be lightly coated with oil beforehand to boost crispiness and browning. 3.If the power is off due to abnormal operation, call again within 10 minutes, and continue running according to the state before the power is off.
- Page 14 INSTRUCTIONS Oven Rack and Pan Positions Meat: 410F/10mins pan+rack Fish:430F/20mins pan+rack or basket 2Floor : Pizza:370F/15mins all accessories Drumstick:430F/20min pan+rack Dehydration:175F/9h rack or basket Reheat: 410F/15mins all accessories Fries：410F/20minsBasket 3Floor : Bread: 400F/7min Rack or basket Because it is close to the heating pipe, the temperature is high, it can be used 4Floor : for thawing.
-
Page 15: Cleaning & Maintenance
CLEANING & MAINTENANCE Before First Use: Wash all removable parts in warm, soapy water or in the dishwasher, top rack only. 1. Remove all the packaging materials. 2. Remove the glue and labels on the appliance. 3. Clean the Cooking Racks, Baking Pan, Broiler Rack, Air Fry Basket and Crumb Tray thoroughly with hot water, a nonabrasive sponge, and mild dish detergent, or in the dishwasher, top rack only. -
Page 16: Troubleshoot Guide
TROUBLESHOOT GUIDE The oven was engineered with an automatic shut-off feature to prevent overheating during use. If the Oven shuts off to cool itself down, an odor may be detected. Unplug the unit and wait for it to completely cool down. To prevent the Oven from overheating, do not cook foods at higher temperatures or longer times than recommended. - Page 17 TROUBLESHOOT GUIDE White smoke is coming out of the product. 1. You are cooking greasy foods. The Baking Pan contains greasy residue from previous uses. When preparing greasy ingredients in the unit, large amounts of oil can smoke. The oil will produce white smoke.
-
Page 18: Limited Warranty
- E2: indicates that the NTC temperature sensor is shorted - E3: open the NTC temperature sensor LIMITED WARRANTY The AO28S01 Smart Oven THE MANUFACTURER WARRANTS The Oven, including the Heavy-Duty Cooking Racks, Enamel Baking Pan, Chrome-Plated Air Fry Basket, Pull-Out Crumb Tray, and all electrical... - Page 19 LIMITED WARRANTY TO OBTAIN SERVICE The owner shall have the obligation and responsibility to: pay for all services and parts not covered by the warranty; prepay the freight to and from Service Department for any part or system returned under this warranty; and carefully package the product using adequate padding material to prevent damage in transit.
