ePropulsion G1554-1200W Manual

E battery charger

Advertisement

Quick Links

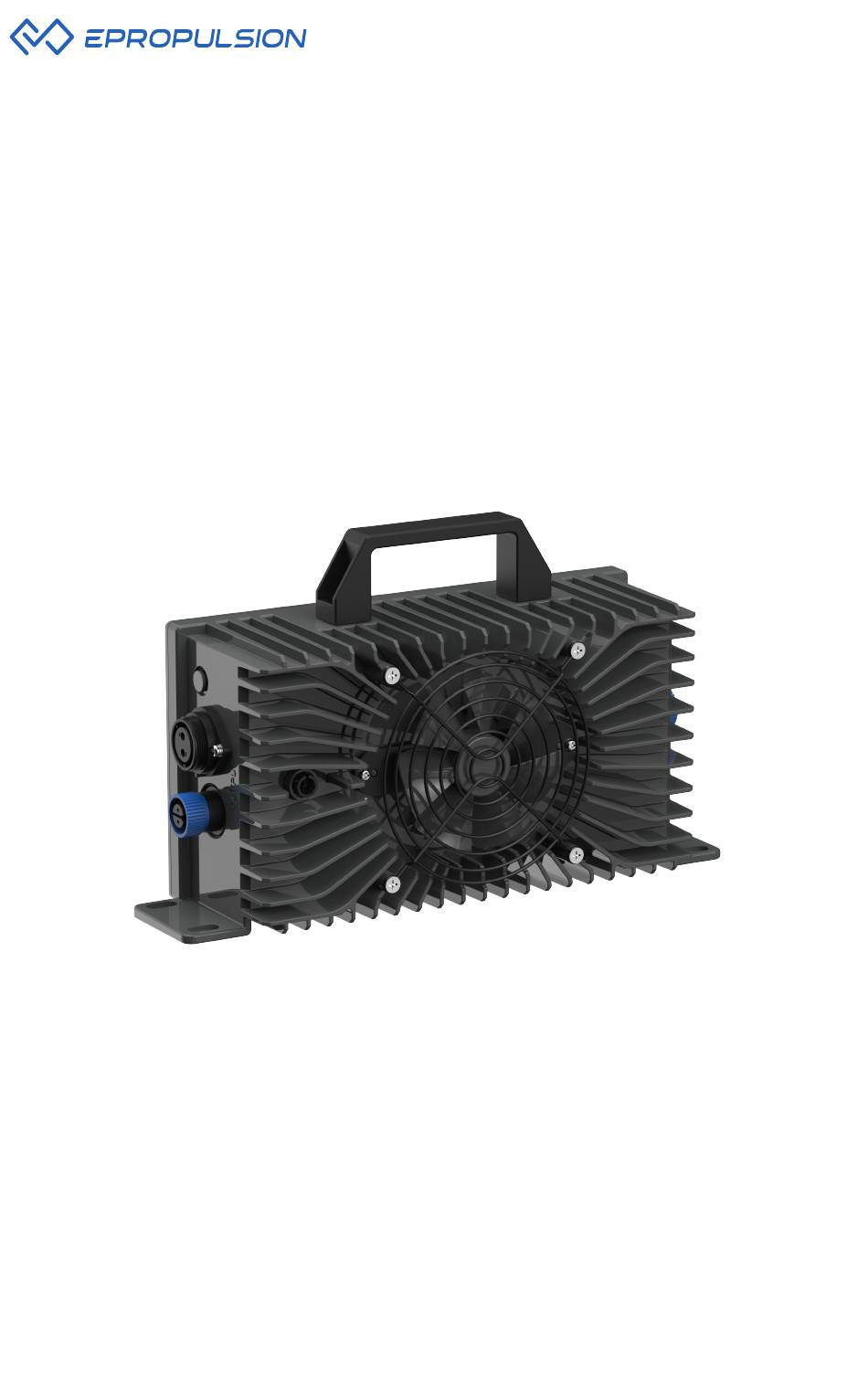

E Battery Charger Manual
Model: G1554-1200W
Suitabale for E-Series Batteries
Please read this manual carefully before use.
This manual is subject to update without prior notice, please visit our website
www.epropulsion.com for the latest version.
2023.07 Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G1554-1200W and is the answer not in the manual?

Questions and answers

Summary of Contents for ePropulsion G1554-1200W

  • Page 1 E Battery Charger Manual Model: G1554-1200W Suitabale for E-Series Batteries Please read this manual carefully before use. This manual is subject to update without prior notice, please visit our website www.epropulsion.com for the latest version. 2023.07 Version 1.2...
  • Page 3: Using This Manual

    By using this product, you hereby agree that you have fully read and understood all the contents of this manual. ePropulsion accepts no liability for any damage or injury caused by operations that contradict this manual.
  • Page 4: Declaration Of Conformity

    Object of the Declaration:Product: Product:E Battery Charger Model: G1554-1200W We Guangdong ePropulsion Technology Limited, hereby, declares that this equipment is compliance with the applicable Directives and European Norms, and amendments. The object of the declaration is in conformity with the following directives:...
  • Page 5 Name: REP Europe GmbH Address: Werner-von-Siemens-Str. 264319 Pfungstadt Germany Phone: +49 157 51253212 info@rep-europe.de Manufacturer Name: Guangdong ePropulsion Technology Limited Address: Room 801, Building 1, 11 Daxue Road, Songshan Lake, Dongguan, Guangdong Province, China Signature: Date: 2023/10/18 Shizheng Tao, Chief Executive Officer & Cofounder of...
  • Page 6: Specifications

    Specifications Model G1554-1200W Input voltage 100 - 127 Vac 200 - 240 Vac ≤6.5A Input current ≤9A Output voltage 35.2 - 58.8 Vdc Output current ≤15A ≤25A Rated output voltage 48Vdc Power factor ≥ 0.95 Parallel connection 8(Max) Conversion efficiency ≥92%...
  • Page 7: Led Indicator

    Failed to communicate with the battery Green and red lights flash alternately No battery connected Charger error, please restart the charger, if the Other problem persists, please contact ePropulsion authorized dealer In the Box Charger 1 set AC input cable...
  • Page 8: Operation

    Operation 1. Ensure the power has been switched off, and complete the wiring according to the figure. 2. Turn on the battery power button first, then turn on the AC switch. 3. The green light of the charger flashes, indicating that the charger is charging normally. For the DC output cable, red is positive, black is negative.
  • Page 9 1 (n=2-3) 2 (n=4-5) * n is the number of the chargers which need to be connected in parallel * If there are more complex parallel operating conditions, please contact ePropulsion Technology's authorized dealers. E60/E163 Battery E Battery Bus Bar 150A...
  • Page 10: Warranty

    Opening the housing of the charger without prior written consent of the manufacturer voids the manufacturer’s warranty immediately. Warranty ePropulsion E Battery Charger is guaranteed against any manufacturing defects for TWO years (uncommercial) from the date of purchase. Free warranty is only validated upon the presentation of Warranty Card, and evidence of purchase from an authorized ePropulsion dealer.
  • Page 11: Warranty Card

    WARRANTY CARD ePropulsion E Battery Charger (In order to validate warranty, please fill in this form first and read the Warranty Policy.) OWNER INFO. Owner Name Address Phone Email DEALER INFO. Store Name Address Phone Email PRODUCT INFO. Date of Purchase (mm/dd/yyyy) Serial No.
