True C4RL Owner's Manual

Lcd console
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
C4RL
LCD CONSOLE
MODEL C4RL
(MAN-C4RL REV01)
OWNER'S
MANUAL

Advertisement

Table of Contents
loading

Related Manuals for True C4RL

Summary of Contents for True C4RL

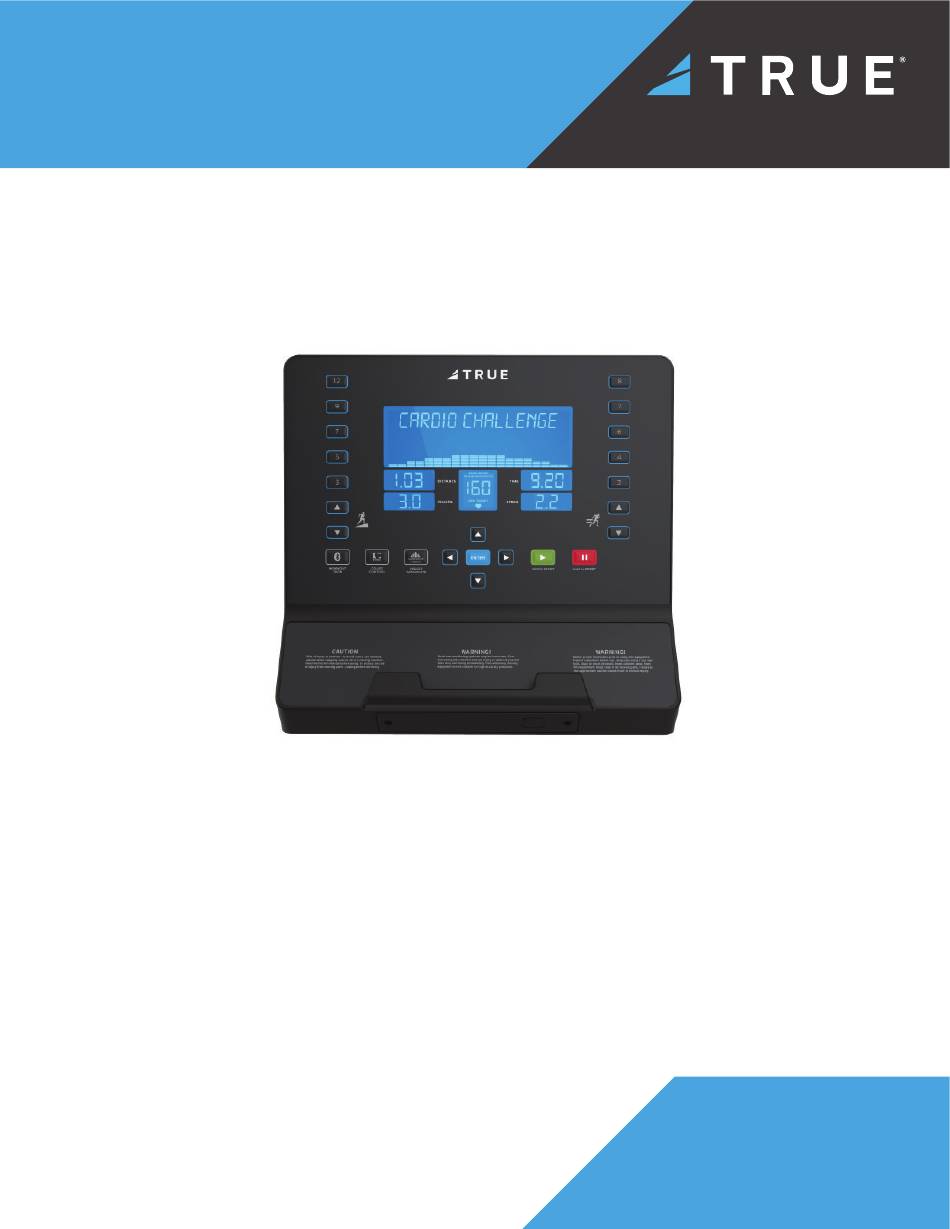

  • Page 1 C4RL LCD CONSOLE OWNER’S MODEL C4RL MANUAL (MAN-C4RL REV01)
  • Page 3 ‫!ماھ‬ ‫.اھمیلست يلعفلا جتنملا فلتخت دق .جذومنلا يھ ةضورعملا تاجتنملا عیمج‬ ‫.راعشإ نود رییغتلل ةلباق جماربلاو تازیملاو ،جتنملا تافصاوم‬ ‫ ةرایز ىجری كلاملا لیلد نآلا ىتح لصی ام مظعمل‬https://shop.truefi tness.com/customer-service/user-manuals/ ‫ ةرایز ىجری ،ةیفاضإ تاغل يف تادنتسملل‬https://shop.truefi tness.com/customer-service/user-manuals/ WICHTIG! Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt- Spezifi...
  • Page 4 Monday - Thursday 8:30am - 6:00pm (CST) Friday 8:30am - 5:00pm (CST) Contacting Our Sales Team Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer your questions. Address...
  • Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to fi le a claim if the carrier is not notifi ed in a timely manner.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS................7 POWER REQUIREMENTS..............................9 GROUNDING INSTRUCTIONS............................9 WARNING AND INTENDED USE LABELS..........................10 COMPLIANCES...................................11 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................12 ASSEMBLY STEPS................................13 CONSOLE OVERVIEW CONSOLE OVERVIEW................................17 PROGRAMMING AND OPERATION HEART RATE MONITORING...............................18 HEART RATE CONTROL (HRC)............................19 PROGRAM DESCRIPTIONS...............................20 LCD CONSOLE CONSOLE NAVIGATION..............................21...

  • Page 7: Safety Instructions

    Equipment should be immediately taken out of product. use if it fails to work properly or when a warning is • Never operate a TRUE product if it has a damaged presented electronically. power cord or electrical plug, or if it has been •...
  • Page 8 • Allow only one person at a time on the equipment carefully retrieve it. If the item cannot be reached, while it’s operating. contact TRUE product support. • Do not allow animals on or near the equipment while • Any changes or modifi cations to this equipment in operation.

  • Page 9: Power Requirements

    POWER REQUIREMENTS Read and understand all instructions before plugging any TRUE power cord into an electrical outlet. DEDICATED LINE This product requires a dedicated line. A dedicated line assures that adequate power is available for safe operation over the life of your TRUE product.

  • Page 10: Warning And Intended Use Labels

    WARNING AND INTENDED USE LABELS WARNING: Replace warning labels that may be worn, damaged, or missing. To replace any worn or missing warning labels, locate the serial number for your product, and then contact TRUE product support: • www.truefi tness.com •...

  • Page 11: Compliances

    WARNING AND INTENDED USE LABELS CONTINUED console serial number location COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please see regulatory approvals on truefi tness.com.

  • Page 12: Assembly Instructions

    PREASSEMBLY CHECKLIST VERIFY BOX CONTENTS IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support at 800.883.8783 or service@truefi tness.com. TOOLS NEEDED FOR ASSEMBLY INCLUDED IN BOX #2 Phillips Screwdriver BOX CONTENTS...

  • Page 13: Assembly Steps

    ASSEMBLY STEPS STEP 1—ATTACH CONSOLE TO CONSOLE MAST Parts Used in this Step Tools Used in this Step Part Description #2 Phillips Screwdriver CONSOLE Using a #2 Phillips screwdriver, secure the console to the console mast using the hardware preassembled to the console (00567800 // SCREW, M5-.8X12 COMBO PHILLIPS/COMMON TRUSS HEAD - ACG BLACK // QTY 4).
  • Page 14 STEP 2—MAKE CONSOLE CABLE CONNECTIONS 1. Connect the I/O cable, center pod cable, contact heart rate cable, and safety key cable to their respective ports on the console control board. NOTE: The shorter safety key connector pictured below is only used for the LCD console. The longer connector will not be used.
  • Page 15 STEP 3—CALIBRATE THE TREADMILL NOTE: Supplemental video available on vimeo.com: https://vimeo.com/869672159?share=copy. PART DESCRIPTION CONSOLE NOTE: For instructions on product setup and calibration, see Utility Functions on page 34.
  • Page 16 STEP 4—ATTACH REAR CONSOLE COVER Tools Used in this Step Part Description #2 Phillips Screwdriver TI0076 PHCS, M4XP0.7X12 TPS9109 COVER, REAR CONSOLE, TPS, BLACK Using a #2 Phillips screwdriver, attach the rear console cover to the console mast using 3 screws. TPS9109 TI0076...

  • Page 17: Console Overview

    CONSOLE OVERVIEW Console Display Quick Touch Quick Touch Speed Incline Buttons Buttons Incline Speed Buttons Buttons Stop Workout Data USB Port Contact Heart Contact Heart Contact Heart Contact Heart Rate Pad Rate Pad Rate Pad Rate Pad Cruise Control Safety Safety (E-Stop) Key (E-Stop) Key...

  • Page 18: Programming And Operation

    PROGRAMMING AND OPERATION HEART RATE MONITORING This treadmill can monitor a user’s heart rate using a Polar* 5kHz compatible chest strap, a Bluetooth heart rate transmitter or the metal grips on the hand rails (called contact heart rate or CHR pads). Bluetooth transmitters and chest straps transmit the user’s heart rate to the treadmill via radio, and the console reads the user’s heart rate.

  • Page 19: Heart Rate Control (Hrc)

    HEART RATE CONTROL (HRC) You are now the owner of the most sophisticated Heart Rate Control (HRC) treadmill available. TRUE HRC is unique and patented. It accommodates users from rehabilitation to world class athletes, and all those in between. TRUE HRC allows users to do a completely hands-free heart rate controlled workout using speed, incline or both.

  • Page 20: Program Descriptions

    PROGRAM DESCRIPTIONS Quick Start A workout in which the user controls all settings. The workout continues until it is ended by the user. Manual Users enter their weight, workout time, or distance. The user controls both the SPEED and INCLINE of the treadmill throughout the workout.

  • Page 21: Lcd Console

    LCD CONSOLE CONSOLE NAVIGATION Home Screen The Home Screen is displayed on the console when the machine fi rst comes on or is reset by pressing STOP II when there is no workout in progress. There are two possible Home Screens: one with User Profi les turned on and one with User Profi...
  • Page 22 CONSOLE NAVIGATION CONTINUED Example - Using the Console Panel Navigation to Start a Workout  To begin a workout, press QUICK START (A). Press Workout Finder (C) to access new, preset workouts. The Console Display (B) shows a visual representation of the workout format. When additional user data is required, use the Menu Navigation buttons (D) to select/modify the data fi...
  • Page 23 CONSOLE NAVIGATION CONTINUED Workout Data Screen A. Distance Display Displays the current Distance traveled (in miles), measured from the beginning of the workout up to the present instant. B. Incline Display Displays the current level of incline as a percentage up from level. The incline level can be changed by pressing the ...

  • Page 24: User Profiles

    USER PROFILES Creating a New User Profi le To create a new user profi le, do the following: 1. Display the Home (HELLO greeting) Screen (if it is not displayed, hold STOP II until it appears). USER 1? will be displayed by default.
  • Page 25 USER PROFILES CONTINUED 4. Push and hold the up and down Menu Navigation buttons on the console to enter the user name, one character at a time. Use the right and left Menu Navigation buttons to move to the next character position or back to a previous letter in the name.

  • Page 26: Creating And Managing A Workout

    CREATING AND MANAGING A WORKOUT Beginning a Quick Start Workout 1. Bring up a pre-existing User Profi le on the Console Display (C).  2. Press QUICK START (G). 3. A ¼ mile, manual (track) workout will come up, count down from 3 and start at 0 incline and .5 mph speed. The user will have total control over the speed and incline during the workout.
  • Page 27 CREATING AND MANAGING A WORKOUT CONTINUED Setting Up and Starting a New, Preset Workout 1. Bring up a pre-existing User Profi le on the Console Display (C). 2. Press ENTER (B) and use the right (M) and left (O) Menu Navigation buttons to scroll to NEW WORKOUT? (C).
  • Page 28 CREATING AND MANAGING A WORKOUT CONTINUED Starting One of the Five Previously Saved Workouts Under a Selected User Profi le 1. Bring up a pre-existing User Profi le on the Console Display (C). 2. Press ENTER (B) on the console. 3.
  • Page 29 Cruise Control (HRC) Workouts The TRUE Heart Rate Control (HRC) workouts are unique because users must enter the key parameters of the workout; target heart rate, maximum speed, maximum incline, and time, prior to beginning the HRC workout. As users approach their target heart rate, the treadmill’s computer automatically takes over and changes the speed and/or incline...
  • Page 30 CREATING AND MANAGING A WORKOUT CONTINUED Setting Up the Target Heart Rate Control Workout TRUE’s heart rate control (HRC) workouts let the treadmill monitor relative exercise intensity by way of the user’s heart rate, then automatically adjusts the speed and incline to keep the user at their target heart rate and thus their desired exercise intensity.
  • Page 31 Bluetooth application. Using a Bluetooth Application 1. If a user owns a smartphone, there are mobile applications from TRUE and other sources (i.e. GymTrakr). 2. Press Workout Data (I) on the console. The screen will say BLUETOOTH ID (C) and a four digit pairing code number.

  • Page 32: Utility Functions

    UTILITY FUNCTIONS Utilities Options Menu - Maintenance Mode Product setup under maintenance mode allows the user (or, preferably, a certifi ed technician) to adjust the model confi guration and setup. To enter maintenance mode: 1. Remove and replace the safety key (A) or power off / on allowing time for the base unit to initialize and display the home screen.
  • Page 33 UTILITY FUNCTIONS CONTINUED • Cool Down Adjusts the length of the cooldown time at the end of a workout. • Pause (On or Off ) Limits the amount of time that a workout can be paused until the user resumes or ends the workout. •...
  • Page 34 UTILITY FUNCTIONS CONTINUED IMPORTANT! CALIBRATION IS REQUIRED AFTER THE CONSOLE IS INSTALLED TO THE BASE. NOTE: Users must select the correct base in confi guration prior to calibration. To enter confi guration: Remove and replace the safety key (A) or power off /on allowing time for the base unit to initialize and display the home screen.

  • Page 35: Warranty

    WARRANTY NOTICE For unit and console warranty information, refer to the Warranty Information chapter in the unit manual.
  • Page 36 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
