True XFW5700 Owner's Manual

Seated calf raise
Hide thumbs

Advertisement

Quick Links

Download this manual

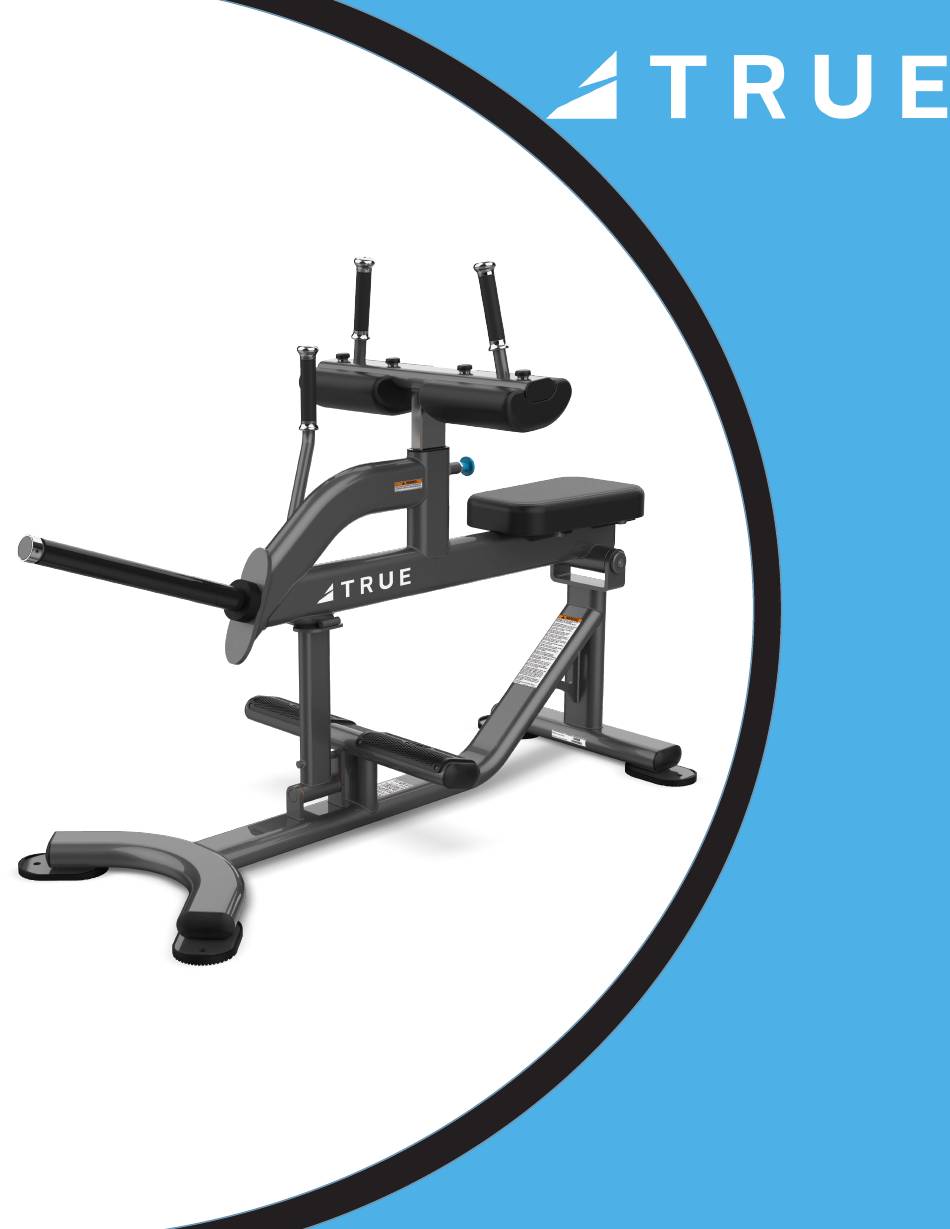

XFW5700
Seated Calf Raise
OWNER'S
MANUAL
Model # XFW5700
Revision 091418

Advertisement

loading

Related Manuals for True XFW5700

Summary of Contents for True XFW5700

  • Page 1 XFW5700 Seated Calf Raise OWNER’S MANUAL Model # XFW5700 Revision 091418...
  • Page 2 For your convenience, product questions can be answered by an Authorized Paramount Dealer or by contacting a TRUE Fitness Customer Service Representative at: 1-800-883-8783 or 1-800-721-2121 Office hours are Monday-Friday, 8:00 am - 5:00 pm CST Or email us at service@truefitness.com or paramountservice@truefitness.com...

  • Page 3: Table Of Contents

    ABLE ONTENTS ......................AFETY ..............ENERAL ARE AND AINTENANCE & W ............... ACHINE IMENSIONS EIGHTS ......................SSEMBLY ....................ARTS IAGRAM & W ..............NTENDED ARNING ABELS ......................ARRANTY...

  • Page 4: Safety

    AFETY ACILITY AND AFETY RECAUTIONS 1. Review and understand all of the warning labels affixed to this machine and on the facility safety sign. 2. Be certain that the machine operation is understood before it is used. Refer to the instructional Procedure Label affixed to the machine.
  • Page 5 AFETY 12d. This equipment is designed for standard olympic size weight plates with a 50mm bore (1.9”). 12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is 45 lbs. (25 kg.). 13. On Selectorized and Cable equipped machines: 13a.
  • Page 6 AFETY AINTENANCE AFETY RECAUTIONS 1. Refer to Maintenance Schedule label on the machine as well as this manual for when to perform maintenance. 2. Check the function of your machine DAILY by verifying the following: • Inspect cables and end fittings for any signs of wear. Replace if worn, frayed or damaged with original Paramount replacement components.

  • Page 7: General Care And Maintenance

    13. Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your Paramount dealer or TRUE Fitness at (800) 883-8783 or (800)721-2121 or service@truefitness.com or...

  • Page 8: Machine Dimensions & Weights

    IMENSIONS AND EIGHTS Carton Size: 60.5” X 27” X 20” 154 cm x 69 cm x 51 cm Carton Weight (as shipped) = 144 lbs (65 kg.) Assembled Weight (as shown) = 121 lbs (55 kg.) Maximum User Weight = 300 lbs. (136 kg.) Maximum Load Capacity: (user + lifted weight) = 750 LBS.

  • Page 9: Assembly

    SSEMBLY Tools Required: 14mm (9/16”) socket wrench Ratchet Handle 3/32”, 7/32” & 1/4” hex (allen) wrenches...

  • Page 10: Parts Diagram

    ARTS IAGRAM...
  • Page 11 ARTS IAGRAM 10BK TRUE...

  • Page 12: Intended Use & Warning Labels

    & W NTENDED ARNING ABELS INTENDED USE 1. This bench is intended to support the user in a seated position while performing calf raise exercises. 2. Sit on this bench with both feet supported on the foot platforms and both knees under the pad when doing exercise.

  • Page 13: Warranty

    Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 14 DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.
  • Page 15 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
