- Page 1 BRIDGING POWER AMPLIFIER User Manual MODEL BPA-1000 BPA-2060 BPA-1240 BPA-2120 BPA-1480 BPA-2240 BPA-2480 Revision History v1.15 www.ateis.com www.ateis.com © 2020, ATEÏS. All rights reserved.
-
Page 2: Table Of Contents
Table of Contents Page 1 About this manual 1.1 Notice signs ........................... 3 1.2 Safety instructions ........................... 3 2 BPA bridging power amplifier 2.1 Front panel ........................... 5 2.2 Rear panel ........................... 6 3 Hardware installation 3.1 Mounting ........................... 9 3.2 Connect to AC mains power ........................... -
Page 3: About This Manual
About this manual About this manual This user manual will explicitly describe the hardware installation and the software configuration, provides installers and users the necessary information to setup and configure the system. Notice signs ** The above warning is located on the back of the unit. Explanation of Graphical Symbols To alert the user to the presence of uninsulated The equipment or the property can be damaged,... - Page 4 Do not drop or insert metallic objects or flammable materials into the unit as this may result in fire and electrical shock. Do not remove the device's cover, as there are exposed parts inside carrying high voltages that may cause an electrical shock. Contact your ATEÏS dealer if internal inspection, maintenance or repair is necessary.
-
Page 5: Bpa Bridging Power Amplifier

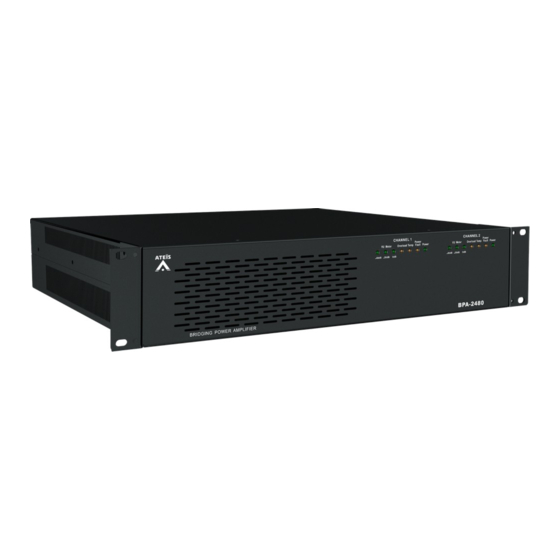

The status LED on the front panel include power, fault, overload temp. and VU meter. Front panel BPA-1000/BPA-1240/BPA-1480 The front panel of BPA-1000/BPA-1240/BPA-1480 is identical. BPA-2060/BPA-2120/BPA-2240/BPA-2480 The front panel of BPA-2060/BPA-2120/BPA-2240/BPA-2480 is identical. 1. VU meter LED: The three LEDs indicate the three output levels respectively (-40 dB, -20 dB and 0 dB). -
Page 6: Rear Panel
Please make sure that these inlet holes are not obstructed. Rear panel BPA-1000/BPA-1240/BPA-1480 Except the AC power supply range and amplifier output are differed from US type and EU type, the rear panel of BPA-1000/BPA-1240/BPA-1480 is identical. BPA-2060/BPA-2120/BPA-2240/BPA-2480 © 2020, ATEÏS. All rights reserved. - Page 7 BPA bridging power amplifier Except the AC power supply range and amplifier output are differed from US type and EU type, the rear panel of BPA-2060/BPA-2120/BPA-2240/BPA-2480 is identical. 1. Battery backup input (48VDC): When AC mains is not present, this 48VDC backup input can be used for power backup by connecting to the battery charger such as BCU-4830A/BCU-4875A.
- Page 8 480W 240 nF (100V); 470 nF (70V) BPA-2480 5 ohm (50V); 2.6 ohm (35V) 10 ohm (100V); 4.9 ohm (70V); BPA-1000 1000W 470 nF (100V); 820 nF (70V) 2.5 ohm (50V); 1.2 ohm (35V) 8. DC power fault on/off switch: Set ''ON'' to monitor whether the the DC backup input is present.
-
Page 9: Hardware Installation
3. Make sure the power switch is ''ON''' on the rear panel of BPA unit. Connect to battery charger (power sharing) For DC battery backup power sharing, connect the BCU-4830A/BCU-4875A battery charger to BPA power amplifier as the picture below. BPA-1000/BPA-1240/BPA-1480 © 2020, ATEÏS. All rights reserved. -
Page 10: Audio Input/Audio Output
BPA-2060/BPA-2120/BPA-2240/BPA-2480 Users ''MUST'' follow the orders below to connect the BPA with BCU-4830A/BCU-4875A battery charger. 1. Connect the four 12VDC batteries to BCU-4830A/BCU-4875A battery charger. 2. Connect the 48VDC backup power input terminals of BPA to the 2 output terminals on BCU- 4830A or the 6 output terminals on BCU-4875A. -
Page 11: Bridged Output
Hardware installation Bridged output Bridge the two channel of BPA amplifier such as 120W x 2CH (BPA-2120) to 240W x 1CH, 240W x 2CH (BPA-2240) to 480W x 1CH, 240W x 2CH (BPA-2240) to 480W x 1CH, 480W x 2CH. (BPA- 2480) to 960W x 1CH. -
Page 12: Parallel Output
Parallel output 1. Connect an audio input on Channel 1. 2. Turn the input gain to "OFF" position on Channel 2, but keep the input gain on Channel 1 be adjustable. 3. Connect the balanced output on Channel 1 to the balanced input on Channel 2 (XLR connector or euro-block connector). -
Page 13: Maintenance
If proper operation cannot be restored, the amplifier may require service from ATEÏS Technical Support. This must be examined by qualified technical personnel, to avoid shock hazard or improper repairs. Please contact your ATEÏS dealer or ATEIS Feedback. © 2020, ATEÏS. All rights reserved. -
Page 14: Troubleshooting
Troubleshooting Problem Troubleshooting 1. Check if the voltage is under the normal range Amplifier does not start-up when the AC (115VAC or 230VAC). mains is connected. 2. Check if the AC mains fuse is broken. No back-up power when 48VDC power supply Check if the voltage is under the normal range (48 - 53 is connected. -
Page 15: Technical Data
345VA 458VA BPA-2240 32VA 660VA 960VA BPA-2480 34VA 1245VA 1745VA BPA-1000 30VA 1280VA 1795VA Idle: pilot tone -36 dBu, 1/2 full power: alarm tone DC power input: 43 ~ 56 VDC power consumption (DC): standby mode idle 1/8 full power 1/2 full power... - Page 16 BPA-2240: 426 x 88 x 376 mm (16.8 x 3.5 x 14.8 inch) BPA-2480: 426 x 88 x 435 mm (16.8 x 3.5 x 17 inch) BPA-1000: 426 x 88 x 390 mm (16.8 x 3.5 x 15.6 inch) BPA-1240: 10.5 kg (23.1 lbs) BPA-1480: 13.5 kg (29.7 lbs)
-
Page 17: Standard And Certification
Standard and certification Standard and certification The BPA product is approved processing/pending and complied to the following. EN 54-16 Europe Voice Alarm (pending) EN 55032 Europe CE/EMI (in process) EN 61000-4-2 (ESD) Europe CE/EMS (in process) Europe CE/LVD EN 6006 (in process) Mass Notification Systems UL 2572 (pending) Safety... -
Page 18: Contact Information
Contact information ATEÏS Europe B.V. EMEA Celsiusstraat 1 - 2652 XN Lansingerland (Rotterdam Region), Netherlands Tel: +31 (0) 10 2088690 info@ateis-europe.com ATEÏS Suisse SA Penton Audio USA Switzerland & South-East Europe USA, Canada & Latin America Avenue des Baumettes 9, 21 Sabin St.
