Summary of Contents for Ateis DPA8060

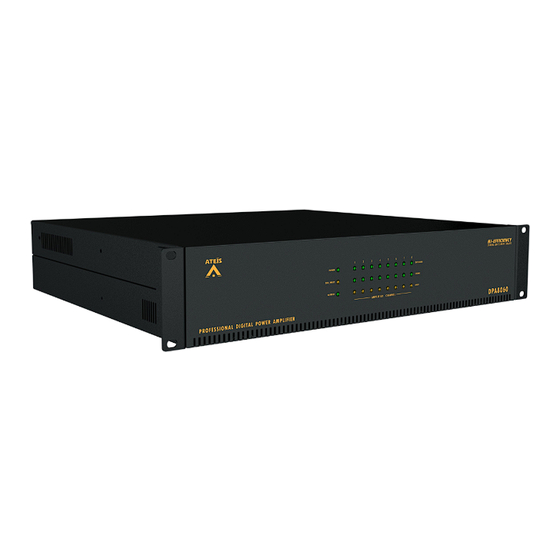

- Page 1 DIGITAL POWER AMPLIFIER User Manual MODEL DPA8060 DPA4125 DPA4250 DPA2500 Revision History v1.07 © 2018, ATEÏS, member of PAX ProAV Group...
-
Page 2: Table Of Contents
Table of Contents Page 1 About this manual 1.1 Notice signs ........................... 3 1.2 Safety instructions ........................... 3 2 DPA digital power amplifier 2.1 Front panel ........................... 5 2.2 Rear panel ........................... 6 3 Hardware installation 3.1 Mounting ........................... 8 3.2 Connect to AC mains power ........................... -
Page 3: About This Manual
About this manual About this manual This user manual will explicitly describe the hardware installation and the software configuration, provides installers and users the necessary information to setup and configure the system. Notice signs ** The above warning is located on the back of the unit. Explanation of Graphical Symbols To alert the user to the presence of uninsulated The equipment or the property can be damaged,... - Page 4 o The unit has been dropped or the shell is damaged. Do not drop or insert metallic objects or flammable materials into the unit as this may result in fire and electrical shock. Do not remove the device's cover, as there are exposed parts inside carrying high voltages that may cause an electrical shock.
-
Page 5: Dpa Digital Power Amplifier
DPA models can bridge two channels to double the power wattage. Front panel The front panel of DPA2500/DPA4125/DPA4250/DPA8060 is identical, except the number of channel is different. 1. Power LED: This LED lights up if the DPA is powered by AC mains power. -
Page 6: Rear Panel
DPA8060 The rear panel of DPA2500/DPA4125/DPA4250/DPA8060 is identical, except the number of channel is different, and the DPA8060 does not have Lamp input and Spare contact input. 1. AC mains power socket: Connect the mains AC power to this power socket (100 VAC ~ 240 VAC, 50/60 Hz with fuse). It accepts a standard mains power lead fitted with an IEC connector. - Page 7 4. Spare contact input (DPA2500/4125/4250): Reserved for further usage. 5. Channel 1~8 output: Each channel delivers 60W (DPA8060), 125W (DPA4125) / 250W (DPA4250) / 500W (DPA2500), and both EU and US types are available as different models. EU type: 100V/50V/4 ohm US type: 70V/35V/4 ohm 6.
-
Page 8: Hardware Installation
Hardware installation Mounting The DPA power amplifier is suitable for 19-inch 2U rack-mounting installation. Attach the two rack- ears to the DPA using the four M4 x 4x8mm screws. Consider leaving enough ventilation space above and below the unit. Do not mount the amplifier directly above the heat generating devices like power supplies or power amplifiers. -
Page 9: Audio Input/Audio Output
Bridge the two channels of DPA amplifier such as 500W x 2 CH. (DPA2500) to 1000W x 1 CH.; or bridge each two channel of DPA8060 (60W x 8 CH.) to 120W x 4 CH. Please see the instruction as below: 1. - Page 10 4. Set the volume of gain knob on Channel 1 to the maximum volume. © 2018, ATEÏS, member of PAX ProAV Group...
-
Page 11: Maintenance
If proper operation cannot be restored, the amplifier may require service from ATEÏS Technical Support. This must be examined by qualified technical personnel, to avoid shock hazard or improper repairs. Please contact your ATEÏS dealer or ATEIS Feedback. © 2018, ATEÏS, member of PAX ProAV Group... -
Page 12: Troubleshooting
Troubleshooting Problem Cause Troubleshooting 1. Check if the voltage is under the normal range (100 ~ Amplifier does not start-up when the AC 240VAC). mains is connected. 2. Check if the Service Request Contact output is open. If yes, the hardware is damaged/broken. 1. -
Page 13: Technical Data
500W 5 ohm (50V); 2.5 ohm (35V) Mechanical DPA8060: 437 x 88 x 400 mm (17.2 x 3.5 x 15.7 inch) DPA4125: 437 x 88 x 370 mm (17.2 x 3.5 x 14.6 inch) Dimensions (W x H x D): DPA4250: 437 x 88 x 387 mm (17.2 x 3.5 x 15.2 inch) - Page 14 DPA8060: 437 x 88 x 400 mm (17.2 x 3.5 x 15.7 inch) DPA4125: 437 x 88 x 370 mm (17.2 x 3.5 x 14.6 inch) Dimensions (W x H x D): DPA4250: 437 x 88 x 387 mm (17.2 x 3.5 x 15.2 inch) DPA2500: 437 x 88 x 387 mm (17.2 x 3.5 x 15.2 inch)
-
Page 15: Standard And Certification
Standard and certification Standard and certification The products or the system is approved processing/pending and complied to the following. EN54-16 Europe Voice Alarm (in process) Europe CE/EMI EN55032:2015/AC:2016 Class A EN61000-3-2:2014 Europe CE/EMC EN61000-3-3:2013 EN55020:2007/A11:2011 Europe CE/LVD EN60065: 2014 (in process) Mass Notification Systems UL2572 (pending) Safety... -
Page 16: Contact Information
Contact information www.ateis.com ATEÏS Europe B.V. Penton Audio USA EMEA USA, Canada & Latin America Celsiusstraat 1 - 2652 XN Lansingerland 21 Sabin St. Pawtucket, (Rotterdam Region), Netherlands RI 02860, USA Tel: +31 (0) 10 2088690 Tel: 401-727-1600 info@ateis-europe.com Fax: 401-727-0003 info@penton-usa.com...
