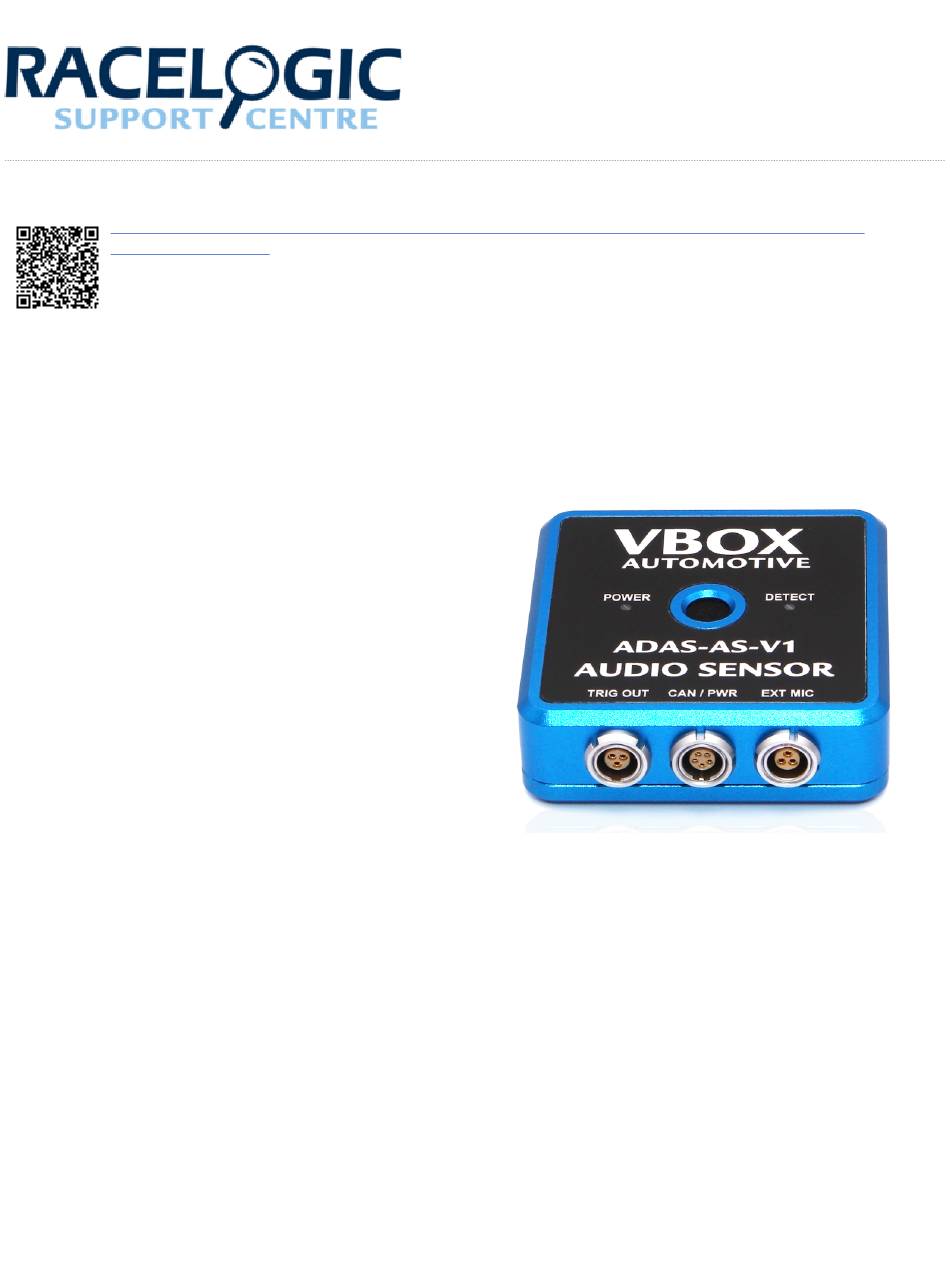

ADAS Audio Sensor - Quick Start Guide
https://en.racelogic.support//Product_Info/Sensors/ADAS_Audio_Sensor/ADAS_Audio_Sensor_-
_Quick_Start_Guide
This page contains information that is important to know before you use your ADAS Audio Sensor for the
first time.
What is in the box?
When you purchase the ADAS Audio Sensor, you will find the following items when you open the box:
Product Code
Quantity
RLADAS-AS-
V1
TV1AM20MB31
RLACS343
RLCAB005-C
RLCAB007-2
Optional Accessories
Product Code
Description
RLACS287
Mount
Description
1
Audio Sensor Unit
1
USB-C to USB-A cable
1
External Microphone
5-way LEMO to 5-way
1
LEMO CAN cable
3-way LEMO to 4 wire
1
unterminated cable
1
Advertisement
Related Manuals for Racelogic ADAS
Summary of Contents for Racelogic ADAS
- Page 1 ADAS Audio Sensor - Quick Start Guide https://en.racelogic.support//Product_Info/Sensors/ADAS_Audio_Sensor/ADAS_Audio_Sensor_- _Quick_Start_Guide This page contains information that is important to know before you use your ADAS Audio Sensor for the first time. What is in the box? When you purchase the ADAS Audio Sensor, you will find the following items when you open the box:...
-
Page 2: Power Supply
This is an accessory that is to be used when the sound you are listening for comes from a location that is hard to reach. This page provides the steps for setting up the ADAS Audio Sensor with VBOX Audio Sensor Setup. - Page 3 1. Make sure that you have VBOX Audio Sensor Setup installed on your PC. Connect your ADAS Audio Sensor to your PC with a USB-A to USB-C cable. This cable will power the unit and provide access to configure the detection and trigger settings.
- Page 4 OR functionalities: When you select AND, the signal detection will only be triggered when all of the frequencies are met simultaneously. You can use this for multi-toned warnings or multi-vibration haptic warnings. Using AND triggering will significantly reduce false positives from any background noise. When you select OR, the sensor output will be activated when the unit detects any of the configured frequencies.
- Page 5 10. Go to the Advanced Settings area to adjust the following settings, if applicable: Measure Background Noise Range Noise Multiplier Digital Output Fixed Delay (ms) CAN Output 11. When you are happy with the configured settings, click Write to Unit to save the configuration to your Audio Sensor unit.
Need help?
