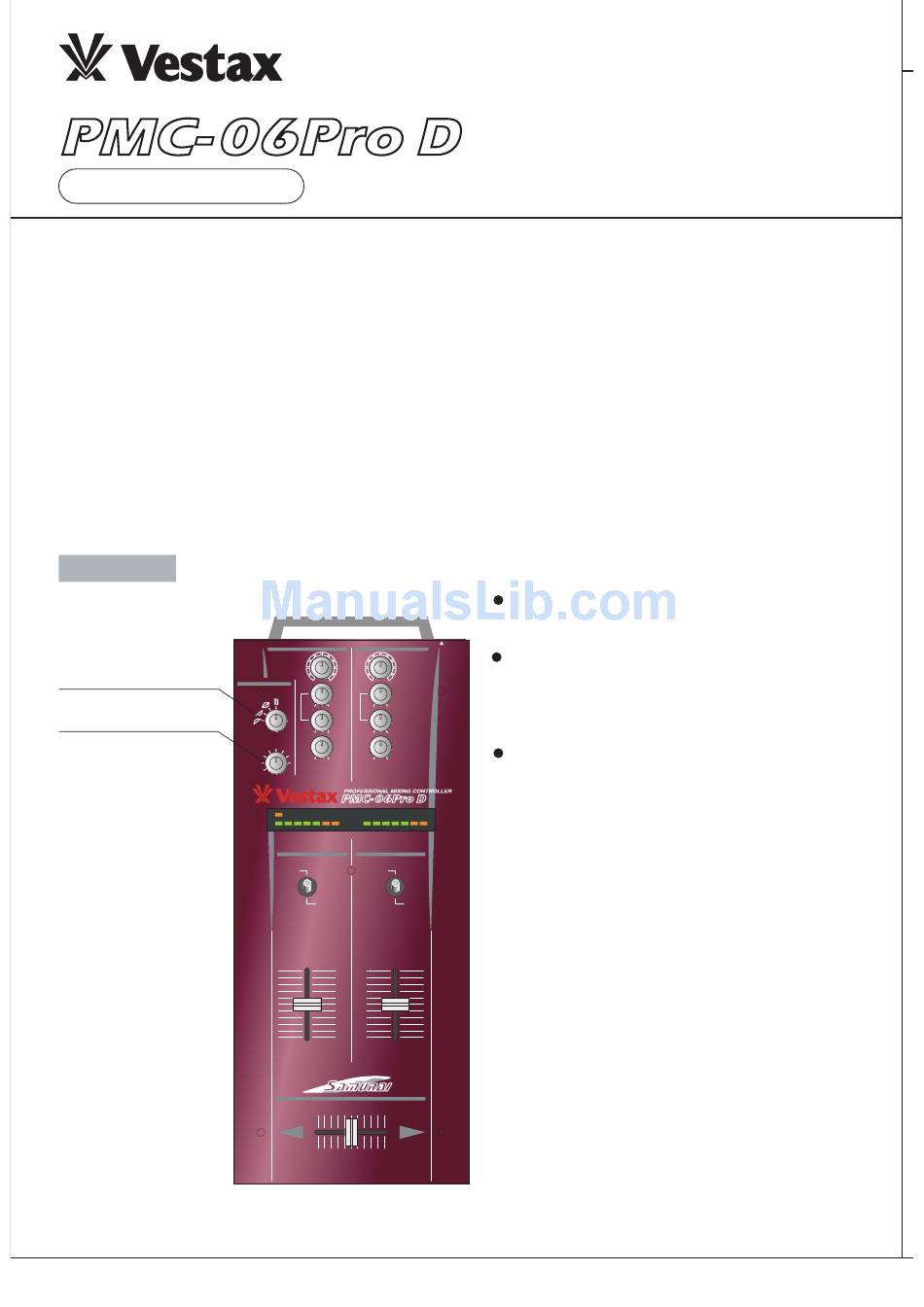

PROFESSIONAL MIXING CONTROLLER
OWNER'S MANUAL
CONGRATULATIONS!
Thank you for purchasing the VESTAX PMC-06ProD. Please read this owner's manual carefully before you start to
use in order to understand fully how it to operate your new mixer.
FEATURES
The new Vestax Digital Fader System consists of coils and a permanent magnet. There is no contact between
these parts. Therefore, neither the element or magnet gets degraded or damaged even after hard usage.
Unlike an optical type fader, the digital fader system does not get effected even by liquid spills or dusts.
Control of the fader curve by a complete digital signal system, enabling creation of sharp edges in the curve
pattern.
FUNCTIONS

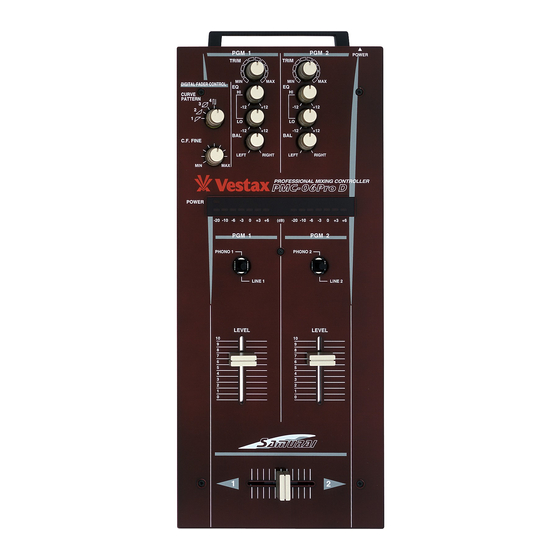

TOP PANEL
(a) CURVE PATTERN SWITCH
(b) C.F. FINE CONTROL
PGM 1
PGM 2
TRIM
TRIM
MIN
MAX
MIN
MAX
DIGITAL FADER CONTROL
EQ
EQ
HI
HI
CURVE
PATTERN
4
3
-12
+12
-12
+12
2
1
LO
LO
-12
+12
-12
+12
BAL
BAL
C.F. FINE
LEFT
RIGHT
LEFT
RIGHT
MIN
MAX
POWER
-20 -10 -6
-3
0
+3 +6
(dB)
-20 -10 -6
-3
0
PGM 1
PGM 2
PHONO 1
PHONO 2
LINE 1
LINE 2
LEVEL
LEVEL
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
0
0
1
2
Vestax Corporation
1-18-6 Wakabayashi, Setagaya-ku, Tokyo 154-0023 Japan
Phone 03-3412-7011
Web : www.vestax.jp
Vestax (Europe) Ltd.
Unit 5 Riverwey Industrial Park Alton Hampshire GU34 2QL England, U.K.
Phone (0)1420-83000 Fax (0)1420-80040
Web : www.vestax.co.uk
Vestax Technical Center of America
8489 W. Third Street Ste. 1044 Los Angleles, CA 90048
Phone (323)801-2111 Fax (323)801-2112
CURVE PATTERN SWITCH(a) selects the cross-
fader curve pattern.
POWER
Setting the C.F. FINE CONTROL to minimum, the
crossfader curve is most sharp, moving the control
clockwise, towards max, gradually reduces the
sharpness of the curve (b).
The replacement crossfader unit for PMC-06ProD
is "CF-X".
"CF-05PRO", "CF-PCV" cannot be substituted in
this mixer.
