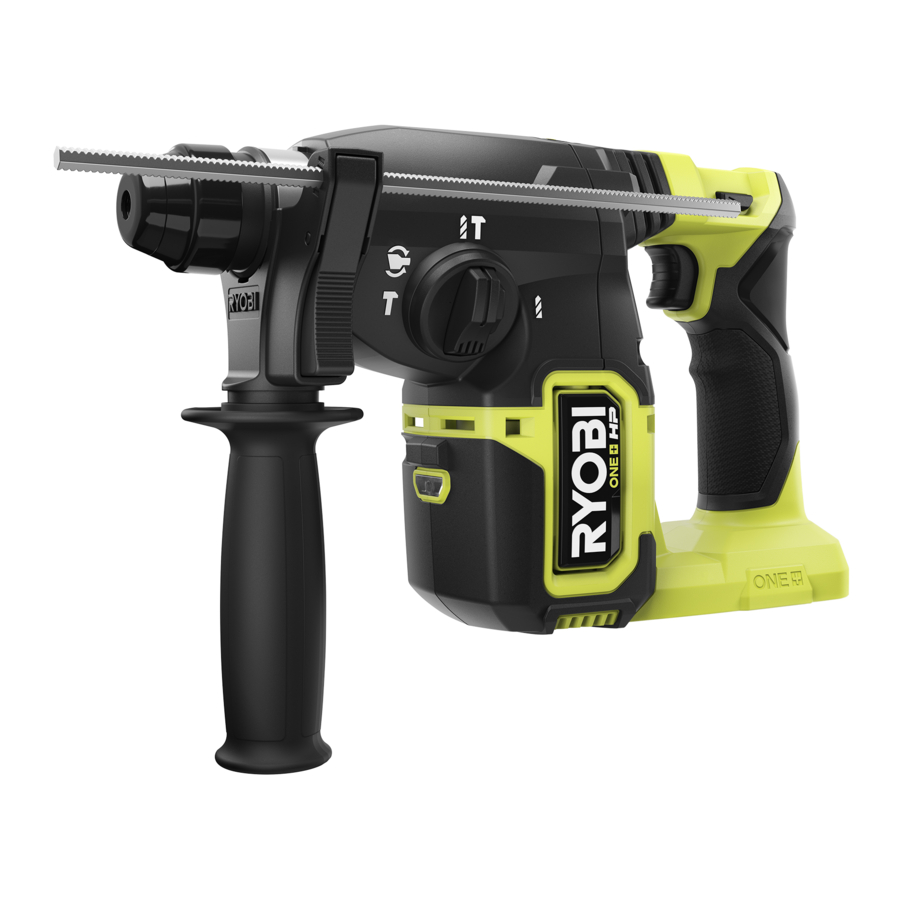

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.
Many accidents are caused by poorly maintained power tools.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. | ||
Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. | ||
Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury. | ||
NOTICE: | (Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage). | |
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. | ||
SYMBOL | NAME | DESIGNATION/EXPLANATION |
Safety Alert | Indicates a potential personal injury hazard. | |
Read Operator's Manual | To reduce the risk of injury, user must read and understand operator's manual before using this product. | |
Eye Protection | Always wear eye protection with side shields marked to comply with ANSI Z87.1. | |
Wet Conditions Alert | Do not expose to rain or use in damp locations. | |
Recycle Symbol | This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options. | |
V | Volts | Voltage |
min | Minutes | Time |
Direct Current | Type or a characteristic of current | |
no | No Load Speed | Rotational speed, at no load |
.../min | Per Minute | Revolutions, strokes, surface speed, orbits etc., per minute |
This product requires assembly.
Items in this Assembly section are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.
If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.
Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.
Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.
This product is intended for the purposes listed below:
You may use this product with a chuck adaptor (not included) for the purposes listed below:
The variable speed switch trigger delivers higher speed with increased trigger pressure and lower speed with decreased trigger pressure.
NOTE: A whistling or ringing noise coming from the switch during use is a normal part of the switch function.
NOTE: Running at low speeds under constant usage may cause the tool to become overheated. If this occurs, cool the tool by running it without a load and at full speed.
The LED emits light from the front of the tool when the switch trigger is depressed.
If the tool is not in use, the time-out feature will cause the light to start fading and then shut off.
The LED light illuminates only when there is a charged battery pack in the tool.
(FORWARD/REVERSE/CENTER LOCK)
Set the direction of rotation selector in the OFF (center lock) position to lock the switch trigger and help prevent accidental starting when not in use.
Position the direction of rotation selector to the left of the switch trigger for forward operation. Position the selector to the right of the switch trigger to reverse the direction.
NOTE: The tool will not run unless the direction of rotation selector is pushed fully to the left or right.
NOTICE:
To prevent gear damage, always allow the chuck to come to a complete stop before changing the direction of rotation.
For complete charging instructions, see the operator's manuals for your battery pack and charger.
Battery tools are always in operating condition. Lock the switch when not in use or carrying at your side, when installing or removing the battery pack, and when installing or removing bits.
The depth stop rod helps control the depth of drilled holes.
To adjust the depth stop rod:
NOTE: When properly installed, the teeth on the depth stop rod should be aligned with the teeth indicator on the depth stop rod holder.
This tool is equipped with an SDS-Plus connection system. Only use bits designed for use with the SDS-Plus connection system.
To install bits:
To remove bits:
NOTE: When hammer drilling, use only bits with hard metal and SDS Plus shaft.
For drilling in metal, wood, and plastic with non-SDS Plus drill bits, a chuck adaptor may be used.
NOTE: Use with Rotational Drilling Mode only. Use of Rotary Hammer mode or Chisel Only mode will damage the tool's mechanism when used for fastening or drilling with non-SDS-Plus bits.
A new hammer drill may require up to five hours of operation for break-in. When stored for long periods or in low temperatures, a warm-up period of a few seconds to a couple of minutes may be required in hammer mode.
The hammer drill features an internal clutch that is preset to allow a sufficient amount of force for most drilling operations. It may slip when the bit binds in the hole or the tool is overloaded. Be aware that an instant before the clutch slips, a torque reaction can occur allowing the hammer drill body to twist in the opposite direction of the turning bit. The clutch will automatically reset when the binding force of the bit is removed.
NOTE: It is normal during the drilling process for the bit to momentarily stop rotating when the clutch is slipping. Continued drilling will not damage the tool.
The mode selector gives the operator four options.
Rotary Hammer Mode Hammering action plus drill bit rotation. Use for hammer drilling. | |
Rotational Drilling Mode Drill bit rotation only; no hammering action. Use for drilling and other heavy duty applications. | |
Chisel Adjust Mode Position allows the user to rotate the bit to the optimum position for chiseling applications. | |
Chisel Only Mode Hammering action only for chipping concrete, tile, and masonry. |
NOTE: If the product has not been operated recently, the mode selector may be difficult to turn. If you cannot change modes, turn the tool on and allow it to run for a few seconds. This should free the gears and allow you to change modes normally.
NOTE: This tool has an electric brake. When the switch trigger is released, the chuck stops turning. When the brake is functioning properly, sparks will be visible through the vent slots on the housing. This is normal and is the action of the brake.
NOTICE:
During extended periods of use, it is possible that lubrication may leak from the gearbox. This is a normal occurrence and does not indicate a problem with the tool. Avoid placing the tool on an unprotected surface to avoid possible property damage.
For maximum performance, use carbide-tipped masonry impact bits or designated hammer drill bits when drilling holes in brick, tile, concrete, etc.
WOOD, METAL, AND STEEL DRILLING
For maximum performance, use high speed steel bits for wood or metal drilling. Select Rotational Drilling Mode. Begin drilling at a very low speed to prevent the bit from slipping off the starting point.
NOTICE:
When using the tool, do not apply too much pressure. Too much pressure will place unnecessary load on the motor.
TOOL STATUS | LED LIGHT SCENARIO | ACTION REQUIRED |
Normal | Solid Light (No Flashes) | No Action Needed |
Low Battery | 3 Flashes | Replace Battery |
Excessive Force | 6 Flashes | Wait 5 Seconds |
Over Temperature | 9 Flashes | Let Tool Cool Off |
*More than 9 flashes will result in the need to remove the battery and reinsert a few minutes later.
