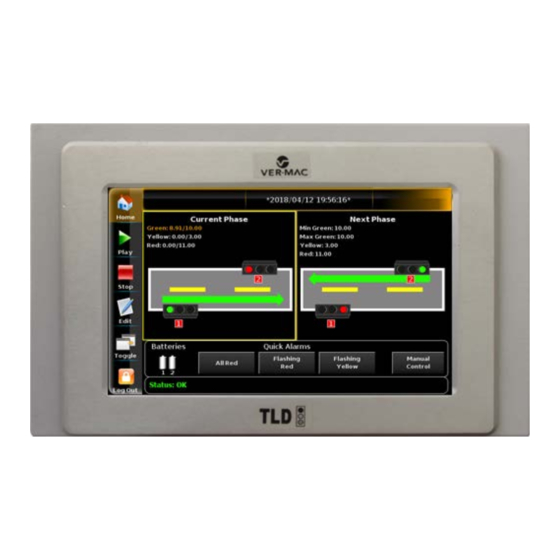

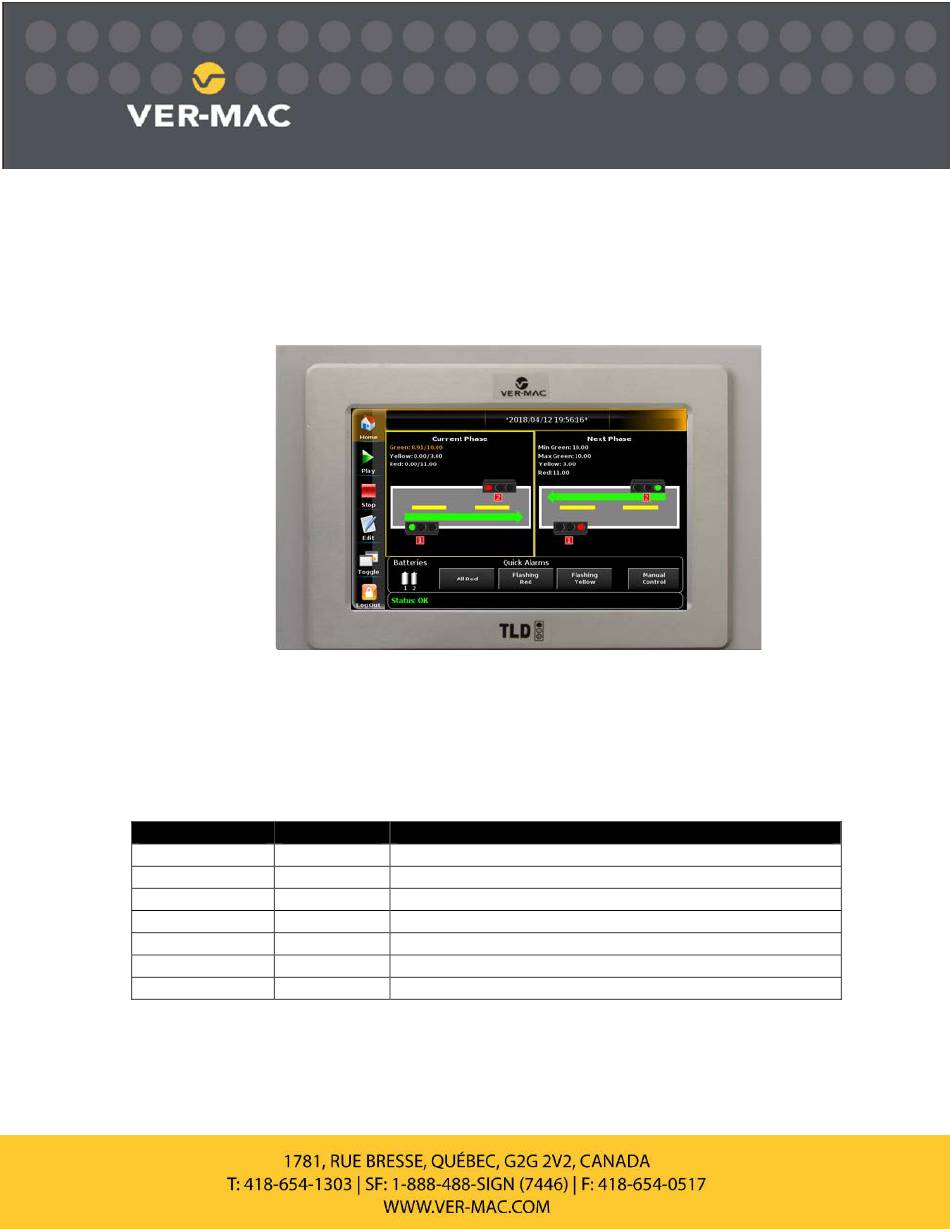

V-Touch TLD
User's Manual
Manual part no. MAN-45 version 3.2
List of Revisions
Description
First version
Version for 2012 TLD design
New controller brand name
New controller software and redesign
General update
Update for the intersection creation
GPS mode
