  • Page 1 Handheld Controller User Manual...

  • Page 2: Manual Revision

    Handheld Controller User Manual Manual Revision Revision Date Revision Level Description iHand55 Handheld Controller May, 2023 User Guide A1...
  • Page 3 Handheld Controller User Manual iHand55 Handheld Controller User Manual...
  • Page 4 Welcome to the Hi-Target iHand55 handheld controller. This introduction describes how to use this product. Experience Requirement In order to help you use Hi-Target series products better, Hi-Target suggests you carefully read the https://en.hi-target.com.cn instructions. If you are unfamiliar with the products, please refer to...

  • Page 5: Relevant Information

    Handheld Controller User Manual Technology and Service If you have any technical issues, please call Hi-Target technology department for help, we will answer your question. Relevant Information You can obtain this introduction by: 1. After purchasing Hi-Target products, you will find this manual in the instrument container to guide you on operating the instrument.
  • Page 6 1.1 Introduction 1.1.1 Foreword The iHand55 controller is a professional data collector, based on the Android system. Using a combination of physical buttons and touch screen to operate, the default input languages are Chinese and English, and it supports multiple languages. The industrial-standard design can withstand 1.5...
  • Page 7 In order to improve the stability and usage cycle of the iHand55 hand-held controller, please avoid exposing it to extreme environments, such as humidity, high temperatures, low temperatures, corrosive liquids or gases, etc.

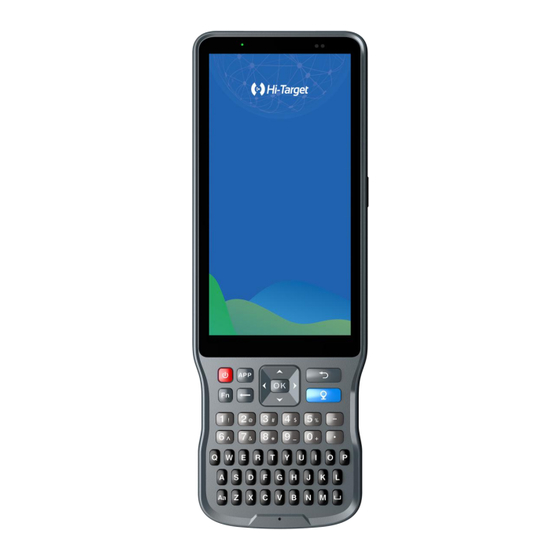

  • Page 8 Handheld Controller User Manual 1.2 Appearance 1.2.1 Front of the controller The front of the iHand55 controller includes a touch screen, keyboard microphone and indictor light. Figure 1-2-1 iHand55 controller 1- Indictor light 2- Microphone 3- Touch screen 4- Keyboard - Indictor light: Display different color changes as the battery level changes.
  • Page 9 Handheld Controller User Manual Figure 1-2-2 the backside of the iHand55 1- Camera 2- NFC 3-Trumpet 4- Belt hole - Camera: used for field collection of images. - NFC: supports NFC data transmission to achieve rapid connection between RTK and the hand-held controller.

  • Page 10: Controller Accessories

    Handheld Controller User Manual 1.2.3 Side of the controller Figure 1-2-3 the port of iHand55 1- Waterproof & dustproof rubber cover 2- Type-C port - Type-C port: for connecting the USB data line and the controller. Notice: When not using Mini USB, please close the rubber cover to make it waterproof and dustproof.
  • Page 11 Bracket: to secure the hand-held controller to the alignment rod. 1.4 Operation 1.4.1 Keyboard Most settings and operations of the iHand55 hand-held controller can be completed by the touch pen, and commonly used operations can be completed on the keyboard. Appearance and functions of the keyboard are as follows.
  • Page 12 Handheld Controller User Manual Figure 1-4-1 Keyboard 1- Power 2- APP 3- Fn 4- Back 5- OK 6- Collect 7- Delete 8- Space 9- Shift - Power: press it for over 3secs to power on/off. Press it for 1sec to turn off /on the screen backlight in the power on status.
  • Page 13 1.4.2 Battery and Charger 1.Battery: The controller has a built-in 9200mAh/3.85V battery and supports MTK PE2 fast charging. Notice: When the iHand55 hand-held controller is not used, please turn off the backlight to save electricity and prolong working time. 2. Charger: To charge the controller, use the standard charger. When it is in charge, the power button...
  • Page 14 3 hours. After that, the iHand55 supports fast charging with the original charger and the charge time is then less than 3 hours. If the battery is not used often, it must be charged once every two months.
  • Page 15 3. If the using time is obviously shortened, please stop using the battery. 1.4.4 SIM card setting The iHand55 hand-held controller supports DSDS, the default card is SIM1. Both SIM1 and SIM2 support full network 4G. 1. Installation of the SIM card Step1: remove the left side cover and expose the SIM card slot.
  • Page 16 PDAs. If you buy this, please note the difference to ordinary SD cards. The volume of the ordinary SD card is larger than the Micro SD card, and is not suitable for the iHand55 hand-held controller. Step1:remove the left side cover and expose the Micro SIM card slot..
  • Page 17 In the off state, long press the power button for 3 seconds, it will power on. Figure 1-4-9 The interface of the iHand55 screen In the power on state, long press the power button for 3 seconds, it will prompt to shut down and to...
  • Page 18 Handheld Controller User Manual Figure 1-4-10 Power off 1.5 Application 1.5.1 Connecting the controller to computer 1. Connect the controller to computer via the USB data cable. 2. Transfer files: pull down the notice column and click USB for charging.
  • Page 19 Handheld Controller User Manual Figure 1-5-2 Charging Figure 1-5-3 File transfers 3. Connect the PC version mobile phone assistant: open the hand-held controller, click Setting → System →About Controller → clidk Build number 7 times → Developer options → USB debugging.
  • Page 20 Figure 1-5-6 USB debugging 1.5.2 Upgrade method iHand55 controller supports two methods for upgrading, local upgrade and wireless upgrade. 1. Local upgrade of iHand55 controller (download the firmware from the Hi-Target official website first). Step1: copy the upgrade firmware to the SD directory.
  • Page 21 Handheld Controller User Manual Figure 1-5-7 Upgrade patch Step2: choose the System Update App. Figure 1-5-8 Update App Step3: open the System Update App, as shown below.
  • Page 22 Handheld Controller User Manual Figure 1-5-9 Interface of the update Step4: click the top right menu selection in the interface, and choose Local updates. Figure 1-5-10 Local updates Step5: enter the interface.
  • Page 23 Handheld Controller User Manual Figure 1-5-11 Local updates Step6: select the SD directory file, then select the update firmware. Figure 1-5-12 Choose the firmware Step7: after selecting the upgrade firmware, click Install Now.
  • Page 24 Handheld Controller User Manual Figure 1-5-13 Install Step8: the system will restart and begin to update. Figure 1-5-14 Interface of upgrade 2. Wireless update Step1: select the System Update App.
  • Page 25 Handheld Controller User Manual Figure 1-5-15 Update App Step2: after entering the System update App, if there is a new version, the interface will show it and display the update. The complete update content will appear if you draw up the screen.
  • Page 26 Handheld Controller User Manual FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
