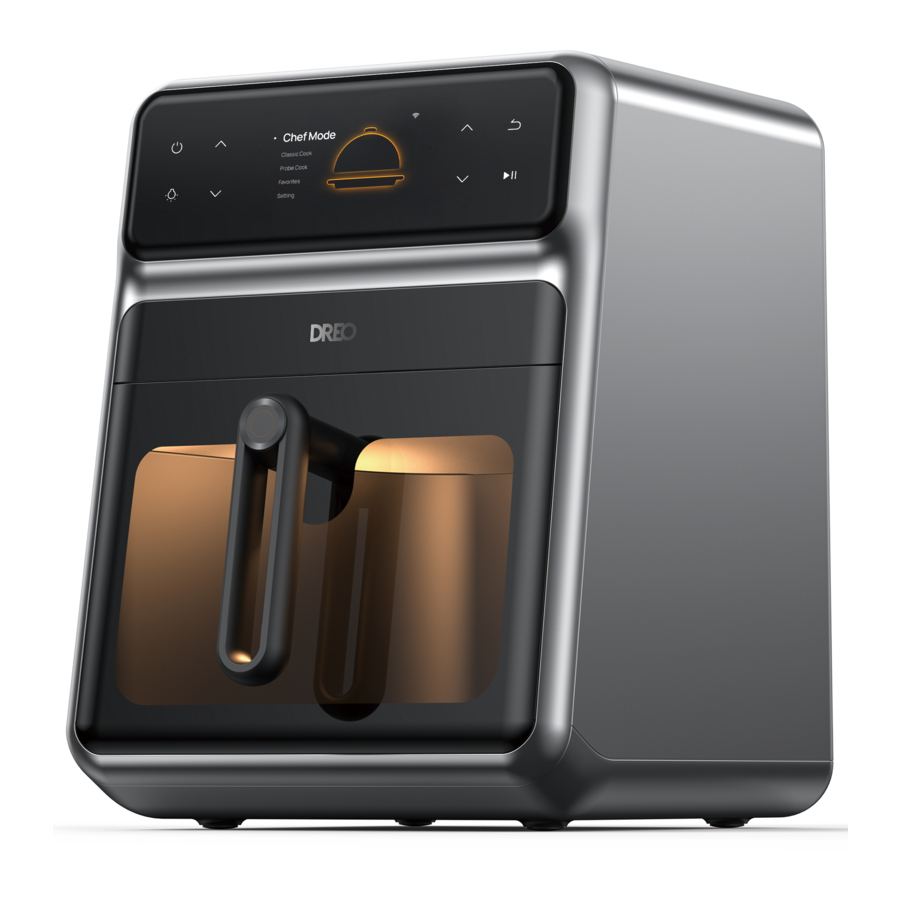

Dreo ChefMaker - Combi Fryer Manual

Specifications

GETTING TO KNOW YOUR APPLIANCE

1. Power ON/OFF
2. Interior Light
3. Non-stick Basket
4. Water Tank
5. Wi-Fi Status
6. Cancel/Back
7. Confirm/Pause
8. Menu Navigation
9. Air Outlet
10. Air Inlet

Grilling Rack
Use only for grilling and certain presets in Chef Mode
Cooking Tray
Use for every day cooking
(except for recipes that use grilling rack)

The right tools for a perfect cook

Cook Probe

• Track doneness closely and achieve perfect results.
• Not recommended for frozen protein or cuts thinner than 1-inch
  (ChefMaker will display which recipes need it.)

Find the Cooking Probe slot inside your appliance basket.

Make sure the three pins are facing outwards.

Push the Cooking Probe until you hear the "click".

• After cooking the Cook Probe may still be hot, take it out carefully to not get burned.
• BP Do not submerge into water.

Water tank

• Add extra tenderness to your favorite meals.
  (ChefMaker will display which recipes need it)

Fill up before using programs with water.

Keep the water tank lid closed while cooking.

• Always dry out the water tank after cooking.
• ONLY keep the water tank filled when you are about to use a cooking mode that requires it.

CONNECTING TO YOUR APPLIANCE

Download the Dreo app to get the most out of your appliance!
Scan the QR code to download the Dreo app.

OR
Search "Dreo" on Google Player on App Store.

1. Launch the Dreo app and sign in or create account by following the in-app instructions.
2. Tap Add Device in the Dreo app and select the appliance you want to link.
3. On your appliance go to Settings> WLAN> Press .
   Make sure the display shows "Waiting for pairing"
4. Connect to your preferred Wi-Fi network through the Dreo app.
5. You're now ready to control the appliance on your app.

Tips
To reset Wi-Fi settings, on your appliance go to Settings>WLAN and long press for 2 seconds.
(Once reset, display will show "waiting for pairing")
To restore factory settings, on your appliance go to Settings>System Settings>Reset> Press and hold Confirm for 5s.
There may be OTA updates available the first time you connect your appliance. If so, please follow the steps on the Dreo app to continue.

GETTING STARTED

Before First Use

• Remove all plastic packaging from your appliance.
• Clean all the cooking accessories and let them dry at room temperature.
  (see cleaning instructions)

Initial Use

Note: it is recommended to heat your appliance to remove any remaining odor.

1. Tap to turn on.
2. Select Classic Cook> Air Fry> Set temperature at 380°F and time to 15 minutes.
3. After heating is done, let the fryer cool, then wash the basket and cooking tray with soapy water and non-abrasive sponge.

CHOOSING THE RIGHT MODE

Your new appliance includes a series of modes to simplify your cooking and magnify your tasting. Depending on what you are planning to cook, you can choose from:

Chef Mode

Powered by CombiCook System
Achieve perfect results with the ingredient-based master Chef presets.

Best for

Not recommended for frozen protein or cuts thinner than 1-inch.

Classic Cook

As simple as choosing your cooking style.

Best for

Probe Cook

Take full control of temperature settings just like master chefs do.

Best for

TIPS FOR CHEFMAKER MODES

Chef Mode

Make sure to use the cook probe and water tank when shown in your recipe.

Cook Probe (Probe)

Water Tank (Water)

• Follow ChefMaker's tips in your appliance screen for better cooking results.

Classic Cook

ChefMaker recommends the optimum temperature and time for your cooking style.

Probe Cook

Set your desired doneness with the target probe temperature.

Ambient temperature helps you cook the surface of your food.

CLEANING AND MAINTENANCE

• Always clean your appliance after every use.
• Turn off and unplug the appliance. Allow it to be cool before cleaning.
  You can pull out the basket for faster cooling.
  When cleaning, it is recommended to use non-abrasive liquid cleanser and sponge.

Main parts

Note: To extend the life of your appliance, do not use abrasive elements like cleaners, metal scouring pads or metal utensils to wipe-clean any part/accessory of your appliance.

Water tank maintenance
To ensure optimum performance during your cooking, it is recommended:

• Dry out the water tank after cooking.
• Run a deep cleaning of pipes and nozzles at least once every 3 months.

Water tank draining

1. ONLY keep the water tank filled when you are about to use it.
2. Always drain the water tank after cooking:
   Go to Settings > Maintenance > Water Pipe Drain > Confirm

Descaling

(Approx. 40 min)

1. Go to settings > Maintenance > Descaling.

2. Fill up the water tank and add some baking soda.
   Make sure the basket is in position and then confirm.

3. After the first cleaning is done, fill the water tank once more, make sure the basket is in position and then confirm. After cleaning is done, drain the water from the basket.


Troubleshooting

Problem	Possible solution
The appliance will not turn on	Make sure the appliance is plugged in.
	Push the basket securely into the appliance.
Foods are not completely cooked	Do not overcrowd the basket in every cooked, if the basket is overstuffed, your ingredients will not receive proper heat.
	Try the Program mode using the cook probe for better accuracy.
Foods are cooked unevenly	Ingredients that are stacked on top of each other or close to each other need to be shaken during cooking. The non-stick cooking tray should be placed in the basket.
Foods are not crispy after frying	Spray or brush a small amount of oil on foods can increase crispiness.
White smoke is coming out of my appliance	The appliance may produce some white smoke when you use it for the first time. This is normal.
	Make sure the basket and the non-stick food tray is cleaned properly and is not greasy.
	Frying greasy foods will cause oil leaks into the basket. This oil will produce white smoke. This is normal and should not affect cooking.
Dark smoke is coming out of my appliance	Immediately unplug your appliance. Food is burning, wait for smoke to clear before pulling the basket out.
How do I pause or stop the cooking?	Remove the basket from the unit to pause the cooking and place it back to resume, you can also press the "" button or return and then confirm to stop the cooking.
Is the basket safe to put on my countertop?	Use caution when handling, and place on heat-safe surfaces only.
The cooking probe is not detected	Make sure you properly secured the cooking probe to the basket, magnets must face towards the interior of your appliance.
I can't find the appliance when adding to the Dreo app	Make sure your appliance is turned on. Go to Settings> WLAN> Confirm
Connection to Wi-Fi fails	Make sure you are connecting your appliance to a 2.4 GHz network.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS.
BEFORE USING THIS APPLIANCE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN YOUR USER GUIDE AND ON THE APPLIANCE.
When using electrical units, basic safety precautions should always be followed including the following:

DO NOT touch hot surfaces. Use the handle.

DO NOT block any ventilation openings. Hot steam is released through the air outlet. Keep your hands and face clear of openings.

To protect against electrical shock, do not immerse the appliance, cord, or plug in water or other liquid.

Intended Use

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by person responsible for their safety.
2. Close supervision is necessary when any appliance is used by or near children.
3. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Electricity Safety

1. Check if the voltage indicated on the appliance corresponds to the local main voltage before you connect the appliance.
2. DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. Always make sure that the plug is inserted properly into a wall outlet.
3. Do not let cord hang over edge of table or counter, or touch hot surface.
4. DO NOT plug in the appliance or operate the control panel with wet hands.
5. Never connect this appliance to an external timer switch or separate remote control system in order to avoid a hazardous situation.
6. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop, before you remove the pan from the appliance.
7. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn off the appliance, then remove plug from wall outlet.
8. If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. Extension Cord:
   A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a longer detachable power-supply cord or extension cord is used:
   1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
   2. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
   3. The appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

Related to Use

1. Keep your appliance away from flammable materials (curtains, tablecloth, etc.) Use on a flat, stable, heat-resistant surface away from heat sources or liquids during operation.
2. DO NOT place on a stove, near a hot gas or electric burners, or in a heated oven.
3. DO NOT place the appliance against a wall or other appliances. Leave at least 4 inches of free space on the back and sides and 4 inches of free space above the appliance.
4. DO NOT IMMERSE INTO WATER. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
5. DO NOT leave the appliance unattended while in use. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
6. DO NOT use outdoors. Do not use appliance for other than intended use.
7. DO NOT place anything on top or bottom of your appliance. store anything inside your appliance.
8. After using the appliance, the metal cover inside is very hot, avoid contact with it after cooking. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
9. DO NOT store any materials, other than manufacturers recommended accessories, in this appliance when not in use.
10. Preheating of the appliance is not necessary.
11. Extreme caution should be exercised when using containers constructed of other than metal or glass.
12. Use extreme caution when the cooking tray or disposing of hot grease.
13. DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.

Meaning: the surfaces are liable to get hot during use.

While Cooking

1. Oversized foods or metal utensils must not be inserted into your appliance as they may create a fire or risk of electric shock.
2. DO NOT place paper, cardboard or non-heat resistant plastic into your appliance, or any material which may catch fire or melt.
3. Do not cover any part of the appliance with metal foil. This will cause overheating of the appliance. Use extreme caution when using foil, and always fit the foil as securely as possible. If the foil contacts the appliance heating elements, this can cause overheating and risk of fire.
4. Never put baking or parchment paper into the appliance without food on top. Air circulation can cause paper to move and touch heating elements.
5. A fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
6. Pressing the at any moment will shut down the appliance.

DREO CUSTOMER CARE

We're Here to Help!
support@dreo.com
(888) 290-1688
Mon - Fri, 9:00 am-5:00 pm PST/PDT
www.dreo.com

@Dreo
Shenzhen Hesung Innovation
Technology Co., LTD
26F, Bldg A7, Creative City, Shenzhen, China
