Summary of Contents for Living Culture ONETANGI

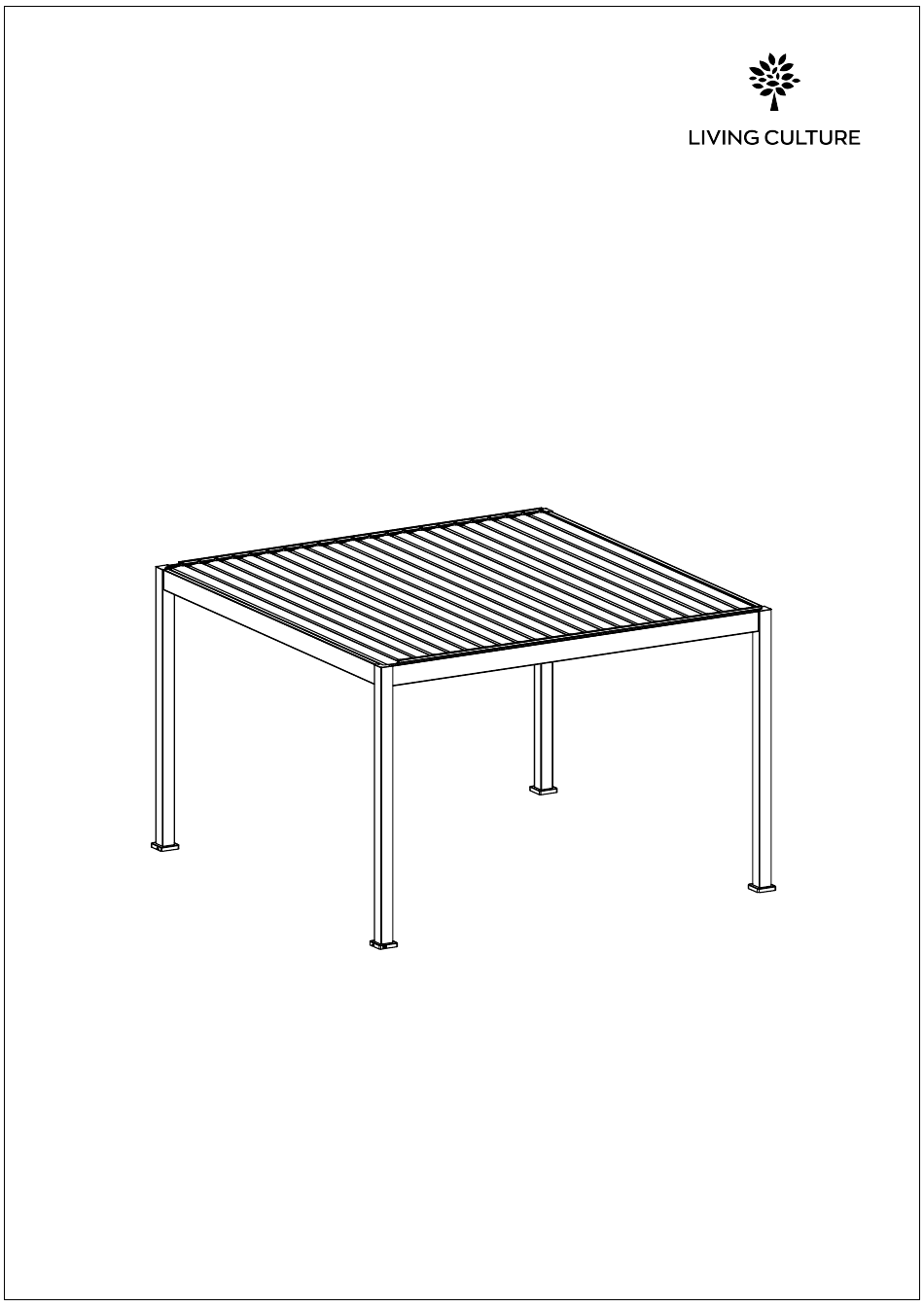

- Page 1 ONETANGI ALUMINUM PERGOLA MANUAL 4X...
-
Page 2: Installation Notes
<2/20> INSTALLATION NOTES Before you start to install products ,please read below notes: 1.This is a general version manual .make sure that you review the design when placing an order and read this manual several times before you start to assemble pergola , this installation steps can be referred to in this manual ,However ,other specific details such as motor position ,drainage direction ect. - Page 3 <3/20> code name section photo code name section photo driven post blade post blade led light post blade driven post gutter gutter cover gutter gutter cover gutter gutter cover gutter gutter cover...
- Page 4 <4/20> HARDWARE code name photo code name photo ∅ 8*M6*5 shoulder screw base plate wrench (5mm) decoration cover control system A4 post decoration cover (single motor+led light ) SUS hex screw (M8*12) remote M8 washer Note: The silicone sealant is not allowed to M8*80 SUS hex expansion ship,we don't offer this item.
-
Page 5: Installation
<5/20> TOOLS ∅ 14mm marker hammer electric spirit electrical tape hand drill cross bar drill bar level drill rubber hammer ladderX3 security hat 16mm wrench INSTALLATION STEP 1:Assemble the post with base plate 1.1 put the base plate docorative cover into the post before you screw them .please note the decoration cover of wire post is different . - Page 6 <6/20> STEP 2：Assemble the pergola frame :assemble roller gutter with posts first Tip： You should do the assemble on soft flooring to protect product from scratch 2.1、Inset the gutter into the groove of post 2.3、Assemble the pergola frame on the floor and make it stand 2.2、Fasten the screw from inside...
- Page 7 <7/20> STEP 3:Adjust the pergola position and fix the posts on the floor Tips： 1.Ensure the post in correct position ,and stand 90 degree with floor. 2.Before you fasten the screws ,you should double check the pergola position . 3.2 Adjust the position measure the diagonal lines and ensure the diagnal are equal.
- Page 8 <8/20> STEP 4: Settle the blades 4.1 Take out the blade without driven cover from the package 4.2 screw the cover with blade as picture 4.3 Check the drawing and mark the position of led ligh blade and driven blade A视图...
- Page 9 <9/20> 4.4-2 When all blades 4.4-3 Connect the LED light 4.4-4 Fasten the driven blade with seetles ,then fasten blade cable with electric cable motor the covers in gutter motor Tip： screw the motorwith driven blade is essential part STEP 5:Connect to the power 5.2 Inset the control Before inset the system into the post A4...
- Page 10 <10/20> STEP 6: Install the driven rod and check the electric cables 6.1 Install the driven rod Fasten the driven rod with blades from inside to screw Tip： Two bays driven rods must be symmetrical 、 Driven rods should be outside ,or the bades 、...
- Page 11 <11/20> STEP 7:If there is zip screen device on the pergola ,then do STEP 8 after all cables connected STEP 8:Install the gutter cover and post end cover Use rubber hammer to knock the gutter cover into groove, note width edge is inner side (Tip:It is easy to knock the cover when the louvers are open E-1/2/3/4 B-1/2/3/4...
- Page 12 <12/20> HOW TO USE TUYA APP STEP1 :Open tuya app 1. Prepare a public wifi for the pergola Tip: 2. Open the phone bluetooth and TUYA app it needs 2.4GHz wifi 5、press and hole the button until the blue indicate light flash 6.
- Page 13 <13/20> How to authorize account to family members 一、 TUYA APP When you connect to tuya app successfully ,you can share the account to your family members share TIPS： 1the owner's phone (A) connect to pergola ，he can operate the pergola by his phone A， 2.the other family members also download TUYA app and singn in 1.
- Page 14 <14/20> WALL-MOUNTED MANUAL Hardware list expansion plug(M14*75) wood screw (M10*100) 30 mm cap 17mm wrench...
- Page 15 <15/20> STEP 1:Install the wall-mounted gutter first 2.1 Take use of electric spirit 2.2 Mark the holes position through level to mark the gutter position the pre-drill holes on the gutter 2.5 Stuff the cap ∅ 2.4 Stuff the expansion 2.3 drill 14 mm holes 2.5 Use wrench to...
- Page 16 <16/20> STEP 2 : Assemble the pergola frame 2.2-2 Loosen these two screws 3.1、Assemble the frame on 2.2-3 Inset the gutter the floor and make it stand into the junction 2.2-4 Fasten these two screws again 2.2-5 Fasten the four screw at up and bottom 3.2 Fasten the gutter with post...
- Page 17 <17/20> The remain installation as same as the previous steps Tips：1.When you settle the blades ,you should fasten the blade pivot covers when each 3 pcs of blades settled screw the blade pivot covers each 3 pcs 2.When the blade vertical to wall ,you should install the again wall side driven rod first.
-
Page 18: Troubleshooting
<18/20> Trouble shooting malfunction solutions 1.check the cables connect if correct 2.check if there is an avaliable voltage for pergola : motor and led lights 110V or 220V don't work 3.check the remote if learn to match the control system 4.check the remote battery is work or not 5.check the control system has power output or not 1.check the motor is working or not... -
Page 19: Care And Maintenance
<19/20> Care and Maintenance CARING FOR YOUR PERGOLA Structure surface coated with the thermosetting powder coating must be cleaned once a year to maintain their original appearance Thermosetting powders are sensitive to : 1.Physical friction ,hard impact ,extrusion ,chemicals including alkaline solvent and acidic solvent. - Page 20 ,You are a valued customer and we'll continue to strive for the best customer service we can offer .If you care to share any future stories from the road ,we'd love to hear them .Thanks again ! Gratefully LIVING CULTURE...
