Living Culture Onetangi Manual

Aluminum pergola
Hide thumbs Also See for Onetangi:

Advertisement

Quick Links

Download this manual

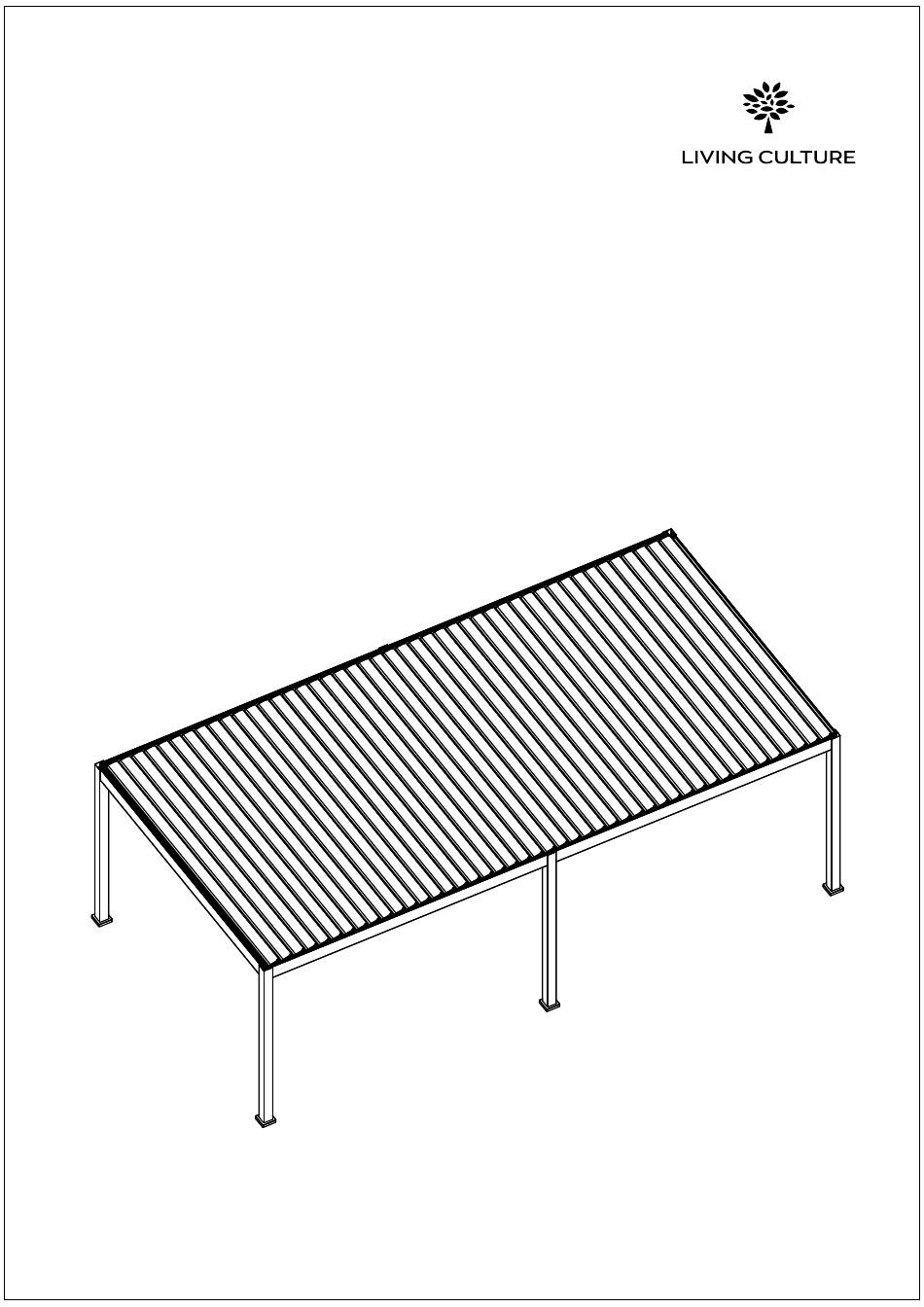

Onetangi ALUMINUM PERGOLA
MANUAL
SIZE: 5X4 6X4 7X4 8X3.6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Onetangi and is the answer not in the manual?

Questions and answers

Related Manuals for Living Culture Onetangi

Summary of Contents for Living Culture Onetangi

  • Page 1 Onetangi ALUMINUM PERGOLA MANUAL SIZE: 5X4 6X4 7X4 8X3.6...
  • Page 2 <2/23> INSTALLATION NOTES Before you start to install products ,please read below notes: 1.This is a general versioan manual .make sure tht you review the design when placing an order and read this manual several times before you start to assemble pergola ,this installation steps can be referred to in this manual ,However ,other specific details such as motor position ,drainage direction ect.
  • Page 3 <3/23> motor motor code name section photo code name section photo driven post blade post blade led light post blade driven post driven post gutter post cover gutter gutter cover gutter gutter cover gutter gutter cover gutter gutter cover gutter gutter cover gutter...
  • Page 4 <4/23> HARDWARE code name photo code name photo base plate blade pivot cover decoration 4*14 cross drilling screw cover A1 post ∅ 8*M6*5 shoulder screw decoration cover SUS hex screw (M8*12) allen wrench (5mm) control system M8 washer (2motor and 2 led light) M8*80 SUS hex expansion remote bolt...
  • Page 5 <5/23> Tools ∅ rubber hammer hand drill cross bar electrical 14mm hammer drill drill bar marker tape electric spirit security hat 16mm wrench ladderX3 level INSTALLATION STEP 1:Assemble the post with base plate 1.1 put the base plate docorative cover into the post before you screw them. please note the decoration cover of wire post is different .
  • Page 6 <6/23> STEP 2：Assemble the pergola frame :do assemble roller gutter with posts first Tip： 2.1 Inset the gutter into Assemble the pergola frame on the groove of post the floor and make it stand fasten it tight Tips： 1.Please ensure the pergola frame is correct before you assemble 2.It needs at least 2 people to make the post stand...
  • Page 7 <7/23> 2.3 Assemble the remain pergola frame 2.4 Assemble the remain frame...
  • Page 8 <8/23> STEP 3:Adjust the pergola position and fix the posts on the floor 3.3 Install the L shape 3.2 It needs two workers to install 3.1 Adjust the position .measure strengthing accessory the midlle gutter connect accessory . the diagonal lines and ensure ne man push gutters to ensure min gap the diagnal are equal.
  • Page 9 <9/23> STEP 4 :Settle the blades 4.1 Take out the blade without driven cover from the package , there are 2 pieces 4.2 Screw the driven blade cover with driven blade 4.3 Check the drawing ,and mark the positions of led light blades and driven blade on the gutter...
  • Page 10 <10/23> 4.4 Ensure the blades direction and position ,start to settle blades on the roof Tips : Settle the blades in correct position fasten them when all blades settled and confrimed there is no fault 4.4-3 Connect the LED light 4.4-4 Fasten the driven 4.4-2 When all blades blade cable with electric...
  • Page 11 <11/23> STEP 5:Connect to the power 5.1 Before inset the 5.2 Inset the control system control system ,you into the post A1 should connect the voltage cable tree plugs are LED light blade cable note: there are two cable for led light ,please link them base on labels .
  • Page 12 <12/23> STEP 6: Install the driven rod and check the electric cables 6.1 Install the driven rod Fasten the driven rod with blades from inside to screw Tips： Two bays driven rods must 、 be symmetrical 6.2 Learn to remote controller system Driven rods should be outside , 、...
  • Page 13 <13/23> STEP 7:If there is zip screen device on the pergola,please install zip screen before STEP 8 STEP 8:Install the gutter cover and post end cover 8.1 Use rubber hammer to knock the gutter cover into groove, note width edge is inner side 8.2 Install the L shape post covers 8.3 Install the middle post post covers COMPLETE...
  • Page 14 <14/23> STEP 9 : Check the pergola function 9.1、the PCCB is essential during installation 9.2、check the motor function 9.3、check the remote function 9.3、check the louver movement and noise 9.4、check the led light function 9.5、check the other device function...
  • Page 15 <15/23> HOW TO USE TUYA APP STEP1 :Open tuya app 1. Prepare a public wifi for the pergola Tip: 2. Open the phone bluetooth and TUYA app it needs 2.4GHz wifi 5、press and hole the button until the blue indicate light flash 6.
  • Page 16 <16/23> How to authorize account to family members 一、 TUYA APP When you connect to tuya app successfully ,you can share the account to your family members share TIPS： 1the owner's phone (A) connect to pergola ，he can operate the pergola by his phone A， 2.the other family members also download TUYA app and singn in 1.
  • Page 17 <17/23> WALL-MOUNTED MANUAL Hardware list expansion plug(M14*75) wood screw (M10*100) 30mm cap 17mm wrench...
  • Page 18 <18/23> STEP 1:Install the wall-mounted gutter first 2.1 Take use of electric spirit level 2.2 Mark the holes position through the to mark the gutter position pre-drill holes on the gutter 2.3 Drill φ14 mm holes 2.6 Stuff the cap 2.4 Stuff the expansion 2.5 Use wrench to screw on the wall...
  • Page 19 <19/23> STEP 2 : Assemble the pergola frame 2.1 Assemble one bay pergola frame 2.1-1 Fasten the gutter with post 2.2-2 Loosen these two screws 2.2-3 Inset the gutter into the junction 2.2-5 Fasten the screws at up and botton of gutter 2.2-4 Fasten the screw first 2.2.Assemble the other bay frame as same as step 2...
  • Page 20 <20/23> Install the remain work as same as previous steps Tips： 1.When you settle the blades ,you should fasten the blade pivot covers when each 3 pcs of blades settled screw the blade pivot covers 2.When the blade vertical to wall ,you should install the again wall side driven rod first.
  • Page 21 <21/23> Trouble shooting malfunction solutions 1.check the cables connect if correct 2.check if there is an avaliable voltage for pergola : motor and led lights 110V or 220V don't work 3.check the remote if learn to match the control system 4.check the remote battery is work or not 5.check the control system has power output or not 1.check the motor is working or not...
  • Page 22 <22/23> Care and Maintenance CARING FOR YOUR PERGOLA Structure surface coated with the thermosetting powder coating must be cleaned once a year to maintain their original appearance Thermosetting powders are sensitive to : 1.Physical friction ,hard impact ,extrusion ,chemicals including alkaline solvent and acidic solvent.
  • Page 23 ,You are a valued customer and we'll continue to strive for the best customer service we can offer .If you care to share any future stories from the road ,we love to hear them .Thanks again ! Gratefully LIVING CULTURE...
