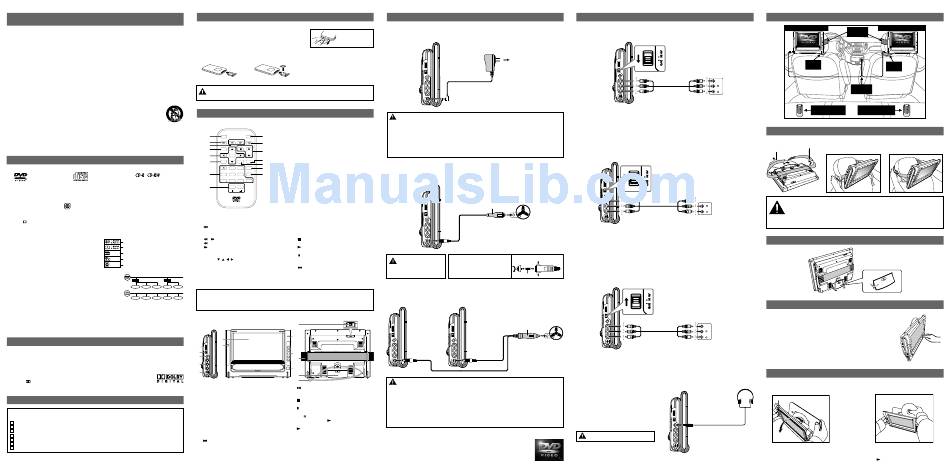

Venturer PVS6281 Owner's Manual

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong is provided for your safety. When the provided plug does not fit into your
AC power outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the AC power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as the AC power cord or plug is damaged, liquid has spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.

DISC FORMATS

The unit can playback
DVDs Audio CDs
[8cm/12cm disc] [8cm/12cm disc]
Compatible
Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the Region Management
Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region
number of this unit, it cannot play that disc.
The region number of this unit is 1.
Disc Function or Operation that is Not Available
When the symbol appears on the screen, it indicates that the function or operation attempted is not available
at that time. This occurs because the DVD manufacturer determines the specific functions of DVDs. Certain functions
may not be available on some DVDs. Be sure to read the documentation provided with the DVD.
Icons Used on DVDs
Language selections for audio
Sample lcons
Language selections for subtitles
Note:
Screen aspect ratio
When playing back a CD-G (Graphics) or CD EXTRA
disc, the audio portion will be played, but the graphic
Multiple camera angles
images will not be shown.
1 Region code indicator
Title, Chapter and Tracks
• DVDs are divided into "titles" and "chapters". If the disc has more
Title1 Title2
than one movie on it, each movie would be a separate "title".
"Chapters" are sections of titles.
Chapter1 Chapter2 Chapter3 Chapter1 Chapter2
• Audio CDs are divided into "tracks". A "track" is usually one song
on an Audio CD.
Track1 Track2 Track3 Track4 Track5
Note: Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on them,
but some do not.
Notes on Unauthorized Discs
You may not be able to play some DVDs on this unit, particularly if they were purchased from outside your geographic
area or made for business purposes.
SOUND SYSTEM
Dolby Digital
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can reproduce
from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for two-channel
listening. An additional Dolby Digital decoder is required for reproduction of the discrete multi-channel soundtracks
available on many DVDs.
Manufactured under license from Dolby Laboratories.
'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.
ACCESSORIES
Please check and identify the supplied accessories.
• To order accessories visit website http://www.venturer.com
Remote Control (with battery) ......................................................................................................................... x 2
AC Power Adapter ........................................................................................................................................... x 2
Car Power Adapter .......................................................................................................................................... x 1
Car Power Splitter ........................................................................................................................................... x 1
Mounting Strap ................................................................................................................................................ x 2
Audio/Video Cable .......................................................................................................................................... x 1
Carrying Bag .................................................................................................................................................... x 1
E - 2
REMOTE CONTROL

Using the Remote Control

• Point the remote control at the REMOTE SENSOR located on the unit.
• When using this unit in very bright light, the infrared REMOTE Remove the PLASTIC
SENSOR may not work properly. sheet before USING
the Remote Control.
• The recommended effective distance for remote operation is about
16 feet (5 meters).
TO CHANGE REMOTE BATTERY
1. Open the battery door. 2. Insert one CR2025 BATTERY REPLACEMENT
(3V) size battery. When the battery becomes weak, the
operating distance of the remote control
will be greatly reduced and you will need
to replace the battery.
Note: If the remote control is not going to be used for a long time, remove the battery.
WARNING: Do not dispose of the battery in a fire or it may leak and/or explode.
WARNING: Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
CONTROL REFERENCE GUIDE
Remote Control
7) Number (0 - 9) buttons
Use when creating programs or locating a title/
VIDEO chapter/track or specific time.
MODE MENU
15
1
8) REPEAT A-B button
PREV SEARCH NEXT
2 Perform point-to-point repeat playback on a DVD
14
3 or CD.
GOTO STOP PAUSE
4 REPEAT DISC button
13
PLAY Repeat a DVD chapter or title.
5 ENTER
Repeat a CD track or the whole disc.
MEMORY ANGLE DISPLAY 12
6 M SETUP button
11
AUDIO When a DVD is stopped, display the unit's SETUP
10
2 3
menu.
SUBTITLE/
RETURN
7 9) SUBTITLE button
4 5 6 9
Select one of the subtitle languages programmed
7 8 9 0
on a DVD (if available).
SETUP
8 RETURN button
A-B DISC
Return to normal operation after using the
REPEAT
SETUP menu of a DVD.
10) AUDIO button
Select one of the audio sound tracks on a DVD
(if more than one is available) or select the audio
output mode on a CD.
1) VIDEO MODE button 11) ANGLE button
Adjust Brightness, Panel Display and Contrast Switch between multiple camera angles when
of the LCD screen. the DVD you are playing has been programmed
2) PREV button with multiple camera angles.
Move back through titles, chapters or tracks on a 12) DISPLAY button
disc. Show status information on the screen.
13) STOP button
3) / SEARCH buttons
Stop playing a disc.
SEARCH: Fast reverse playback.
PLAY button
SEARCH: Fast forward playback.
4) GOTO button Start or resume playback of a disc.
Skip directly to a location on a DVD. PAUSE button
5) Cursor ( , , , ) buttons Press once to pause playback. Press subsequently
Use to move between selections on a menu to advance frame by frame on a DVD.
screen and adjust certain settings. 14) NEXT button
ENTER button Move forward through titles, chapters or tracks
Confirm selections on a menu screen. on a disc.
6) MEMORY button 15) MENU button
Set titles/chapters in a favourite order. Enter and exit the main DVD menu.
IMPORTANT NOTE:
The included remote controls have different color keys to identify which unit they operate.
The remote control with GREEN keys operates the unit which has GREEN buttons on the front of the unit.
The remote control with BLUE keys operates the unit which has BLUE buttons on the front of the unit.
Unit
8
9
6
7
1
2
10
3
11
4
12
5
13
14
1) VOLUME Control NEXT Button
Adjusts the volume. Press to advance chapters / tracks.
2) AV IN / DVD Switch Press and hold to perform fast forward playback.
3) Headphone Jack STOP Button
4) AUDIO & VIDEO IN / OUT Jacks Stops playing a disc.
5) CAR PLUG -12V / DC IN 9V Jack
PAUSE Button
6) LCD Screen Pauses playback of a disc. Each time you press
7) Open Knob
the PAUSE button the picture advances one
Press and hold to open the disc door. frame. Press the PLAY button to resume
8) ON / STANDBY Switch playback.
9) POWER ON Indicator PLAY Button
When the ON / STANDBY switch is slide to ON Starts or resumes playback of a disc.
position, the light will be on. 11) Mounting Strap
10) PREV Button 12) Remote Sensor
Press to go back to the previous chapters / tracks. Receive the remote control unit signals.
Press and hold to perform fast reverse playback. 13) Stand
14) Elastic Safety Band
E - 3

POWER SUPPLY

A. Using the AC Power Adapter
The supplied AC power adapter operates on AC 120V.
LEFT SIDE OF UNIT
1
To AC outlet
AC Power Adapter
2
To DC IN 9V jack
Cautions:
• The AC power adapter included with this unit is for its use only. Do not use it with other equipment.
• When the unit is not going to be used for long time, disconnect the AC power adapter from the AC power outlet.
• When the AC power adapter is plugged in, the apparatus is not completely disconnected from the main power
supply, even when the power is turned off.
Warning:
The AC power adapter is used as disconnect device and it should remain readily operable during intended used.
In order to disconnect the apparatus from the mains completely, the AC power adapter should be disconnected
from the mains socket outlet completely.
B. Using the Car Power Adapter
The 12V car power adapter allows the unit to be used with vehicles that have a 12V, negative ground electrical
system.
LEFT SIDE OF UNIT
Car Power Adapter
1 To the cigarette
lighter socket
2
To CAR PLUG-12V jack
CAUTION: Fuse Replacement Instructions
Press and hold
WARNING:
For continued protection against
Disconnect the car power adapter
risk of fire, replace only with
when not in use. Not for use in
same type and rating of fuse.
24V vehicles.
FUSE Press and hold
C. Using the Car Power Splitter
The 12V car power splitter allows the unit to be used with vehicles that have a 12V, negative ground electrical
system.
LEFT SIDE OF UNIT LEFT SIDE OF UNIT
Car Power Splitter
1 To the cigarette
lighter socket
2 2
To CAR PLUG- To CAR PLUG-
12V jack 12V jack
Cautions:
• Use the provided 12V car power adapter/splitter only. Use with other car power adapters/splitters could
damage the unit.
• The 12V car power adapter/splitter included with this unit are for its use only. Do not use them with other
equipment.
• In the interest of traffic safety, do not operate this unit or view videos while driving a vehicle.
• Make sure the unit is securely fastened to prevent it from falling or flying through the air in the event of an
accident.
• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become hot
due to poor contact. Be sure to clean the cigarette lighter socket before use.
• After use, disconnect the 12V car power adapter/splitter from both the unit and cigarette lighter socket.

Turning on the Unit

1. Slide the ON / STANDBY switch on the top of the unit to the ON position.
2. The DVD logo (start-up picture) will appear on the screen.
3. After use, slide the ON / STANDBY switch to the STANDBY (power off) position.
E - 4

CONNECTIONS

A. Connecting a TV

If your TV has Audio/Video inputs, you can connect the unit to your TV using the Audio/Video cable.
LEFT SIDE OF UNIT
TV
VIDEO
IN
R
Audio/Video Cable AUDIO
IN
(included) L

Watching a DVD on your TV

1. Turn on the unit. Slide the AV IN / DVD switch to DVD.
2. Turn on the TV and follow the instructions included with it to play the DVD.
Notes:
• Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause a weak signal.
• If your TV does not have Audio/Video inputs, you will need to purchase an RF modulator (sold separately) and
follow the instructions included with it to connect the unit to your TV.

B. Connecting to a Stereo Receiver or Amplifier

The unit can play two channels Dolby Digital.
LEFT SIDE OF UNIT
No need to connect
STEREO RECEIVER
the yellow video plug.
OR AMPLIFIER
R
AUDIO
Audio/Video Cable
IN
L
(included)
Listening on external audio equipment
1. Turn on the unit. Slide the AV IN / DVD switch to DVD.
2. Turn on your audio equipment and follow the instructions provided with it to select the AUDIO IN function.
Notes:
• Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause a weak signal.
• If you have a stereo VCR, make sure you set it to stereo mode.
• Due to copyright protection, DVD movies cannot be copied. If you copy a DVD movie onto a videotape, the
resulting copy will be unclear, with poor sound quality. This is NOT caused by a defective DVD system.
C. Connecting to a Game System / Video Equipment
You can connect game system or other video equipment for playback through the unit.
LEFT SIDE OF UNIT
GAME SYSTEM /
VIDEO EQUIPMENT
VIDEO
OUT
R
AUDIO
Audio/Video Cable
OUT
L
(included)

Watching video equipment

1. Turn on the unit. Slide the AV IN / DVD switch to AV IN.
2. Turn on the video equipment and follow the instructions provided with it to playback.
Notes:
• Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause a weak signal.
• If you have a mono VCR, the volume level from the speakers will be low.
D. Using Headphones / Earphones
LEFT SIDE OF UNIT
• Turn down the volume before connecting, and
then adjust the level.
• When headphones/earphones are connected,
no sound will be emitted from the unit's speaker.
Headphones
(3.5mm diameter plug)
Caution: Avoid listening to sound at levels
which may be harmful to your ears.
E - 5

INSTALLATION GUIDE

Unit with BLUE buttons Unit with GREEN buttons
Mounting
Straps
Safety
Safety
Band
Band
Car Power
Splitter
Remote Control Remote Control
with BLUE rubber keys with GREEN rubber keys

INSTALLING IN A VEHICLE

Use the supplied mounting straps when installing the unit on the back of the vehicle's headrest.
Mounting Strap
1. Loop the safety band around 2. Tightly wrap the mounting strap
Elastic Safety Band the headrest. around the headrest.
SAFETY WARNING!
• This unit should never be used by the vehicle's driver or left unsecured in the vehicle while
driving.
• If this unit is being used in your vehicle, be sure that it is secured or held safely, and does
not obstruct any safety device, including air bags or seat belts.
• All passengers should wear seat belts when using this unit in a moving vehicle.
• If in doubt, please contact your vehicle manufacturer for further advice.
USING THE STAND FOR DESKTOP USE
SCREEN VIEWING ANGLE ADJUSTMENT
-5°
This unit is designed to allow users to have a comfortable viewing angle.
• The angle can be adjusted approximately +8° / -5°. +8°
• Gently push the top or bottom of the screen frame to adjust the viewing
angle.
Caution:
• Do not force the screen frame over its maximum viewing angle settings as
stated above. Attempting this will result in damage to the unit.
• Do not push the LCD screen. Gently push the screen frame to adjust.

INSERTING A DVD OR CD

1. Open the disc door 2. Hold the disc by its sides and carefully place
Push and hold the OPEN knob to open the it onto the spindle with the label side facing
disc door. up; push gently until you hear a "click".
Push and hold the OPEN knob
Note:
When gently pulling
the LCD screen
cover outward, be
careful not touch the
screen.
o
+90
3. Close the disc door.
It takes a short while for your unit to load the disc. After loading, the unit will automatically bring you to the main
menu of the disc or start playing the disc.
4. If the unit does not automatically start playing the disc, press the PLAY button.
E - 6
