Summary of Contents for TECHNI-PRO TNP218
-
Page 3: Table Of Contents
True RMS Multimeter User Manual Contents Page 1-Introduction..................... 2-WARNINGS..................... 3-General Specifications................3-1.International Safety Symbols.............. 3-2.Safety Category Ratings..............3-3.Maintenance..................4-Meter Description..................4-1.Symbols Used on LCD Display............5-Operation....................5-1.RANGE Button................... 5-2.MODE Button..................5-3.REL Button..................5-4.MAX/MIN/AVG Button................ 5-5.Backlight/HOLD Button..............5-6.Flashlight/PEAK Button..............5-7.AC/DC Voltage Measurememts............5-8.Frequency and % Duty Cycle Measurements........ -
Page 4: 1-Introduction

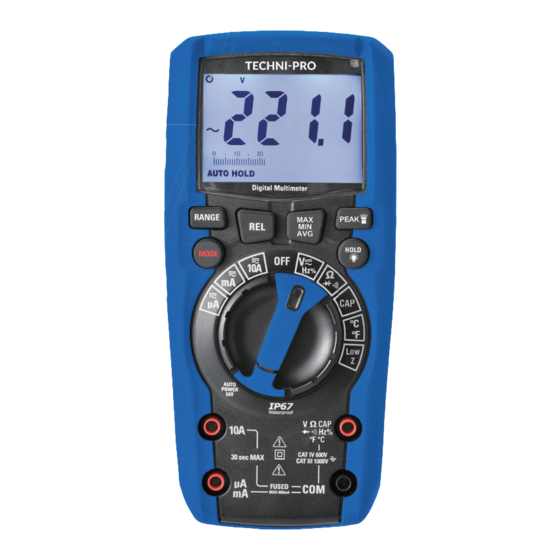

True RMS Multimeter User Manual 1-Introduction The True RMS Multimeter features True RMS measurements for more accurate AC readings and a Low Z setting for eliminating errors caused by “ghost” voltages. Functions include AC/DC voltage and current, resistance, continuity, capacitance, frequency, duty cycle, temperature, and diode test. -
Page 5: 3-General Specifications
True RMS Multimeter User Manual Input Limits Maximum Input Function 1000V AC RMS/1000V DC Voltage AC or DC 600V AC RMS/600V DC Low Z μ 800mA 1000V fast acting fuse A, mA Current AC/DC 10A 1000V fast acting fuse 10A Current AC or DC (10A for 30 seconds max. -
Page 6: 3-1.International Safety Symbols
True RMS Multimeter User Manual 3-1.International Safety Symbols Potential danger. Indicates the user must refer to the manual for important safety information. Indicates hazardous voltages may be present. 1000V Equipment is protected by double or reinforced insulation. Indicates the terminal(s) so marked must not be connected to a circuit where the voltage with respect to earth ground exceeds the maximum safety rating of the meter. -
Page 7: 3-3.Maintenance
True RMS Multimeter User Manual WARNING: Operation is limited to CAT II applications when the insulated tips are removed from one or both test probes. Refer to Input Limits section in this manual for maximum voltage ratings. 3-3.Maintenance This Multimeter is designed to provide years of dependable service, if the following care instructions are performed: •... -
Page 8: 4-1.Symbols Used On Lcd Display
True RMS Multimeter User Manual 4-1.Symbols Used on LCD Display Volts nano(10 ) μ Amperes micro(10 ) Alternating current milli(10 ) Direct current kilo(10 ) Minus sign mega(10 ) Ω Ohms Overload Continuity Auto Power Off Diode test Low battery Farads(capacitance) Autoranging AUTO... -
Page 9: 5-Operation
True RMS Multimeter User Manual 5-Operation 5-1.RANGE Button The Autorange mode automatically selects the proper range for the measurement being made and is generally the best mode for most applications. For measurement situations requiring that a range be manually selected, perform the following: •... -
Page 10: 5-5.Backlight/Hold Button
True RMS Multimeter User Manual • Momentarily press the MAX/MIN/AVG button to view the lowest reading. The “MIN” indicator will appear on the LCD display. The meter will display and hold the minimum reading and will update when a lower “min” occurs. •... -
Page 11: 5-7.Ac/Dc Voltage Measurememts
True RMS Multimeter User Manual • Press the PEAK button for approximately one second to switch between Peak MAX and Peak MIN readings. • Press and hold the PEAK button to exit PEAK and return to normal operation. NOTE: The meter does not Autorange when the Peak mode is active. The display will read OL if the range is exceeded. -
Page 12: 5-9.Low Z Voltage
True RMS Multimeter User Manual 5-9.Low Z Voltage WARNING: Observe all safety precautions when working on live voltages. Do not connect to circuits that exceed 600V AC/DC when the meter is set to Low Z. Low Z is used when there is a suspicion of a “ghost” voltage. Ghost voltages are present when non-powered wires are in close proximity to wires powered by AC voltage. -
Page 13: 5-11.Resistance Measurements
True RMS Multimeter User Manual 5-11.Resistance Measurements WARNING: Never test resistance on a live circuit. • Set the rotary function switch to the position. • Press the MODE button until the “ Ω ” symbol appears on the LCD display. •... -
Page 14: 5-14.Capacitance Measurements
True RMS Multimeter User Manual 5-14.Capacitance Measurements WARNING: Safely discharge capacitors before taking capacitance measurements. • Set the rotary function switch to the CAP position. • Insert the black test lead into the COM input jack and the red test lead into the CAP input jack. -
Page 15: 5-17.Fuse Replacement
True RMS Multimeter User Manual 5-17.Fuse Replacement WATRNING: To avoid electric shock, remove the test leads from the meter before removing the battery/fuse cover. • Loosen the one Phillips screw on the batter/fuse cover. • Remove the battery/fuse cover. • Gently remove fuse and install new fuse into the holder. - Page 16 True RMS Multimeter User Manual Function Range Resolution Accuracy ±(% of reading + digits) ±(3.0% + 40) Low Z 600.0mV 0.1mV DC Voltage 6.000V 60.00V 10mV 600.0V 0.1V Input Protection: 600V AC RMS or 600V DC Input Impedance: Approx. 3kΩ ±(1.0% + 5) Frequency 9.999Hz...
- Page 17 True RMS Multimeter User Manual Function Range Resolution Accuracy ±(% of reading + digits) μ μ ±(1.0% + 3) DC Current 600.0 A 0.1 A μ μ 6000 A μ 60.00mA 10 A 600.0mA 0.1mA ±(1.5% + 5) 10.00A 10mA μ...
- Page 18 True RMS Multimeter User Manual...
