RVS MOBILEMULE AI Instruction Manual

Ai powered dual dash cam
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

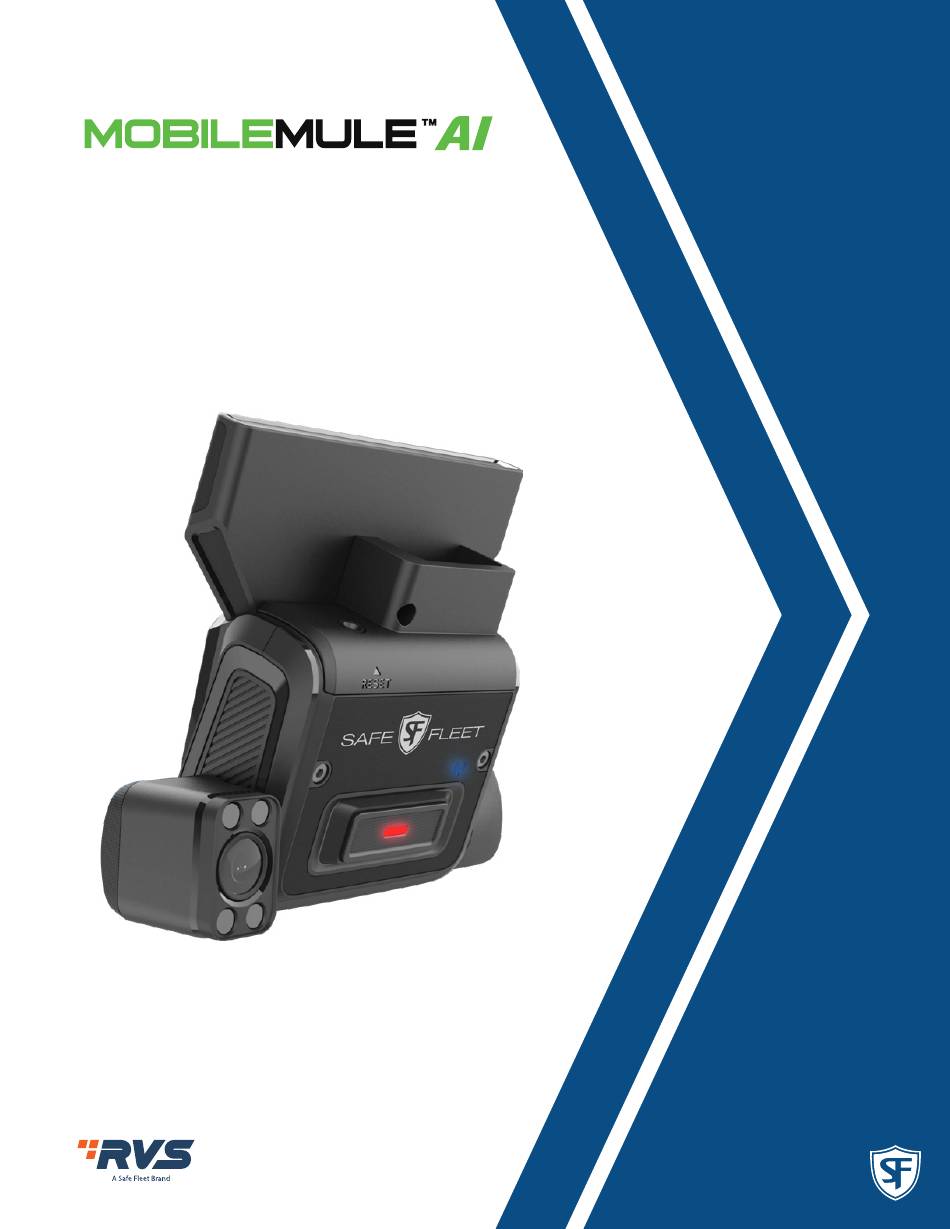

AI Powered Dual Dash Cam
RVS-AI
Instruction Manual
© Rear View Safety 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOBILEMULE AI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RVS MOBILEMULE AI

Summary of Contents for RVS MOBILEMULE AI

  • Page 1 AI Powered Dual Dash Cam RVS-AI Instruction Manual © Rear View Safety 2023...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of contents ..................2 Introduction ....................3 Safety Information ...................4-8 Precautions and Warnings ...............8 Content ......................9 Product Overview ..................10 Tamper-proof Dash Cam Sensor .............11 Installation Process ................12-16 LED Indicators ....................16 Button ......................16 Features ......................17 Hardware Reset ..................20 MobileMule™AI Cloud ................21-23 Technical Specification ................24 Troubleshooting ..................25 Caring for your device ................26...

  • Page 3: Introduction

    INTRODUCTION Thank you for choosing the RVS MobileMule AI! With this product you are taking an active part in reducing dangerous road traffic events, while keeping yourself, passengers and pedestrians safe. This manual will take you step by step through the installation process and usage of MobileMule Please read all of the installation instructions carefully before installing the product.

  • Page 4: Safety Information

    SAFETY INFORMATION PLEASE READ THE ENTIRE MANUAL AND FOLLOW THE INSTRUCTIONS AND WARNINGS CAREFULLY. FAILURE TO DO SO CAN CAUSE SERIOUS DAMAGE AND/OR INJURY, INCLUDING LOSS OF LIFE. BE SURE TO OBEY ALL APPLICABLE LOCAL TRAFFIC AND MOTOR VEHICLE REGULATIONS AS IT PERTAINS TO THIS PRODUCT.
  • Page 5 SAFETY INFORMATION INSTALLATION Electric shock or product malfunction may occur if this product is installed incorrectly. Use this product within the voltage range specified. Failure to do so can • cause electronic shock or product malfunction. Take special care when cleaning the monitor. •...
  • Page 6 If you have questions about this product, please contact us at: 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
  • Page 7 Any violation of traffic laws is the sole responsibility of the driver. RVS will not compensate the drivers for any damage caused to the driver and / or passengers of the vehicle and / or vehicle and shall have no responsibility arising from the behaviors mentioned above.

  • Page 8: Precautions And Warnings

    8. Foreign materials or fingerprints on the lens may result in poor safety performance. If the taken videos are destroyed as a result of incorrect user handling, then the damaged videos cannot be restored. RVS is not responsible for any damages or malfunctions that may occur to the driver...

  • Page 9: Content

    SYSTEM CONTENT 1. MobileMule™AI includes Rear and Front cameras Warning: Do Not attempt to adjust the camera angle without releasing the locking screw first. 2. Rear mounting plate with adhesive tape 3. Top/Cable cover 4. Cable kit (with fuse box wires / lighter plug): Main Cable Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com...

  • Page 10: Product Overview

    PRODUCT OVERVIEW 1. Reset button Emergency Recording Button 2. Sim card slot 10. LED indicator 3. Micro SD slot 11. IR illuminator (x4) 4. Mini USB port 12. Interior-facing Camera 5. Power cable port 13. Speaker 6. NFC Sensor 14. Mounting slot (x3) 7.

  • Page 11: Tamper-Proof Dash Cam Sensor

    Tamper-proof Dash Cam Sensor The tamper-proof dash cam sensor feature prevents unauthorized access or tampering with the recorded footage. It is designed to detect and alert the user if the dash cam has been physically tampered with, such as memory card removal or unplugging from a power source.

  • Page 12: Installation Process

    INSTALLATION PROCESS 1. Route the Main Cable Route the main cable inside the vehicle, leaving the main connector exposed where the MobileMule™AI camera should be installed on the windshield and the other end toward the vehicle's power source. Cable Kit: 1.
  • Page 13 2. Adjust the Viewing Angle of the Camera a. Connect the main connector to the MobileMule™AI camera. b. Connect the camera to your laptop with a mini USB cable c. An M2 hex key is needed to adjust the camera angle: Loosen the camera lock bolt with the M2 hex key d.
  • Page 14 4. Attach the Camera a. Cleaning the windshield with alcohol before is highly recommended to assemble the MobileMule™AI camera. b. The double-sided adhesive tape can be replaced if it does not adhere properly to the windshield. c. The MobileMule™AI camera should be placed near the rear-view mirror to ensure the highest video quality, but never place the device where the driver's field of view is blocked.
  • Page 15 f. Disconnect the cable from your computer and camera g. Now you can screw back the bolts and lock the camera in position. h. Attach the top cover to the MobileMule™AI camera and tighten the screw with an M2 hexagon wrench. Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...

  • Page 16: Led Indicators

    5. Complete the Installation/use of the device a. The MobileMule™AI camera will turn on automatically as soon as the vehicle engine is turned on and the system will automatically begin continuously recording after a few seconds. b. You can also press (short press) the Emergency Recording button to record a video manually while continuous recording is in progress - pressing the emergency recording button will save a video of 20 seconds before pressing and 10 seconds after the press (These are the default times, they can be...

  • Page 17: Features

    Features MobileMule™AI is an innovative camera-based solution built to prevent accidents, by alerting the driver in real time and/or by uploading all the events to the cloud in cases of: 1. Distraction 2. Drowsiness 3. Hand detection (upon request) 4. Sleep 5.
  • Page 18 a. Long term - Based on events history (heavy blinks, yawn, etc.). It persists regardless of the current event state (i.e. in or out of heavy blink) it is used to detect the driver's long-term state (drowsy, tired). b. Short term - Based on the current event (i.e. current driver blink is too long). It persists only during the event.
  • Page 19 5. Crash Detection Crash Detection can sense collisions in case of a severe car crash. The detection is done using MobileMule™AI’s sensors. When MobileMule™AI detects that the driver has experienced a vehicle collision, it will immediately raise an event to the cloud. Alert type: no alert Note: this feature requires calibrating the device at first use.

  • Page 20: Hardware Reset

    capable of safely navigating a turn at high speeds, it is advisable to slow down before entering the turn. 8. Excessive Acceleration Excessive acceleration can be dangerous and can lead to loss of control of the vehicle. It is important to always drive at a safe speed and to accelerate at a safe rate, especially in slippery conditions or when there are pedestrians or other vehicles nearby.

  • Page 21: Mobilemule™Ai Cloud

    Note: Upload of data and videos will consume network bandwidth and may include network costs. 1. Log in to the MobileMule™AI cloud with username and password received from your RVS manager Login page Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com...
  • Page 22 2. On the MobileMule™AI cloud, you can check each vehicle from your fleet on the map, watch and download event videos, and see maps of the ride. Overview page View of a single trip © Rear View Safety...
  • Page 23 3. On the MobileMule™AI Cloud you can view the recorded drive and see all of the recorded events. The last trip is the first in the list. Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...

  • Page 24: Technical Specification

    Technical Specification Specifications Platform Qualcomm® Snapdragon™ SDM450 Octa core, 1.8GHz Android™ 9.0 2GB RAM / 16GB internal storage Memory Display Brightness 400 cd/m2 Expansion MicroSD slot (up to 256GB support) IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz), Bluetooth® 4.2 BLE LTE Cat.6 (3G/2G fallback*) Wireless Interface GPS, QZSS, GLONASS, Galileo (supports ADR**) RFID (HF): ISO14443A&B, ISO15693...

  • Page 25: Troubleshooting

    No valid license. Use QR code / copy "codriver.cfg" to Micro- LED lights red License expired or Micro SD card or contact RVS cannot be located LED lights MobileMule™AI is Reboot if LED does not change to blue after turquoise booting.

  • Page 26: Caring For Your Device

    Caring for Your Device Taking good care of your device will ensure trouble-free operation and reduce the risk of damage. Keep your device away from excessive humidity and extreme temperatures. High temperature (more than 92°c) will trigger the following voice notification: “Temperature is high”.
  • Page 27 Products marked with the CE label are compatible with radio equipment instruction (Directive 2014/53 / EU) - issued by the European Community Commission. Compliance with these guidelines implies compliance with the fol- lowing european standards: EN 301 489-1 V2.2.3 (2019-11) EN 301 489-3 V2.1.1 (2019-03) EN 301 489-17 V3.1.1 (2017-02) EN 301 489-19 V2.1.1 (2019-04)
  • Page 28 Maximum power for each channel LTE-FDD: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B20/ B28 (25dBm) LTE-TDD: B38/ B39/ B40/ B41 (25dBm) WCDMA: B1/ B2/ B4/ B5/ B8 (25dBm) GSM/EDGE: 850/900/1800/1900MHz (32dBm) WIFI • Frequency: 2412 - 2472MHZ • Maximum power = 18dbm Maximum power = 11dBm WEEE This product should not be disposed of as normal household waste, in accordance...

  • Page 29: Appendix A - Installing Vysor And Adb Drivers On Windows

    Appendix A - Installing Vysor and ADB drivers on Windows 1. Install Vysor a. Open any web browser b. In the Address bar, type https://vysor.io and navigate to a chosen website > click the Download button Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 30 c. Click the Windows button d. Run Vysor-win32-ia32.exe. Vysor will be installed on PC e. At the end of installation shortcut Vysor will be created on the desktop. © Rear View Safety...
  • Page 31 2. Install ADB Drivers a. Run Vysor b. In the Vysor window, click ADB Drivers c. In the opened web browser window, click the Download button. Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 32 d. Run UniversalAdbDriverSetup.msi and follow instructions to install ADB Drivers. © Rear View Safety...
  • Page 33 e. At the end of successful installation message “Installation Complete” should appear f. Open the Run window: on the Start menu click Right mouse button and select “Run” Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 34 g. In the Run window, type SystemPropertiesAdvanced > OK h. In the System Properties window, click the Environment Variables button i. In the Environment Variables window, select the Path system variable > Edit © Rear View Safety...
  • Page 35 j. In the Edit environment variable, click the New button (OR the Browse button) > type the path to adb.exe (UniversalAdbDriver installed on steps 2.b-2.e) > OK Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 36 k. Confirm changes by clicking the OK button in the Environment Variables and System Properties windows © Rear View Safety...

  • Page 37: Appendix B - Using Vysor

    Appendix B - Using Vysor 1. Connecting to the device Connect MobileMule™AI to the laptop (use mini USB to USB cable) - Plug mini USB connector into MobileMule™AI and USB connector into a USB port on the laptop Connect the power cable to the lighter or the fuse box - make sure the LED will turn on .
  • Page 38 3. In the Windows Command Prompt window, type adb devices > Enter 4. Run Vysor. In the Vysor window, click the “View devices” button 5. The MobileMule™AI window appears. © Rear View Safety...
  • Page 39 2. Cameras View a. Double click on the top left corner to see the driver camera b. A stream of the inward camera will be displayed: c. Click on the bottom right corner to see the outward (road) camera Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 40 3. Accelerometer Calibration d. Click on the accelerometer Icon e. Wait for “Accelerometer Calibration Completed Successfully” notification f. Calibration is done © Rear View Safety...
  • Page 41 3. Speed Simulation - Accelerometer Calibration a. Double click on the top right corner. b. Click on Wait for “Speed Simulation On” notification. Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 42 c. To turn simulation off - double click on the top right corner again and wait for “Speed Simulation Off” notification. © Rear View Safety...
  • Page 43 Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...

  • Page 44: Warranty

    ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS.

  • Page 45: Disclaimer

    DISCLAIMER REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.
  • Page 46 Engineered For Vehicle Safety If you have questions about this product, please contact us at: 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada...
