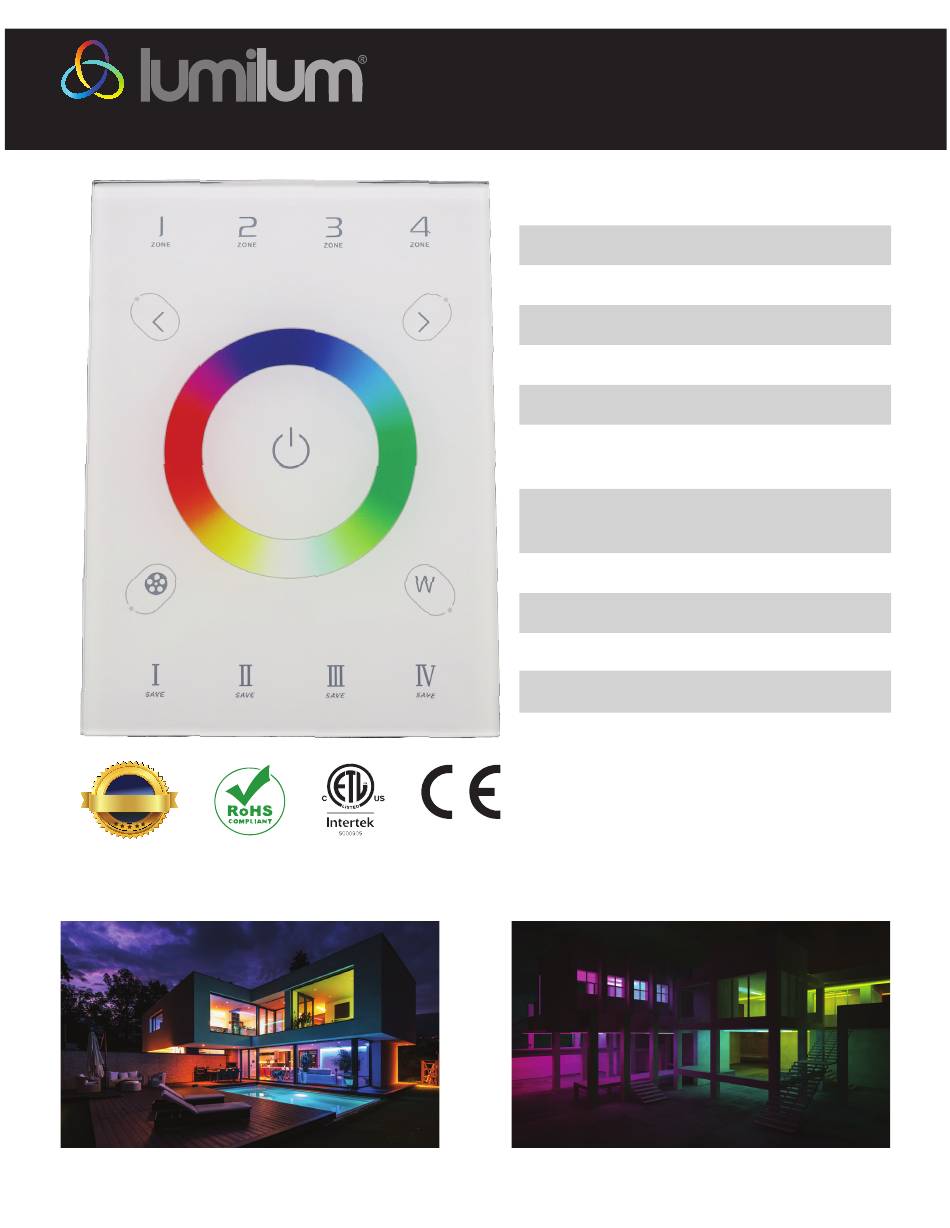

LED MADE SIMPLE.
WARRANTY
3 YEAR
USES:
©Lumilum LED Lighting

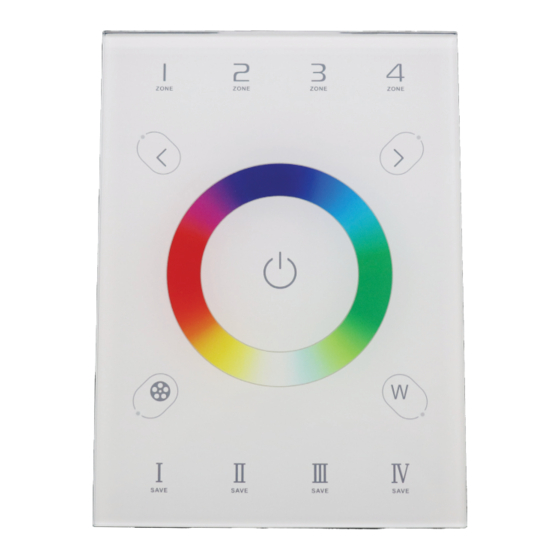

LUMILUM 120V LED LIGHT STRIP
UX8 COLOR WHEEL
CONTROL TOUCH PANEL
PRODUCT FEATURES:
SKU: LUM-RGBUX8
4 Zone Color Control
Input: 5VDC, 0.5A-1A (w/ included transformer)
Output: 120VDC
Output Signal: RF 2.4 GHz, DMX512
DMX Signal Input Connections:
3 or 5-pin DMX (XLR), Cat 5 (RJ45), Cat 6 Cables
DMX Signal Thru Connections:
3 or 5-pin DMX (XLR), Cat 5 (RJ45), Cat 6 Cables
Product Dimensions: 5.75" x 4.17" x 0.73"
Shipping Dimensions: 16" x 11.03"x 5.71"
Weight: 8 oz
Operating Temperature: -22°F
Not Reccomended for Outdoor Use
Page 1 of 5
~
131°F
(305)-233-2844
www.lumilum.com
Advertisement
Table of Contents
Related Manuals for Lumilum LUM-RGBUX8
Summary of Contents for Lumilum LUM-RGBUX8
- Page 1 LUMILUM 120V LED LIGHT STRIP UX8 COLOR WHEEL CONTROL TOUCH PANEL LED MADE SIMPLE. PRODUCT FEATURES: SKU: LUM-RGBUX8 4 Zone Color Control Input: 5VDC, 0.5A-1A (w/ included transformer) Output: 120VDC Output Signal: RF 2.4 GHz, DMX512 DMX Signal Input Connections:...
- Page 2 The Running Light Power Indicator 1: DMX+ 2: DMX- Reset Key 3: NC 4: Power 5: Power Slot 6: NC 7: GND 8: GND DMX- DMX+ Power Input DMX Signal Output (305)-233-2844 ©Lumilum LED Lighting Page 2 of 5 www.lumilum.com...
- Page 3 10. RGB Smooth 11. 7 Colors Smooth HOW TO USE COLOR WHEEL CONTROL PANEL (LUM-RGBUX8) Upon initialization all buttons will be illuminated - press zone number to deselect. Set up the first zone by pressing Z1 and choose your color or mode function. When adding a second strip to the...
- Page 4 3. Screw the base plate and the back box securly into the wall: 4. Connect the black and red wires and put the power adapter in the back box: DMX Signal Output Power Input 5Vdc Power Adapter (305)-233-2844 ©Lumilum LED Lighting Page 4 of 5 www.lumilum.com...
- Page 5 DMX OUTPUT WIRING: Can be used with the following Lumilum products RGBW Strip DMX Input for low voltage installations: DMX DECODER LUM-DMX212 4X8A (768W @24V) Output DMX Address = 1 LUM-DMXWP2 (IP65) 4X5A (480W @ 24V) 12-24Vdc Zone 1 RGBW Strip...
