Summary of Contents for Lumilum LUM-RGBUX8

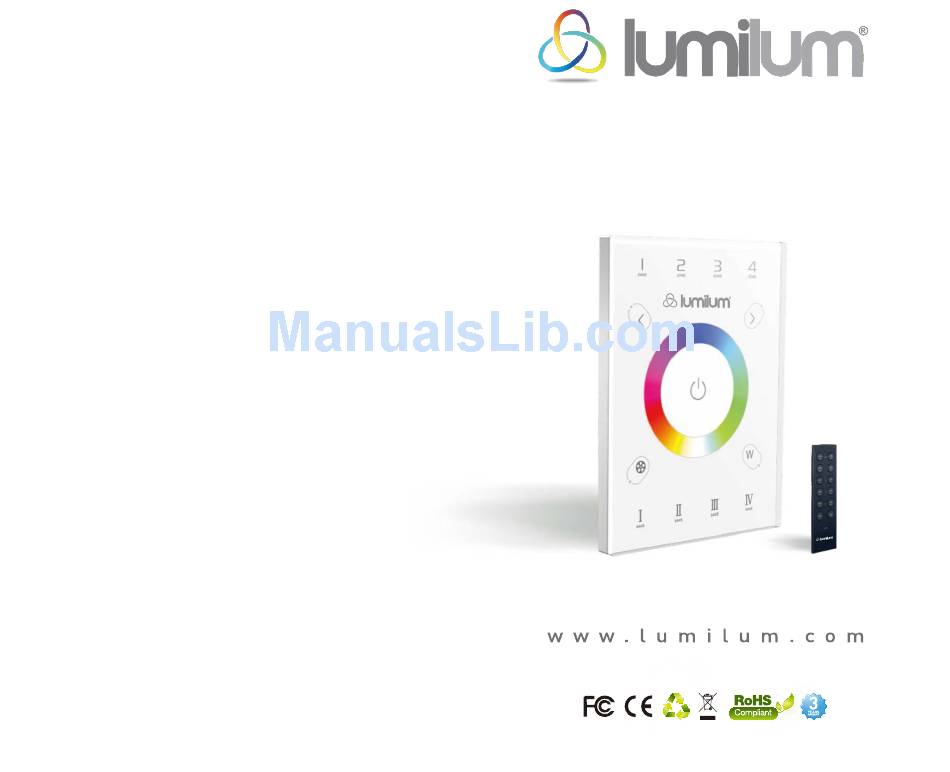

- Page 1 INSTRUCTION MANUAL Model: LUM-RGBUX8 *Optional...
- Page 2 Back of Wall Panel UX8 RGB Touch Panel Terminals Input Voltage: 5Vdc, 0.5A~1A (with the included transformer) Output Signal: RF 2.4GHz, DMX512 Control Mode: RGBW, 4 Zones Control Working Temp.: -30° ~55° Package Size: L132×W192×H50(mm) Weight(N.W.): 230g Weight(G.W.): 370g Product Size: From the Female XLR Black Wire Green Wire...
- Page 3 Installation Instructions 3. screw the baseplate and the back box in the wall firmly. 4 Connect in a right way and put the power adapter into the back box. 1. Install the Switch J-box into the wall. Typical boxes as below: Transformer (Included) 2 Use a straight screwdriver to pry the position shown:...
- Page 4 Ke y Functions: 5 Embed the upper touch panel into the base plate and then tap the bottom to press into the slots. Zone Selection Keys Short press: on/select Long press: Speed/Brightness +/- Touch Circle White Key Press: Turn on/ Long press: Dimming Mode Key Scene-mode keys...
- Page 5 Application Composition DMX Output Wiring DMX512 Signal Output : Low Voltage 24V Lumilum RGB Strip LUM-RGBUX8 LUM-DMX212 LUM-RGBUX8 LUM-RGBUX8-RC LUM-DMX212 LUM-RGBUX8 LUM-RGBUX8-WF LUM-DMX212 LUM-RGBUX8 LUM-RGBUX8-WF LUM-RGBUX8-RC DMX Output Wiring Line Voltage 120V RGB Strip (B34XTS Series) LUM-B34XTS-DMX LUM-DMX212 DMX GENERIC Up to 164ft.
- Page 6 Press any key on panel B within 5s, if the indicator lights on panel A stop flickering, match successfully. PS: No WiFi router needed when WiFi LUM-RGBUX8-WF is setup as network with phones directly. Clear Code: Match Code Sequence Press keys simultaneously on LUM-RGBUX8 for more than 6s, if all the indicator lights flicker...
