rayence 1417WCE User & Installation Manual

Digital flat panel x-ray detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PART II. Service Manual

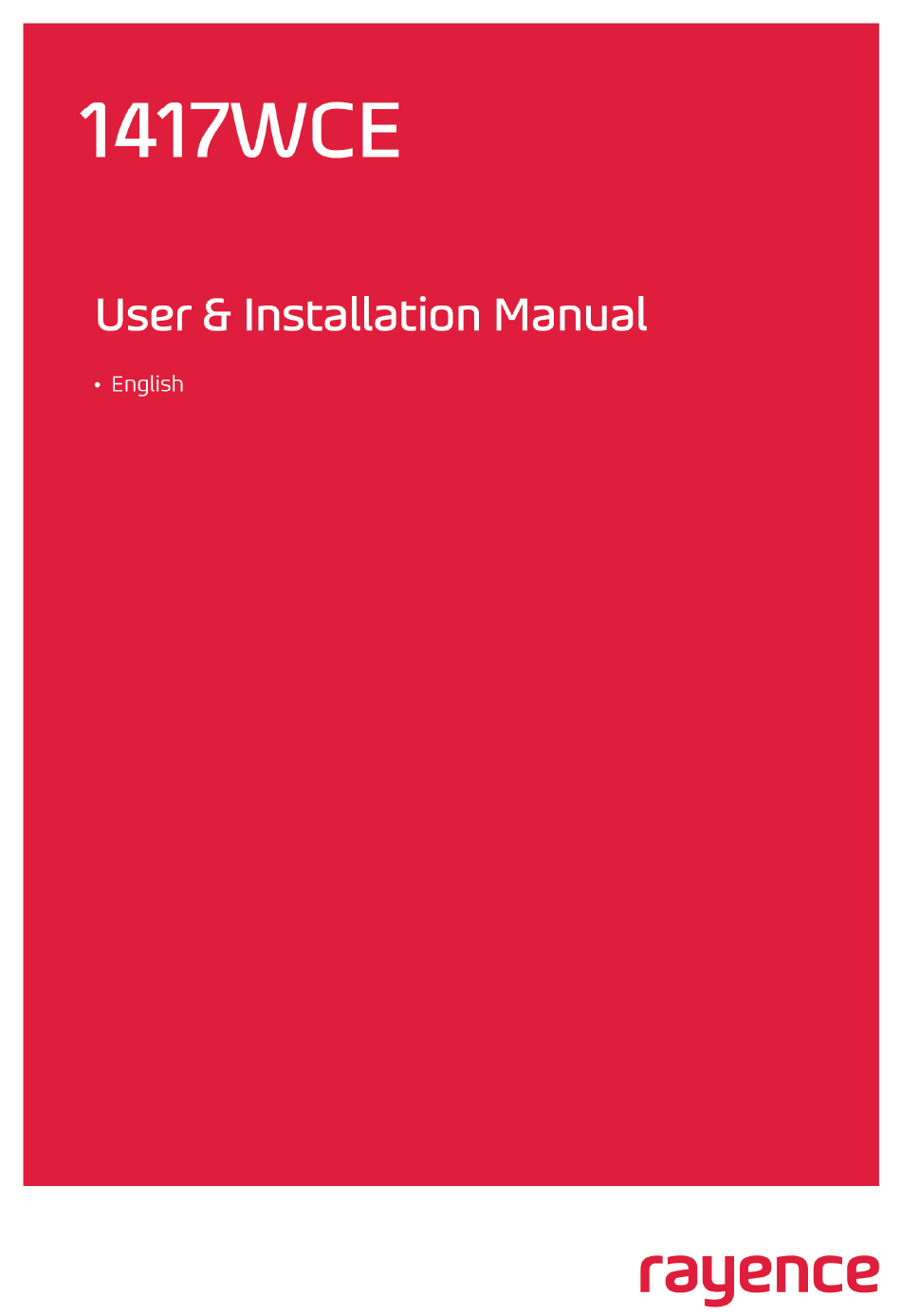

1417WCE
User & Installation Manual
Service Manual
1

Advertisement

Table of Contents
loading

Related Manuals for rayence 1417WCE

Summary of Contents for rayence 1417WCE

  • Page 1 PART II. Service Manual 1417WCE User & Installation Manual Service Manual...
  • Page 2 R-DHF-USM-048 Version: 1.2 1417WCE...
  • Page 3 PART II. Service Manual Date: 2023-02-17...
  • Page 4 VATECH Global France SARL 49 Quai de Dion Bouton, AVISO A 4ème étage, 92800 Puteaux, FranceTel : +33 1 64 11 43 30 Fax : +33 1 64 11 43 39 Rayence Co., Ltd. 14, Samsung 1-ro 1-gil, Hwaseong-si, Gyeonggi-do, Korea www.rayence.com...

  • Page 5: Table Of Contents

    Replaceable Parts and Instruction of Replacement ......... 89 Disposal or Recycling ................90 Warranty ....................91 Warranty ................... 91 PART II. Service Manual Overview ....................93 FPD Manager Instruction (IP, SSID Set Up / Firmware, FPGA Update) ....94 Detector IP Address Set Up ..............94 1417WCE...
  • Page 6 Troubleshooting ..................107 LAN Connection Issue ..............107 Lost IP Address (Use one of the methods below) ........ 110 When using a reciprocating bucky ............. 110 Auto Trigger Mode ................112 Supplement 1. Wireless AP Set Up Instruction ............114 1417WCE...

  • Page 7: Part I. User & Installation Manual

    PART I. User & Installation Manual PART I. User & Installation Manual 1. Safety Information……………………………………. 7 2. Product Introduction and Specification .... 258 3. Installation and Calibration ......4545 4. Usage .............. 6767 5. Maintenance ........... 8888 6. Warranty ............9191 1417WCE...

  • Page 8: Safety Information

    Reorient or relocate the equipment.  Increase the separation between the equipment.  Connect the equipment into an outlet on a circuit different from that to which the other devices are connected.  Contact Rayence Customer Service team or authorized agent for help. 1417WCE...
  • Page 9 - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 1417WCE...
  • Page 10  The use of accessories and cables other than those sold by RAYENCE Co., Ltd. as internal components, may result in increased emissions or decreased electromagnetic immunity of this device.
  • Page 11 The Electromagnetic Compatibility Directive sets the essential requirements for electrical and electronic equipment that may disturb or even be disturbed by other equipment. The 1417WCE complies with these requirements as tabled below. Follow the guidance on the tables for use of the device in the electromagnetic environment.
  • Page 12 Guidance and manufacturer’s declaration – electromagnetic immunity 1417WCE is designed for use in the electromagnetic environment specified below. Customers or users of 1417WCE must ensure that it is used in such an environment. IEC 60601 Electromagnetic Immunity test...
  • Page 13 ; 30 cycles during power mains Single phase: at 0º Single phase: at 0º interruptions, it is Short interruptions recommended that the 0 % U ; 250/300 cycles 0 % U ; 250/300 cycles IEC 61000-4-11* 1417WCE be powered 1417WCE...
  • Page 14 PART I. User & Installation Manual from an uninterruptible power supply or a battery be used with the system power source. *Note: U is the AC voltage of the power before using test level 1417WCE...

  • Page 15: Symbols

    X-ray tube. This is a Type B applied part according to UL 60601-1 and IEC 60601-1. Handle with care Non-ionizing radiation Partial Pressure Limit Overall Pressure Read carefully Manufacturer 1417WCE...
  • Page 16 Authorized representative in the European community. Batteries Marking (Battery Directive 2006/66/EC) Recognized Component Mark for Canada and the United States For Korea Symbol for safety Keep dry Fragile, handle with care This side up 4 layer stacking Temperature limit 1417WCE...

  • Page 17: Warning

    Attention is drawn to the fact that local laws take priority over the above-mentioned requirements. If in doubt, contact Rayence Customer Service team or authorized agent.
  • Page 18 En cas de doute, prenez contact avec l'équipe du service clientèle de Rayence ou avec un agent agréé.  L'équipement connecté au capteur et se trouvant dans l'environnement du patient doit être alimenté...
  • Page 19 Un bracelet de mise à la terre n'est pas essentiel pour une utilisation typique. When Problem Occurs Should any of the following occur, immediately turn OFF the power of each detector, unplug the power supply cord from the AC outlet, and contact Rayence Customer Service team or authorized agent. ...

  • Page 20: Caution

     Where someone might get their foot caught in the cable of the detector.  Non-medical equipment such as the battery charger, access point cannot be used in patient’s vicinity. 1417WCE...
  • Page 21 IPA or any other liquid. CAUTION  ATTENTION For safety reasons, be sure to turn off the power of each equipment when detector is not used.  This detector is contraindicated for pregnant woman. 1417WCE...
  • Page 22 Si le capteur est défectueux, ne le démontez pas au hasard. La maintenance du capteur doit être effectuée par un prestataire de services agréé. Veuillez contacter l'équipe du service clientèle de Rayence ou un agent agréé.  Veillez à consulter le manuel d'utilisation pour les composants remplaçables.
  • Page 23 L'utilisation d'une batterie ou d'un chargeur non approuvé par Rayence peut présenter un risque d'incendie, d'explosion, de fuite ou autre. La garantie de Rayence ne couvre pas les dommages subis par le capteur en raison de batteries et/ou chargeurs non approuvés par Rayence.
  • Page 24 When disposing of secondary cells or batteries, keep cells or batteries of different electrochemical systems separate from each other.  Contact the Rayence Customer Service team to destroy a battery. Recommandations aux fabricants d'équipements et assembleurs de batteries  Ce qui suit représente une liste typique mais non exhaustive de conseils fournis par les fabricants de batteries et piles rechargeables aux fabricants d'équipements et...
  • Page 25 Conservez la documentation d'origine de la batterie et de la pile pour pouvoir vous y reporter ultérieurement.  Lors de l'élimination des batteries ou piles rechargeables, ne mélangez pas les piles ou batteries des différents systèmes électrochimiques.  Contactez l'équipe du service clientèle de Rayence pour détruire la batterie. 1417WCE...
  • Page 26 When possible, remove the battery from the equipment when not in use.  Dispose of properly.  Contact the Rayence Customer Service team to destroy a battery. Recommandations à l'attention des utilisateurs finaux  La liste suivante est une liste type mais non exhaustive des bons conseils à donner par le fabricant de l'équipement à...
  • Page 27 Utilisez la pile ou la batterie uniquement dans l'application pour laquelle elle a été conçue.  Quand cela est possible, retirez la batterie de l'équipement lorsque celui-ci n'est pas utilisé.  Mettez-la au rebut de manière appropriée.  Contactez l'équipe du service clientèle de Rayence pour détruire la batterie. 1417WCE...

  • Page 28: Safety Information

     malfunction or may be damaged.  The power supply provided by Rayence is designed for the detector from Rayence. Please contact Rayence, if any other type of power supply is needed to be used.  Be sure to fully charge the battery before use. Charge the battery on the day of examination or on the previous day.
  • Page 29  the AC outlet.  Do not use any flammable chemicals such as thinner, benzene for cleaning. Otherwise, fire or electric shock may result.  Wear waterproof gloves to protect your hands from direct contact with disinfectants or detergents. 1417WCE...

  • Page 30: Label And Location Of Attachment

    No special training is required to use this device. The intended users of this device are as follows. A professional in good health with specialist knowledge/ qualifications who has fully understood the content of this document. (Such as a doctor or radiological technologist) 1417WCE...

  • Page 31: Product Introduction And Specification

    Product Introduction and Specification Product Features The 1417WCE are wireless digital flat panel detectors that has been designed for a faster, more streamlined approach to digital radiography systems. The 1417WCE detectors utilize a combination of propriety TFT glass and high quality scintillators, which along with a pixel pitch of 100 or 140 microns and 5.0 lp/mm(100 type), 3.5...

  • Page 32: Product Components

    (110V or 220V 1.8m) 2.2.2 Optional Components Power supply package AC power cord 1EA LAN cable 1EA Link Cable 1EA Power supply1EA (110V or 220V 1.8m) (10m) (7m) package P-interface Cable Trigger Cable 1EA AGI Box 1EA USB Cable 1EA 1417WCE...

  • Page 33: Part Names And Functions

    Name of LED Status of LED Status of product Orange on Station mode(wireless) Green on AP mode(wireless) Mode Wired mode Blinking Orange and Green Sleep mode alternatively Power button & LED indicator Power On / Off Press over than 3 seconds 1417WCE...
  • Page 34 Low battery Orange (Battery remain 0~7%) Link cable connector Use for data transfer and charging battery while wired mode is in use (Connect between detector and power supply.) Battery Unlock button This is an unlock button to remove battery 1417WCE...
  • Page 35 Battery Capacity 33 ~ 62 % Battery Capacity 0 ~ 32 % Charge suspend Timer fault Error Mode Communication error Input over-voltage Battery absent No battery in battery charger Battery unlock level This is an unlock-level to remove battery Battery: Rechargeable Lithium Ion battery 1417WCE...
  • Page 36 Used for charging the battery while the detector is in use (Connect the detector and power supply) LED Indicator Display status of the power supply. Color Status Power Status Green Power on Fuse T3.15 AH 250V Switch Power On/Off switch Frame ground 1417WCE...
  • Page 37 This is a connector to synchronize the detector and generator. Connect the AGI to the generator by using a P-interface cable or trigger cable. USB Connector This is a connector for communication between the AGI and PC. Connect the AGI to the PC by using a USB cable. 1417WCE...

  • Page 38: Part Specifications

    MIMO 3 X 3  Limiting spatial resolution of 1417WCE is determined by its pixel pitch, 100/140 microns. In theory, the detector cannot show higher resolution performance than 5.00/3.57 lp/mm.  Maximum wireless signal rate derived from IEEE standard specifications. Actual data throughput will vary.
  • Page 39 Wireless antennas: The module adopts the latest 802.11n Dual-Band technology (2.4Ghz and 5Ghz). The transmitter of the module is powered by host equipment (Detector). The antennas are 2 printed-dipole antennas. • Wireless module: 1417WCE in the RF module does not use DFS band. 2.4.2 Battery [Model name: RB37BLA] Parameter Spec.
  • Page 40 Dimension 92.5 X 119 X 33.5 Weight 2.4.7 Cable Parameter Length Unit Link cable (Shielded) LAN cable (Shielded) Power cord (3-Wire No Shielding) USB cable (A to B type) Trigger cable (Rayence I/F Cable) P-interface cable (Rayence I/F Cable) 1417WCE...

  • Page 41: Environmental Requirements

    Note Temperature (Storage) ℃ Temperature (Operation) ℃ Humidity (Storage) % H.R. Humidity (Operation) % H.R. Pressure (Operation) 2.5.3 Grid Requirement 100 type Item Requirement Ratio 10:1 10:1 Frequency T.B.D 140 type Item Requirement Ratio 10:1 10:1 Frequency 230 Line/inch 1417WCE...

  • Page 42: Dimensions (Unit: Mm)

    PART I. User & Installation Manual Dimensions (Unit: mm) 2.6.1 Detector 2.6.2 Battery 1417WCE...
  • Page 43 PART I. User & Installation Manual 2.6.3 Mobile charger 2.6.4 Mobile charger adapter 1417WCE...
  • Page 44 PART I. User & Installation Manual 2.6.5 Power Supply (Optional) 2.6.6 AGI Box (Optional) 1417WCE...

  • Page 45: Installation And Calibration

    3.1.1 Software Installation The installation must be proceeded in the Administrator mode. Insert the CD that comes with the detector. Install "setup.exe" from "\Release Davinci_(version)" and click "Next". Choose the model from the Detector Type list and click "Next". 1417WCE...
  • Page 46 PART I. User & Installation Manual Click “Next”. Select “MultiByte-Character Set” and click “Next”.  Choose UNICODE if console SW is supporting UNICODE.  If Character set is not installed correctly, images will not be properly acquired. 1417WCE...
  • Page 47 PART I. User & Installation Manual Click “Install”. Click "Finish". 1417WCE...
  • Page 48 <Station Mode> Communicates with the wireless AP, and the wireless AP communicates with the PC through the LAN cable. (Rayence does not provide wireless AP.) <AP Mode> Detector communicates with the PC without the wireless AP. (PC must maintain wireless network card.) <Wired Mode>...
  • Page 49 Connect the wireless AP and PC/Laptop with the LAN cable. 2. Auto Trigger & AP Mode 3. Auto Trigger & Wired Mode Connect the power supply and PC/Laptop with the LAN cable. Connect the power supply and detector with the link cable. 1417WCE...
  • Page 50 PART I. User & Installation Manual 4. Manual Trigger & Station Mode Connect the wireless AP and PC/Laptop with the LAN cable. Connect the AGI box and PC/Laptop with the USB cable. Connect the AGI box and generator with the P-interface or trigger cable. 1417WCE...
  • Page 51 PART I. User & Installation Manual 5. Manual Trigger & AP Mode Connect the AGI box and PC/Laptop with the USB cable. Connect the AGI box and generator with the P-interface or trigger cable. 1417WCE...
  • Page 52 Connect the power supply and PC/Laptop with the LAN cable. Connect the power supply and detector with the link cable. Connect the AGI box and PC/Laptop with the USB cable. Connect the AGI box and generator with the P-interface or trigger cable. 1417WCE...
  • Page 53 PART I. User & Installation Manual 7. Instruction of P-interface and trigger cable integration Instruction of P-interface cable Integration Assembly Diagram Timing Chart Instruction of trigger cable Integration Assembly Diagram Timing Chart 1417WCE...
  • Page 54 Desktop > Network Icon > Right click > Properties > Change Adaptor Settings • Control Panel > Network and Sharing Center > Change Adaptor Settings ① To use station or wired mode, right click "Local Area Connection" and click “Properties". 1417WCE...
  • Page 55 “Use the following IP address” and type “2.2.2.50” at the “IP address” and type “255.255.255.0” at the “Subnet mask”.  It is recommended to use the IP of the product independently of each other as it can cause PC to disconnect when two or more products use the same IP. 1417WCE...
  • Page 56 Password methods: TKIP/AES • Channel (Frequency) Avoid the crowded channel option.  Rayence does not provide wireless AP. Please use certified wireless AP and follow each manufacture's setup manual.  Recommended Model: Minimum ASUS RT-AC66U or RAP001A  It is recommended to use “Auto-Channel selection” function if external AP has the feature.
  • Page 57 For AP mode, choose the SSID (serial number of the detector) from “Wireless Network Connection” list. (PW: project302) Open “_vadav.lnk” from “C:\Davinci”. Once the program is opened and the detector is connected, “LINK” LED light from the detector will blink and the “Detector Status” will display information of the detector as below. 1417WCE...
  • Page 58 “SSID”. If the detector does not communicate with the PC, please check the connection of the cable, PC set up and power of the detector. After checking connectivity, go to the “Calibration & Acquisition” tab and click "Edit". 1417WCE...
  • Page 59 To use manual trigger mode, select “Sync” from “Acquisition Mode”. If the "Window time" needs to be changed, type the value at "Window Time" from "Setting". Click “Set Settings” and wait for about 10 seconds to apply new settings. 1417WCE...
  • Page 60 Click “OK” to finish setting and close the window.  In Auto trigger mode, be sure to set the "Window time" longer than an exposure time. If the "Window time" is shorter than the exposure time, images will not be properly acquired. 1417WCE...

  • Page 61: Calibration

    In order to properly acquire images, calibration must be performed. Without calibration, optimum images cannot be acquired.  Rayence recommends to warm up the detector for 5 minutes after turning on the power.  Calibration should be performed at regular intervals, typically once every 6 months, or whenever the central beam of the X-ray source has been moved relative to the detector.
  • Page 62 PART I. User & Installation Manual Click “Calibration”. Click “Start” and the program automatically gets a dark frame. The acquired dark frame is stored in “C:\Davinci\CAL”. 1417WCE...
  • Page 63 When PASS is displayed When FAIL is displayed Shoot X-ray with the same exposure Adjust the exposure condition to get acceptable condition when “Acquiring bright frame” value and shoot X-ray when “Acquiring bright window pops up again. frame” window pops up again. 1417WCE...
  • Page 64 PART I. User & Installation Manual For each calibration point, 4 frames must successfully be acquired. Repeat the step 4-5 for all calibration points. After calibration process is completed, click "OK". 1417WCE...
  • Page 65 PART I. User & Installation Manual 3.2.2 Manual Bad Pixel Map Set Up Go to the “Calibration & Acquisition” tab and click “Calibration”. Click "View Frames". 1417WCE...
  • Page 66 After completing step 5, check if bad pixel has been changed to green as Figure 2 - ❻. Click “Fill” at Figure 3 - ❼. Click "Save" at Figure 3 - ❽. Once setting BPMM is done, “BPMM.raw” file will be saved at “C:\Davinci\CAL”. 1417WCE...

  • Page 67: Usage

    Once the detector is connected, detector information is displayed in “Detector Status” and “Link” and “Ready” indicators are marked as below.  If "Detector Status" does not show anything, refer to Chap. 3.1 Installation to connect the detector properly. 1417WCE...
  • Page 68 In order to change the size of an image, use "Crop Rows and Columns" option as shown below. Click "Apply" to save. 4.1.3 Multi Detector Set Up Refer to PART II. Service Manual Chap. 3 Multi Detector Set Up for multi-detector setting. 1417WCE...

  • Page 69: Image Acquisition

    If "Detector Status" does not show anything, refer to Chap. 3.1 Installation to connect the detector properly.  If “Calibration” indicator is not marked as "Link" or "Ready" indicators above, refer to Chap. 3.2 Calibration 오류! 참조 원본을 찾을 수 없습니다. and perform calibration again. 1417WCE...
  • Page 70 Shoot an X-ray once the "Acquiring bright frame" window pops up. An acquired image will be stored in “C:\Davinci\I3450x4218” for 100 type or “C:\Davinci\I2440x2992” for 140 type. The name of the file will be "(typed name from Step 1).raw”. 1417WCE...

  • Page 71: View Images

    PART I. User & Installation Manual View Images Click “View Images”. Another window will be popped up as below. • Histogram Set Up 1417WCE...
  • Page 72 PART I. User & Installation Manual • Pixel value at certain level Choose "S" from marked box. • Profile for horizontal line Choose "R" from marked box. • Profile for vertical line Choose "C" from the marked box. 1417WCE...

  • Page 73: Additional Function

    PART I. User & Installation Manual Additional Function 4.4.1 Battery Remain Once you click "Get Image" under the "Calibration & Acquisition” tab, the status window will show how much battery remains. 1417WCE...
  • Page 74 Once you click "Get Image" under the "Calibration & Acquisition” tab, the status window will show the strength of the wireless signal.  Before you check the wireless signal in the AP mode, the detector's serial number should be entered at the "SSID". 1417WCE...
  • Page 75 In the “Sleep Timeout” setting, enter a designated time for the detector to go into the sleep mode.  Sleep mode is disabled when the value of “Sleep Timeout” is set to zero.  Power consumption is reduced by 40% in the sleep mode. 1417WCE...
  • Page 76 To turn off the sleep mode, attempt to acquire an image or press the power button on the detector just once.  You can acquire a normal image at least 10 seconds after the sleep mode has been turned off. 1417WCE...
  • Page 77 Checking the “Preview” and “4x4 Binning” check boxes allows a preview image to be shown more quickly.  By unchecking “4x4 Binning”, a normal preview image appears.  By unchecking “Preview”, a full frame image appears. 1417WCE...
  • Page 78 PART I. User & Installation Manual 4.4.5 Recent Frame The last acquired image can be opened by clicking "Recent Frame" under the "Calibration & Acquisition” tab. 1417WCE...
  • Page 79 PART I. User & Installation Manual 4.4.6 Restore Connection When the connection between the detector and PC is lost, the connection can be made again by clicking "Restore Connection" under the "Calibration & Acquisition” tab. 1417WCE...
  • Page 80 Storage Viewer Web Server.  For storage viewer, must running DBMS and Web Server environment.  For running Storage Viewer environment, OLED is displayed “Check DB Server”.  Stored images can be opened and deleted by referring SDK. 1417WCE...
  • Page 81 AP mode.Press the mode select button for 3 seconds to check the status of stored images. ② Access to http://2.2.2.100:3000 via browser and sign in with the password “1234”. ③ Go to the “Worklist” menu. Click “+” icon in order to create a new worklist. 1417WCE...
  • Page 82 ⑤ In the detector ready status, ou can take an X-ray image. ⑥ Shoot X-ray to acquire an image. The acquired image is shown on the smart device. After checking if the image is correct, select “Accept” or “Suspend”. 1417WCE...
  • Page 83 ⑦ You can see the list of all acquired images in the “Imagelist” menu.  When worklist menu is empty, detector will automatically create worklist and match.  Some guide images have been created in web server demo mode. 1417WCE...
  • Page 84 Shows the SSID information of the detector. PSK menu Shows the PSK information of the detector. IP Menu Shows the IP information of the detector. Mask menu Shows the mask information of the detector Factory reset menu Factory reset 1417WCE...
  • Page 85 Go to the “Calibration & Acquisition” tab. ❷ Click “Edit”. ❸ Check “AGPR Enable” check box. ❹ Click “OK”. ❺ Click “Apply”. ❻ Click “OK”.  Validated with 1.8cm gap between the grid and the detector.  Tests were performed under 100/130/170cm SID conditions. 1417WCE...
  • Page 86 Go to the “Calibration & Acquisition” tab. ❷ Click “Edit”. ❸ Check “GPR Enable” check box when using an analog grid. ❹ Click “Grid Type” combo box. ❺ Select appropriate GPR parameter. ❻ Click “OK”. ❼ Click “Apply”. ❽ Click “OK”. 1417WCE...
  • Page 87 "(typed name from Step ⑥).raw”  High SNR function is only available for 1417WCE 100µm model.  This function is disabled on other models other than 1417WCE 100µm. Set VADAV as below. Overview ❶ Go to the “Calibration & Acquisition” tab.

  • Page 88: Maintenance

    Inspection In order to ensure that the detector is used safely and normally, please be sure to inspect the product regularly before use. If any problem occurs, please contact Rayence Customer Service team. Please perform inspections based on the check list below.

  • Page 89: Replaceable Parts And Instruction Of Replacement

     Fuse: T3.15 AH 250V Replacing the Fuse Press the fuse as below and pull the fuse box. Pull the fuse and replace with another fuse.  Power cord: H05VV-F 0.75SQ * 3C  Ethernet Cable: UTP 4PR 24AWG 1417WCE...

  • Page 90: Disposal Or Recycling

    For more detailed information about recycling this product, please refer to local governing ordinances and recycling plans. 1417WCE...

  • Page 91: Warranty

    RAYENCE, at its option, shall repair, rebuild or adjust the affected parts. RAYENCE shall have no obligation for any defects to the extent that such defect arises out of (i) normal and fair wear and tear or Product which has been modified without RAYENCE's...

  • Page 92: Service Manual

    PART II. Service Manual PART II. Service Manual 1. Overview ............. 93 2. FPD Manager Instruction (IP, SSID Set Up / Firmware, FPGA Update) ........94 3. Multi Detector Set Up ........102 4. Troubleshooting ..........107 1417WCE...

  • Page 93: Overview

    PART II. Service Manual Overview This service manual gives additional instructions for setting up the detector. 1417WCE...

  • Page 94: Fpd Manager Instruction (Ip, Ssid Set Up / Firmware, Fpga Update)

    After the detector is turned on, open “FPD_Manager.exe". Check “ADI Wireless Model” check box. Type detector's current IP address at "Detector IP Address" from "Current Setting" as below.  Detector's Ethernet Controller is operated with the second IP address, 192.168.124.80. 1417WCE...
  • Page 95 PART II. Service Manual Select "IP change" and type the IP address. Click "Start Setting". Click "OK" once the message below pops up. Turn off the power of the detector and after 5 seconds, turn the power back on. 1417WCE...

  • Page 96: Ssid, Psk (Pre-Shared Key) Set Up

    After the detector is turned on, open “FPD_Manager.exe". Check “ADI Wireless Model” check box. Type detector's current IP address at "Detector IP Address" from "Current Setting" as below.  Detector's Ethernet Controller is operated with the second IP address, 192.168.124.80. 1417WCE...
  • Page 97 AP Mode connection quality. If the Channel causes conflict, the channel can be changed through this program. Click "OK" once the message below pops up. Turn off the power of the detector and after 5 seconds, turn the power back on. 1417WCE...

  • Page 98: Firmware, Fpga Update

    After the detector is turned on, open “FPD_Manager.exe". Check “ADI Wireless Model” check box. Type detector's current IP address at "Detector IP Address" from "Current Setting" as below.  Detector's Ethernet Controller is operated with the second IP address, 192.168.124.80. 1417WCE...
  • Page 99 Click "OK" once the message below pops up. Turn off the power of the detector and after 5 seconds, turn the power back on.  Detector IP address might be changed to 192.168.1.80 after updating depending on the firmware. 1417WCE...

  • Page 100: Set Windows Firewall To Use Fpd_Manager (For Win 7)

    Control Panel > Windows Defender Firewall > Allow an app or feature through Windows Defender Firewall Check "Name", "Private" and "Public" if FPD_Manager program is already on the list. Click "Allow another app..." when FPD_Manager program is not on the list. 1417WCE...
  • Page 101 PART II. Service Manual Select the program and add if it is already on the list. Click "Browse…" when the program is not on the list. Browse and open FPD_Manager program and repeat Step 2. 1417WCE...

  • Page 102: Multi Detector Set Up

    PART II. Service Manual Multi Detector Set Up Open “_vadav.lnk” from "C:\Davinci”. Click "Edit" under the "Settings" tab. 1417WCE...
  • Page 103 Another window for detector setting pops up. Click “Get Settings” button first and you can load parameters and change their settings. Set up the "Trigger Mode" and "Setting". Click “Set Settings” and wait for about 10 seconds to apply new settings. Click “OK” to finish setting and close the window. 1417WCE...
  • Page 104 Another window for detector setting pops up. Click “Get Settings” button first and you can load parameters and change their settings. Set up the "Trigger Mode" and "Setting". Click “Set Settings” and wait for about 10 seconds to apply new settings. Click “OK” to finish setting and close the window. 1417WCE...
  • Page 105 Another window for detector setting pops up. Click “Get Settings” button first and you can load parameters and change their settings. Set up the "Trigger Mode" and "Setting". Click “Set Settings” and wait for about 10 seconds to apply new settings. Click “OK” to finish setting and close the window. 1417WCE...
  • Page 106 The calibration folder is named according to the third and fourth numbers of the IP address. (e.g. C:\Davinci\CAL_ 01_80)  For further instructions on calibration, refer to PART I. 오류! 참조 원본을 찾을 수 없습니다. Chap. 3.2 오류! 참조 원본을 찾을 수 없습니다.. 1417WCE...

  • Page 107: Troubleshooting

    If any problem occurs during the usage of the product, please use this chapter as a troubleshooting guide. Follow the instructions to resolve the problem. If the problem is not resolved, please contact our Rayence Customer Service team (E-mail: marketing@rayence.com). LAN Connection Issue 1. Wireless mode Check the power ...
  • Page 108 PART II. Service Manual Check PC Set up Make sure that the "Obtain an IP address automatically" is selected from "Internet Protocol Version 4 (TCP/IPv4)". 1417WCE...
  • Page 109 Check the link cable and the power cord are connected properly.   Check that the power of the detector is on. Check PC set up  Make sure that the IP address is set to ”2.2.2.20” from "Internet Protocol Version4 (TCP/IPv4)". 1417WCE...

  • Page 110: Lost Ip Address (Use One Of The Methods Below)

    Press the “Reset” button to reset the IP address. (Default IP : 2.2.2.100) When using a reciprocating bucky If there is image noise casued by the electromagnetic, follow the instructions below. Open “_vadav.lnk” from "C:\Davinci”. Go to the "Calibration & Acquisition" tab. Click "Edit". 1417WCE...
  • Page 111 Another window for detector setting pops up. Click “Get Settings” button and you can load and change parameters settings. Change "window time" from 2 to 4 sec and click “OK”.  The default value of window time is 0.5sec. 1417WCE...

  • Page 112: Auto Trigger Mode

    PART II. Service Manual Auto Trigger Mode Follow these instructions when the auto trigger on its own and/or unintentionally acquires blank images. Open “_vadav.lnk” from "C:\Davinci”. Go to the "Calibration & Acquisition" tab. Click "Edit". 1417WCE...
  • Page 113 Another window for detector setting pops up. Click “Get Settings” button and you can load and change parameters settings. Change "Auto Trigger Threshold" from 2 to 100 and click "OK”.  The default value of auto trigger threshold is 15. 1417WCE...

  • Page 114: Supplement 1. Wireless Ap Set Up Instruction

    • Enter the ID and password. (ID: admin / PW: admin) • Click "Ok". IP address for the first access is 192.168.1.1. After changing the IP address to 2.2.2.1, use IP address 2.2.2.1 for accessing. ① ② ③ 1417WCE...
  • Page 115 PART II. Service Manual Click the "Setup" tab, and then click the "Basic Setup" page. • Type 2.2.2.1 at "IP Address". • Type 255.255.255.0 at "Subnet Mask". • Click "Apply". 1417WCE...
  • Page 116 PART II. Service Manual Click the "Wireless" tab, and then click the "Basic Wireless Settings" page. • Set up Wireless Settings as below. (SSID: Griffon, WPA2-Personal, Pre-Shared Key: project302) 1417WCE...
  • Page 118 14, Samsung 1-ro 1-gil, Hwaseong-si, Gyeonggi-do, Korea Tel: +82-31-8015-6245 Fax: +82-31-8015-6300 E-mail: marketing@rayence.com www.rayence.com...
