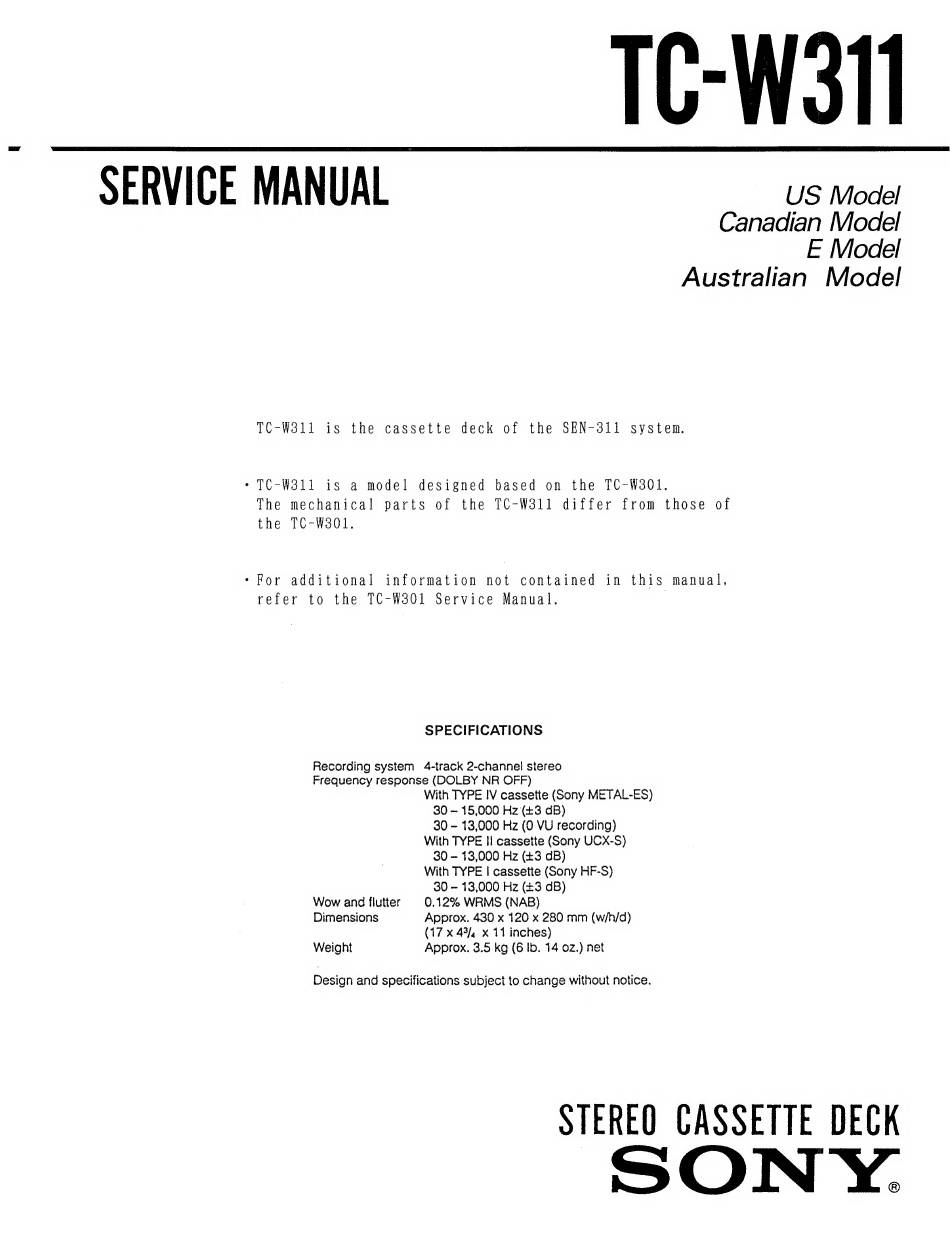

Sony TC-W311 Service Manual

TC-W3it
SERVICE MANUAL US Model
Canadian Model
E Model
Australian Model
TC-W31ll is the cassette deck of the SEN-311 system.
> TC-W31l is a model designed based on the TC-W301.
The mechanical parts of the TC-W31l differ from those of
the TC-W301.
* For additional information not contained in this manual,
refer to the TC-W301 Service Manual.
SPECIFICATIONS
Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
With TYPE IV cassette (Sony METAL-ES)
30 — 15,000 Hz (+3 dB)
30 - 13,000 Hz (0 VU recording)
With TYPE Ii cassette (Sony UCX-S)
30 ~ 13,000 Hz (+3 dB)
With TYPE | cassette (Sony HF-S)
30 — 13,000 Hz (+3 dB)
Wow and flutter 0.12% WRMS (NAB)
Dimensions Approx. 430 x 120 x 280 mm (w/h/d)
(17 x 43/4, x 11 inches)
Weight Approx. 3.5 kg (6 Ib. 14 02.) net
Design and specifications subject to change without notice.
STEREO CASSETTE DECK
SONY.
