Sonel CMM-60 User Manual

Industrial multimeter
Hide thumbs Also See for CMM-60:
Table of Contents

Advertisement

Quick Links

Download this manual

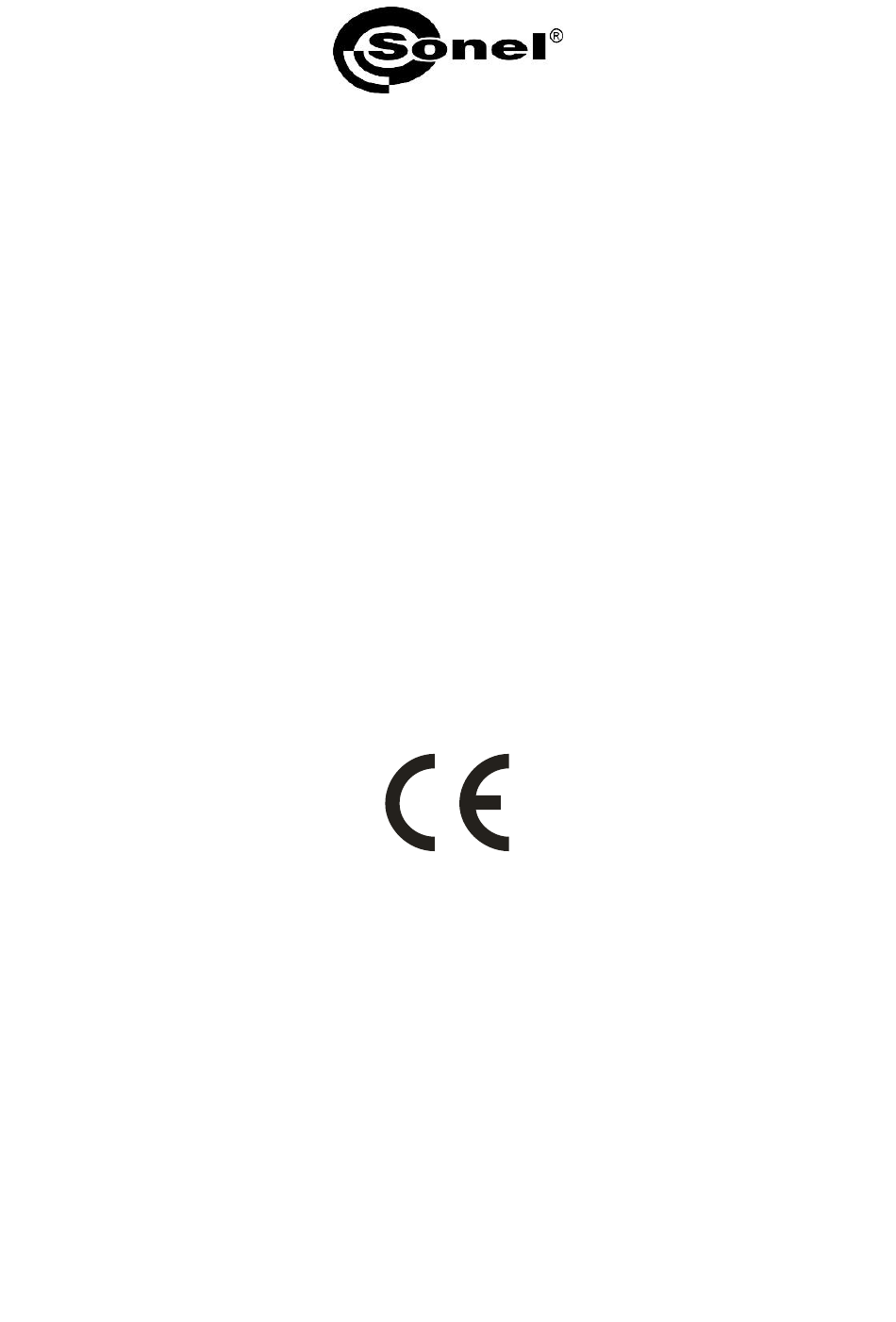

USER MANUAL
INDUSTRIAL MULTIMETER
CMM-60
SONEL S.A.
Wokulskiego 11
58-100 Świdnica
Poland
Version 1.14 19.10.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMM-60 and is the answer not in the manual?

Questions and answers

Related Manuals for Sonel CMM-60

Summary of Contents for Sonel CMM-60

  • Page 1 USER MANUAL INDUSTRIAL MULTIMETER CMM-60 SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Version 1.14 19.10.2023...
  • Page 2 CMM-60 multimeter is intended for measuring direct and alternating voltage, direct and alternating cur- rent, resistance, capacitance, frequency (in electrical and electronic devices/systems), duty cycle (fill- ing), temperature and for testing diodes and circuit continuity. The most important features of CMM-60 include: ...

  • Page 3: General Rules

    Introduction Thank you for purchasing Sonel multimeter. CMM-60 meter is a modern, easy and safe measuring device. Please acquaint yourself with this manual in order to avoid measuring errors and prevent pos- sible problems in operation of the meter. This manual contains two types of warnings. They are presented as a framed text describing the possible risks for the user and the device.

  • Page 4: Safety Symbols

    This symbol located near the terminal, indicates that in normal use there is a possibility of dangerous voltages. Protection class II - double insulation It is recommended that the terminals with such marking are not connected to the potential exceeding 1,000 V AC or 1,000 V DC relative to the ground. CMM-60 – USER MANUAL...

  • Page 5: Preparing The Meter For Operation

    This is a normal phenomenon, which results from the input sensitivity with high input resistance. When connected to a circuit, the read-out will stabilize and the meter will provide the correct value. CMM-60 – USER MANUAL...
  • Page 6 The choice of sub-functions and modes assigned to the selected measurement function  Useful help  Meter Settings HOLD button  Freezing the measurement results on the display.  Access to AutoHold function MAX/MIN button  Turns MIN MAX recording on/off CMM-60 – USER MANUAL...
  • Page 7 Measuring input for AC and DC measurements, up to 500 mA. Measuring terminal COM Measuring input, common for all measuring functions. Measuring terminal V Ω CAP Hz% Temp Measuring input for measurements other than current measurements. CMM-60 – USER MANUAL...
  • Page 8 Meter mode indicator Meter reading Continuous overview of meter reading, when HOLD mode is active Date Battery charge status Indicator of measured quantity Mode indicator REL – reading relative to the reference value Value of additional measured quantity CMM-60 – USER MANUAL...

  • Page 9: First Steps

     Set the desired value F1 (ON) – enabled F2 (OFF) – disabled Details: section 7.7.6 5.3 Wireless communication  F4 (SETUP)  ►▼(Communicate) F1 (ENTER)  Turn on Bluetooth?  F1 (OK) Details: section 7.7.5 CMM-60 – USER MANUAL...

  • Page 10: Menu Panel

    RANGE button enables the manual change of the measurement range.  RANGE – enable the manual change of ranges.  RANGE – switches measurement ranges in the loop  RANGE (hold for 2 s) – disable the function Details: section 7.5 CMM-60 – USER MANUAL...

  • Page 11: Performing The Measurement

     read the result of the measurement – the main result is expressed in V and its equivalent is ex- pressed in dB. CMM-60 – USER MANUAL...

  • Page 12: Low Pass Filter

    Maintain the contact of the probe head with the part of the device under test, until the reading stabilizes.  read the measurement result on the display,  after completing the measurements, disconnect the probe from the meter. CMM-60 – USER MANUAL...

  • Page 13: Measurement Of Resistance

    Ω CAP,  select MENU and use arrows and F1 F2 F3 F4 buttons to set Ohms,  connect black test lead to COM terminal and red test lead to VΩ CAP Hz% Temp terminal, CMM-60 – USER MANUAL...

  • Page 14: Circuit Continuity Test

     If the diode is polarized in the reverse direction, or there is a break in the circuit, the display will show OL.  When the diode is shorted, the meter will show a value near 0 V.  after completing the measurements, remove test leads from the terminals of the meter. CMM-60 – USER MANUAL...

  • Page 15: Measurement Of Capacitance

    COM terminal and red test lead to µA/mA terminal,  remove power supply from the measured circuit and then connect the meter in series to the cir- cuit at the point where the current is to be measured, CMM-60 – USER MANUAL...
  • Page 16  the meter will display loop current as % value with:  0 mA = -25%,  4 mA = 0%,  20 mA = 100%,  24 mA = 125%. CMM-60 – USER MANUAL...

  • Page 17: Special Features

    AC+DC – reading is the sum of a periodic and constant component,  DC, AC – the main reading is constant component. Note: Measurement of peak values, frequency, duty cycle, relative values and frequency in this mode is not available. CMM-60 – USER MANUAL...
  • Page 18  functions MENU, SAVE, SETUP,  OL controls, batteries, sound,  RANGE, HOLD, MAX/MIN buttons, arrows,  CLOSE - closes the help.  When the help is active, the top bar of the display shows the current meter reading. CMM-60 – USER MANUAL...

  • Page 19: Max/Min Mode

    Using the function:  to activate, use F1 F2 F3 F4 buttons and select AUTOHOLD,  to save the result use F1 F2 F3 F4 buttons to select SAVE,  to turn off, select CLOSE or CANCEL. CMM-60 – USER MANUAL...
  • Page 20 Functions of buttons:  EDIT - editing parameter  arrows ◄► selecting values to be edited  arrows ▲▼ changing values  OK confirming changes  START starting the recording process  STOP stopping the recording process CMM-60 – USER MANUAL...
  • Page 21 (the scale value is shown in the top right corner of the screen)  arrows ◄► reading values from the graph Note: The user cannot view the records if the meter memory is empty. CMM-60 – USER MANUAL...

  • Page 22: Deleting Memory Data

    F1 button to select RESET.  Functions of F1 F2 F3 F4 buttons:  CALIBRATE restoring the factory calibration  confirms the selection, return to the measurement screen  CANCEL cancels the selection, return to the measurement screen CMM-60 – USER MANUAL...

  • Page 23: Meter Info

    The meter will be vis- ible in the Bluetooth manager of any receiver device as CMM-60. Details of cooperation with the analytical application are provided in Sonel Multimeter Mobile manual. CMM-60 – USER MANUAL...

  • Page 24: Interface Settings

    7.8 Software The instrument works with external software:  Sonel Multimeter Mobile – app for mobile phones with Android system. It is designed for remote readout of measurement results and for controlling multimeters,  Sonel CMM-60 Multimeter Software – PC software. It is designed for remote readout of meas- urement results.

  • Page 25: Replacing The Battery

    Replacing the battery CMM-60 is powered from a battery pack of 7.4 V 2400 mAh. Note: While performing the measurements with the battery discharged, the user must be aware of additional unspecified uncertainties or unstable operation of the device. WARNING: If the test leads are left in the terminals during replacement of the battery, they may generate a risk of electric shock.

  • Page 26: Charging Rechargeable Battery

     The display will show the charging indicator - a battery with changing content  When the charging is completed, the meter will show the indicator of complete charging - full battery, AC adapter Adapter for charging Battery charging in process Battery charged CMM-60 – USER MANUAL...

  • Page 27: Fuse Replacement

    [SIBA 70-172-40], 10 A/1000 V quick-acting fuse for range 10 A [SIBA 50-199-06]). WARNING: To avoid electric shock, do not use the meter if the fuse compartment cover is not in place or is not properly fastened. CMM-60 – USER MANUAL...

  • Page 28: Maintenance And Care

    Worn-out electronic equipment should be sent to a collection point in accordance with the law of waste electrical and electronic equipment. Before the equipment is sent to a collection point, do not dismantle any elements. Observe local regulations concerning disposal of packages, waste batteries and accumulators. CMM-60 – USER MANUAL...

  • Page 29: Basic Data

     (0.1% m.v. + 20 digits) 50.000 mA 0.001 mA 500.00 mA 0.01 mA  (0.15% m.v. + 20 digits) 10.000 A 0.001 A  (0.3% m.v. + 20 digits)  20 A for max. 30 sec. at reduced accuracy CMM-60 – USER MANUAL...
  • Page 30 0.0001 MΩ  (0.2 % m.v. + 20 digits) 50.000 MΩ 0.001 MΩ  (2 % m.v. + 20 digits) When using REL mode to compensate offsets (mode recommended in case of problems with reset- ting) CMM-60 – USER MANUAL...
  • Page 31  24 mA = 125% Temperature Measurement Range Resolution Accuracy -50.0…1000.0C 0.1C ± (1.0% m.v. + 2.5C) -58.0…1832.0F 0.1F ± (1% m.v. + 4.5F)  The accuracy of the temperature probe is not taken into account CMM-60 – USER MANUAL...

  • Page 32: Operating Data

    True RMS meters accurately measure all three types of signals. Note: SONEL S.A. hereby declares that the radio device type CMM-60 complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following website address: https://sonel.pl/en/download/declaration-of-conformity/...

  • Page 33: Bluetooth Specification

    The provider of guarantee and post-guarantee services is: SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 884 10 53 (Customer Service) e-mail: customerservice@sonel.com web page: www.sonel.com Note: Service repairs must be performed only by the manufacturer. CMM-60 – USER MANUAL...
