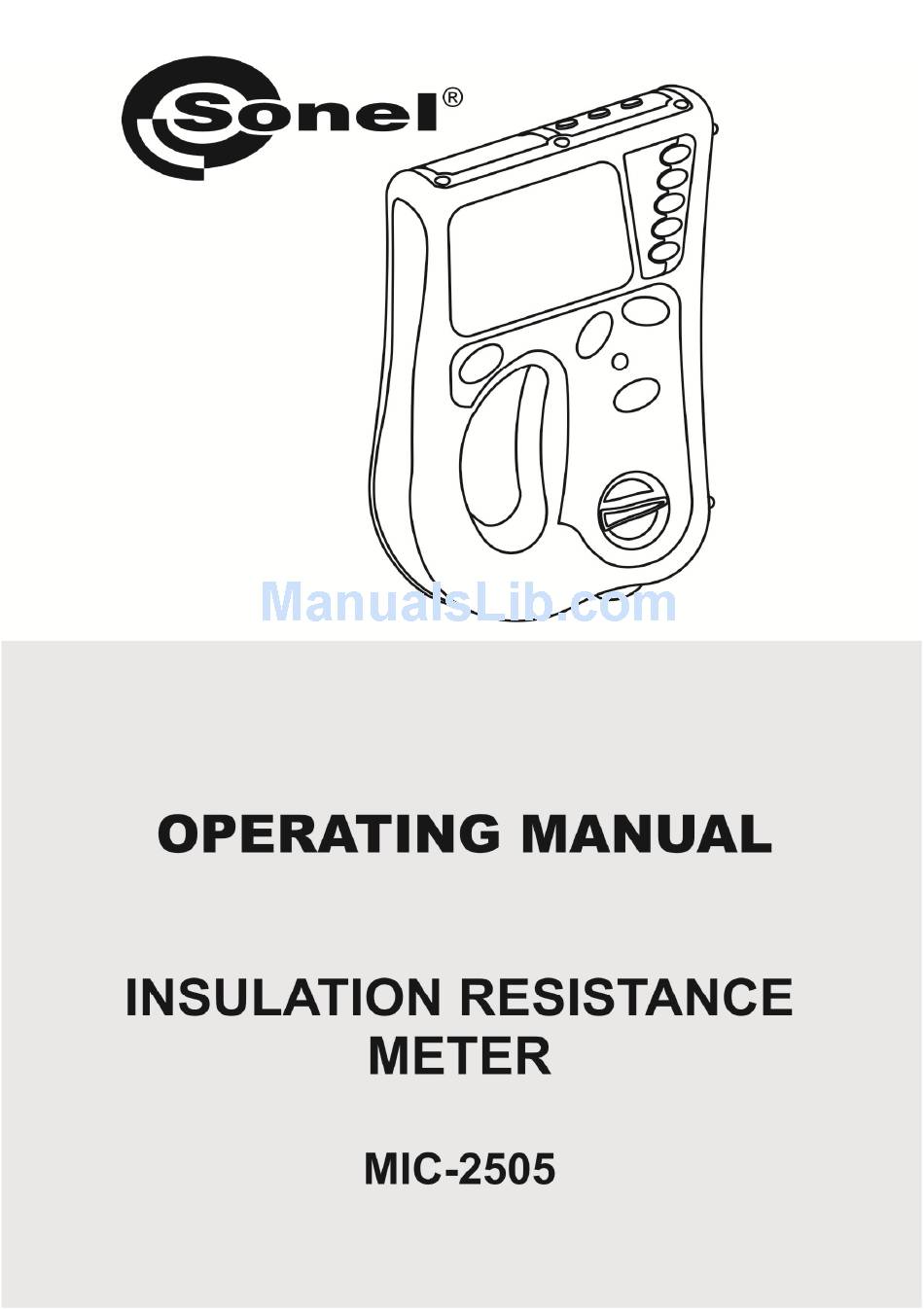

- Page 5 OPERATING MANUAL INSULATION RESISTANCE METER MIC-2505 SONEL SA ul. Wokulskiego 11 58-100 Świdnica Version 1.01 17.02.2012...
- Page 6 MIC-2505 meter is a modern, easy in use and safe measuring device. Please acquaint yourself with the present manual in order to avoid measuring errors and prevent possible problems related to opera- tion of the meter. OPERATING MANUAL MIC-2505 version 1.01...
-
Page 7: Table Of Contents
DISMANTLING AND DISPOSAL ..............15 TECHNICAL SPECIFICATIONS ............... 16 ......................16 ASIC DATA IEC 61557-2 (R ) ......... 17 DDITIONAL DATA ACCORDING TO EQUIPMENT ......................17 10.1 ..................17 TANDARD EQUIPMENT 10.2 ..................18 PTIONAL ACCESSORIES MANUFACTURER ....................19 OPERATING MANUAL MIC-2505 version 1.01... -
Page 8: Safety
Safety MIC-2505 meter is designed for performing check tests of protection against electric shock in mains systems. The meter is used for making measurements and providing results to determine safety of electrical installations. Therefore, in order to provide conditions for correct operation and the correctness of the obtained results, the following recommendations must be observed: •... -
Page 9: Meter Configuration
(horizontal lines). Press SEL button to enter the setting of no- minal network frequency. buttons to set the frequency value. Press SEL button to enter the setting the type of absorption coefficients. OPERATING MANUAL MIC-2505 version 1.01... - Page 10 Ab1, Ab2 parameters ( ) or PI, DAR ( ). Press ENTER to display the measurement screen, approving introduced changes or… …press ESC to go to the measurement scre- en without validating the changes. OPERATING MANUAL MIC-2505 version 1.01...
-
Page 11: Measurements
Times for calculating absorption coefficients are fixed at t = 15s (30s for the coefficients Pi DAR), t 60s and t = 600s. Connect test leads according to the drawing. OPERATING MANUAL MIC-2505 version 1.01... - Page 12 ENTER button. After measuring is completed, read the result. to see individual components of the result in the following order: →I →Ab2→Ab1→Rt3→It3→Rt2→It2→Rt1→It1 →R OPERATING MANUAL MIC-2505 version 1.01...
- Page 13 Note: During measurements of insulation resistance, dangerous voltage up to 2.5 kV occurs at the ends of test leads of MIC-2505 meter. It is forbidden to disconnect test leads before the measurement is completed. Failure to obey the above instruction will lead to high voltage electric shock and make it impossible to discharge the tested object.
-
Page 14: Three-Lead Measurement Of Insulation Resistance
(important in difficult weather conditions) is eliminated by connecting a piece of metal foil wounded around the insulation of the tested conductor with G socket of the meter; OPERATING MANUAL MIC-2505 version 1.01... -
Page 15: Voltage Measurement
G terminal other conductors that do not take part in the measurement. 3.3 Voltage measurement Set the rotary switch of function selection at U position. Connect the meter to a vol- tage source. OPERATING MANUAL MIC-2505 version 1.01... -
Page 16: Software Updates
Software updates Turn on the meter, holding ENTER and SETUP buttons de- pressed. The meter displays the following screen. After connecting the meter to a PC using a USB cable, follow the instructions of the software. OPERATING MANUAL MIC-2505 version 1.01... -
Page 17: Meter Power Supply
The meter switches off automatical- ly after 5 sec. 5.2 Replacing rechargeable batteries MIC-2505 meter is powered from SONEL NiMH 9.6 V battery pack, including NiMH rechargeable batteries. Battery charger is installed inside the meter and cooperates only with the manufacturer’s battery pack. -
Page 18: General Principles Regarding Using Nimh Rechargeable Batteries
- Please note that when the batteries are charged with a fast-charger they are charged only to approx. 80% of their capacity - better results can be achieved by continuing charging: the charger enters trickle-charging mode and during the next few hours batteries are charged to their full capacity. OPERATING MANUAL MIC-2505 version 1.01... -
Page 19: Cleaning And Maintenance
Used electronic equipment should be sent to a collection point in accordance with the Used Elec- trical and Electronic Equipment Act. Before the equipment is sent to a collection point, do not dismantle any elements. Observe the local regulations concerning disposal of packages and used batteries/rechargeable batteries. OPERATING MANUAL MIC-2505 version 1.01... -
Page 20: Technical Specifications
..........IV 600V (III 1000V) according to EN 61010-1 c) degree of housing protection acc. to EN 60529................. IP54 d) power supply of the meter............SONEL L-1 battery pack 9.6 V, NiMH e) dimensions ......................260 x 190 x 60 mm... -
Page 21: Additional Data According To Iec 61557-2 (R Iso )
– 1 pcs. (red – WASONREOGB2) • battery pack – WAAKU10 • adapter for battery pack charging – WAZASZ7 • CD SONEL • meter harness – WAPOZSZE2 • carrying case L-4 – WAFUTL4 • operating manual • calibration certificate OPERATING MANUAL MIC-2505 version 1.01... -
Page 22: Optional Accessories
5kV lead, 5m, blue terminated with ba- nana plugs nana plugs WAPRZUSB WAPRZLAD12SAM • USB interface cable • Cable for charging the accumulator package from the car cigarette lighter LSWPLMIC2510 socket (12V) • calibration certificate OPERATING MANUAL MIC-2505 version 1.01... -
Page 23: Manufacturer
SONEL S.A. ul. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 858 38 60 fax +64 74 858 38 09 E-mail: export@sonel.pl Web page: www.sonel.pl NOTE Service repairs must be performed solely by the manufacturer. OPERATING MANUAL MIC-2505 version 1.01... - Page 24 OPERATING MANUAL MIC-2505 version 1.01...
