Summary of Contents for Amoonsky AMS-SC358

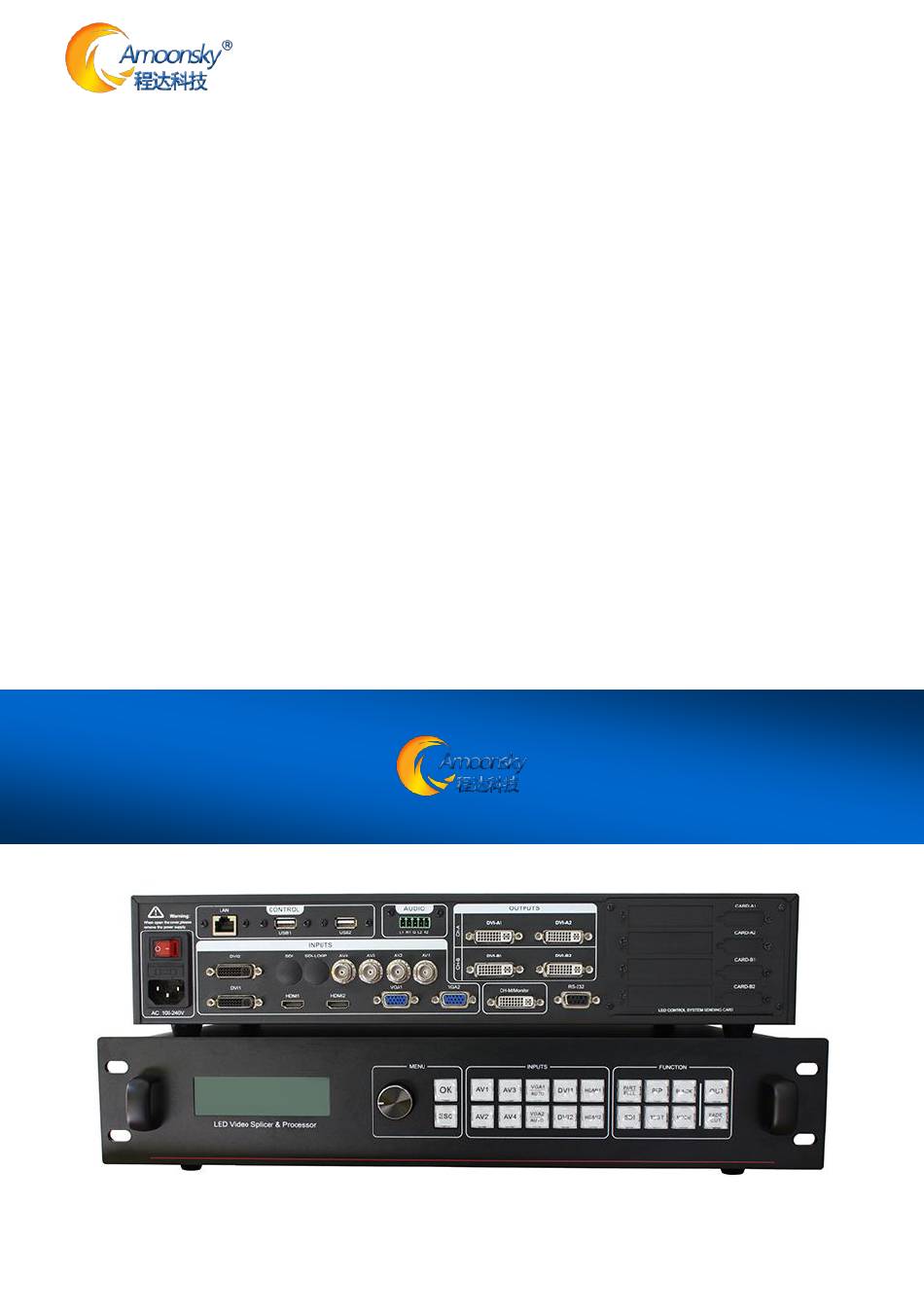

  • Page 1 LED Video Splicer Processor & AMS-SC358 User Manual LED Video Processor 户手册 User’s Manual...
  • Page 2: Table Of Contents

    Contents Splice Wizard........................2 Safety Instructions ......................3 Note ..........................3 Warning ..........................3 Copyright .......................... 3 Trademarks ........................4 introduction........................4 About LED Video Processor ..................4 Panel..........................5 Rear Panel ........................5 Front Panel ......................... 6 Menu System........................8 Menu Structure ......................
  • Page 3: Splice Wizard

    -----Splice Wizard---- 1、 set the channel A, B resolution Output Output A width and height Common resolution or output custom resolution Output A width and height Output Output A channel:Default menu→ Output →Output A →Custom resolution →Horizontal width(Knob adjustment size)→Vertical height(Knob adjust size)→Change resolution Output B channel:Default menu→...
  • Page 4: Safety Instructions

    Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent overheating of sensitive components inside. These openings must never be blocked by other objects. Copyright Copyright © 2018 Amoonsky splicing processor and video processor manufacturers all rights reserved.
  • Page 5: Trademarks

    Trademarks VGA and XGA are registered trademarks of IBM Corporation. VESA is a trademark of the Video Electronics Standards Association. HDMI logo and High-Definition Multimedia Interface (High-Definition Multimedia Digital Interface) are HDMI Licensing LLC. Trademarks. Introduction This manual contains information about how to use, install and configuration the LED video splicer & processor, in addition, also relates to knowledge LED video processor and LED video systems.
  • Page 6: Panel

    Panel Rear panel Figure 1- Rear Panel AC connector — Use IEC standard power cable,input 100-240 VAC, 50-60Hz. AC switcher — power on/off. Video input connector : ● AV1, AV2, AV3, AV4 -- Composite video input, BNC connector, support PAL、PAL-M/N、 NTSC、SECAM formats.
  • Page 7: Front Panel

    Front panel Figure 2- Front Panel LCD display — display the parameters and user settings. Operating button — operate the menu system. ● OK “confirm” ● ESC “exit” or “back” ● Knob press down “OK”, turn right ”+” turn left ”-” adjust the parameters on menu. INPUTS —INPUT button in the region, including 11 input signal selection, screen testing function, VGA auto correction.
  • Page 8 VGA1 signal. VGA2 button also has the same functionality and operation. ● DVI1, DVI2, HDMI1, HDMI2 – DVI, HDMI input selection button. FUNCTION — including display mode, black output, preset, pip function and switch type. Figure 4- Function ● PART/FULL – part screen display function, set the parameters in SPLICE menu. ●...
  • Page 9: Menu System

    Menu System Menu Structure Default menu Function Description Main Menu Set the output resolution, precise adjustment of the output resolution adjustment of the OUTPUT output resolution Adjustment splice, equal splice or unequal or SPLICE parts of the image display Set PIP size, position, the input source Adjust image color, brightness, contrast, etc.
  • Page 10: Default Menu

    Display product logo and Default Main menu Power up model; the button flashes menu three times. Figure 6- boot process and enter the main menu Default menu The default menu after the device starts, LCD screen interface, shown above, the input source, the input source connected state, the input source is connected, the output resolution, mosaic mode, brightness and output audio channels and other information, shows the processing the main parameters menu system.
  • Page 11: Setting And Operation

    Setting and Operation Language Before using LED video processor, make sure the language you wish to use, if not, please foll ow the operation to complete. Default Menu → Main Menu → FUNC → Language Above is the menu operation path, use the button to enter the language settings menu you can select the language.
  • Page 12: Switching Effect

    Switching Effect Processor with two Switching Effect, Fast switching, fade in fade out and corresponding CUT or FADE button. FADE (when the button is not light): when the input video switch, switch-free stay. FADE (when the key light is on):when the input video switcher, both before and after the video image fusion, the switching process smoother over.
  • Page 13: Splicing Applications

    Splicing applications LED Video Processor has a powerful splicing,Maximum output resolution 5120 x 816 @60Hz,3840 x 1200@60Hz,achieve frame synchronization. There introduce it’s equal splicing and unequal Tip: set the splicing parameters before the first to confirm whether the output B output A/ channel resolution is set. Equal Splicing(Left and right splicing)...
  • Page 14: Capture

    Menu→ Main Menu→SPLICE→SPLICE →SPLICE →on Default Menu→ Main Menu→SPLICE→SPLICE →Pattern→Unequal Default Menu→ Main Menu→SPLICE→SPLICE →Parameters→H Default Total→2688 Menu→ Main Menu→SPLICE→SPLICE →Parameters→V Default Total→896 Menu→ Main Menu→SPLICE→SPLICE →Parameters→H Default Start→1408 Menu→ Main Menu→SPLICE→SPLICE →Parameters→V Default Start→0 Capture Interception of part of the screen function is unequal extension splicing function. In actual use, may be used to intercept the partial screen display, displays only a partial area of input channels.
  • Page 15 be realized outside-picture effects, namely POP , PBP is a special application of the PIP. Steps: (1)Turn on PIP , there are two ways to open, one by PIP button, the second is in the menu system Default Menu → Main Menu → PIP →PIP mode→ PIP NOTE: When the PIP is enabled, cut and fade function can not be used.
  • Page 16: Keying

    Keying Keying is an extension of the PIP function, which is accomplished by the PIP channel input color image minus the red, green, blue, black, and white colors to get results. Keying function can be used for some simple effects processing and overlay subtitles. Easy setting operation, please refer to the setup.
  • Page 17: Key Lock

    Key Lock key lock function for the user in a complex environment to avoid misuse or others inadvertently Lock Enter the system menu, enable key lock function Default Menu → Main Menu→SYSTEM →Keypad Lock →on Unlock Press the ESC button last 2 second, processor automatically unlocked. VGA Adjust Under normal circumstances, switch to the VGA input source, the processor will automatically correct input source color, image size and position.
