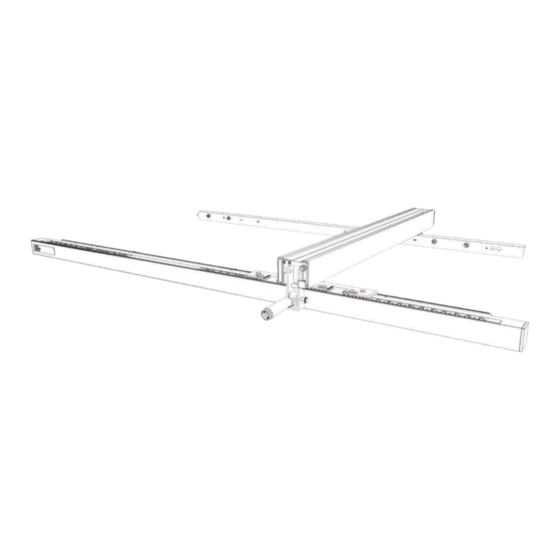

- Page 1 Fence System www.DeltaMachinery.com 36-T30 /36-T50 Instruction Manual 36-T31 To reduce risk of serious injury, thoroughly read and comply with all warnings and instructions in this manual and on product. KEEP THIS MANUAL NEAR YOUR SAW FOR EASY REFERENCE AND TO INSTRUCT OTHERS.
-
Page 2: Table Of Contents
36-T50 Fence Systems include the Fence Assembly, Front Rail, Rear Rail and Front Guide ® ® Tube along with the Mounting Hardware for assembling the Fence System to most DELTA Table Saws and to some non-DELTA ® ® Table Saws. -
Page 3: Important Safety Instructions
If you have any questions or concerns relative to the use of your tool or the contents of this manual, stop using the tool and contact DELTA Power Equipment Corporation Customer Care at 1-800-223-7278. - Page 4 GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”...
-
Page 5: Carton Contents
1/4-20 x 1 1/2” Countersunk Screw (6) q. Leveling Feet (2) NOTE: The DELTA 36-T30 and 36-T50 are designed to be used with a variety of DELTA table saws. It is also possible to install ® ® this fence on non-DELTA saws. -
Page 6: Assembly
ASSEMBLY UNPACKING AND CLEANING Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol. Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your machine. - Page 7 12” Centers (Approx.) (For use with the DELTA 36-T50 Fence Kit only) ® Due to the extended length of the DELTA 36-T50 rails, it is ® 2-1/4” x 3/4” necessary to build a Wooden Table support to position and Semi-hardwood support oversized workpieces.
- Page 8 ASSEMBLY Attach the Table Legs (5) to the Extension Table (6) as shown in Figure 6. Lay the Extension Table (6) upside down on the floor or on a bench. Position the Table Leg (5) in the corner of the Extension Table (6) as shown in Figure 6.
-
Page 9: Operation And Adjustment
ASSEMBLY ATTACH GUIDE TUBE Attach the Fence Guide Tube (3) to the Front Guide Rail (1) using four (for 30” versions) or six (for 52” versions) 1/4” Pan Head Screw With Washer (d) through the Holes (B) on the bottom side of the Front Rail. FIGURE 10 NOTE: If you removed the Spreader Bar when disassembling the old fence system, re-install it now. - Page 10 OPERATION AND ADJUSTMENTS TO ADJUST: Lift the fence Clamping Lever and remove the Fence. Slightly tighten or loosen one of the two Set Screws (A) shown in Figure 13, using a 3mm Hex Wrench (not supplied). IMPORTANT: Very little movement of the set screws is necessary to adjust the Fence.
- Page 11 OPERATION AND ADJUSTMENTS ADJUSTING TENSION ON THE FENCE CLAMPING LEVER To reduce the risk of injury, turn unit off and disconnect it from power source before installing/removing accessories, adjusting, or making repairs. An accidental start-up can cause injury. When the Fence is in place against the Guide Tube and the Fence Clamping Lever (A) is locked, the Fence Assembly (4) should not move.
-
Page 12: Troubleshooting
TROUBLESHOOTING For assistance with your machine, visit our website at www.DeltaMachinery.com for a list of service centers or call Delta Power Equipment Customer Care at 1-800-223-7278. MAINTENANCE To reduce the risk of injury, turn unit off and disconnect it from power source before installing/removing accessories, adjusting, or making repairs. -
Page 13: Accessories
24 hours/day. You can also write to us for information at Delta Power Equipment Corporation, 2651 New Cut Road, Spartanburg, SC 29303 Attention: Technical Service Manager. Be sure to indicate all of the information shown on the nameplate of your saw (model number,... - Page 14 2651 New Cut Road Spartanburg, SC 29303 (800) 223-7278 www.DeltaMachinery.com © 2020 Delta Power Equipment Corporation DPEC006280 Rev:3 03/05/2020...
