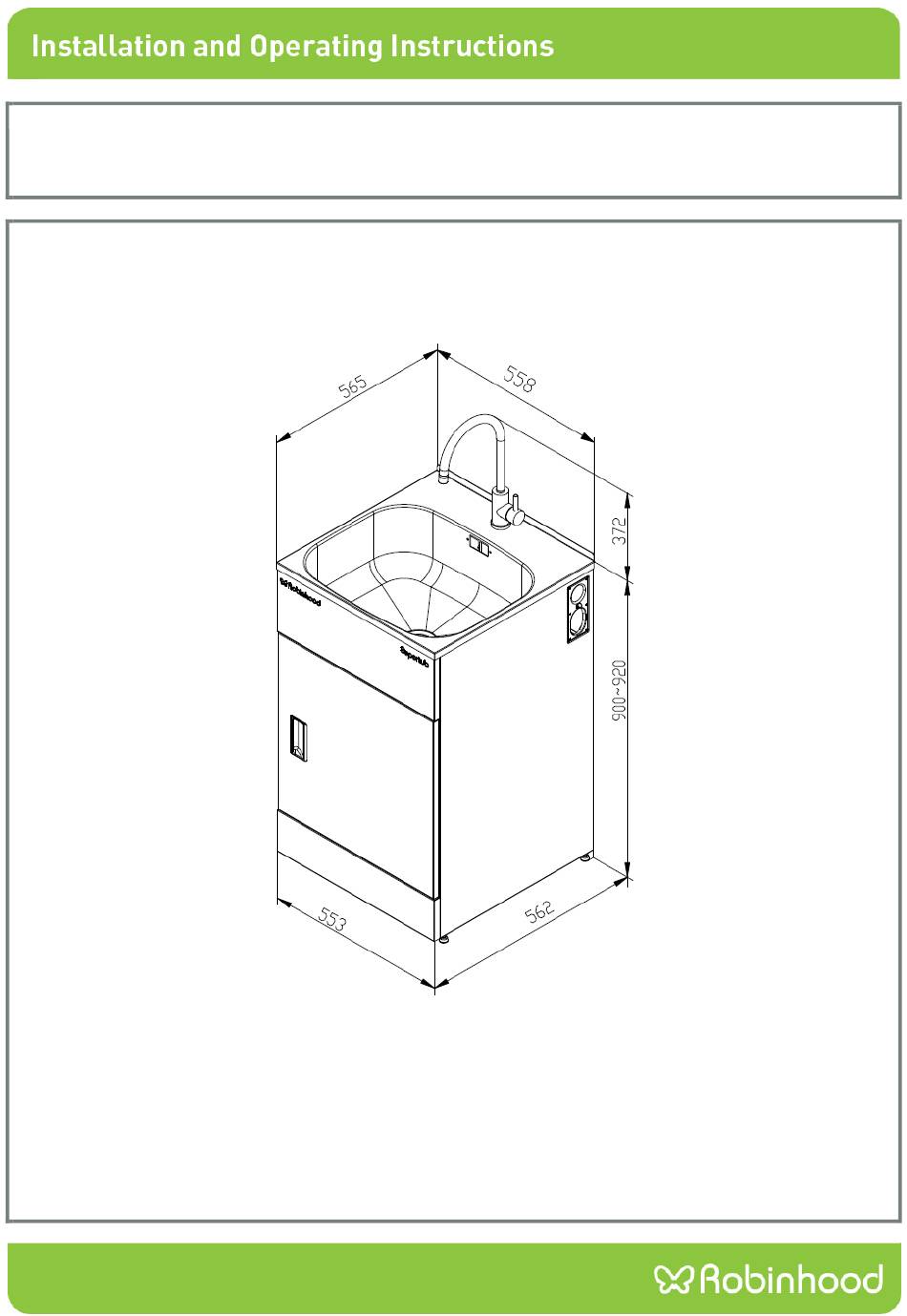

- Page 1 Issue: 1 Description: ROBINHOOD SUPERTUB STANDARD WITH S/S GOOSENECK TAP Model Number: ST3101X Model pictured: ST3101X All dimensions in mm; Model may vary slightly from images pictured...
- Page 2 Allow 10mm clearance between the units. Mark the position on the floor as reference. Important safety information This Robinhood Supertub is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the Robinhood Supertub.
- Page 3 Installing the Supertub Confirm if the door or washing machine waste inlet needs to be moved from right to left before securing the unit to the wall. If needed, please see page 6 of these installation instructions. Fit the four adjustable feet supplied to the bottom of the cabinet and adjust to align with benchtop or washing machine height.
- Page 4 Installing the Supertub cont. Fit the tap ware to the tub using the supplied fittings. Connect the two flexible hoses onto the body of the tap ware from the underside; ensure that the flexible hoses are fitted to the hot and cold correctly. Hand tightened and then finished with a quarter turn only.
- Page 5 Installing the washing machine water inlet and waste outlet Washing machines hoses Some parts are hidden for clarity Operating Instructions Operating the washing machine by adjusting 3 way ball valves To use the washing machine from the mains water supply, simply turn the 3 way ball valves quarter turn valve on.
- Page 6 Changing the washing machine inlet from right to left The washing machine outlet waste hose can be connected to either side of the Robinhood Supertub. On the outside of the laundry tub, remove the screws from the white plastic washing machine waste inlet and the white plastic blanking plate.
- Page 7 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
