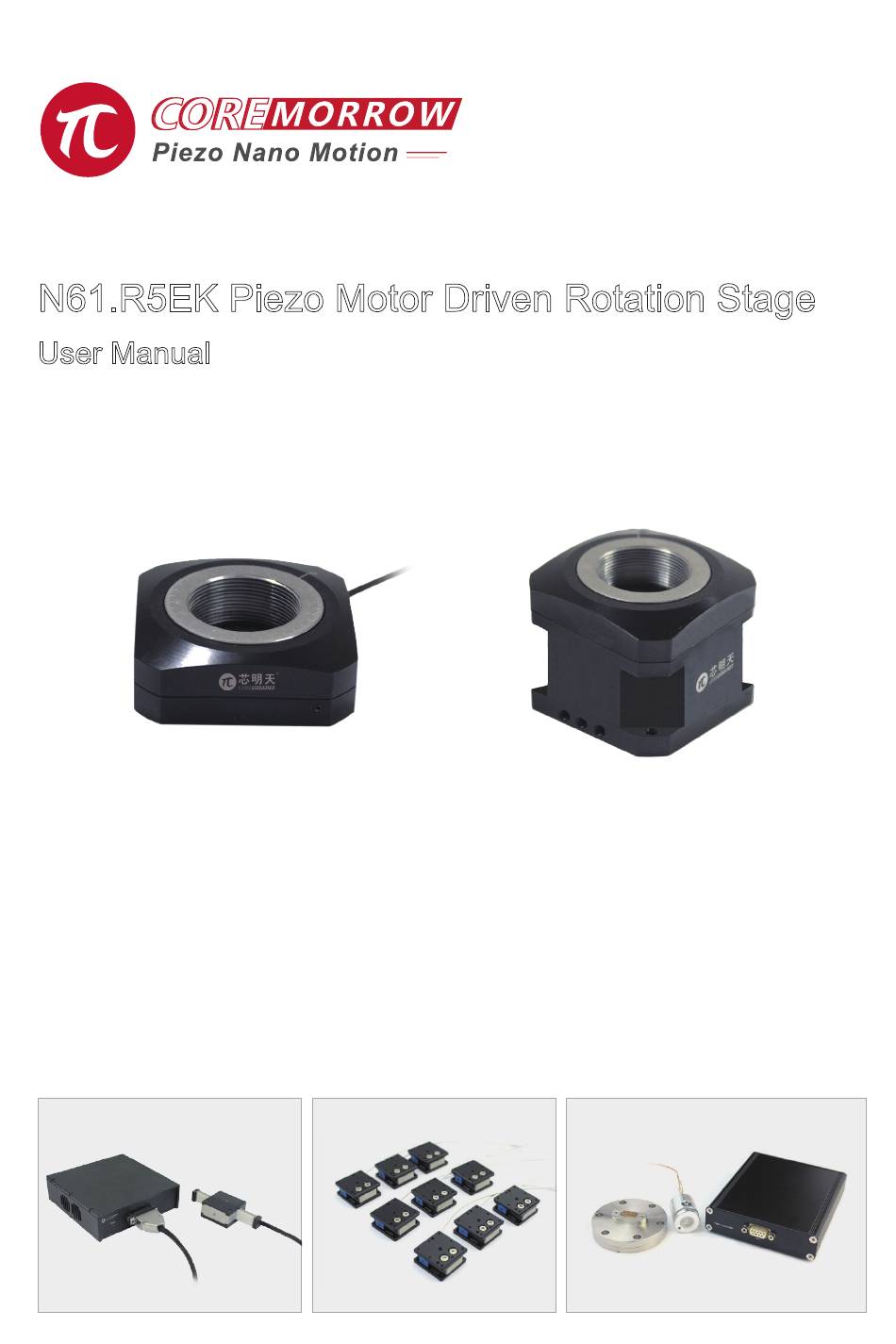

- Page 1 N61.R5EK Piezo Motor Driven Rotation Stage User Manual Version: V1.0 N61.R5K N61.R5E This document describes the following products: ■ N61.R5E ■ N61.R5K...
- Page 2 Users are advised to be vigilant. Once you find out or be deceived, contact us directly, we will crack down on illegal activities and prevent deception and economic losses. CoreMorrow will certainly investigate legal responsibility of the illegal subject and related parties.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Expected reader ..........................2 1.4 Manual lost replacement ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................4 3.3 Motion Direction ........................4 4. -
Page 4: Introduction
N61.R5EK Piezo Motor Driven Rotation Stage User Manual 1. Introduction 1.1 Purpose and content The manual is mainly for your smooth and correct use of piezo motor. The manual contains all necessary information for N61.R5E/K. The manual describes the precautions during installation and use. -
Page 5: Safety Guide
2. Safety Guide N61.R5E/K piezo motor is designed with advanced technology and safety standards, safety and proper use of the product, please pay attention to following points when using: Temperature changed and pressure will charge the piezo motor. Piezo motor will remain charged for a period of time disconnected from the controller, so the operator should pay attention when using it: Do not disassemble N61.R5E/K piezo motor;... -
Page 6: Product Overview
N61.R5EK Piezo Motor Driven Rotation Stage User Manual 3. Product Overview 3.1 Product Introduction N61 piezo motor is a piezo motor direct-driven by piezo ceramics. It uses special mechanical structure design to convert linear microdisplacement by piezo ceramics into macro-angle rotation motion of mechanical platform. -
Page 7: Operating Environment
4. Operating Environment Operating temperature: 0~50℃ Environment free of dust, clean, and non-corrosive substances Relative humidity: <60% 5. Installation and Operation Before installation, first check the safety, such as whether the cable is damaged or broken, and whether the power supply has grounding protection. 5.1 Installation and announcement Ensure that the installation surfacee is flat. -
Page 8: Load
N61.R5EK Piezo Motor Driven Rotation Stage User Manual 5.2 Load When installing the load, ensure that the load mass is less than the max load of piezo motor, and install the load as much as possible at the center of the moving surface. - Page 9 Do not load longer loads and add to the side of the piezo motor If the screws used in tightening and connecting are too long, the screws will not be installed or some of screws will leak out, which will scratch the piezo motor and affect the motion accuracy.
-
Page 10: Operating
N61.R5EK Piezo Motor Driven Rotation Stage User Manual Note: Slowly tighten the load when installing it, and the torque should not be too large to avoid damage to mechanism. Avoid stretching and bending cables. Please connect N61.R5E/K and controller with special cable provided by CoreMorrow. -
Page 11: Unpacking Inspection
The professional technical engineer would help solve the problem. Problems caused by improper operation are not covered by the warranty; CoreMorrow is not responsible for any problems caused by dismantling the peizo motor without permission. 7.2 Daily maintenance If the product is not used for a long time, please store it in an room environment with no dust, good ventilation, clean and non-corrosive substances. -
Page 12: Customer Service
N61.R5EK Piezo Motor Driven Rotation Stage User Manual Please do not loosen the screws on the motor structure, avoiding to affect the accuracy. Daily cleaning: Please disconnect the piezo motor to controller, then clean the surface of it. When cleaning, first wipe a small amount of detergent with a towel and gently wipe the surface of the piezo motor, then wash it with alcohol.
