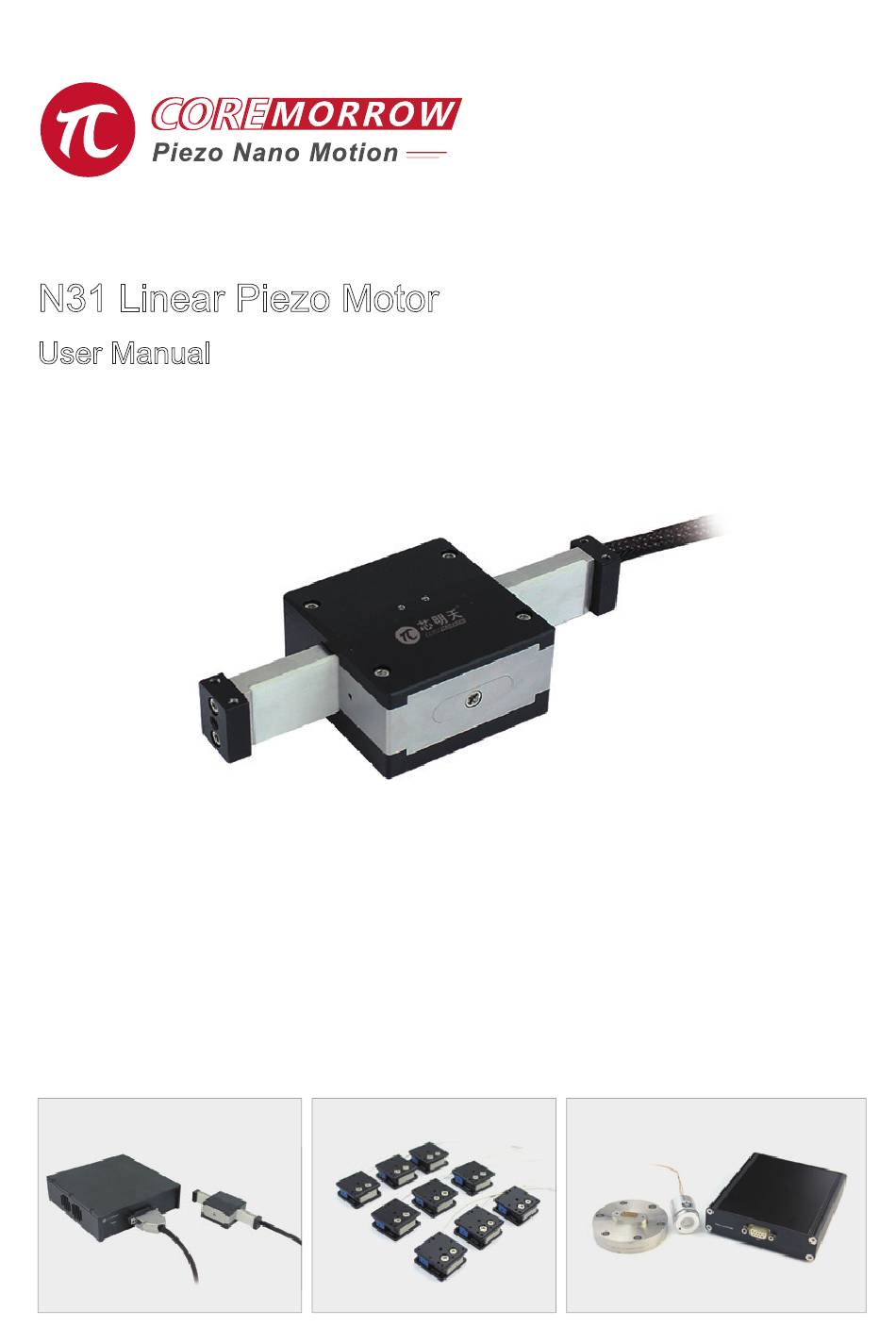

- Page 1 N31 Linear Piezo Motor User Manual Version: V1.0 This document describes the following products: ■ N31.25E N31.25K ■ N31.50E N31.50K ■ N31.100E N31.100K...
- Page 2 DECLARATION Thank you for choosing Coremorrow's products! This user manual is applicable to N31 Linear Piezo Motor. For your smooth and correct use of this product, please read this manual carefully before use. Please follow the instructions in the manual installation and use procedures.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Expected reader ..........................2 1.4 Manual lost replacement ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Characteristics ..........................4 3.2 Motion Direction ........................4 4. Operating Environment .........................4 5. -
Page 4: Introduction
1.1 Purpose and content The manual is mainly for your smooth and correct use of piezo motor. The manual contains all necessary information for N31 linear piezo motor. The manual describes the precautions during installation and use. 1.2 Symbol and meaning DANGER: Improper handling may could cause injury to the operator. -
Page 5: Safety Guide
In order to prevent damage to the product caused by improper operation, please pay attention to following points when using: N31 piezo motor is used as much as possible in dust-free, oil-free, lubricant-free environments; Since the product adopts flexible structure design, it is recommended that the load not exceed the bearing capacity of the product. -
Page 6: Product Overview
N31 Linear Piezo Motor User Manual 3. Product Overview 3.1 Characteristics Large blocking force Automatic zero position after power-on Optional grating sensor Optional 2 or 3 axes Wear-resistant material Vacuum non-magnetic compatible Closed-loop automatic return after accidental touch 3.2 Motion Direction Motion direction of N31 4. -
Page 7: Installation And Operation
N31 Installation diagram 5.2 Load When installing the load, ensure that the load mass is less than the max load of the N31, and install the load as much as possible at the center of the moving surface. The correct placement of the load is shown below:... - Page 8 N31 Linear Piezo Motor User Manual For protection, we don't recommend the load is too high. If it is used a higher load, please reduce the position center of the load gravity. The error placement method is as follows: Try not to let the load center of gravity exceed piezo motor...
- Page 9 Slowly tighten the load when installing it, and the torque should not be too large to avoid damage to mechanism. Avoid stretching and bending cables. Please connect N31 and controller with special cable provided by CoreMorrow. Please do not extend the cable without authorization, please contact us if you need a longer cable.
-
Page 10: Operating
N31 Linear Piezo Motor User Manual 5.3 Operating Please confirm the following information before starting the power supply: The environment meets requirements of N31 operating environment; The fixing screws must be tightened; The above information is determined to perform controller related operations: 1. -
Page 11: Maintenance And Processing
The professional technical engineer would help solve the problem. Problems caused by improper operation are not covered by the warranty; CoreMorrow is not responsible for any problems caused by dismantling the peizo motor without permission. 7.2 Daily maintenance If the product is not used for a long time, please store it in an room environment with no dust, good ventilation, clean and non-corrosive substances. -
Page 12: Customer Service
N31 Linear Piezo Motor User Manual When cleaning the surface, try not to pick up the product. If it is necessary to pick up, please place a sponge under the product for protection, the product should not be too high from the sponge to prevent it from falling off.
