Greenbridge PC1500 Operation Manual & Spare Parts List

Hide thumbs
Table of Contents

Advertisement

Quick Links

PC1500

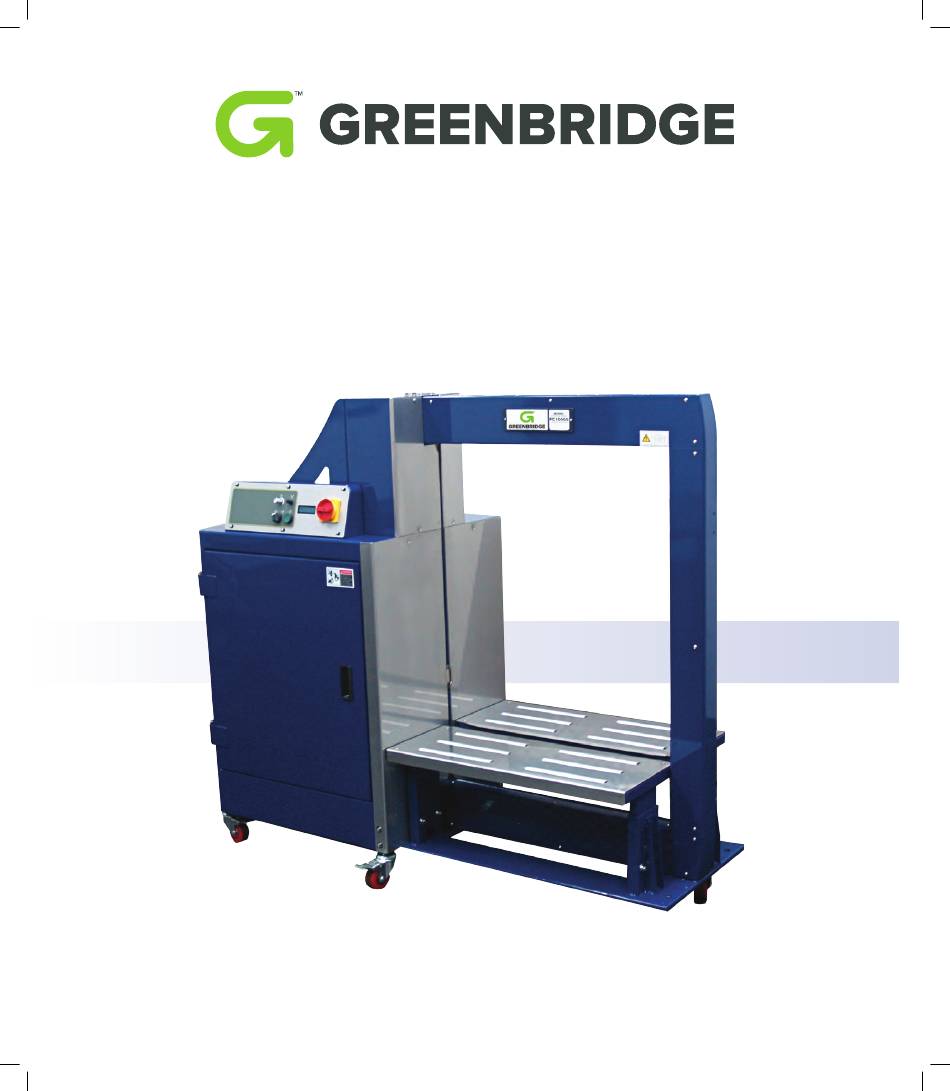

OPERATION MANUAL | SPARE PARTS LIST
GREENBRIDGE
6277 HEISLEY ROAD, MENTOR, OHIO 44060
PHONE: 440.357.1500, FAX: 440.352.9553
WWW.GREENBRIDGE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Greenbridge PC1500

Summary of Contents for Greenbridge PC1500

  • Page 1 PC1500 OPERATION MANUAL | SPARE PARTS LIST GREENBRIDGE 6277 HEISLEY ROAD, MENTOR, OHIO 44060 PHONE: 440.357.1500, FAX: 440.352.9553 WWW.GREENBRIDGE.COM...

  • Page 4: Table Of Contents

    CONTENTS PART I General Safety Instructions ............... A1 1.1 Basic Operation ................. A1 1.2 Basic Safety Precautions ............A1 1.3 Safety Instructions Governing Specific Operational Phases ..A2 1.4 Warning of Electrical Dangers ..........A3 1.5 Grounding Instructions Shall Include the Following ....A3 1.6 Before Operating ...............
  • Page 5 Preparation Before Operating the Machine........A12 3.1 Shipping ...................A12 3.2 Transportation & Centre of Gravity .........A12 3.3 Construction Layout ..............A13 3.4 Installation ................A15 3.5 Operation Space ...............A16 3.6 Operating Elements ..............A17 3.7 Instructions for Loading PP Strap..........A20 3.8 Auto Strap Feeding Process............A22 3.9 How to connect Upstream and Downstream Machine (B5 Connector) ................A24 4.
  • Page 6 5.6! Adjustment on Tensioning Rollers for High Tension ....A36 5.7 Change Bundle Flow Direction (TP-702YA) ......A37 5.8 Speed and Pressure Adjustment of Press Bar and Side Pusher A37 6. Troubleshooting................A39 7. Maintenance ..................A41 PART II 1. Pneumatic System Diagram..............B1 2. Wiring Diagram ..................B2 3.
  • Page 8 PART I...

  • Page 9: General Safety Instructions

    1! General Safety Instructions 1.1! Basic Operation Read the operation and safety manual prior to using the strapping machine. The operation and safety manual should remain attached to the machine at all times. The machine may only be operated in accordance with its designated use. The strapping machine was built in accordance with state-of-the-art standards and recognized safety rules.

  • Page 10: Safety Instructions Governing Specific Operational Phases

    1.3! Safety Instructions Governing Specific Operational Phases Avoid unsafe operation of the equipment. The machine is only to be operated when it is in good running order. Only operate the equipment in a safe manner; all protective and safety devices must be in place and fully functional.

  • Page 11: Warning Of Electrical Dangers

    1.4! Warning of Electrical Dangers Immediately remove power to the machine in case of trouble in the electrical system. Replace a fuse with one with the same style and ratings; pay particular attention to matching the specified current. Any electrical work performed on the equipment must be conducted by a skilled electrician or under the supervision of a skilled electrician.

  • Page 12: Before Operating

    1.6! Before Operating Read the instruction manual before operating the machine for your safety. Wear eye protection and safety gloves before operating this machine. Throw out the spacer from the Reel Eye protection must be worn Safety gloves must be worn Please take out the spacer that between the Reel Outer Flange and Inner Flange when you install the machine to prevent the machine malfunctions.

  • Page 13: Signs And Symbols

    1.9! Signs and Symbols Meaning Symbol Warning for dangerous voltage! Contact with live electrical parts will result in severe injury or death. Warning for hot surface! Welding area is approximately 270 Allow sufficient time for the heater to cool down before any work in welding area. Warning for danger! Do not put your hands or body into arch working area when machine is...

  • Page 14: Machine Information

    2! Machine Information 2.1! Areas of Application The strapping machine is to be used for strapping packages, cartons, paper boxes, newspapers, magazines and those materials using a polypropylene (PP) strapping for stabilizing purposes when in transportation. Be careful for rigidity of working materials, and don’t try to pack agri-foodstuffs or other such material.

  • Page 15: Storage

    The user should refer to a professional expert or relevant authority to prevent the dangerous substance/ gas emitted by suitable means according to local /national environmental/health codes/regulations. 2.3! Storage The store room must be dry. Do not expose the machine to extreme cold or heat environment. Place the machine on an even floor in order to avoid any distortion.

  • Page 16: Safety Devices

    2.5! Safety Devices Danger! Operate the machine only when all safety devices are at their place and are functioning correctly. The machine has been constructed in accordance with the applicable legal regulations. The machine is reliable in operation. Nevertheless the machine may constitute a danger if it is operated in improper or undue condition.

  • Page 17: Technical Specification

    If it is necessary to make adjustments inside the machine during operation, after a strap jam for example, the rear table top can be unscrewed. Observe caution as the machine is still fully functional with the covers removed. When the front door is opened, safety switch B6 is activated.
  • Page 18 2.6.2! Technical Data a.! TP-702Y Strap width 5mm, 6mm, 9mm , 12mm Strap thickness 0.35mm up to 0.65mm (0.014” – 0.026”) Coil diameter 200mm (8” nominal) Strap coil diameter Outside diameter 420mm (16.5”) Width(Face) 190mm (7.5”) Minimum – 445mm (17.52”) Maximum –...
  • Page 19 b.! TP-702YA Strap width 5mm, 6mm, 9mm , 12mm Strap thickness 0.35mm up to 0.65mm (0.014” – 0.026”) Coil diameter 200mm (8” nominal) Strap coil diameter Outside diameter 420mm (16.5”) Width(Face) 190mm (7.5”) Minimum – 445mm (17.52”) Maximum – 645mm (25.39”) Table height 100mm could be adjusted by machinery pad 100mm could be adjusted by table...

  • Page 20: Preparation Before Operating The Machine

    3! Preparation Before Operating the Machine 3.1! Shipping The equipment is delivered in transport units. Each transport unit is loaded onto a wooden pallet, secured by polyester strapping. 3.2! Transportation & Centre of Gravity The machine must be secured on a pallet for transportation.

  • Page 21: Construction Layout

    3.3! Construction Layout 1.! Arch 2.! Upper Table Front 3.! Machinery Pad 4.! Reel 5.! Caster (Brake) 6.! Reel Brake Release 7.! Caster (Free) 8.! Foot Pedal (Option) 9.! Movable Start Switch (Option) 10.! Front Door 11.! Control Panel 12.! Power Cord 13.! Strapping Head Unit 14.! Main Motor M1 15.! Feed Motor M2...
  • Page 22 16.! Tension Motor M3 17.! Strap Accumulator Motor M4 18.! Automatic Feed Motor M5 19.! Transit Motor M7 20.! Proximity Sensor SQ1 21.! Proximity Sensor SQ2 22.! Proximity Sensor SQ3 23.! Fan (M11) 24.! Heater 25.! Photo Eye (PH1 for TP-702YA) 26.! Photo eye (PH3)(Strap amount detection sensor)(Option for TP-702YA) 27.! Photo eye (PH4)(Energy saving transit with auto sleep mode sensor)(Option for TP-702YA)

  • Page 23: Installation

    3.4! Installation 1.! Remove the packing material and check if the machine is complete without any shipping damage. 2.! After positioning it, adjust the machine table height to the same level surface of upstream & downstream equipments by adjusting the machinery pad or the table. After the adjustments, be sure to tighten all the Nuts.

  • Page 24: Operation Space

    6.! Pneumatic connection (for the machine equipped with the Press bar or Side pusher as the option) The strapping machines require 3/8” air hose connection (A) The operating pressure is 6 bar (87psi), its value is set by the pressure reducing valve (B) To alter operating pressure, the knob (B) has to be pulled upward.

  • Page 25: Operating Elements

    3.6! Operating Elements 1.! Main Power Switch: Provides the machine with power. Switch to “1” position for turning the main power on. After strapping, switch it to “0” to turn off the machine. 2.! LCD Display: Indicates strapping condition of machine and error massages. Function Encoder Turn clockwise or counterclockwise to change strapping settings.
  • Page 26 8.! Emergency Stop switch (Only TP-702YA) The switch functions for urgently stop the machine. When pressing this STOP switch, the power supply will be shut down immediately. After pressing the switch, it will be locked. For releasing Stop function, just gently turn it clockwise. Remember you still need to press to let the machine back to normal operation.
  • Page 27 14.!Foot Pedal Switch (Option): To initiate a strapping cycle. To clear up machine fault. (reset) 15.!Reel Release Switch: To release the dispenser for easily taking out the strapping from it. 16.! PRESS BAR selector switch (Option) Bundle press functions only when PRESS BAR selector is set at "1". Strap without bundle press when PRESS BAR selector is set at "0"...

  • Page 28: Instructions For Loading Pp Strap

    3.7! Instructions for Loading PP Strap 3.7.1! Specifications Polypropylene Strap Width: 5, 6 or 9mm or 12mm Thickness: 0.35-0.65 mm (0.014” –0.026”) Note: Strap coil should not be heavier than 12kg (27 lbs). Too heavy strap would damage the Reel support system. Strap which has excessive camber as illustrated in figure below cannot be used.
  • Page 29 3.7.2! Strap Reel Installation Front Door Fig. 1 1.! Open the Front door in front of the machine (fig. 1). 2.! Release the Reel Nut Handle by pressing and turning it to the left. 3.! Take out the Outer Flange. 4.! Install a new strap coil onto the drum according to the instructions on the reel.

  • Page 30: Auto Strap Feeding Process

    3.8! Auto Strap Feeding Process 1.! Turn Main Power Switch on the right side of control panel to the right (at 1 position), and press Start Switch. 2.! Open the Front door. 3.! Press “Reel Release Switch A” and pull out around 130cm strap. 4.! Insert the strap to Roller Band then to Roller C as showing in Fig.
  • Page 31 7.! Lift the Lever F and then thread the strap around 2-3cm ahead the rollers (Fig. d) then release Lever F. Caution: If strap is fed more than 6cm ahead the rollers, it could make Auto Strap Feeding failed. Fig. d 8.! Close the Front door and press Start Switch.

  • Page 32: How To Connect Upstream And Downstream Machine

    3.9! How to connect Upstream and Downstream Machine (B5 Connector) Pin1 and Pin 2: It outputs machine signal by giving a "NO" contact. Machine would send signal to upstream device for entering the package (Refer to B27 Wiring Diagram of PART II). K3 Relay Caution: Mistake the connection (over voltage or current) may damage the K3 relay...

  • Page 33: Operating The Machine

    4. Operating the Machine Switch Main Power Switch to After switching on the strapping machine, heater Position “1” starts to warm up and LCD display continues to be on until the heater reaches its operating temperature (about 2 minutes). Heater warms up and LCD Caution! display keeps on lightening Machine will not operate until heater reaches to...
  • Page 34 4.1.3! Function Encoder Ready LCD display will show various timers such as cooling time, timer 1, timer 2…etc. After pressing the function encoder for over 2 seconds, Press encoder turn the knob to choose the timer needed to be over 2S changed.

  • Page 35: Tp-702Ya

    4.2! TP-702YA 4.2.1! Manual Operation mode 1.! Make selector switch to position 2.! Place a package and push it close to the strapping head. 3.! Adjust selector switch and Tension Potentiometer according to required tension force. 4.! Push start switch or foot pedal switch (option) or Movable start Switch to start strapping.
  • Page 36 4.2.3! Automatic Operation mode 1.! Make selector switch to position 2.! Adjust Transit Speed Adjustment Knob properly. 3.! Adjust selector switch and Tension Potentiometer according to required tension force. 4.! Decide the straps numbers on a package with selector switch. 5.! Place package in upstream conveyor and machine would make strapping on the package according to the settings.

  • Page 37: Adjustments

    5.!Adjustments 5.1! Strap Amount in the Accumulator Box The machine has been already well set for storing enough amount of strap in accumulator Box. However, some adjustments may be required, depending on the actual quality or thickness of the strap used. The strap supply in the accumulator box should be sufficient for about 2-5 strapping cycle.

  • Page 38: Adjustment For Feeding Pressure To The Accumulator Box

    5.2! Adjustment for Feeding Pressure to the Accumulator Box The machine has been already well set for enough feeding pressure offering enough strength for pulling strap from strap coil to accumulator box. It might be necessary for some adjustments to increase feeding pressure if you are using smooth strap. When it’s necessary for increasing the feeding pressure, please loosen the Nut A and turn Nut C upwards to increase the strength of Spring B.

  • Page 39: Adjustment For Heater Temperature

    5.3! Adjustment for Heater Temperature The machine has been already well set for proper heater temperature. It might be necessary to do some adjustments according to temperature in working environment, and the quality of P.P. strap to ensure better sealing efficiency. Turn ‘’A’’...
  • Page 40 2.! Adjusting “M7-1-311500 Adjusting Plate” only for 5mm and 6mm. Loosen #25 HBS0412N×2 to remove #11 M7-1-310001 Upper Guide Ass’y (For 5-6mm) from the machine. Then loosen FMS0408×4 on it and take a piece of p.p. strap which would be running by this machine for properly adjusting M7-1-311500 Adjusting Plate (Only 5-6mm).
  • Page 41 3.! Adjusting “Right Strap Guide” Loosen the screws on the “Right Strap Guide” and take it out. Then loosen the 2 screws B (HBS0408N) and adjust A according to the strap. Be sure D is about 0.1mm wider than the strap. After adjustment, tighten screws B and put the “Right Strap Guide”...

  • Page 42: Adjustment For Feeding/Reversing Pressure

    Note: The brush clearance could be various according to different package size. The brush clearance needs to be bigger for not having any effect on reversing especially when the package size is close to the arch size. 5.! Adjusting Strap Amount in the Accumulator Box Different strap widths might have effects on the strap amount in the accumulator box.
  • Page 43 1.! Adjusting the Pressure for Feeding The machine is already well set for proper feeding pressure. However, according to different strap characteristics (such as smoother surface or different thickness), some adjustments for feeding pressure are still necessary. If short feed problem happens a lot, and it is a result of improper feeding pressure, please do the following adjustments: Loosen Nut B and turn Nut A clockwise to increase the feeding pressure.

  • Page 44: Adjustment On Tensioning Rollers For High Tension

    5.6! Adjustment on Tensioning Rollers for High Tension The machine is already well set for proper pressure for high tension. However, according to different strap characteristics (such as smoother surface or different thickness), some adjustments on pressure for high tension might be necessary. When insufficient strapping tension occurs even the Soft-High tension switch is at “high”...

  • Page 45: Change Bundle Flow Direction (Tp-702Ya)

    5.7! Change Bundle Flow Direction (TP-702YA) If you need to change the bundle flow direction, please do it as following steps: 1.! Change the phase sequence of M7 motor. (Please refer to B2 / ED1, interchange either 2 wires from frequency inverter to M7 motor) 2.! Change the positions of PH1 and reflector to the other side.
  • Page 46 2. Pressure Air pressure adjusts for pneumatic equipments. Regulator E: Adjustment for ascending pressure of Press Bar Regulator F: Adjustment for descending pressure of Press Bar Regulator G: Adjustment for pressure of Side pusher For doing these adjustments, be sure to lift the Regulator first and then turn it clockwise to increase the pressure or turn it counterclockwise to decrease the pressure.

  • Page 47: Troubleshooting

    6.!Troubleshooting The LCD display would flash and show failure message when machine is not working due to malfunction. Message shown on the LCD could be follows: 6.1.!Reminder message: 1.! Push Start: Please press the Start Switch to make machine function. This is especially necessary after the Safety Switch is activated or Emergency Stop switch is released or after you just turn on the machine.
  • Page 48 Open Upper Table Front Ass'y M7-5-210020. Lift the Lever (M7-2-101400/M7-2-101410) with left hand and take out the Cover (M7-1-311221) for the Upper Guide with right hand at the same time. Take out the jammed strap and cut it. Put the cover (M7-1-311221) for the Upper Guide back to its position and put the Upper Table Front Ass'y back as well.

  • Page 49: Maintenance

    7.!Maintenance Warning: Before any maintenance or repairs on the machine, set the Main Power Switch to "O" (OFF). Wait about 5 minutes for cooling down the heater to avoid burns with this area. 7.1.! Cleaning and Lubrication The high reliability and long service life of the strapping machine will depend on regular cleaning and maintenance.
  • Page 50 Weekly: Lubricate front bar, press bar, rear bar and shafts in arch weekly. Please refer to the following mesh areas for instruction. Before lubricating, be sure to clean the parts first to avoid mixing oil and debris which might have a bad effect on machine’s function. Check the machine by strapping several bundles for any failures.
  • Page 51 6 Months : (or 500,000 strapping cycles) Check heating element, replace and re-adjust it if necessary. Check strap cutter in sealing head, replace it if necessary. Check if the connector at wiring housing to printed circuit board is firmly fixed. Check if the safety switch on front table or right door functions well.
  • Page 52 4.!Take out the Heater Ass’y and make sure the insulations stay intact. If any of insulation fall and get broken, please replace with new one to avoid welding problem. 5.!Install the new Heater Ass’y in reverse sequence. 6.!Rotate the M1 Handle (T7-1-11240) forward till the Heater Ass’y goes to welding position.
  • Page 54 PART II...

  • Page 55: Pneumatic System Diagram

    1.! Pneumatic System Diagram -B1-...

  • Page 56: Wiring Diagram

    2.! Wiring Diagram a.! TP-702Y -B2-...
  • Page 57 -B3-...
  • Page 58 -B4-...
  • Page 59 -B5-...
  • Page 60 -B6-...
  • Page 61 -B7-...
  • Page 62 -B8-...
  • Page 63 -B9-...
  • Page 64 -B10-...
  • Page 65 -B11-...
  • Page 66 -B12-...
  • Page 67 -B13-...
  • Page 68 -B14-...
  • Page 69 -B15-...
  • Page 70 -B16-...
  • Page 71 -B17-...
  • Page 72 b.!TP-702YA -B18-...
  • Page 73 -B19-...
  • Page 74 -B20-...
  • Page 75 -B21-...
  • Page 76 -B22-...
  • Page 77 -B23-...
  • Page 78 -B24-...
  • Page 79 -B25-...
  • Page 80 -B26-...
  • Page 81 -B27-...
  • Page 82 -B28-...
  • Page 83 -B29-...
  • Page 84 -B30-...
  • Page 85 -B31-...
  • Page 86 -B32-...
  • Page 87 -B33-...
  • Page 88 -B34-...
  • Page 89 c.!TP-702YA (For PLC)(Option) -B35-...
  • Page 90 -B36-...
  • Page 91 -B37-...
  • Page 92 -B38-...
  • Page 93 -B39-...
  • Page 94 -B40-...
  • Page 95 -B41-...
  • Page 96 -B42-...
  • Page 97 -B43-...
  • Page 98 -B44-...
  • Page 99 -B45-...
  • Page 100 -B46-...
  • Page 101 -B47-...
  • Page 102 -B48-...
  • Page 103 -B49-...
  • Page 104 -B50-...
  • Page 105 -B51-...
  • Page 106 -B52-...
  • Page 107 -B53-...
  • Page 108 -B54-...
  • Page 109 -B55-...
  • Page 110 -B56-...

  • Page 111: Inverter Parameters Setup

    3.! Inverter Parameters Setup Parameter factory setting Parameter factory setting 00-03 02-05 00-12 04-12 23.5 00-13 06-00 405.0 01-00 06-07 01-07 07-00 01-08 23.5 07-01 01-09 07-02 10.0 01-10 08-00 01-19 08-02 02-00 08-04 02-01 08-15 02-02 08-18 -B57-...
  • Page 114 PART III...
  • Page 115 STRAPPING HEAD UNIT M7-1-900400 M7-1-900410 -Cl-...

  • Page 116: Strapping Head Unit

    STRAPPING HEAD UNIT M7-1-900400 M7-1-900410 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-900400 Strapping Head Unit (For 5-6mm) M7-1-900410 Strapping Head Unit (For 9mm) M7-1-900420 Strapping Head Unit (For 12mm) M7-1-100400 Cam Group (For 5-6mm) (SEE PG. C3) X...
  • Page 117 CAM GROUP M7-1-100400 M7-1-100410 !C3!$...
  • Page 118 CAM GROUP M7-1-100400 M7-1-100410 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-100400 Cam Group (For 5-6mm) M7-1-100410 Cam Group (For 9mm/12mm) M7-1-101100 Strapping Head Frame M7-1-101200 Guide 191655 M7-1-101300 Ejector Plate (L) 191500 M7-1-101400 Ejector Plate (R) 191496 M7-1-101500...
  • Page 119 CAM GROUP M7-1-100400 M7-1-100410 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HN08 HN, M8 187490 THS0508N THS, M5×8 (N) 191579 SW03 SW, M3 191590 SW05 SW, M5 191577 SW06 SW, M6 191562 SW08 SW, M8 191759 PW05 PW, M5...
  • Page 120 -C6-...
  • Page 121 1-1-1 GEAR BOX AND CAM ASS'Y M7-1-110040 M7-1-110050 -C7-...
  • Page 122 1-1-1! GEAR BOX AND CAM ASS'Y M7-1-110040 M7-1-110050 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-110040 Gear Box and Cam Ass'y (For 5-6mm) M7-1-110050 Gear Box and Cam Ass'y (For 9mm/12mm) M7-1-111100 Retracting Cam M7-1-111200 Tension Cam M7-1-111300 Heater Cam...
  • Page 123 1-1-2! Ml MOTOR ASS'Y M7-1-120000 !C9!$...
  • Page 124 1-1-2 M1 MOTOR ASS'Y M7-1-120000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-121100 Gear Box Support 205946 M7-1-221100 M1 Motor 191535 HBS0520N HBS, M5×20 (N) 191665 SW05 SW, M5 191577 KYC0210 Key, 2×10 -C10-...
  • Page 125 1-1-3! SLIDE TABLE FRAME ASS'Y M7-1-130002 M7-1-130030 -Cll-...
  • Page 126 1-1-3! SLIDE TABLE FRAME ASS'Y M7-1-130002 M7-1-130030 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-130002 Slide Table Frame Ass'y (For 5-6mm) 191595 M7-1-130030 Slide Table Frame Ass'y (For 9mm/12mm) 191637 M7-1-131102 Slide Table Frame 191543 M7-1-131200 Shaft M7-1-131301 Switch Lever...
  • Page 127 1-1-4! HEATER ARM ASS'Y M7-1-140000 -C13-...
  • Page 128 1-1-4! HEATER ARM ASS'Y M7-1-140000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-141100 Heater Crank M7-1-141200 Heater Shaft 198854 M7-1-141300 Heater Bracket 202387 M7-1-141400 Terminal Bracket 191731 M7-1-141500 Isolator 191593 WA-030501 Washer (Ǿ5.5×Ǿ18 t=3) 198855 M7-1-140101 Heater Set 191476...
  • Page 129 1-1-5! EXHAUST FAN ASS'Y M7-1-150000 -C15-...
  • Page 130 1-1-5! EXHAUST FAN ASS'Y M7-1-150000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-151100 Fan Bracket T5-1-12370 191765 204021 T7-6-10930 Fan Cover TMS0412N TMS, M4×12 (N) 205989 HBS0410N HBS, M4×10 (N) SW04 SW, M4 PW04 PW, M4 187428 HN04 HN, M4...
  • Page 131 1-1-6! BLOCKASS'Y T7-1-16000 I" -C17-...
  • Page 132 1-1-6 BLOCK ASS'Y T7-1-16000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T7-1-10890 Block BR635ZZ Bearing, 635ZZ 187778 SP0516 Spring Pin, 5×16 205337 -C18-...
  • Page 133 M7-1-200000 BAR GUIDE GROUP " " " " " " " " " " " " " " " " " " " " " " " " " !C19!$...
  • Page 134 BAR GUIDE GROUP M7-1-200000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-201100 Bar Guide 191527 M7-1-201200 Bar Guide Lid 191724 M7-1-201300 Cutter Holder 191626 191512 M7-1-201400 Strap Guide (SEE PG. C21) 191477 M7-1-210001 Front Bar Ass'y M7-1-220000 Press Bar Ass'y (SEE PG.
  • Page 135 1-2-1 FRONT BARASS'Y M7-1-210001 -C21-...
  • Page 136 1-2-1! FRONT BAR ASS'Y M7-1-210001 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-211101 Front Bar 191602 TA-073 Spring Hook 191747 TA-078 Spring 191516 T7-1-13121 Plunger 191654 BRNART6VR Bearing, NART6VR 191644 SP0318 Spring Pin, 3×18 190797 SP0616 Spring Pin, 6×16...
  • Page 137 1-2-2! PRESS BAR ASS'Y M7-1-220000 -C23-...
  • Page 138 1-2-2! PRESS BAR ASS'Y M7-1-220000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-221200 Press Bar 191633 TA-073 Spring Hook 191747 TA-078 Spring 191516 T7-1-13121 Plunger 191654 BRNART6VR Bearing, NART6VR 191644 SP0318 Spring Pin, 3×18 190797 SP0616 Spring Pin, 6×16...
  • Page 139 1-2-3! M7-1-230000 REAR BAR ASS'Y !C25!$...
  • Page 140 1-2-3 REAR BAR ASS'Y M7-1-230000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-231100 Rear Bar 191685 TA-073 Spring Hook 191747 TA-078 Spring 191516 T7-1-13121 Plunger 191654 BRNART6VR Bearing, NART6VR 191644 SP0318 Spring Pin, 3×18 190797 SP0616 Spring Pin, 6×16...
  • Page 141 M7-1-300050 FEED GROUP M7-1-300060 -C27-...
  • Page 142 FEED GROUP M7-1-300050 M7-1-300060 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-300050 Feed Group (For 5-6mm) M7-1-300060 Feed Group (For 9mm) M7-1-300070 Feed Group (For 12mm) M7-1-301300 Bearing Housing 191824 M7-1-301400 Guide Wheel (For 5-6mm) 191628 M7-1-301410 Guide Wheel (For 9mm)
  • Page 143 1-3-1 M7-1-310001 lTPPER GUIDE ASS'Y M7-1-310011 !C29!$...
  • Page 144 1-3-1! UPPER GUIDE ASS'Y M7-1-310001 M7-1-310011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-310001 Upper Guide Ass'y (For 5-6mm) M7-1-310011 Upper Guide Ass'y (For 9mm) 203652 191792 M7-1-310021 Upper Guide Ass'y (For 12mm) M7-1-311103 Upper Guide (For 5-6mm) 191730...
  • Page 145 1-3-2! ASSISTANT ROLLER ASS'Y M7-1-320001 M7-1-320011 -C31-...
  • Page 146 1-3-2! ASSISTANT ROLLER ASS'Y M7-1-320001 M7-1-320011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-320001 Assistant Roller Ass'y (For 5-6mm) 205297 M7-1-320011 Assistant Roller Ass'y (For 9mm) M7-1-320021 Assistant Roller Ass'y (For 12mm) 191820 204237 M7-1-321100 Assistant Roller Bracket (For 5-6mm)
  • Page 147 1-3-3! FEEDING ARM ASS'Y M7-1-330010 -C33-...
  • Page 148 1-3-3! FEEDING ARM ASS'Y M7-1-330010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-331100 Feeding Arm M7-1-331200 Linkage M7-1-331300 Shaft M7-1-331400 Collar M7-1-331500 Spring Hook M7-1-102000 Return Spring 191474 BR6901ZZ Bearing, 6901ZZ 198856 HBS0616N HBS, M6×16 (N) 191544 HBS0640N HBS, M6×40 (N)
  • Page 149 1-3-4! RETRACTING ARM ASS'Y M7-1-340000 -C35-...
  • Page 150 1-3-4 RETRACTING ARM ASS'Y M7-1-340000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-341100 Retracting Arm M7-1-341200 Shaft TA-073 Spring Hook 191747 BR635ZZ Bearing, 635ZZ 187778 MB1015 Metal Bushing, 1015 HBS0516N HBS, M5×16 (N) 191700 HB0612 HB, M6×12 205333 SW05...
  • Page 151 TENSION GROUP M7-1-400002 M7-1-400012 -C37-...
  • Page 152 TENSION GROUP M7-1-400002 M7-1-400012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-400002 Tension Group (For 5-6mm) M7-1-400012 Tension Group (For 9mm) 204296 M7-1-400022 Tension Group (For 12mm) M7-1-401100 Tension Guide Wheel (For 5-6mm) 205489 M7-1-401110 Tension Guide Wheel (For 9mm)
  • Page 153 TENSION GROUP M7-1-400002 M7-1-400012 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HB0612 HB, M6×12 205333 HSS0506GN HSS, M5×6 (G)(N) 191584 SW04 SW, M4 SW05 SW, M5 191577 SW06 SW, M6 191562 PW06C PW, M6 (C) 191561 -C39-...
  • Page 154 -C40-...
  • Page 155 1-4-1 TENSION CRANK ASS'Y M7-1-410001 M7-1-410011 -C41-...
  • Page 156 1-4-1! TENSION CRANK ASS'Y M7-1-410001 M7-1-410011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-410001 Tension Crank Ass'y (For 5-6mm) 191831 M7-1-410011 Tension Crank Ass'y (For 9mm) 191826 M7-1-410021 Tension Crank Ass'y (For 12mm) M7-1-411100 Assistant Roller (For 5-6mm) M7-1-411110...
  • Page 157 1-4-2! TENSION ARM ASS'Y M7-1-420001 M7-1-420011 -C43-...
  • Page 158 1-4-2 TENSION ARM ASS'Y M7-1-420001 M7-1-420011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-1-420001 Tension Arm Ass'y (For 5-6mm/9mm) 205251 M7-1-420011 Tension Arm Ass'y (For 12mm) Tension Arm Ass'y (For 9mm, Tension 45kg) (Option) M7-1-421101 Tension Arm M7-1-421200 Shaft...
  • Page 159 BANDWAY UNIT M7-2-900400 M7-2-900410 -C45-...

  • Page 160: Accumulator Unit

    ACCUMULATOR UNIT M7-2-900400 M7-2-900410 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-900400 Bandway Unit (For 5-6mm) M7-2-900410 Bandway Unit (For 9mm) M7-2-900420 Bandway Unit (For 12mm) (SEE PG. C47) X M7-2-100030 Arch Group M7-2-200300 Bandway Group (For 5-6mm) (SEE PG. C51)
  • Page 161 ARCH GROUP M7-2-100030 52 67 63 61 61 72 (For 1000W/1300W) -C47-...
  • Page 162 ARCH GROUP M7-2-100030 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-101310 Rod (For 650H) M7-2-101320 Rod (For 850H) M7-2-101330 Rod (For 1050H) M7-2-101370 Rod (For 1250H) M7-2-101380 Rod (For 1650H) M7-2-101400 Lever (For 650H) M7-2-101410 Lever (For 850H~1650H) 205334...
  • Page 163 2-1! ARCH GROUP M7-2-100030 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION WT163015 Thrust Washer (For TP-702Y, 400W) Thrust Washer (For 600W) Thrust Washer (For 800W/1000W) Thrust Washer (For 1300W) BRCF8 Bearing, CF8 191643 BRNAST6 Bearing, Nast6 (For 850H~1650H) 191683...
  • Page 164 -C50-...
  • Page 165 M7-2-200300 BANDWAY GROUP M7-2-200310 -C51-...
  • Page 166 2-2! BANDWAY GROUP M7-2-200300 M7-2-200310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-200300 Bandway Group (For 5-6mm) M7-2-200310 Bandway Group (For 9mm) M7-2-200320 Bandway Group (For 12mm) M7-2-210300 Strap Track Frame Ass'y (For 5-6mm) (SEE PG. C53) X M7-2-210310...
  • Page 168 2-2-1 STRAP TRACK FRAME ASS'Y M7-2-210300 M7-2-210310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-210300 Strap Track Frame Ass'y (For 5-6mm) M7-2-210310 Strap Track Frame Ass'y (For 9mm) M7-2-210320 Strap Track Frame Ass'y (For 12mm) M7-2-201170 Strap Track (For 5-6mm)
  • Page 169 2-2-1 STRAP TRACK FRAME ASS'Y M7-2-210300 M7-2-210310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION BRPB8 Bearing, PB8 (For 650H~1050H) 191784 Bearing, PB8 (For 1250H/1650H) MB0816 Metal Bushing, 0816 (For 650H~1050H) 205350 Metal Bushing, 0816 (For 1250H/1650H) HBL0512 HBL, M5×12...
  • Page 170 -C56-...
  • Page 171 M7-2-300300 ARCH COVER GROUP -C57-...
  • Page 172 ARCH COVER GROUP M7-2-300300 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-306100 Arch M7-2-306200 Arch Cover RH (For 400W) M7-2-306210 Arch Cover RH (For 600W) M7-2-306220 Arch Cover RH (For 800W) M7-2-306230 Arch Cover RH (For 1000W) M7-2-306240 Arch Cover RH (For 1300W)
  • Page 173 ARCH COVER GROUP M7-2-300300 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION PMS0316 PMS, M3×16 (Option) TTP0412BN TTP, M4×12 (B)(N)(For 650H~1050H) 191701 TTP, M4×12 (B)(N)(For 1250H/1650H) THS0508N THS, M5×8 (N)(For 650H~1050H) 191579 THS, M5×8 (N)(For 1250H/1650H) HBS0412N HBS, M4×12 (N)(For 650H~1050H)
  • Page 174 ARCH COVER GROUP M7-2-300300 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION PW, M6 (C)(For TP-702Y-XT, 800W~1300W, 1250H/1650H)(Option) HN3/4 HN, 3/4" (For TP-702Y-XT, 800W~1300W) (Option) HN06 HN, M6 191611 -C60-...
  • Page 175 2-3-1 BLOCKASS'Y M7-2-310000 (For 650H--1050H) "C61"!
  • Page 176 2-3-1 BLOCK ASS'Y M7-2-310000 (For 650H~1050H) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-301200 Block BR635ZZ Bearing, 635ZZ 187778 HBS0516N HBS, M5×16 (N) 191700 PW05 PW, M5 191578 SW05 SW, M5 191577 -C62-...
  • Page 177 CONNECTING ROD GROUP M7-2-400100 (without 400Wx650H/600Wx650H) -C63-...
  • Page 178 CONNECTING ROD GROUP M7-2-400100 (without 400W×650H/600W×650H) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-2-401220 Connecting Rod M7-2-401300 Connector M7-2-401400 Slant Block M7-2-401500 Bracket (Left) M7-2-401600 Bracket (Right) M7-2-401700 Collar 203833 M7-2-401800 Spacer T7-2-20560 Swivel Head, NHS06 MB1715 Metal Bushing, 1715 HSS0506GN HSS, M5×6 (G)(N)
  • Page 179 ACCUMULATOR UNIT M7-3-900401 M7-3-900411 -C65-...
  • Page 180 ACCUMULATOR UNIT M7-3-900401 M7-3-900411 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-900401 Accumulator Unit (For 5-6mm) M7-3-900411 Accumulator Unit (For 9mm) M7-3-900421 Accumulator Unit (For 12mm) M7-3-100001 Strap Amount Control Group (For 5-6mm) (SEE PG. C67) X M7-3-100011 Strap Amount Control Group (For 9mm)
  • Page 181 STRAP AMOUNT CONTROL GROUP M7-3-100001 M7-3-100011 (SQ4) -C67-...
  • Page 182 3-1! STRAP AMOUNT CONTROL GROUP M7-3-100001 M7-3-100011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-100001 Strap Amount Control Group (For 5-6mm) M7-3-100011 Strap Amount Control Group (For 9mm) M7-3-100071 Strap Amount Control Group (For 12mm) T7-3-10150 Shaft M7-3-101200 Spring...
  • Page 183 3-2! AUTO STRAP FEEDING GROUP M7-3-200070 M7-3-200080 -C69-...
  • Page 184 AUTO STRAP FEEDING GROUP M7-3-200070 M7-3-200080 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-200070 Auto Strap Feeding Group (For 5-6mm) M7-3-200080 Auto Strap Feeding Group (For 9mm) M7-3-200090 Auto Strap Feeding Group (For 12mm) M7-3-201100 Guide Block (For 5-6mm)
  • Page 185 AUTO STRAP FEEDING GROUP M7-3-200070 M7-3-200080 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0510N HBS, M5×10 (N) FMS0310N FMS, M3×10 (N) 206054 FMS0512N FMS, M5×12 (N) 205391 SW05 SW, M5 191577 PW05 PW, M5 191578 HN06 HN, M6 191611 HSS0506GN HSS, M5×6 (G)(N)
  • Page 186 -C72-...
  • Page 187 ROLLER ASS'Y 3-2-1 M7-3-210001 -C73-...
  • Page 188 3-2-1! ROLLER ASS'Y M7-3-210001 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-211101 Bracket M7-3-211200 Roller 204310 M7-3-211300 Collar 204295 BR686ZZ Bearing, 686ZZ 191598 H44-10950 Washer HBS0635HN HBS, M6×35 (H)(N) HN06 HN, M6 191611 -C74-...
  • Page 189 3-2-2! MOVABLE STRAP GUIDE ASS'Y M7-3-220000 M7-3-220010 -C75-...
  • Page 190 3-2-2 MOVABLE STRAP GUIDE ASS'Y M7-3-220000 M7-3-220010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-220000 Movable Strap Guide Ass'y (For 5-6mm) M7-3-220010 Movable Strap Guide Ass'y (For 9mm) 204992 M7-3-220020 Movable Strap Guide Ass'y (For 12mm) 191585 M7-3-221101 Rotary Arm...
  • Page 191 3-2-3 M4 MOTOR ASS'Y M7-3-230000 M7-3-230010 -C77-...
  • Page 192 3-2-3 M4 MOTOR ASS'Y M7-3-230000 M7-3-230010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-230000 M4 Motor Ass'y (For 5-6mm) 198849 M7-3-230010 M4 Motor Ass'y (For 9mm) 198850 M7-3-230020 M4 Motor Ass'y (For 12mm) 191753 M7-3-231100 Accumulator Main Roller (For 5-6mm)
  • Page 193 3-2-4 ASSISTANT ROLLER M7-3-250000 M7-3-250010 SHAFT ASS'Y -C79-...
  • Page 194 3-2-4 ASSISTANT ROLLER SHAFT ASS'Y M7-3-250000 M7-3-250010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-250000 Assistant Roller Shaft Ass'y (For 5-6mm) M7-3-250010 Assistant Roller Shaft Ass'y (For 9mm) M7-3-250020 Assistant Roller Shaft Ass'y (For 12mm) T7-3-20150 Shaft T7-3-20160 Assistant Roller (For 5-6mm)
  • Page 196 ACCUMULATOR BOX GROUP M7-3-300300 M7-3-300310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-300300 Accumulator Box Group (For 5-6mm) M7-3-300310 Accumulator Box Group (For 9mm) M7-3-300320 Accumulator Box Group (For 12mm) M7-3-301120 Enclosed Plate (For 5-6mm) M7-3-301130 Enclosed Plate (For 9mm)
  • Page 197 ACCUMULATOR BOX GROUP M7-3-300300 M7-3-300310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION PW06A PW, M6 (A) 13 191612 PW06C PW, M6 (C) 191561 HN06 HN, M6 191611 NTE, M6 NTE06 BR608ZZ Bearing, 608ZZ 187783 -C83-...
  • Page 198 -C84-...
  • Page 199 M7-3-310040 AUTO STRAP EJECTING ASS'Y 3-3-1 M7-3-310050 -C85-...
  • Page 200 3-3-1 AUTO STRAP EJECTING ASS'Y M7-3-310040 M7-3-310050 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-310040 Auto Strap Ejecting Ass'y (For 5-6mm) 205962 M7-3-310050 Auto Strap Ejecting Ass'y (For 9mm) M7-3-310060 Auto Strap Ejecting Ass'y (For 12mm) M7-3-312710 Sensor Bracket...
  • Page 201 3-3-1 AUTO STRAP EJECTING ASS'Y M7-3-310040 M7-3-310050 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION TMS0408N TMS, M4×8 (N) 191648 TMS0410N TMS, M4×10 (N) 205628 SW03 SW, M3 191590 SW04 SW, M4 SW05 SW, M5 191577 187428 PW04 PW,M4 PW05...
  • Page 202 -C88-...
  • Page 203 ROLLER ASS'Y 3-3-1-1 M7-3-210020 -C89-...
  • Page 204 3-3-1-1 ROLLER ASS'Y M7-3-210020 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-3-211101 Bracket M7-3-211200 Roller 204310 204295 M7-3-211300 Collar BR686ZZ Bearing, 686ZZ 191598 H44-10950 Washer HBS0635HN HBS, M6×35 (H)(N) HN06 HN, M6 191611 PW06C PW, M6 (C) 191561 -C90-...
  • Page 205 REEL CONTROL UNIT M7-4-900040 M7-4-900050 -C91-...
  • Page 206 REEL CONTROL UNIT M7-4-900040 M7-4-900050 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-900040 Reel Control Unit (For 200mm) Reel Control Unit (For 150mm)(Option) M7-4-900050 (SEE PG. C93 ) X M7-4-100120 Reel Control Group (For 200mm) M7-4-100130 Reel Control Group (For 150mm)(Option) (SEE PG.
  • Page 207 REEL CONTROL GROUP M7-4-100120 M7-4-100130 -C93-...

  • Page 208: Reel Control Group

    REEL CONTROL GROUP M7-4-100120 M7-4-100130 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-100120 Reel Control Group (For 200mm) M7-4-100130 Reel Control Group (For 150mm)(Option) M7-4-110021 Outer Flange Ass'y (For 200mm) (SEE PG.C95) 203460 M7-4-110030 Outer Flange Ass'y (For 150mm)(Option) (SEE PG.C97) X...
  • Page 209 4-1-1 OUTER FLANGE ASS'Y M7-4-110021 M7-4-110030 -C95-...
  • Page 210 4-1-1! OUTER FLANGE ASS'Y M7-4-110021 M7-4-110030 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-110021 Outer Flange Ass'y (For 200mm) 203460 M7-4-110030 Outer Flange Ass'y (For 150mm)(Option) 191736 M7-4-111101 Outer Flange (For 200mm) T7-4-10122 Outer Flange (For 150mm)(Option) M7-4-111200 Plate (Only 150mm)(Option)
  • Page 211 4-1-2! REEL CRANK ASS'Y M7-4-120100 M7-4-120110 -C97-...
  • Page 212 4-1-2 REEL CRANK ASS'Y M7-4-120100 M7-4-120110 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-120100 Reel Crank Ass'y (For 200mm) M7-4-120110 Reel Crank Ass'y (For 150mm)(Option) M7-4-121200 Support M7-4-121900 Washer 191556 M7-4-121301 Shaft (For 200mm) Shaft (For 150mm)(Option) M7-4-121311 191793...
  • Page 213 REEL SUPPORT GROUP M7-4-200020 -C99-...
  • Page 214 REEL SUPPORT GROUP M7-4-200020 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-4-203500 Reel Crank M7-4-203600 Reel Crank Supporter M7-4-203700 Shaft M7-4-203800 Shaft Base M7-4-203900 Shaft Base M7-4-202700 Lock Arm M7-4-203000 Lock Pin M7-4-203100 Sensor Bracket (Option) M7-4-203210 Flexible Conduit...
  • Page 215 REEL SUPPORT GROUP M7-4-200020 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION PW03 PW, M3 (Option) 187560 PW06A PW, M6 (A) 191612 PW06C PW, M6 (C) 191561 191760 PW08C PW, M8 (C) NTE06 NTE, M6 HN06 HN, M6 191611 -C101-...
  • Page 216 -C102-...
  • Page 217 BODY FRAME UNIT M7-5-903001 M7-5-903011 (Only TP-702Y)(Option) (Option) (For 850H~1650H) -C103-...

  • Page 218: Body Frame Unit

    BODY FRAME UNIT M7-5-903001 M7-5-903011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-903001 Body Frame Unit (For TP-702Y, 5-6mm) M7-5-903011 Body Frame Unit (For TP-702Y, 9mm) M7-5-903021 Body Frame Unit (For TP-702Y, 12mm) M7-5-903031 Body Frame Unit (For TP-702YA, 5-6mm)
  • Page 219 M7-5-700001 BODY FRAME GROUP...
  • Page 220 BODY FRAME GROUP M7-5-700001 M7-5-700011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-700001 Body Frame Group (For TP-702Y, 5-6mm ) M7-5-700011 Body Frame Group (For TP-702Y, 9mm) M7-5-700021 Body Frame Group (For TP-702Y, 12mm) M7-5-700031 Body Frame Group (For TP-702YA, 5-6mm )
  • Page 221 BODY FRAME GROUP M7-5-700001 M7-5-700011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T6-6-10340 Cable Gland (PG13.5) 191733 T6-6-60130 T6-5-10200 Grommet T5-4-10580 Grommet 191803 T5-2-10500 Cable Gland (PG9) T7-2-10280 Block (Only 650H) T7-5-10150 Fix Plate (For TP-702Y, 400W) Fix Plate (For TP-702Y/TP-702YA)
  • Page 222 5-1! BODY FRAME GROUP M7-5-700001 M7-5-700011 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0616N HBS, M6×16 (N) 191544 HBS, M6×16 (N)(For TP-702Y, 400W) HBS, M6×16 (N)(For TP-702Y-XT)(Option) HBS, M6×16 (N)(Option) HBS0620N HBS, M6×20 (N) 4~14 191726 HBS1020N HBS, M10×20 (N) HBS, M10×20 (N)(For TP-702Y-XT)(Option)
  • Page 223 M7-5-800000 5-2! ARCH SUPPORT GROUP (FOR 850H~1650H) M7-5-800010 -C109-...
  • Page 224 ARCH SUPPORT GROUP M7-5-800000 (FOR 850H~1650H) M7-5-800010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-800000 Arch Support Group (For 12mm, 850H) M7-5-800010 Arch Support Group (For 12mm, 1050H) M7-5-800020 Arch Support Group (For 12mm, 1250H) M7-5-800030 Arch Support Group (For 12mm, 1650H)
  • Page 225 ARCH SUPPORT GROUP M7-5-800000 (FOR 850H~1650H) M7-5-800010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-5-801600 Cantilever (For 1000W) M7-5-801610 Cantilever (For 1300W) 191803 T5-4-10580 Grommet (Option) T7-1-10330 Bumper (For 850H/1050H) 191554 Bumper (For 1250H/1650H) T7-2-10280 Block T7-2-10281 Block (For 1050H/1250H) Block (For 1650H) FMS, M6×16 (SUS)
  • Page 226 5-2! ARCH SUPPORT GROUP M7-5-800000 (FOR 850H~1650H) M7-5-800010 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION PW05 PW, M5 (For 850H) 191578 PW, M5 (For 1050H/1250H) PW, M5 (For 1650H) 191612 PW06A PW, M6 (A)(For 850H) PW, M6 (A)(Without Cantilever,...
  • Page 227 T7-6-40010 5-3! MOVABLE CONTROL BOX (ONLY TP-702Y)(OPTION) -C113-...
  • Page 228 5-3! MOVABLE CONTROL BOX T7-6-40010 (ONLY TP-702Y)(OPTION) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T6-6-10350 Connector 191530 T6-6-10340 Cable Gland (PG13.5) T6-6-30008 Mushroom Head Switch (Start) T7-5-20190 T7-5-20200 Magnet T7-5-20210 Rubber Plug TMS0308N TMS, M3×8 (N) 191719 -C114-...
  • Page 229 T7-6-40001 5-4! PEDAL CONTROL SET (OPTION) -Cl15-...
  • Page 230 PEDAL CONTROL SET T7-6-40001 (OPTION) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T6-6-10350 Connector (Foot Switch) 191530 T7-5-20130 Micro Switch TMS0308S TMS, M3×8 (SUS) -C116-...

  • Page 231: Electric Control Unit

    ELECTRIC CONTROL UNIT M7-6-901301 M7-6-901311 (For TP-702Y) (For TP-702Y) (For TP-702YA) (For TP-702YA) (Option) -C117-...
  • Page 232 ELECTRIC CONTROL UNIT M7-6-901301 M7-6-901311 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-901301 Electric Control Unit (For TP-702Y, 220V~240V, 1PH) M7-6-901311 Electric Control Unit (For TP-702Y, 110V, 1PH) M7-6-901340 Electric Control Unit (For TP-702Y, 220V~240V, 3PH) M7-6-901350 Electric Control Unit (For TP-702Y,...
  • Page 233 M7-6-100400 CONTROL PANEL GROUP M7-6-100410 -Cl19-...
  • Page 234 6-1! CONTROL PANEL GROUP M7-6-100400 M7-6-100410 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-100400 Control Panel Group (For TP-702Y) M7-6-100410 Control Panel Group (For TP-702YA) M7-6-105100 Control Box M7-6-105200 Control Plate M7-6-101300 Rubber M7-6-101400 191513 M7-6-101500 Bracket M7-6-101601 Encoder...
  • Page 235 ELECTRIC CONTROL GROUP M7-6-200700 (FOR TP-702Y) M7-6-200710 -C121-...
  • Page 236 6-2! ELECTRIC CONTROL GROUP M7-6-200700 (FOR TP-702Y) M7-6-200710 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-200700 Electric Control Group (For TP-702Y, 220V~240V, 1PH) M7-6-200710 Electric Control Group (For TP-702Y, 110V, 1PH) M7-6-200740 Electric Control Group (For TP-702Y, 220V~240V, 3PH)
  • Page 237 ELECTRIC CONTROL GROUP M7-6-200700 (FOR TP-702Y) M7-6-200710 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION TT-5-10150 Fuse (1A) 20L 191696 191695 FU20040 Fuse (4A, 20mm) T7-6-11720 Jumper (Terminal 3S) LA-40001 Label LA-40003 Label WD33650140 Wire Duct 33×65×140 WD33650190 Wire Duct 33×65×190 WD33650280 Wire Duct 33×65×280...
  • Page 238 -C124-...
  • Page 239 ELECTRIC CONTROL GROUP M7-6-200800 (FOR TP-702YA) M7-6-200810 -125-...
  • Page 240 6-3! ELECTRIC CONTROL GROUP M7-6-200800 (FOR TP-702YA) M7-6-200810 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-6-200800 Electric Control Group (For TP-702YA, 220V~240V, 1PH) M7-6-200810 Electric Control Group (For TP-702YA, 110V, 1PH) M7-6-200840 Electric Control Group (For TP-702YA, 220V~240V, 3PH)
  • Page 241 ELECTRIC CONTROL GROUP M7-6-200800 (FOR TP-702YA) M7-6-200810 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T6-6-50280 Fuse (5A)(For 220V~240V, 1PH) 191769 Fuse (5A)(For 3PH) T7-6-10600 PCB Support T7-6-10630 End Plate 191565 T7-6-10690 Magnetic Switch T7-6-10940 Terminal T7-6-13010 Filter Set T7-6-13110...
  • Page 242 6-3! ELECTRIC CONTROL GROUP M7-6-200800 (FOR TP-702YA) M7-6-200810 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION HBS0508N HBS, M5×8 (N)(Option) 202943 HBS0512N HBS, M5×12 (N) 190848 HBS0540N HBS, M5×40 (N) 191563 HBS0612N HBS, M6×12 (N) 191544 HBS0616N HBS, M6×16 (N)
  • Page 243 WIRES GROUP M7-6-300501 (For TP-702Y) (1 OF 2) (X12) (LCD) (Tension VR) (Encoder) (X13) (X11) (X22) (X8) (X7) (X23) (X14) (X11) (X4) SEE PG. (X7) C132 #8 (X36) (X15) (SQ1) (X3) (X16) (SQ2) SEE PG. (X17) C4 #29 (X27) (SQ3) SEE PG.
  • Page 244 6-4! WIRES GROUP M7-6-300501 (FOR TP-702Y) (1 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION EW72Y006DX12 Wire Ass'y X12 (Control Panel) EW72Y006DX25 Wire Ass'y X25 (Reel Release Switch) EW72Y006DX26 Wire Ass'y X26 (Machine Ready) (SEE PG. C131) X...
  • Page 245 WIRES GROUP M7-6-300501 (FOR TP-702Y) (2 OF 2) (X4) (X32) (X1) (X2) SEE PG. C130 #10 (X2) (X1) (X27) (X3) -C131-...
  • Page 246 6-4! WIRES GROUP M7-6-300501 (FOR TP-702Y) (2 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION EW72Y006DM04 Wire Ass'y X4 (Power for M4/M5 PCB) EW72Y006DM01 Wire Ass'y X1 (Power for M4/M5) EW72Y006DH02 Wire Ass'y X2 (Power for H.T PCB) EW72Y006DH01 Wire Ass'y X1 (H.T/Sensor/Fan)
  • Page 247 WIRES GROUP M7-6-300601 (FOR TP-702YA) (1 OF 2) (X23) (X12) (X30) (X22) (LCD) (Tension VR) (X14) (Encoder) (X13) (X11) (X15) (X8) SEE PG. C136 #8 (SQ1) (X16) (X11) (X4) (SQ2) (X3) SEE PG. (X17) C4 #29 (X36) (SQ3) (X7) SEE PG. (X18) C4 #29 (X27)
  • Page 248 6-5! WIRES GROUP M7-6-300601 (FOR TP-702YA) (1 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION EW72A006DX12 Wire Ass'y X12 (Control Panel) EW72Y006DX25 Wire Ass'y X25 (Reel Release Switch) EW72Y006DX26 Wire Ass'y X26 (Machine Ready) (SEE PG. C135) X...
  • Page 249 WIRES GROUP M7-6-300601 (FOR TP-702YA) (2 OF 2) (X4) (X32) (X1) (X2) SEE PG. C134 #10 (X2) (X1) (X27) (X3) (X1) (X2) (X3) -C135-...
  • Page 250 6-5! WIRES GROUP M7-6-300601 (FOR TP-702YA) (2 OF 2) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION EW72Y006DM04 Wire Ass'y X4 (Power for M4/M5 PCB) EW72Y006DM01 Wire Ass'y X1 (Power for M4/M5) EW72Y006DH02 Wire Ass'y X2 (Power for H.T PCB) EW72Y006DH01 Wire Ass'y X1 (H.T/Sensor/Fan)
  • Page 251 M7-6-400400 6-6! LIGHT TREE GROUP (OPTION) -C137-...
  • Page 252 LIGHT TREE GROUP M7-6-400400 (OPTION) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION PH-6-103500 LED Lamp (Red) M7-6-401300 LED Lamp (Amber) M7-6-401400 LED Lamp (Green) M7-6-401500 Red Cover M7-6-401600 Yellow Cover M7-6-401700 Green Cover 205370 M7-6-402011 Light Tree Ass'y (Red/Amber/Green)
  • Page 253 M7-7-900500 TRANSMISSIVE UNIT M7-7-100600! C139-...
  • Page 254 TRANSMISSIVE UNIT M7-7-900500 M7-7-100600 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-900500 Transmissive Unit (For TP-702YA, 600W) M7-7-900510 Transmissive Unit (For TP-702YA, 800W) M7-7-900520 Transmissive Unit (For TP-702YA, 1000W) M7-7-900530 Transmissive Unit (For TP-702YA, 1300W) (SEE PG.C141) X M7-7-100600...
  • Page 255 M7-7-100600 TABLE ROLLER GROUP (For TP-702Y) M7-7-100610 -Cl41-...
  • Page 256 7-1! TABLE ROLLER GROUP M7-7-100600 (FOR TP-702Y) M7-7-100610 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-100600 Table Roller Group (For TP-702Y, 400W) M7-7-100610 Table Roller Group (For TP-702Y, 600W) M7-7-100620 Table Roller Group (For TP-702Y, 800W) M7-7-100630 Table Roller Group (For TP-702Y, 1000W)
  • Page 257 M7-7-100700 TABLE ROLLER GROUP M7-7-100710 (FRONT)(FOR TP-702YA) -C143-...
  • Page 258 7-2! TABLE ROLLER GROUP M7-7-100700 (FRONT)(FOR TP-702YA) M7-7-100710 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-100700 Table Roller Group (Front)(For TP-702YA, 600W) M7-7-100710 Table Roller Group (Front)(For TP-702YA, 800W) M7-7-100720 Table Roller Group (Front)(For TP-702YA, 1000W) M7-7-100730 Table Roller Group (Front)(For TP-702YA,...
  • Page 259 TABLE ROLLER GROUP M7-7-100700 (FRONT)(FOR TP-702YA) M7-7-100710 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION KYA070735 Key, 7×7×35 LA-40210 Label 191579 THS0508N THS, M5×8 (N)(For 600W/800W) THS, M5×8 (N)(For 1000W/1300W) HSS0606GN HSS, M6×6 (G)(N) 187305 HSS0608GN HSS, M6×8 (G)(N) HBS0516N HBS, M5×16 (N)
  • Page 260 -C146-...
  • Page 261 7-2-1 TRANSMISSIVE ROLLER ASS'Y M7-7-130000 -Cl47-...
  • Page 262 7-2-1 TRANSMISSIVE ROLLER ASS'Y M7-7-130000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-131100 Bracket T6-7-70180 Plunger T6-7-70190 Roller T6-7-70210 Spring T6-7-70270 Shaft T6-7-70530 Plate BR608ZZ Bearing, 608ZZ 187783 Stop Ring, S-12 SR12 RR22 Snap Ring, H-22 ER07S Snap Ring, E-7 (SUS)
  • Page 263 M7-7-200300 TABLE ROLLER GROUP M7-7-200310 (REAR)(FOR TP-702YA) -C149-...
  • Page 264 TABLE ROLLER GROUP M7-7-200300 (REAR)(FOR TP-702YA) M7-7-200310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-200300 Table Roller Group (Rear)(For TP-702YA, 600W) M7-7-200310 Table Roller Group (Rear)(For TP-702YA, 800W) M7-7-200320 Table Roller Group (Rear)(For TP-702YA, 1000W) M7-7-200330 Table Roller Group (Rear)(For TP-702YA,...
  • Page 265 7-3! TABLE ROLLER GROUP M7-7-200300 (REAR)(FOR TP-702YA) M7-7-200310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION BR6001-2RS Bearing, 6001 2RS 10 X KYA070735 Key, 7×7×35 LA-40210 Label 191579 THS0508N THS, M5×8 (N)(For 600W/800W) THS, M5×8 (N)(For 1000W/1300W) 187305 HSS0606GN HSS, M6×6 (G)(N) HSS0608GN HSS, M6×8 (G)(N)
  • Page 266 -C152-...
  • Page 267 7-4! PHOTO CELL GROUP M7-7-800000 (ONLY TP-702YA) -C153-...
  • Page 268 PHOTO CELL GROUP M7-7-800000 (ONLY TP-702YA) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-7-801100 Sensor Bracket (Front) M7-7-801200 Sensor Bracket (Rear) M7-7-801300 Sensor Bracket (Option) M7-7-801400 Shelter Board Shelter Board (For PH4)(Option) M7-7-801500 Shelter Board (For PH4)(Option) M7-7-801600 Protect Arm...
  • Page 269 M7-8-900310 PNEUMATIC UNIT (OPTION) M7-8-900320 -Cl55-...

  • Page 270: Pneumatic Unit

    PNEUMATIC UNIT M7-8-900310 (OPTION) M7-8-900320 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-900310 Pneumatic Unit (For TP-702Y, Press Bar, 400W×650H)(Option) M7-8-900320 Pneumatic Unit (For Press Bar, 600W×650H) (Option) M7-8-900330 Pneumatic Unit (For Press Bar, 600W×850H) (Option) M7-8-900340 Pneumatic Unit (For Press Bar, 600W×1050H)
  • Page 271 PNEUMATIC UNIT M7-8-900310 (OPTION) M7-8-900320 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-900430 Pneumatic Unit (For TP-702YA, Press Bar and Side Pusher, 600W×1050H)(Option) M7-8-900440 Pneumatic Unit (For TP-702YA, Press Bar and Side Pusher, 600W×1250H)(Option) M7-8-900450 Pneumatic Unit (For TP-702YA, Press Bar and Side Pusher, 800W×850H)(Option)
  • Page 272 PNEUMATIC UNIT M7-8-900310 (OPTION) M7-8-900320 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-400100 Pneumatic Parts Group (For TP-702YA, Side (SEE PG.C171) X Pusher, 600W) M7-8-400110 Pneumatic Parts Group (For TP-702YA, Side Pusher, 800W) M7-8-400120 Pneumatic Parts Group (For TP-702YA, Side...
  • Page 273 M7-8-100300 PRESS BAR GROUP M7-8-100310 -C159-...
  • Page 274 PRESS BAR GROUP M7-8-100300 M7-8-100310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-100300 Press Bar Group (For TP-702Y, 400W×650H) M7-8-100310 Press Bar Group (For 600W×650H) M7-8-100320 Press Bar Group (For 600W×850H) M7-8-100330 Press Bar Group (For 600W×1050H/ 600W×1250H) M7-8-100340 Press Bar Group (For 800W×850H)
  • Page 275 PRESS BAR GROUP M7-8-100300 M7-8-100310 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION THS0816N THS, M8×16 (N) HBS0435N HBS, M4×35 (N) 191665 HBS0520N HBS, M5×20 (N) 190848 HBS0512N HBS, M5×12 (N) 191726 HBS0620N HBS, M6×20 (N)(For 400W/600W) HBS, M6×20 (N)(For 800W/1000W/1300W) HBS0625N HBS, M6×25 (N)(For 400W/600W)
  • Page 276 -C162-...
  • Page 277 PRESS BAR FOR FLAT 8-1-1 M7-8-110110 BUNDLES ASS'Y M7-8-110120 -C163-...
  • Page 278 8-1-1 PRESS BAR FOR FLAT M7-8-110110 BUNDLES ASS'Y M7-8-110120 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-110110 Press Bar For Flat Bundles Ass'y (For 400W~1000W) M7-8-110120 Press Bar For Flat Bundles Ass'y (For 1300W) M7-8-111410 Press Bar (For 400W~1000W)
  • Page 279 SEE PG. C172 #7, C174 #7 SEE PG. C172 #6, C174 #6...
  • Page 280 SIDE PUSHER GROUP M7-8-200600 (ONLY TP-702YA) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-206300 Connecting Plate Side Pusher Ass'y M7-8-210000 (SEE PG.C167) X HBS0435N HBS, M4×35 (N) HBS0512N HBS, M5×12 (N) 190848 191563 HBS0612N HBS, M6×12 (N) HBS0616N HBS, M6×16 (N)
  • Page 282 8-2-1 SIDE PUSHER ASS'Y M7-8-210000 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-211100 Bracket M7-8-211200 Adjusting Plate M7-8-211300 Fixing Plate M7-8-211400 Bearing Housing M7-8-211500 Plate M7-8-211600 Shaft M7-8-211700 Cylinder Base M7-8-211800 Cylinder, Ø25×200 M7-8-211900 Reinforce Plate T7-8-30360 Flow Control (L Type), Ø8-1/8"...
  • Page 283 PNEUMATIC PARTS GROUP M7-8-300200 (FOR PRESS BAR) M7-8-300210 SEE PG. SEE PG. C160 #3 C160 #19 SEE PG. C160 #18 -C169-...
  • Page 284 8-3! PNEUMATIC PARTS GROUP M7-8-300200 (FOR PRESS BAR) M7-8-300210 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-300200 Pneumatic Parts Group (For Press Bar, 650H) M7-8-300210 Pneumatic Parts Group (For Press Bar, 850H) M7-8-300220 Pneumatic Parts Group (For Press Bar, 1050H)
  • Page 285 8-4! PNEUMATIC PARTS GROUP M7-8-400100 (FOR TP-702YA, SIDE PUSHER) M7-8-400110 SEE PG. SEE PG. C168 #8 C168 #8 SEE PG. SEE PG. SEE PG. SEE PG. C168 #15 C168 #15 C168 #15 C168 #15 -C171-...
  • Page 286 8-4! PNEUMATIC PARTS GROUP M7-8-400100 (FOR TP-702YA, SIDE PUSHER) M7-8-400110 REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-400100 Pneumatic Parts Group (For TP-702YA, Side Pusher, 600W) M7-8-400110 Pneumatic Parts Group (For TP-702YA, Side Pusher, 800W) M7-8-400120 Pneumatic Parts Group (For TP-702YA, Side...
  • Page 287 M7-8-500000 8-5! PNEUMATIC PARTS GROUP M7-8-500010 (FOR TP-702YA, PRESS BAR AND SIDE PUSHER) -C173-...
  • Page 288 PNEUMATIC PARTS GROUP M7-8-500000 (FOR TP-702YA, PRESS BAR M7-8-500010 AND SIDE PUSHER) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION M7-8-500000 Pneumatic Parts Group (For TP-702YA, Press Bar and Side Pusher, 600W×650H) M7-8-500010 Pneumatic Parts Group (For TP-702YA, Press Bar and Side Pusher, 600W×850H)
  • Page 289 PNEUMATIC PARTS GROUP M7-8-500000 (FOR TP-702YA, PRESS BAR M7-8-500010 AND SIDE PUSHER) REF. Q'TY GREENBRIDGE PART # PART NO. DESCRIPTION T7-8-30240 Brass Silencer, 1/4" T7-8-30370 Quick Coupler (Female), 6.5×10 205372 T7-8-30530 Tube Fitting-Branch Y, Ø8 PU Tubing, Ø×110 PU080110 PU080120 PU Tubing, Ø8×120...

This manual is also suitable for:

Tp-702yTp-702ya

Table of Contents
