Post Glover PLUS Series Installation, Operation And Maintenance Manual

Isolated power systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
I
P
S
SOLATED
OWER
YSTEMS
PLUS S
ERIES
I
, O
M
NSTALLATION
PERATION AND
AINTENANCE
M
ANUAL
man_ips_plus_en_0723_00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLUS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Post Glover PLUS Series

Summary of Contents for Post Glover PLUS Series

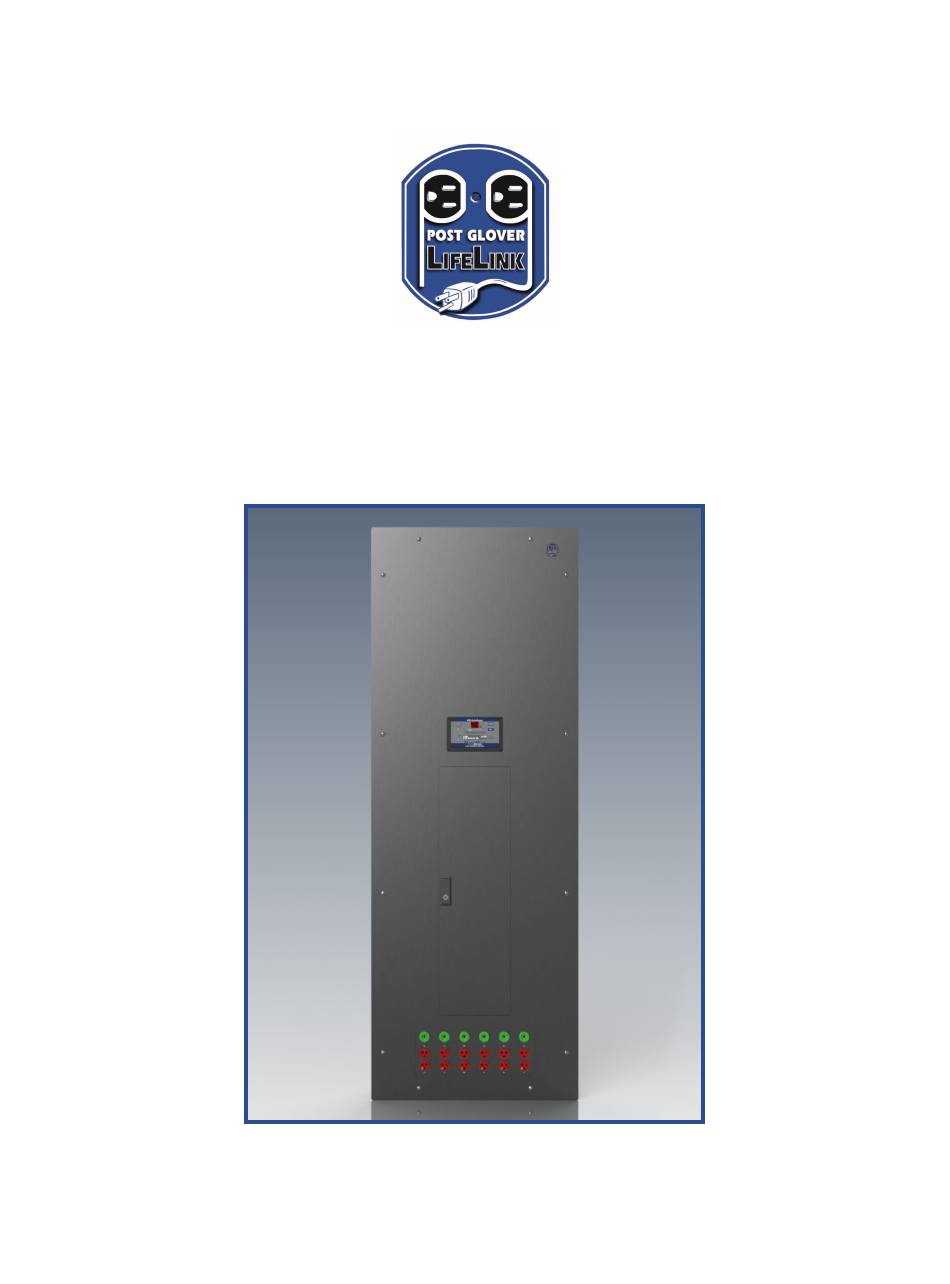

  • Page 1 SOLATED OWER YSTEMS PLUS S ERIES NSTALLATION PERATION AND AINTENANCE ANUAL man_ips_plus_en_0723_00...

  • Page 2: Table Of Contents

    PG L IPS PLUS Series Operation and Maintenance Manual Table of Contents 1. Introduction ................3  General Description ........... 3  Model Types .............. 4  System Components ..........4 2.Receiving, Handling, and Storage ..........5 3. Environmental Conditions ............6 4. Safety Precautions ...............6 5.

  • Page 3: Introduction

    PG L IPS PLUS Series Operation and Maintenance Manual 1. Introduction General Description This manual is intended to provide basic instruction to qualified personnel on the prop‐ er installation, operation, and maintenance of hospital Isolated Power Systems (IPS) as manufactured by PG LifeLink.

  • Page 4: Model Types

    PG L IPS PLUS Series Operation and Maintenance Manual Model Types This manual covers basic installation and operation of the following models manufac‐ tured by PG LifeLink:  IPP-P Isolated Power Panel Standard IPS with single isolated output  IPX-P Duplex Isolated Power Panel Two single voltage IPS panels installed side by side in a single enclosure ...

  • Page 5: Receiving, Handling, And Storage

    PG L IPS PLUS Series Operation and Maintenance Manual  Circuit Breakers Each IPS includes a primary main circuit breaker which provides overcurrent protec‐ tion for the entire system. Per UL 1047, the primary main breaker is sized at 125% of rated full load amps of the isolation transformer primary winding.

  • Page 6: Environmental Conditions

    PG L IPS PLUS Series Operation and Maintenance Manual 3. Environmental Conditions PG LifeLink Isolated Power Systems are designed for indoor installation only. Normal placement is inside of or adjacent to the room being supplied by the system. Ambient temperature of the area surrounding the panel should normally be between 10° ‐ 25°C (50°...

  • Page 7: Installation Instructions

    PG L IPS PLUS Series Operation and Maintenance Manual Caution! Hazard of Equipment Damage  Proper operation of this equipment is dependent on correct installation and setup.  Do not modify this equipment or use in a manner for which it is not intended.
  • Page 8 PG L IPS PLUS Series Operation and Maintenance Manual  Canadian installers should review and be familiar with the specific installation re‐ quirements for Isolated Power Systems found in CSA C22.1 ‐ Canadian Electrical Code, Part 1, Section 24 (Patient care areas).

  • Page 9: Backbox Installation

    PG L IPS PLUS Series Operation and Maintenance Manual  Certain Medical‐Grade power strips with loss‐of‐neutral or loss‐of‐ ground sensing circuits  For additional information regarding system compatibility, contact PG LifeLink’s engineering team at +1 800-287-4123 or techsupport@pglifelink.com  Upon completing installation, installer should perform the Contractor Isolated Power System Start‐Up Procedure.
  • Page 10 PG L IPS PLUS Series Operation and Maintenance Manual  A label is affixed inside the back‐ box indicating the correct orienta‐ tion. Be sure to install with the top side facing up so that the interior chassis will align properly when installed.

  • Page 11: Interior Equipment Chassis Installation

    PG L IPS PLUS Series Operation and Maintenance Manual length of for all branch circuit conductor pairs from a single transformer is 500 feet. Avoid unnecessary bends and junctions where possible.  In accordance with NEC 517.13 (A), all branch circuit conduit shall be metallic and “shall itself qualify as and equipment grounding conductor in accordance with [NEC]...

  • Page 12: Isolation Transformer Installation

    PG L IPS PLUS Series Operation and Maintenance Manual Isolation Transformer Installation  While most chassis assemblies include a pre‐wired, low‐profile isolation trans‐ former mounted directly to the chassis assembly, certain model types, including IPD‐P and IPL‐P panels require installa‐...

  • Page 13: Wiring

    PG L IPS PLUS Series Operation and Maintenance Manual Wiring  Isolated Power Systems require a single‐phase, 3‐wire incoming power feed (H,H,G or H,N,G). Verify that the incoming voltage matches the Primary Voltage listed on the isolation transformer as well as the project drawings. Both of the incoming power conductors are connected directly to the line side terminals of the Primary Main Circuit Breaker.
  • Page 14 PG L IPS PLUS Series Operation and Maintenance Manual (typical neutral side) of each NEMA receptacle in the circuit. Brown wires (L2) are connected to the associated lower pole of each breaker and the brass terminal screw (typical hot side) of each receptacle. Consistent polarity should be maintained throughout the installation.
  • Page 15 PG L IPS PLUS Series Operation and Maintenance Manual  Where listed, follow component manufacturer’s specified tightening torque for all circuit breaker and bus lug electrical connections. Where component manufacturer specs are not available, torque all electrical connections according to the values listed in Table 2.

  • Page 16: Front Trim Installation

    PG L IPS PLUS Series Operation and Maintenance Manual Front Trim Installation  A stainless steel front trim assembly is included with each panel. The trim is shipped with a protective film covering the brushed finish surface. Store flat, and fully support trim panel when lifting.
  • Page 17 PG L IPS PLUS Series Operation and Maintenance Manual  Locate the Line Isolation Monitor that was shipped with the panel’s equipment chassis. LIM is packaged in static‐free wrap and located inside a small cardboard box. Install LIM onto LIM...

  • Page 18: Operation

    PG L IPS PLUS Series Operation and Maintenance Manual  Refer to the User Manual for the LIM specific to the panel being installed for detailed information on the proper installation, wiring, operation, and maintenance of the LIM, including any remote annunciators or accessories.

  • Page 19: Troubleshooting

    PG L IPS PLUS Series Operation and Maintenance Manual is normal. 2. The red “HAZARD” and amber “SILENCED” indicators are extinguished. (Excep on: if “Alarm Volume” has been set to “Mute” in the configura on menu, the amber “SILENCED” indicator will be con nuously illuminated) 3.

  • Page 20: Maintenance

    PG L IPS PLUS Series Operation and Maintenance Manual 8. Maintenance PG LifeLink recommends annual testing of all Isolated Power Systems and Line Isola‐ tion Monitors in accordance with the requirements located in NFPA 99 ‐ Health Care Facilities Code. Recommended testing includes: ...

  • Page 21: Revision History

    PG L IPS PLUS Series Operation and Maintenance Manual 9. Revision History Revision Issued Details 07/24/23 Initial release. Notes: Page 21 © 2023 P . ‐ All rights reserved LOVER...
  • Page 22 PG L 167 Gap Way Erlanger, KY 41018 USA 859-283-5900 800-287-4123 techsupport@pglifelink.com www.pglifelink.com The Experts in Isolated Power Systems since 1957...
