Dahua AR DH-AR306-E Installation, Quick Start

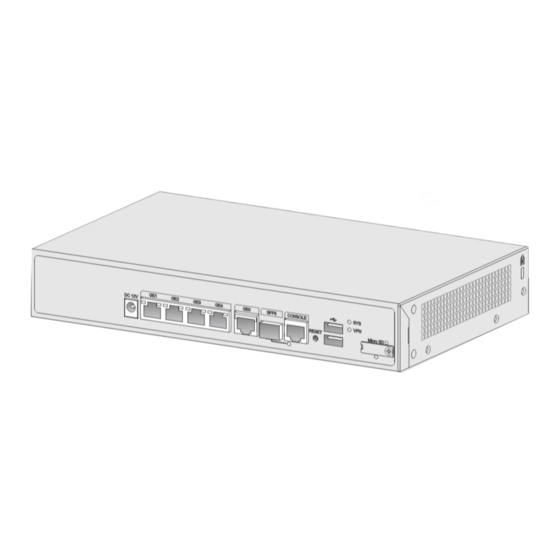

Dahua AR DH-AR306-E Enterprise Router Installation
Quick Start-AP100
Tool list
The installation tools are not provided with the router. Prepare them yourself
as required.
Flathead Phillips Wire-stripping
screwdriver screwdriver
Heat gun Rubber
hammer
Installation accessories
Ring terminal Rubber feet Cage nut
(user supplied)
Wear an ESD wrist strap, and make sure the wrist strap makes good skin
contact and is reliably grounded.
Diagonal ESD wrist
pliers pliers strap
Drill Ruler Marker
Wall anchor and Mounting brackets
screw and screws
(user supplied) (optional)
BOM: 3122A0K9
Wall-mounting the router
•
When you mount the router on a wall, make sure the Ethernet ports face
downwards and the two sides with ventilation holes are perpendicular to
the ground.
•
The screw anchors are compatible with the screws.
≥ 16 mm (0. 63 in)
6 mm ≤ Ф ≤ 8 mm
(0. 24 in ≤ Ф ≤ 0. 31 in)
1
3
3 mm ≤ Ф ≤ 3. 5 mm
(0. 12 in ≤ Ф ≤ 0. 14 in)
2
≥ 22 mm
(0.87 in)
4
≥1.5mm
(0.06 in)
