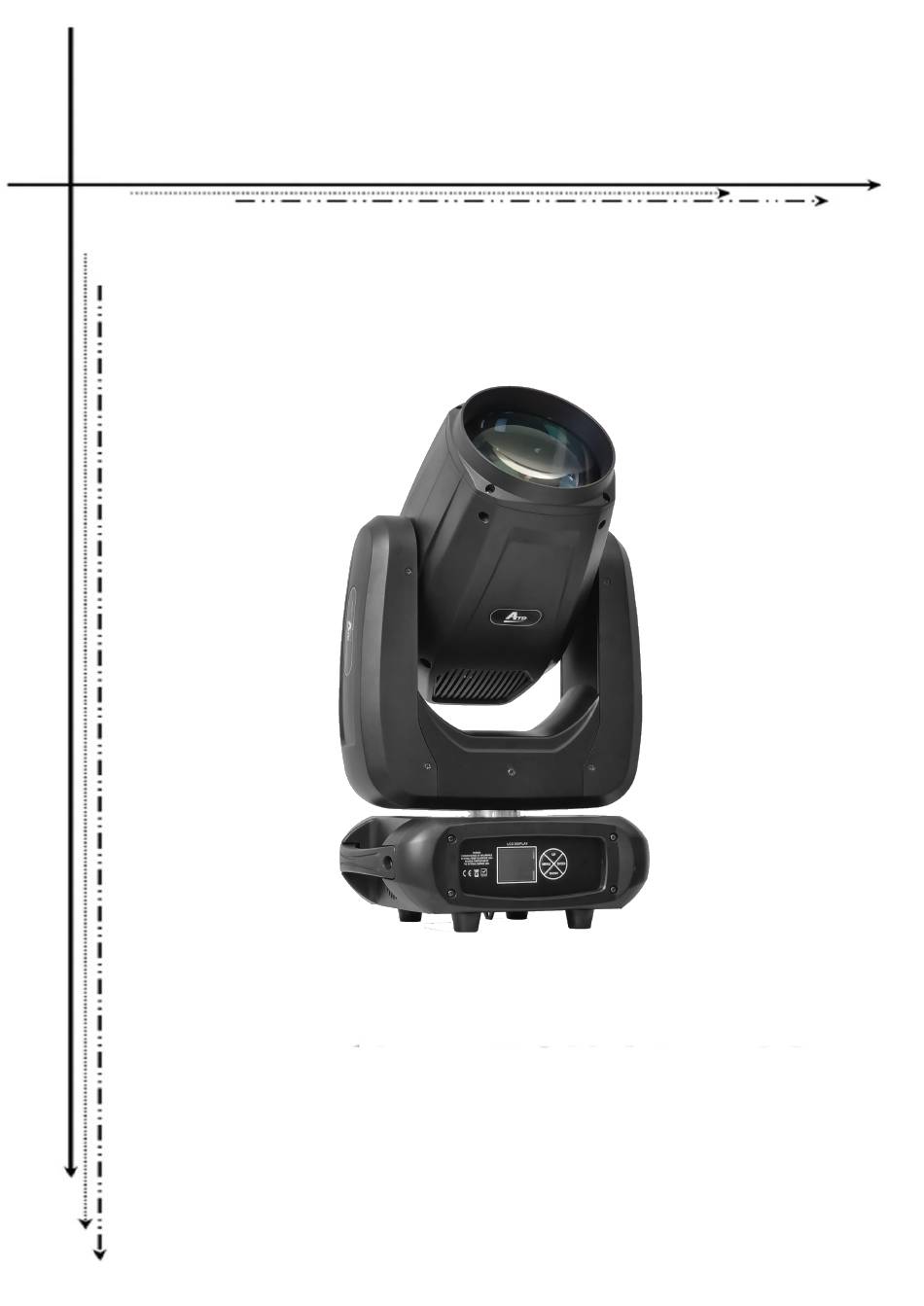

- Page 1 Product manual LED 200 BEAM...
-
Page 2: Security Tips
1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: non-professionals, not to disassemble the light arbitrarily and lighting accessories inside. rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected). - Page 3 2 TECHNOLOGY REFERENCE Input voltage: AC100-240V, 50/60HZ Power Consumption: 300W Light source: 200W white light LED module Average life of the light source: 20,000 + hours Color temperature: 7000-8000K Control mode: master and slave, DMX, manual DMX Channel:12/15 Channels Support for the RDM function, and the DMX software upgrade function Color Wheel:12 colors + white light, with a rainbow effect, can be arbitrarily positioned Gobo Wheel: 1 fixed pattern wheel, 14 patterns + white light hole, Shake...
- Page 4 3 Board Instruction Address(地 001-512 址) DMX512 Auto1(自走 1) RUN(运行) Auto2(自走 2) Sound1(声控 1) Sound2(声控 2) ALL(整灯测试) TEST(测试) Pan&Tilt(X/Y 测试) ON/OFF(开/ Display(屏幕保护) 关) ON/OFF(开/ Filp display(显示翻转) 关) ON/OFF(开/ SET(设置) Disp.setting(显示设置) Key lock(按键锁设置) 关) ON/OFF(开/ Disp flash(显示闪烁设置) 关) Back light(背光亮度) 1-50 Total Fix.
- Page 5 Pan(X 轴) 000-255 Pan Fine(X 轴微调) 000-255 Tilt(Y 轴) 000-255 Tilt Fine(Y 轴微调) 000-255 Speed(速度) 000-255 Dimmer(总调光) 000-255 MANUAL( Strobe(频闪) 000-255 手动) Colour Wheel(颜色盘) 000-255 Gobo Wheel(图案盘) 000-255 Prism1(棱镜 1) 000-255 Prism2(棱镜 2) 000-255 Focus(调焦) 000-255 Reset(复位) 000-255 RESET(复位) All Reset(整机复位) No/Yes(否/是)
-
Page 6: Dmx Channel Sheet
4 DMX CHANNEL SHEET Function Description Value 0-255 Pan Fine 0-255 Pan Fine Tilt 0-255 Tilt Tilt Fine 0-255 Tilt Fine Speed 0-255 Pan/Tilt speed Dimmer 0-255 Intensity 0 to 100% 0-31 Led turn off 32-63 Led turn on 64-95 Strobe effect slow to fast 96-127 Led turn on... - Page 7 145-149 Colour 4 150-154 Colour 5 155-159 Colour 6 160-164 Colour 7 165-169 Colour 8 170-211 Forwards rainbow effect from fast to slow 212-213 No rotation 214-255 Backwards rainbow effect from slow to fast Open/hole Positioning 6-14 Gobo 1 15-23 Gobo 2 24-32 Gobo 3...
- Page 8 114-122 Gobo 4 123-131 Gobo 5 132-140 Gobo 6 141-149 Gobo 7 150-158 Gobo 8 159-167 Gobo 9 168-169 Open/hole Forwards gobo wheel rotation from fast to 170-211 slow 212-213 No rotation Backwards gobo wheel rotation from slow 214-255 to fast 0-11 Open/hole Positioning...
- Page 9 129-141 Gobo 4 142-154 Gobo 5 155-167 Gobo 6 168-169 Open/hole Forwards gobo wheel rotation from fast to 170-211 slow 212-213 No rotation Backwards gobo wheel rotation from slow 214-255 to fast 0－127 Gobo rotation and indexing 128－191 Forwards Gobo rotation from fast to slow Gobo.Rot Wheel 192－193...
- Page 10 80-84 Total reset 85-88 Pan/Tilt reset 89-255 Reserved...
- Page 11 5 FIXED EQUIPMENT Please keep the equipment far away from the flammable objects like finishing material, etc. keep at least 0.5m distance from the flammable objects. Warning: using two lamp clamps fix the equipment on the bottom of the lamp holder according to the instruction. to make sure the place of install the lamp is safe and suitable ,and the installation point that have chosen is safety and reliable.
- Page 12 Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and purchase bills(copy), and enjoy free maintenance service in a specific service center or...
