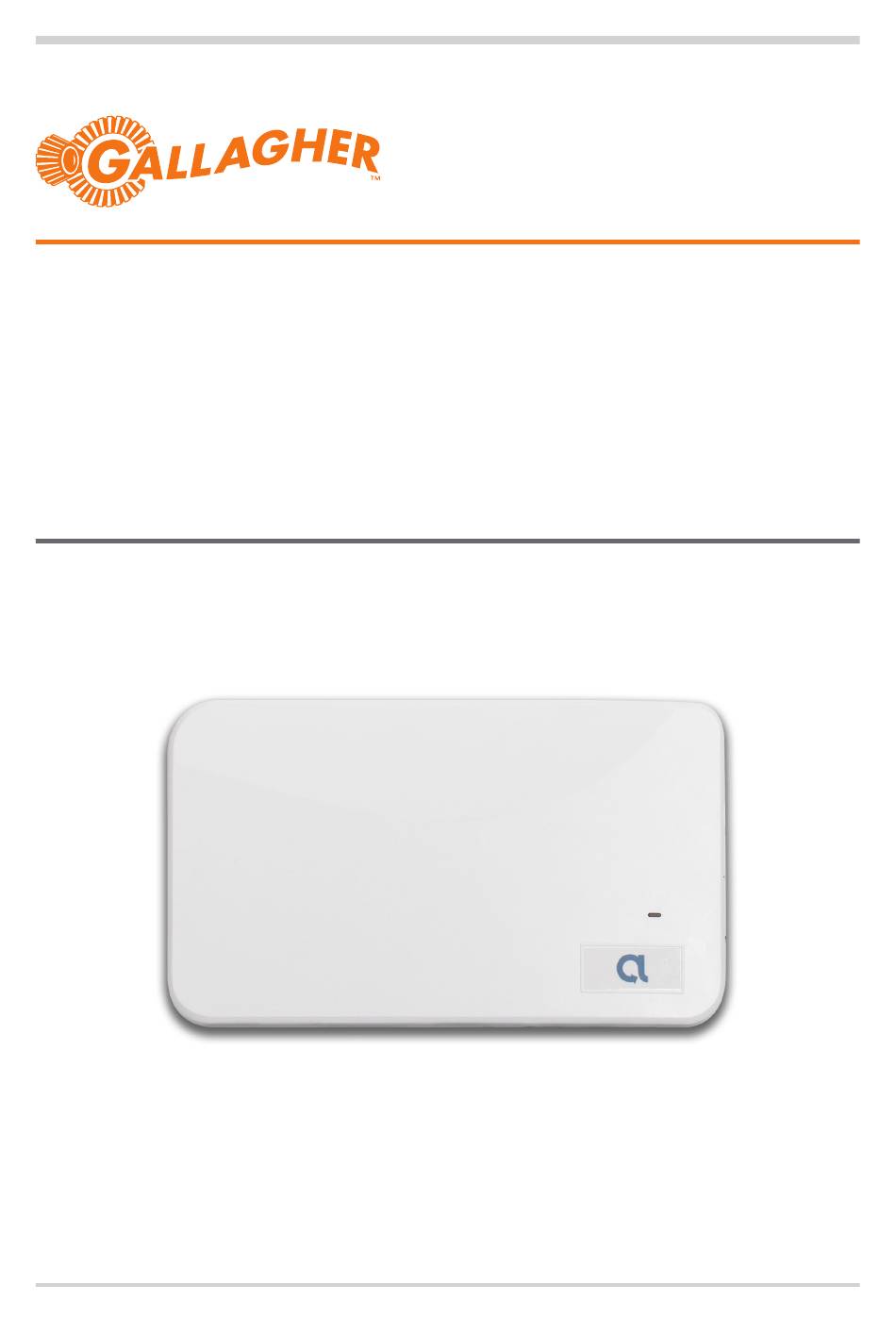

- Page 1 Gallagher SMB Monitoring Kit Installation Note Gallagher SMB Monitoring Kit: C500615 Edition 1 | March 2022...
-
Page 2: Kit Contents

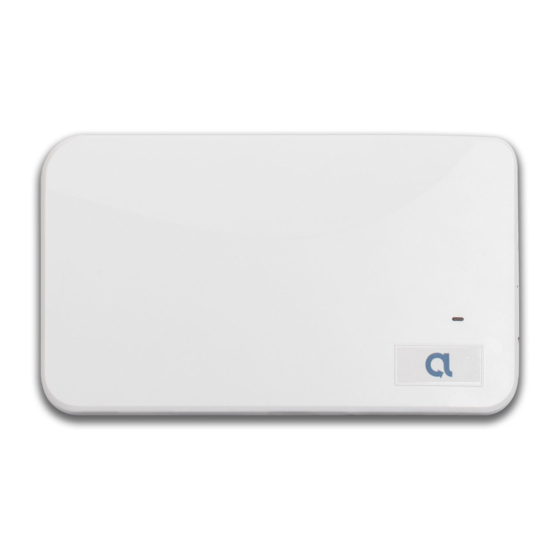

The Alula BAT-Connect is an alarm communicator, transmitting alarms from the Gallagher SMB Controller to a monitoring station using the Contact ID alarms transmission protocol. The Alula BAT-Connect is powered by the Gallagher SMB Kit and provides connection to the site's WAN, cellular, or Wi-Fi. -
Page 3: Wiring Connections
Wiring connections Connect the Alula BAT-Connect as shown. Set jumper JP7 on the D8 Board to position 2. Install the antenna outside the cabinet Alula Antenna PSTN Dialer mounted vertically OUT 5 OUT 6 RS232 PSTN Dialer Alula BAT-Connect IN 16 IN 15 IN 14 IN 13... -
Page 4: Installation
Installation The installation of this kit must be carried out by a Gallagher SMB Partner. Complete the instructions in this document to install the kit. ATTENTION: This equipment contains components that can be damaged by electrostatic discharge. Ensure both you and the equipment are earthed before beginning any servicing. - Page 5 3. Inserting the PSTN Dialer The Gallagher PSTN Dialer is supported by the Gallagher Controller for both Contact ID transmission and remote/PPP dial-up situations. The dialer is housed in the same cabinet as the controller and is mounted on top of the controller via the serial port.
- Page 6 Connecting via Wi-Fi Connecting via WPS 1. Enable WPS on the router. 2. Press and hold the WPS button on the Alula BAT-Connect until the Wi-Fi LED flashes. 3. Unplug the ethernet cable (if used). After approximately 1-2 minutes, the Wi-Fi LED will turn on.
- Page 7 Once the site is activated a notification is sent to the Gallagher USA Customer Services team. If you are new to the AlulaConnect Portal, Gallagher will email you an invite to the AlulaConnect Portal. Once you accept the invite and have completed the registration, you will be able to register the details of the site and the device in the portal.
-
Page 8: Technical Specifications
