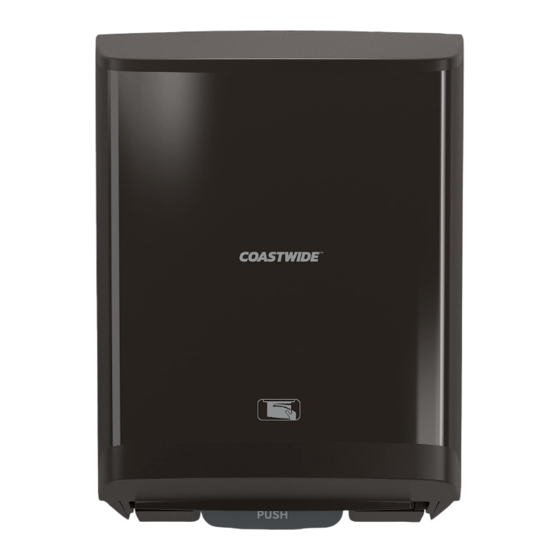

Coastwide Professional J Series Instruction Manual
Automatic roll towel dispenser
Hide thumbs
Also See for J Series:
- Installation manual (8 pages) ,
- Instruction manual (8 pages) ,
- Instruction manual (8 pages)
Related Manuals for Coastwide Professional J Series
Summary of Contents for Coastwide Professional J Series
- Page 1 Automatic Roll Towel Dispenser Instruction Guide J Series Model Number: CWJAHT U-AD108-21-2000 PRODUCT SUPPORT: 1-800-270-9167...
-
Page 2: Product Support
PRODUCT SUPPORT At Coastwide Professional™, we develop, engineer, and test products to detailed specifications. If for any reason a product does not meet your performance requirement, please contact a commercial support representative at 800-270-9167. coastwideprofessional.com REPLACEMENTS PARTS 1-800-270-9167 coastwideprofessional.com Model:... -
Page 3: Loading Instructions
LOADING INSTRUCTIONS 1. Insert key and push down to open cover. 2. If there is an existing partial towel roll, skip to step 6. 3. Place new roll towel in supports with plug. Ensure that the plug is on the right and roll towel is fed over the top. 4. - Page 4 LOADING INSTRUCTIONS (continued) 6. To load a replacement towel roll when there is an existing partial towel roll, lift the transfer bar. Push towel behind wings on the transfer bar. & 7. Press towel behind black tabs on module. Ensure that both sides are under the tabs.
- Page 5 NOTE: Do not press the sheet feed button as this will cause the dispenser to double-feed. 10. Close cover. Ensure the cover is closed by listening for the click. The Coastwide Professional J-Series Automatic Roll Towel Dispenser is ready for use.
-
Page 6: Operational Instructions
OPERATIONAL INSTRUCTIONS 1. Select Control Settings A. MODE: Auto Feed (A) or Motion Detect (M) towel dispense modes. B. DELAY: 0s, 1s or 3s MODE DELAY LENGTH RANGE dispense delay. A - M 0 - 1 - 3 S - M - L S - M - L C.
