Coastwide Professional ExpressMix Instruction Manual

Chemical dispenser
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Safety Precautions
WARNING! This chemical proportioning system should be installed and serviced in accordance with these instructions.
The customer is responsible for con rming that installation and service are performed in compliance with all national
and local plumbing, building and other applicable laws, codes and ordinances. Staples is not responsible for improper
installation nor product failure due to improper installation.
WEAR:
Protective clothing and eyewear when dispensing chemicals or other materials or when working in the vicinity of all chemicals, or
lling or emptying equipment.
ALWAYS:
Observe safety and handling instructions of the chemical manufacturer.
Direct discharge away from you or other persons or into approved containers.
Dispense cleaners and chemicals in accordance with manufacturer's instructions. Exercise CAUTION when maintaining your
equipment.
Reassemble equipment according to instruction procedures. Be sure all components are rmly screwed or latched into position.
KEEP:
Equipment clean to maintain proper operation.
ATTACH:
Only to water tap outlets (25 PSI Minimum, 85 PSI Maximum and Maximum water temperature 120°F).
NOTE:
If the unit is used to ll a sink or the discharge hose can be placed into a sink, the unit must be mounted so that the bottom of the
cabinet is above the over ow rim of the sink.
Introduction
Package Contents
1) ExpressMix
Wall Mount Dispenser
™
2) Wall Bracket
3) Mounting Hardware
Tools Needed
1) Drill and 5/16" Drill Bit
2) Screwdriver
Installation and Operation
Installation
1.

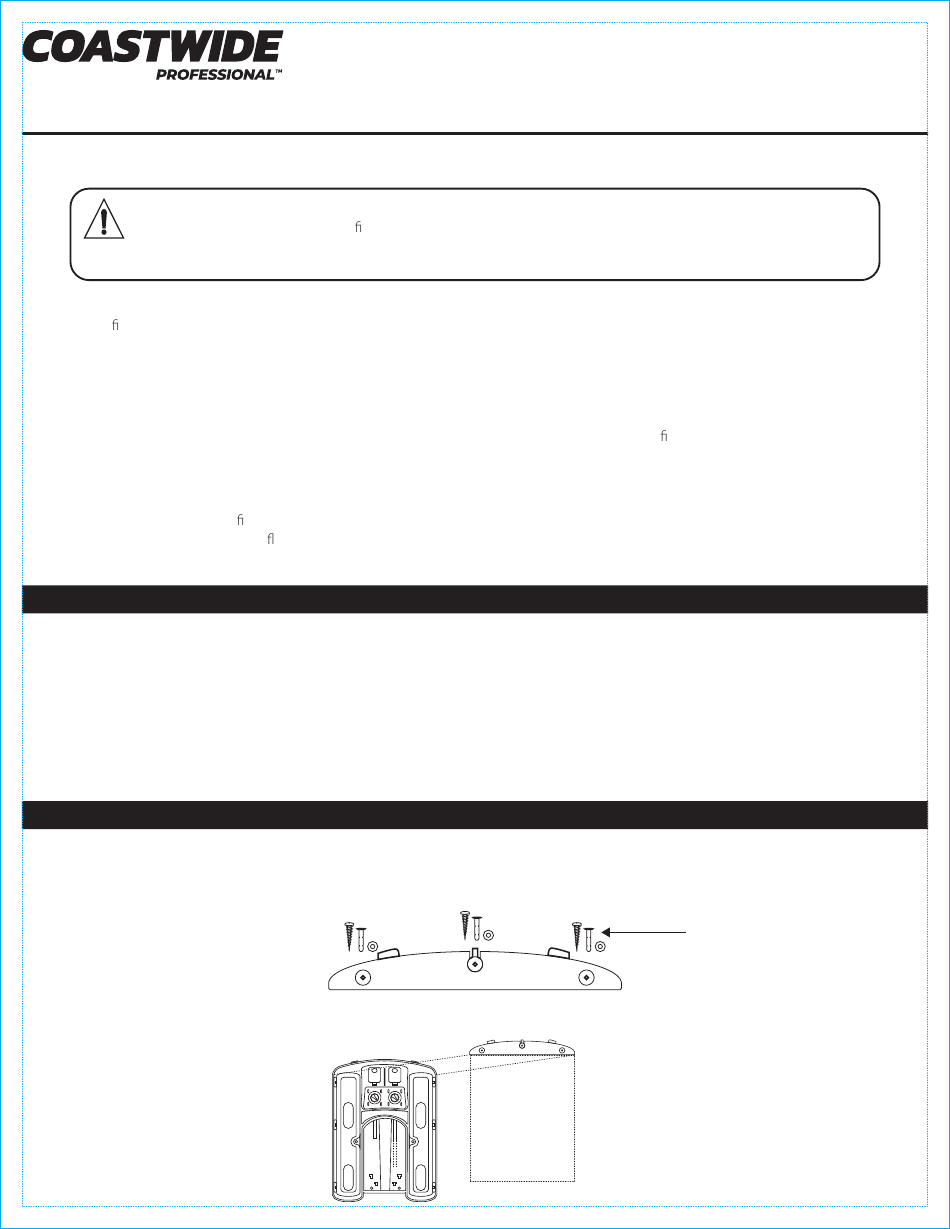

Find suitable place close to a water source for dispenser. Remove wall bracket from packaging, place level on wall and mark (3) mounting
holes. Drill (3) 5/16" holes and install anchors in wall. Secure wall bracket to wall with screws and washers provided.
2.
Place the dispenser onto the wall bracket aligning the tabs with the slots in the top of the dispenser. Also ensure the central snap on top of
the wall bracket engages the dispenser.
4) Drip Tray
5) Keys
3) Level
4) Hammer
ExpressMix
™
Chemical Dispenser
Instruction Manual
Screws, Washers, and
Drywall Anchors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExpressMix and is the answer not in the manual?

Questions and answers

Related Manuals for Coastwide Professional ExpressMix

Summary of Contents for Coastwide Professional ExpressMix

  • Page 1 If the unit is used to ll a sink or the discharge hose can be placed into a sink, the unit must be mounted so that the bottom of the cabinet is above the over ow rim of the sink. Introduction Package Contents 1) ExpressMix Wall Mount Dispenser 4) Drip Tray ™...

  • Page 2: Operation

    Screw the orange cap tightly onto the top of the chemical bottle and slide into the dispenser. NOTE: ExpressMix chemicals have a orange insert to ensure proper dispensing. Dilution tips are in the ExpressMix chemical bottle and do not need to be installed in the dispenser.

  • Page 3: Parts Diagram

    HYD90099770 Medallion, ExpressMix HYD10088822 Bottle ll discharge tube with ooding ring (8") HYD90099768 Cabinet, ExpressMix, dark grey HYD90048495 Bucket ll discharge tube with ooding ring (4') HYD10098403 Drip tray, dark grey HYD10080730 Hose hook dark grey for bucket ll discharge tube...

  • Page 4: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Maintenance If maintenance is required, remove the dispenser cover by pushing inward on the two snaps and rotating upward. The snaps are located inside the top quadrants and can be accessed by unlocking and opening the dispenser doors. To replace the dispenser cover, insert the upper tabs into the dispenser slots and swing down to engage lower snap tabs.

  • Page 5: Instalación

    Si la unidad se usa para llenar un fregadero o la manguera de descarga se puede poner en un fregadero, la unidad se debe montar de modo que la parte inferior del gabinete esté por encima del borde de rebosamiento del fregadero. Introducción Contenido del paquete 1) Dosi cador de pared ExpressMix 4) Charola de goteo ™ 2) Soporte para pared 5) Llaves 3) Tornillería de montaje...

  • Page 6: Operación

    Atornille la tapa naranja y apriétela bien sobre la parte superior de la botella de producto químico y deslícela dentro del dosi cador. NOTA: los productos químicos de ExpressMix tienen un inserto de color naranja para garantizar que se dosi quen correctamente. Las Conecte puntas de dilución están en la botella de productos químicos...

  • Page 7: Diagrama De Piezas

    HYD90099770 Medallón, ExpressMix HYD10088822 Tubo de descarga de llenado de botella con anillo de inundación (8") HYD90099768 Gabinete, ExpressMix, gris oscuro HYD90048495 Tubo de descarga de llenado de cubeta con anillo de HYD10098403 Charola de goteo, gris oscuro inundación (4')

  • Page 8: Mantenimiento Y Solución De Problemas

    Mantenimiento y solución de problemas Mantenimiento Si se requiere mantenimiento, retire la tapa del dosi cador; para hacerlo, empuje hacia adentro en los dos sujetadores y gire hacia arriba. Los sujetadores se encuentran en el interior de los cuadrantes superiores y se puede tener acceso a ellos al desbloquear y abrir las puertas del dosi cador.
