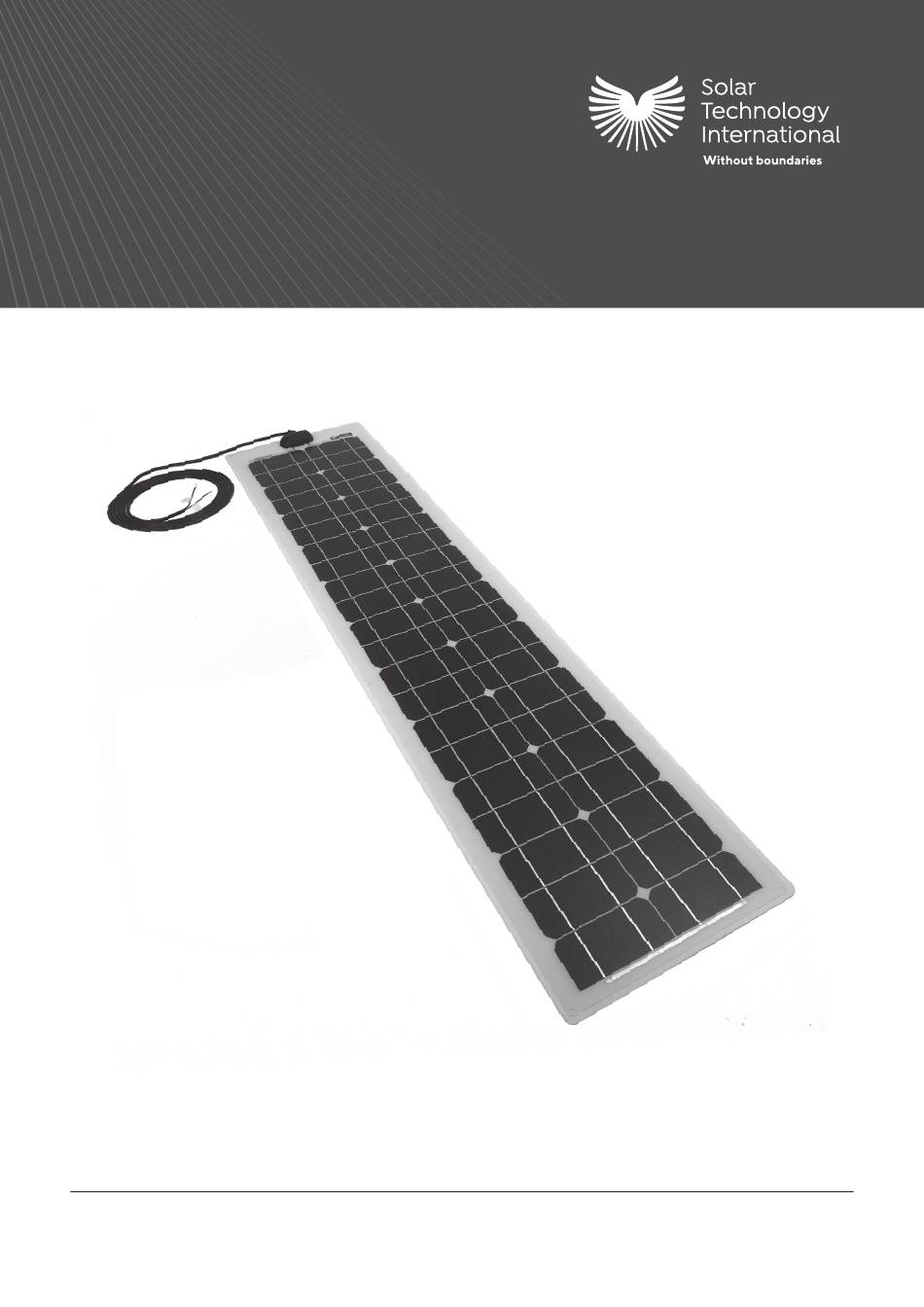

- Page 1 PV Logic ® Flexi User manual Semi-Flexible Solar Panels 5wp/10wp/20wp/55wp/60wp/80wp Important: please read before first use. Technical helpline 01684 774 000...
- Page 2 PV Logic Flexi kit contents Special note The PV Logic MHD Flexi range Letters after item descriptions refer to the picture below. of panels are NOT highly flexible. They are designed to fit flush to a STPVF005 - 5wp Solar Kit STPVF055ET - 55wp Solar Kit surface with a curve of no greater 1 x 5wp Flexi PV panel with 4m pre-wired cable (a) 1 x 55wp Flexi PV panel with 4m pre-wired cable (a) than 3 degrees or 3cm per 1m 1 x Fuseholder and fuse (b) 1 x Fuseholder and fuse (b) panel length. 2 x Croc clips – not shown Therefore, when handling the STPVF055ETMA - 55wp Solar Kit panel during delivery, storage and STPVFRT005 - 5wp Complete Solar including Charge Controller prior to installation please be very Roof / Deck Top Kit As STPVF055 above but including: careful not to allow the panel to...
- Page 3 Please read all instructions carefully before work begins. Please refer to circuit diagram and at all times observe correct polarity; POSITIVE = RED (or brown) cable; NEGATIVE = BLACK (or blue) cable. Note – we recommend a Solar Technology 10Ah or 20Ah charge controller is added to any system (if not included in this kit), unless the 10wp (STPVF010) panel has been purchased in which case this can be connected direct to the battery terminals (unless the battery has a smaller capacity than 70Ah, in which case a Charge Controller must be used). The STPVF010 is fitted with a reverse feed diode in the junction box and this prevents battery drain when the panel is used without a charge controller. Step 1: Positioning the Flexi panel(s) Step 3: Fix the cable feed gland (only for roof top kits) 3.1 If a roof top kit containing two Flexi panels has been selected a 1.1 Select a location that is generally free from shade, has a solid double cable feed gland has been supplied where two cables can fit...
- Page 4 6.4 If a second battery is being connected to the solar system see the BLACK or BLUE = NEGATIVE (–) instructions contained within the charge controller. NOTE: RED = POSITIVE (+) BLACK = NEGATIVE (–) Step 7: Testing the system 7.1 Testing can also be completed with a digital volt meter. Solar Technology International can supply special test instructions if required – please email hello@solartechnology.co.uk Warranty PV Logic flexi solar panels are supplied with a two year panel build warranty from the date of purchase from Solar Technology International. This guarantees the panel from mechanical failure and water ingress during this period. The warranty is void if the outer layers, or edges, of the panel have been penetrated, damaged or cracked or the recommended handling, storage, installation and care procedures have not been followed. The warranty is also invalidated if the panel has been abused, or not used for the purpose intended. The manufacturer nor any of its employees, agents, distributors or resellers are liable for any third-party damage howsoever caused. The extent to which the manufacturer is liable to a customer is limited to the purchase price paid by the customer for the product. We will not accept any costs associated with the return of faulty product. Solar Technology International Limited Unit 6, Station drive, Bredon, Tewkesbury GL20 7HH...
