Monarch 295SEPA1K Quick Start Manual

MONARCH 295SEPA1K
Community
Controls
Thank you for choosing a Community Controls product.
Please read this manual carefully before using the product.
Made in Italy . Copyright © 2006 by Community Controls.
CONTENTS
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
1C - Main components
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
The Community Controls - Monarch 295SEPA1K transmitter is a key
chain style mini transmitter operating at 295 MHz. It has been designed
for use with programmable telephone entry, security, and access control
systems operating with a 295 MHz frequency receiver .
The protocol is AUTOkey compatible and the code sent by the
transmitter includes a 24 bit security code which allows up to
16,777,216 code combinations.
The Community Controls - 295R receiver which operates with this
transmitter has a Wiegand 33 bit and can operate any type of access
control system equipped with the same protocol. The CR 2016 lithium
batteries of the transmitter have a shelf life of about 6 months. The
product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE , 89/336/CEE , 73/23/CEE .
1B - Technical specifications
Operating frequency
Number of keys:
Battery :
Battery life:
Number combinations :
Protocol :
Operating temperature:
Overall dimensions:
W eight:

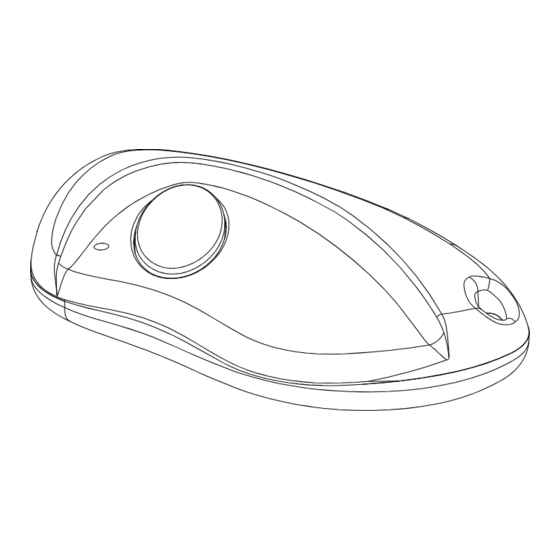

1C - Main components
Red
LED
Dark grey
case
Fig. 2
295 MHz
1
2 x 3V lithium batteries CR2016
18 ÷ 24 months
16,777,216
AUTOkey compatible
-20°F÷+131°F (-20°C÷+55°C)
2.4"x1.4"x0.51" (61x36x13 mm)
0.49 oz. (14 gr .)
Light grey
push-button
Key ring
holder
