Monarch 418ELPW2KC Manual

418ELPW2KC MONARCH
Community
Community
Controls®
Controls
Thank you for choosing a
Please read this manual carefully before using the product.
Made in Italy . Copyright
CONTENTS
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
1C - Main components
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information

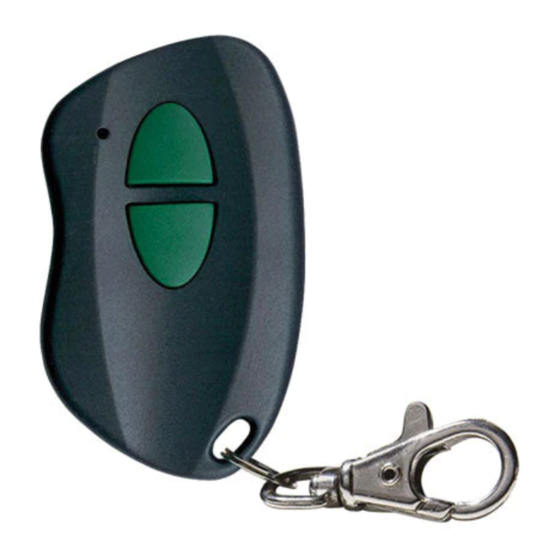

The Monarch 418ELPW2KC transmitter is a 2-
Community Controls®
key chain style mini transmitter operating at 418 MHz. It has been
designed for use with programmable telephone entry, security, and
access control systems operating with a 418 MHz frequency receiver.
The code sent by the transmitter includes a 16 bit security code which
allows up to 65,536 code combinations and 8 bits of facility code which
allows up to 256 facility codes .
with Patented
ChargeGuard
Circuit
Community Controls® product. Community Controls product .
© 2013 by Community Controls®.
The Community Controls® The
transmitter has a W iegand 26 bit output and can operate any type of
access control system equipped with the same protocol. The CR 2016
lithium batteries of the transmitter have a shelf life of about 6 months.
The product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE , 89/336/CEE , 73/23/CEE .
®
1B - Technical specifications
Operating frequency
Number of keys:
Battery :
Battery life:
Number combinations :
Protocol :
Different F acilities codes
Operating temperature:
Overall dimensions:
W eight:

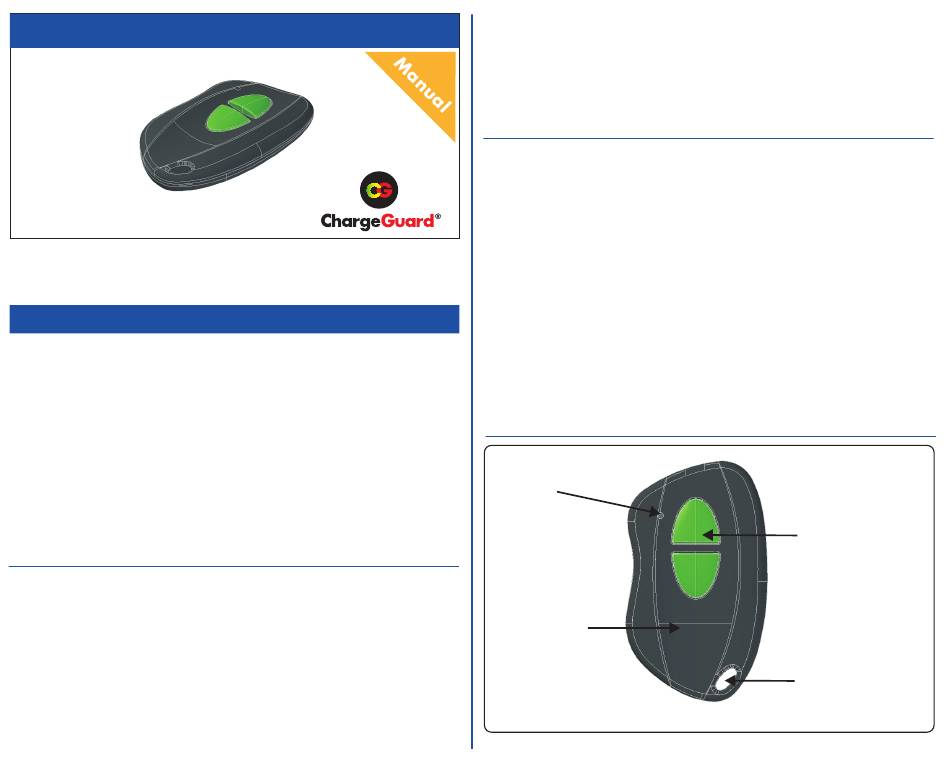

1C - Main components
Red
LED
Dark grey
case
Fig. 2
- 418R receiver which operates with this
418 MHz
2
2 x 3V lithium batteries CR2016
18 ÷ 24 months
65,536
Elite compatible
256
-20°F÷+131°F (-20°C÷+55°C)
2.4"x1.4"x0.51" (61x36x13 mm)
0.49 oz. (14 gr .)
Green
push-button
Key ring
holder
