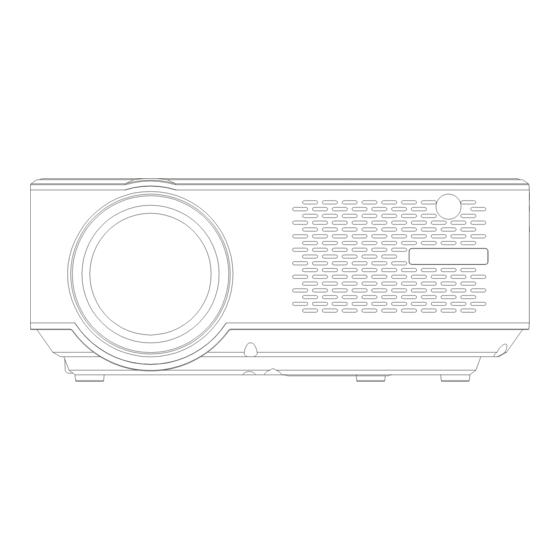

STREX
LED PROJECTOR
Instruction manual SP212
Thanks for choosing Strex! Read the manual carefully, for
correct and safe operation of the product. Always follow
these instructions for safe usage.
If you have any questions about the product or encounter
problems,you can contact us by email: info@strex.nl
English
Nederlands
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for strex SP212
Summary of Contents for strex SP212
- Page 1 STREX LED PROJECTOR Instruction manual SP212 Thanks for choosing Strex! Read the manual carefully, for correct and safe operation of the product. Always follow these instructions for safe usage. English If you have any questions about the product or encounter problems,you can contact us by email: info@strex.nl...
- Page 2 SAFETY PRECAUTIONS Read these safety instructions before using your device and store them for possible future reference. If the cord is damaged, have it repaired by the manufacturer, it’s service or a similarly qualified person in order to avoid any hazard. ...
-
Page 3: Table Of Contents
ACCESSORIES Only use batteries, chargers and other accessories which are compatible with this equipment. Do not connect incompatible products. CONTENTS ► VISUAL INSTRUCTIONS..................03 • Top View........................03 • Bottom View........................ 04 • Side View........................05 • Rear View........................06 • Remote Control......................07 ►... -
Page 4: Visual Instructions
► VISUAL INSTRUCTIONS • Top View Control Panel Keystone Correction knob Manual Focus The content of this manual are subject to change without notice - 3 -... -
Page 5: Bottom View
• Control Panel Power / Return Indicator Light Menu / Up Right / Volume - Left / Volume + OK Button ( Select/confirm/enter) Source / Down • Bottom View Support Base thread ❷ ❶ ❶❷ -- For Ceiling Mount The content of this manual are subject to change without notice - 4 -... -
Page 6: Side View
Remark: The adjustable support base can assure the max projection angle by 15°, The best display effect will be obtained by projection angle ranges of 0° - 8°. • Front View IR Receiver Lens • Side View A. Left Side Power cable Socket The content of this manual are subject to change without notice - 5 -... -
Page 7: Rear View
B. Right Side ❶ ❷ ❹ ❸ ❺ ❿ • Rear View ❻ ❼ ❾ ❶ AV Input ❷ Headphone Output ( 3.5mm ) ❸ HDMI 1 Input ❹ HDMI 2 Input ❺ USB ( 2.0 ) Input x 2 ❻... -
Page 8: Remote Control
• Remote Control Power Button Mute Forward Backward Home / Play Arrow Keys Enter Menu Source Return Voice - Voice + Note: While using the remote control, point it toward IR receiver. Installation And Mounting Before using your device, select an appropriate spot for the projector, Brightness of the room is crucial to quality of the image projected, Reduce the external brightness Follow instructions and hints below for optimum usage. -
Page 9: Projection Distance And Size
► Projection Distance and Size 120˝ 100˝ 72˝ 50˝ ( Aspect Ratio: 16 : 9, Default ) Please follow the data in chart below, to adjust the image size and the distance. Distance provided is measured from lens to projected surface. Projection size 50 inch 72 inch... -
Page 10: How To Use
► How to Use ① Before starting up the projector. Follow figure below to adjust trapezoid correction. Keep the projector vertical with projector screen and keep it on the same level. ． ｀ For Ceiling Mount : Select display image rotation, options available are : front (on desk), rear, front / ceiling, rear / ceiling, see picture below: Before that. -
Page 11: Before Starting
② Connect the power plug as following picture, connect with the electricity, The indicator light will turn to red. Note: Pictures are only for your reference, different countries got different power plug, please contact your supplier for more details, better connect the projector first. -
Page 12: Power Button
Connect the power cable to the projector and into the power supply socket, the ③ indicator light will turn red, then the projector is in standby mode, take off the lens cover. Press the “ power ” button ( ) on the control panel or remote control to turn on the projector. -
Page 13: Keystone And Focus
④ Keystone and Focus Keystone Correction Manual Focus A. If the projected image is in a trapezoidal shape, it can be resolved by Keystone correction. ( Do Manual Keystone Correction ) Note: If the Keystone correction fail to resolve image shape, please reduce the vertical height of the projector in relation to the center of the screen. -
Page 14: Multimedia Connection
⑤ Multimedia Connection: A. Insert the USB flash driver into the USB port and choose the right signal source, then press Play / Pause button ( ) to display or stop. ( Press “ Source” on the remote control or “ S” on the control panel, then there is “... -
Page 15: Multimedia File Specification
► Multimedia File Specification Image Format Support File Extension JEPG, PNG, BMP .jpg / .png / .bmp Audio Format Support File Extension MPEG1, MPEG2, LPCM, MP3 .avi / .ts / .dat / .vob / .wmv / .mkv / .mp3 / .mp4 / .m4a Doesn’t Support : Dolby AC3 / AAC, DTS, WMA, DivX, VC1, RM, RMVB, FLV, etc Video Format ( Bit Rate up to 30~40 Mbs ) - Page 16 B. HDMI Connection Support most device with HDMI slot. Press "Source" on the remote control, then choose the right signal source “ HDMI “. Support the Devices which have HDMI Port ( Eg: Laptop. DVD Player, Computer , etc. ) The content of this manual are subject to change without notice - 15 -...
- Page 17 C. AV Connection Use AV cable for connecting as follows, choose the “AV” source input. D. Audio Out Connection User can connect the projector to an external speaker or headphones via headphone jack. The content of this manual are subject to change without notice - 16 -...
- Page 18 E. MHL Function Only for MHL compatible devices The content of this manual are subject to change without notice - 17 -...
- Page 19 F. Use Lighting Digital AV Adapter. Support iPhone, iPad, Choose Input Source “HDMI”. The content of this manual are subject to change without notice - 18 -...
-
Page 20: Accessories List
► ACCESSORIES LIST While unpacking the package, please check and confirm all the accessories are accounted for. Note: Pictures only for your reference, different countries got different power plug, please contact your supplier for more details. The content of this manual are subject to change without notice - 19 -... -
Page 21: Warranty Card
► WARRANTY CARD Thank you for purchasing our product ! Please read our warranty policy listed below: ① Projector by product Manual under normal working conditions for the use of, we provide you with a one-year warranty service. (Projector lamp is 6 months warranty) . - Page 22 For permission requests at the address below. STREX SBD Trading B.V. (Strex Europe) Noorwegenstraat 6-A4 7418BC Deventer The Netherlands info@strex.nl ●...
