: Pushbutton +2 Hotel indicators 230V
14097

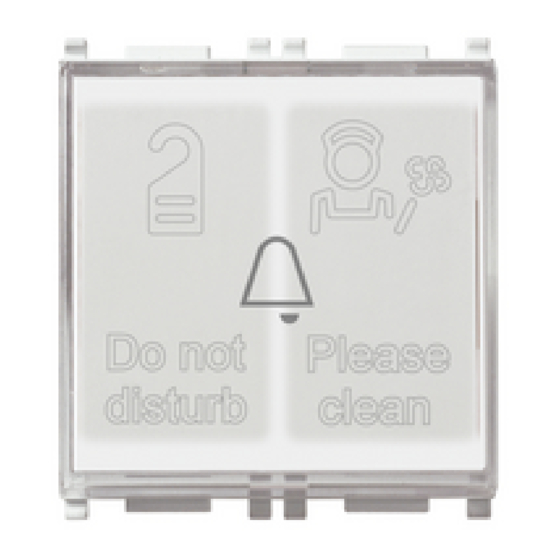

Pushbutton +2 Hotel indicators 230V
1P NO 10 A 250 V~ push button for hotel sector, 2 indicator units Do Not
Disturb / Please Clean, white - 2 modules
Product Status
3 - Active
Minimum order quantity
10 NR
Drawings
Space view
Technical data
Class group: Domestic switching devices
Class: Push button
Assembly arrangement: Modular device for domestic switching devices
Model: Single push button
Method of operation: Push button
Number of rockers: 1
Number of modules (module system): 200
Number of poles: 1
Nominal voltage: 250 V
Rated current: 10,00 A
With lighting: Yes
Feedback-signal contact: No
Mounting method: Flush-mounted
Backside view
3D View
Type of fastening: Engage (snap)
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Surface finishing: Glossy
Colour: White
RAL-number (similar): 9003
Transparent: No
Label space/information surface: Yes
Suitable for degree of protection (IP): IP40
Device width: 44,80 mm
Device height: 49,00 mm
Device depth: 37,50 mm
