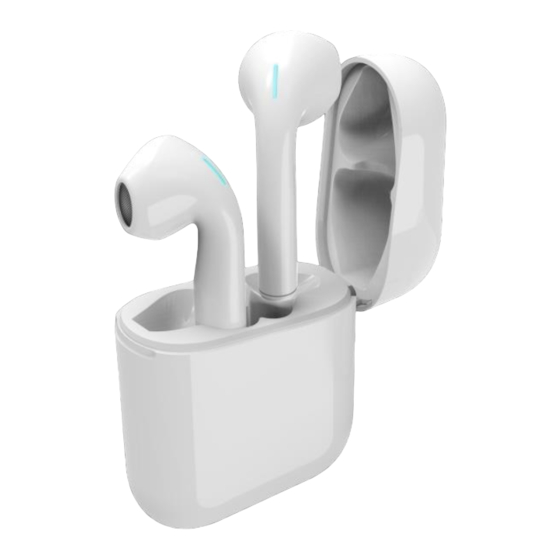

MS07 True Wireless Stereo Earphone
Basic Specifications & User Manual
---Touch Version 20190928
Earphone Basic Specifications
■Size: single-earphone
41x18.3x15.8
mm
■Weight: 3.9g（single-earphone）
■Charging port: magnetic type
■Keys: 1 (MFB touch button)
■Charge indicator: Blue LED light (Charging) / light off (Charging completed)
■Battery :Lithium-ion Polymer rechargeable battery, 50220 , 24mAh
■TWS Earphone Charging Current:30mA
■ Earphone Charging time: 1.5 hours
■Working Voltage: 3.3V~4.2V
■Standby time: about 40 hours
■ Battery and Power
■ Earphone with Charging case:
Music Time:16 hours
Talking Time:16 hours
■ Earphone(single charge):
Music Time:4 hours
Talking Time:4 hours
※ Working time of main earphone in the state of two earphones:＜4 Hours
■ Bluetooth version: Bluetooth 5.0
■Bluetooth chip: AC6932A
■ Support Profile: HSP, HFP, A2DP, AVRCP
1 / 5
Advertisement
Table of Contents
Related Manuals for Mees MS07
Summary of Contents for Mees MS07

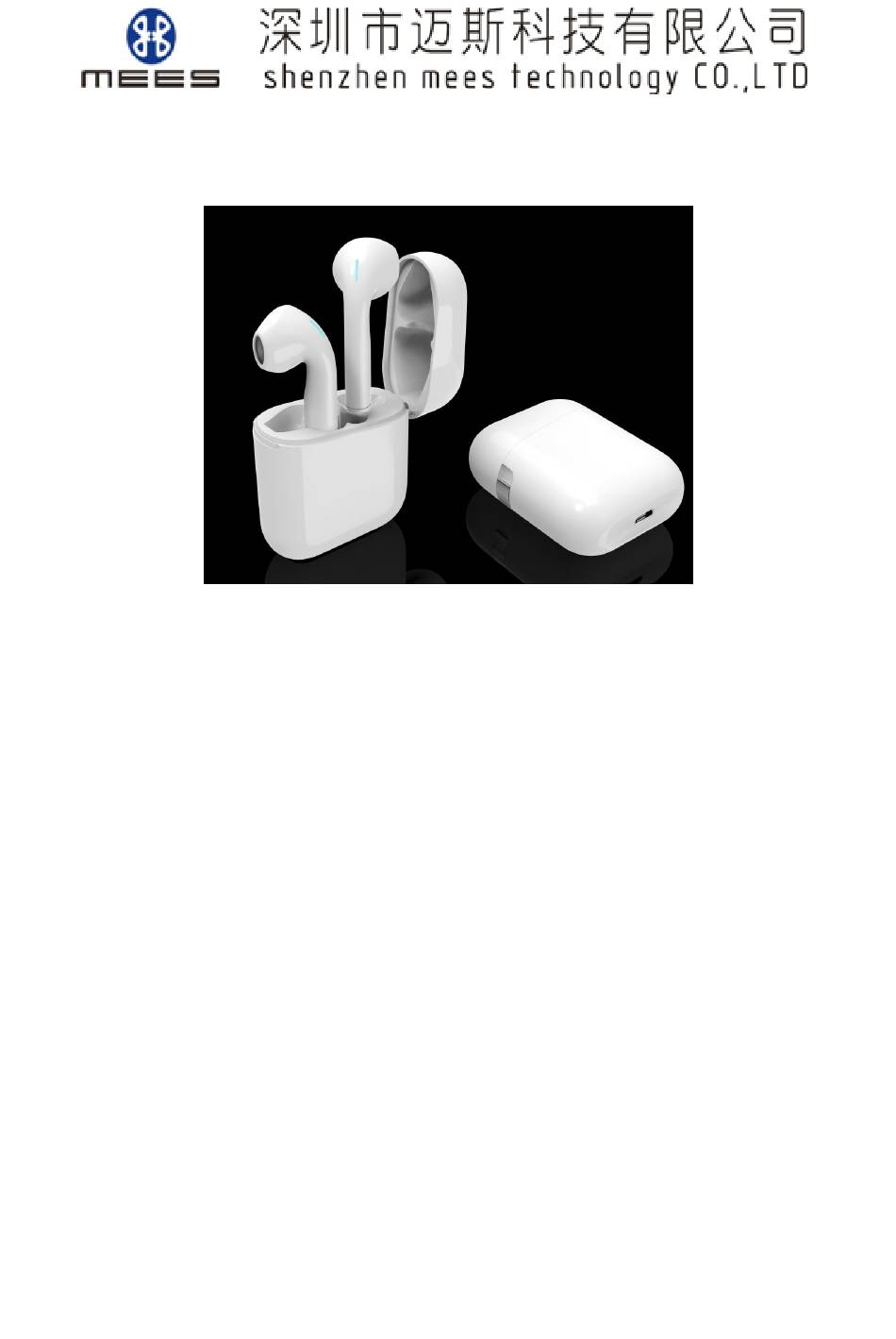

- Page 1 MS07 True Wireless Stereo Earphone Basic Specifications & User Manual ---Touch Version 20190928 Earphone Basic Specifications ■Size: single-earphone 41x18.3x15.8 ■Weight: 3.9g（single-earphone） ■Charging port: magnetic type ■Keys: 1 (MFB touch button) ■Charge indicator: Blue LED light (Charging) / light off (Charging completed) ■Battery :Lithium-ion Polymer rechargeable battery, 50220 , 24mAh...
- Page 2 ■ The remote control to speaker: MFB (Play/Pause/Stop);Vol+/ Next song, Vol-/ Previous song ■ Paring name: MS07 ■ Pass: 0000 ■ RF transmit: class 2 ■RF input impedance: 50ohm ■RF Emissive Power: 4 dBm ■ Receive sensitivity: -89dBm ■ Transmission Range (Hz): 2.40GHz ~ 2.48GHz ■...
- Page 3 1. Both earphones in the charging case(earphones connected automatically in the case),open the charging case,earphones enter into pairing mode; with “Connected” 2. Activate Bluetooth connection on your device and select MS07, after successfully connected; Music and calls Left earphone (L)
- Page 4 Charging Flashing blue light Full charge Light off Pairing Blink blue light Charging the case Connect an adapter with 5V output voltage (compatible) with a Micro USB cable. Case status lights Charging Flashing blue light Full charge Steady blue light Notes: It will turn off automatically after 5 minutes if without any connection with mobile phone when it turns on.
- Page 5 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
